Eaton

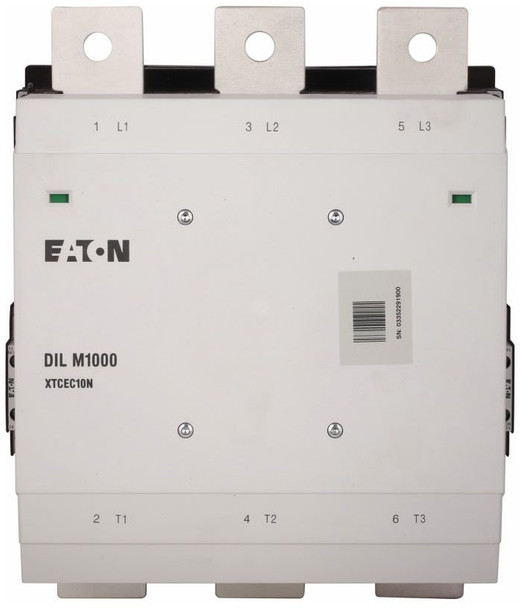

Eaton XTCEC10N22A IEC CONTACTOR UL, CSA, CE Iec Contactor
- MPN:
- XTCEC10N22A
- UPC:
- 4015082672140
- SKU:
- S06-1539
Product Conditions
Surplus
Parts from another distributor or wholesaler that were only removed from the original packaging for inspection and pictures. These parts have never been energized, installed, or modified in any way.
Used
Parts that show any sign of being energized, installed, assembled with other parts, or functional wear or corrosion. These parts are sold as-is and returns may not be accepted.
Repackaged
Parts from another distributor or wholesaler that are missing the original packaging. These parts have never been energized, installed, or modified in any way and will ship in an ARCA box.
Description
SKU: S06-1539
Brand: Eaton
MPN: XTCEC10N22A
UPC: 4015082672140
Shipping Weight: 38.60 lbs.
Shipping Height: 13.00 In.
Shipping Length: 13.00 In.
Shipping Width: 12.00 In.
Product Notes:
Long Description: Eaton XTCEC10N22A Other Contactors
Specifications
Poles: |
3 |
Volts: |
250 V |
Amps: |
1000 A |
Type: |
IEC CONTACTOR |
Frame Type: |
N |
Size: |
250mm |
TS PIK: |
125233023 |
Approval: |
UL, CSA, CE |
Coil Voltage: |
110 to 250 VAC at 40 to 60 Hertz/110 to 250 VDC |
Number of Poles: |
3 |
Auxiliary Contact: |
2NO-2NC |
Catalog: |
|
Construction Standard: |
IEC |
Enclosure: |
IP00 |
Mounting: |
Panel/DIN Rail |
Current Rating: |
1000 A (AC-3) |
Power Rating/Voltage: |
315 kwatt at 220/230 V, 560 kwatt at 380/400 V, 1000 kwatt at 660/690 V, 1100 kwatt at 1000 V (AC-3 3-Phase 50/60 Hertz), 260 kwatt at 220/230 V, 450 kwatt at 380/400 V, 780 kwatt at 660/690 V, 1000 kwatt at 1000 V (AC-4 3-Phase 50/60 Hertz) |
CAD Drawings: |
|
Data Sheet: |
|
Country of Origin: |
France |
Series: |
XT |
