GE

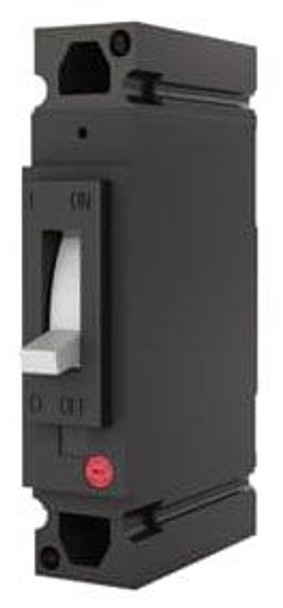

GE TJD422400WL Molded Case Breakers (MCCBs)
- MPN:
- TJD422400WL
- UPC:
- 78316404921
- SKU:
- C15-14478
Product Conditions
Surplus
Parts from another distributor or wholesaler that were only removed from the original packaging for inspection and pictures. These parts have never been energized, installed, or modified in any way.
Used
Parts that show any sign of being energized, installed, assembled with other parts, or functional wear or corrosion. These parts are sold as-is and returns may not be accepted.
Repackaged
Parts from another distributor or wholesaler that are missing the original packaging. These parts have never been energized, installed, or modified in any way and will ship in an ARCA box.
Description
SKU: C15-14478
Brand: GE
MPN: TJD422400WL
UPC: 78316404921
Shipping Weight: 0.00 lbs.
Shipping Height: 0.00 In.
Shipping Length: 0.00 In.
Shipping Width: 0.00 In.
Product Notes:
Long Description: GE TJD422400WL Molded Case Breakers (MCCBs)
Specifications
Series: |
TJD |
Number of Poles: |
2 |
Interrupting Rating: |
22 kA at 120/240 VAC, 10 kA at 250 VDC |
Frame Type: |
TJD |
Current Rating: |
400 A |
Voltage Rating: |
240 V |
Catalog: |
|
Maximum AC Voltage Rating: |
240 V |
Maximum DC Voltage Rating: |
250 V |
Approval: |
UL |
Type: |
Molded Case, Thermal Magnetic, Internal Common Trip |
Size: |
8-1/4 Inch W x 3-13/16 Inch D x 10-1/8 Inch H |
Terminal Type: |
Copper/Aluminum Line and Load Lug |
CAD Drawings: |
