Square D

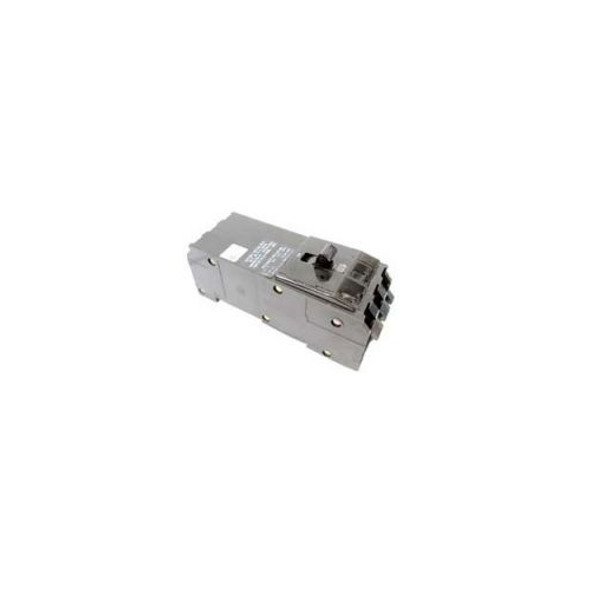

Square D BDA24080Y1 Molded Case Breakers (MCCBs)
- MPN:
- BDA24080Y1
- SKU:
- C15-15450
Product Conditions
Surplus
Parts from another distributor or wholesaler that were only removed from the original packaging for inspection and pictures. These parts have never been energized, installed, or modified in any way.
Used
Parts that show any sign of being energized, installed, assembled with other parts, or functional wear or corrosion. These parts are sold as-is and returns may not be accepted.
Repackaged
Parts from another distributor or wholesaler that are missing the original packaging. These parts have never been energized, installed, or modified in any way and will ship in an ARCA box.
Description
SKU: C15-15450
Brand: Square D
MPN: BDA24080Y1
UPC:
Shipping Weight: 0.00 lbs.
Shipping Height: 0.00 In.
Shipping Length: 0.00 In.
Shipping Width: 0.00 In.
Product Notes:
Long Description: Square D BDA24080Y1 Molded Case Breakers (MCCBs)
Specifications
Current Rating: |
80 A |
Frame Type: |
B |
Maximum DC Voltage Rating: |
250 V |
Maximum AC Voltage Rating: |
277 V |
Number of Poles: |
2 |
Installation/Operator: |
|
Approval: |
UL, CSA, CE |
CAD Drawings: |
|
Size: |
2.13 Inch Width x 3.5 Inch Depth x 5.39 Inch Height |
Type: |
Thermal Magnetic |
Series: |
BD |
Data Sheet: |
|
Terminal Type: |
I-Line Connection Line Lug Load |
Voltage Rating: |
480 Star/277 VAC 50/60 Hertz, 250 VDC |
Catalog: |
|
Interrupting Rating: |
18 kA at 480 Star/277 VAC, 10 kA at 250 VDC |
