Square D

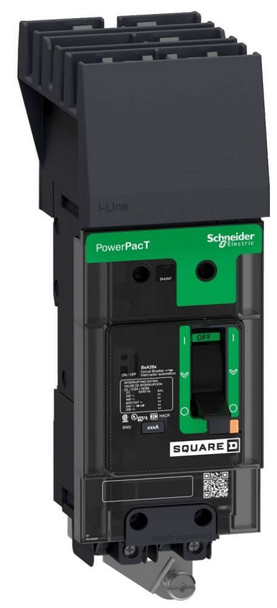

Square D BDA260504 Molded Case Breakers (MCCBs)
- MPN:
- BDA260504
- UPC:
- 60648115219
- SKU:
- C15-15462
Product Conditions
Surplus
Parts from another distributor or wholesaler that were only removed from the original packaging for inspection and pictures. These parts have never been energized, installed, or modified in any way.
Used
Parts that show any sign of being energized, installed, assembled with other parts, or functional wear or corrosion. These parts are sold as-is and returns may not be accepted.
Repackaged
Parts from another distributor or wholesaler that are missing the original packaging. These parts have never been energized, installed, or modified in any way and will ship in an ARCA box.
Description
SKU: C15-15462
Brand: Square D
MPN: BDA260504
UPC: 60648115219
Shipping Weight: 0.00 lbs.
Shipping Height: 0.00 In.
Shipping Length: 0.00 In.
Shipping Width: 0.00 In.
Product Notes:
Long Description: Square D BDA260504 Molded Case Breakers (MCCBs)
Specifications
Approval: |
UL, CSA, CE |
Installation/Operator: |
|
Terminal Type: |
I-Line Connection Line Lug Load |
Catalog: |
|
CAD Drawings: |
|
Maximum AC Voltage Rating: |
347 V |
Maximum DC Voltage Rating: |
250 V |
Frame Type: |
B |
Number of Poles: |
2 |
Voltage Rating: |
600 Star/347 VAC 50/60 Hertz, 250 VDC |
Type: |
Thermal Magnetic |
Series: |
BD |
Size: |
2.13 Inch Width x 3.5 Inch Depth x 5.39 Inch Height |
Interrupting Rating: |
14 kA at 600 Star/347 VAC, 10 kA at 250 VDC |
Data Sheet: |
|
Current Rating: |
50 A |
