Square D

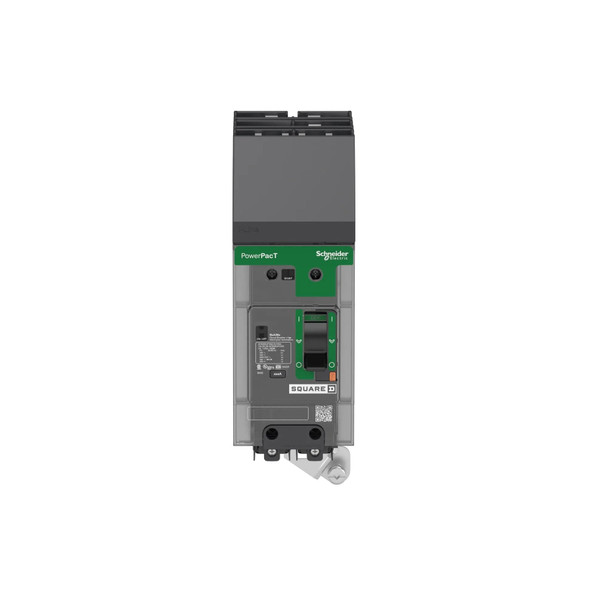

Square D BDA261251 Molded Case Breakers (MCCBs)
- MPN:
- BDA261251
- SKU:
- C15-15468
Product Conditions
Surplus
Parts from another distributor or wholesaler that were only removed from the original packaging for inspection and pictures. These parts have never been energized, installed, or modified in any way.
Used
Parts that show any sign of being energized, installed, assembled with other parts, or functional wear or corrosion. These parts are sold as-is and returns may not be accepted.
Repackaged
Parts from another distributor or wholesaler that are missing the original packaging. These parts have never been energized, installed, or modified in any way and will ship in an ARCA box.
Description
SKU: C15-15468
Brand: Square D
MPN: BDA261251
UPC:
Shipping Weight: 0.00 lbs.
Shipping Height: 0.00 In.
Shipping Length: 0.00 In.
Shipping Width: 0.00 In.
Product Notes:
Long Description: Square D BDA261251 Molded Case Breakers (MCCBs)
Specifications
Current Rating: |
125 A |
Voltage Rating: |
600 Star/347 VAC 50/60 Hertz, 250 VDC |
Approval: |
UL, CSA, CE |
Maximum AC Voltage Rating: |
347 V |
Size: |
2.13 Inch Width x 3.5 Inch Depth x 5.39 Inch Height |
Series: |
BD |
Interrupting Rating: |
14 kA at 600 Star/347 VAC, 10 kA at 250 VDC |
Maximum DC Voltage Rating: |
250 V |
Catalog: |
|
Installation/Operator: |
|
Data Sheet: |
|
Number of Poles: |
2 |
Frame Type: |
B |
Type: |
Thermal Magnetic |
Terminal Type: |
I-Line Connection Line Lug Load |
CAD Drawings: |
