Square D

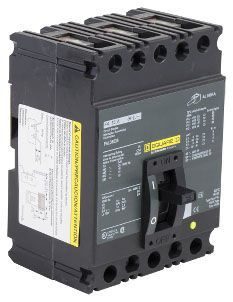

Square D FAL36035 Molded Case Breakers (MCCBs)
- MPN:
- FAL36035
- SKU:
- C15-16120
Product Conditions
Surplus
Parts from another distributor or wholesaler that were only removed from the original packaging for inspection and pictures. These parts have never been energized, installed, or modified in any way.
Used
Parts that show any sign of being energized, installed, assembled with other parts, or functional wear or corrosion. These parts are sold as-is and returns may not be accepted.
Repackaged
Parts from another distributor or wholesaler that are missing the original packaging. These parts have never been energized, installed, or modified in any way and will ship in an ARCA box.
Description
SKU: C15-16120
Brand: Square D
MPN: FAL36035
UPC:
Shipping Weight: 0.00 lbs.
Shipping Height: 0.00 In.
Shipping Length: 0.00 In.
Shipping Width: 0.00 In.
Product Notes:
Long Description: Square D FAL36035 Molded Case Breakers (MCCBs)
Specifications
Series: |
FA |
Maximum DC Voltage Rating: |
250 V |
Prop 65 Warning: |
Yes |
Catalog: |
|
Voltage Rating: |
240/480/600 VAC at 50/60 Hz, 480 VAC Star/277 VAC at 50/60 Hz, 600 VAC Star/347 VAC at 50/60 Hz (UL/CSA/NOM), 415 VAC at 50/60 Hz (IEC), 250 VDC |
Type: |
Molded Case, Thermal Magnetic |
Number of Poles: |
3 |
Terminal Type: |
Line Lug, Load Lug |
Frame Type: |
F |
Installation/Operator: |
|
Approval: |
UL, CSA |
Current Rating: |
35 A |
Maximum AC Voltage Rating: |
600 V |
Size: |
4.5 Inch W x 4.13 Inch D x 6 Inch H |
Data Sheet: |
|
Interrupting Rating: |
25 kA at 240 VAC, 18 kA at 480 VAC Star/277 VAC, 18 kA at 480 VAC, 14 kA at 600 VAC Star/347 VAC, 14 kA at 600 VAC (UL/CSA/NOM), 10/2.5 kA at 415 VAC (IEC), 10 kA at 250 VDC |
