Square D

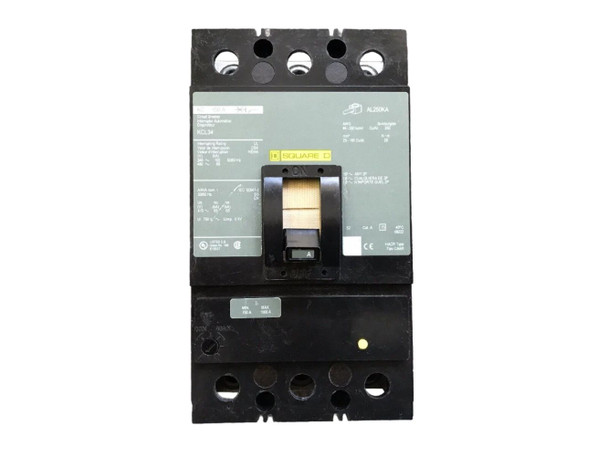

Square D KCL34200 Molded Case Breakers (MCCBs)
- MPN:
- KCL34200
- SKU:
- C15-16745
Product Conditions
Surplus
Parts from another distributor or wholesaler that were only removed from the original packaging for inspection and pictures. These parts have never been energized, installed, or modified in any way.
Used
Parts that show any sign of being energized, installed, assembled with other parts, or functional wear or corrosion. These parts are sold as-is and returns may not be accepted.
Repackaged
Parts from another distributor or wholesaler that are missing the original packaging. These parts have never been energized, installed, or modified in any way and will ship in an ARCA box.
Description
SKU: C15-16745
Brand: Square D
MPN: KCL34200
UPC:
Shipping Weight: 0.00 lbs.
Shipping Height: 0.00 In.
Shipping Length: 0.00 In.
Shipping Width: 0.00 In.
Product Notes:
Long Description: Square D KCL34200 Molded Case Breakers (MCCBs)
Specifications
Frame Type: |
K |
Terminal Type: |
Line Lug, Load Lug |
Approval: |
UL, CSA, CE |
Type: |
Molded Case, Thermal Magnetic |
Maximum AC Voltage Rating: |
480 V |
Interrupting Rating: |
100 kA at 120 VAC, 100 kA at 120/240 VAC, 100 kA at 240 VAC, 65 kA at 480 VAC (UL/CSA/NOM), 65 kA at 240/415 VAC (IEC) |
Catalog: |
|
Series: |
KC |
Size: |
4.5 Inch W x 4.75 Inch D x 8 Inch H |
Current Rating: |
200 A |
Number of Poles: |
3 |
Voltage Rating: |
120/240/480 VAC at 50/60 Hz, 120/240 VAC at 50/60 Hz, 480 VAC Star/277 VAC at 50/60 Hz (UL/CSA/NOM), 240/415 VAC at 50/60 Hz (IEC) |
