Eaton

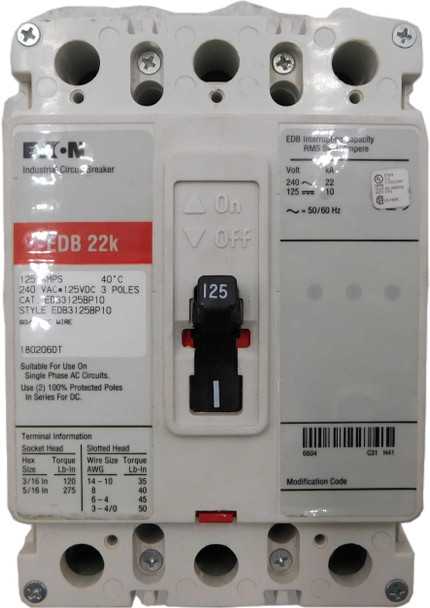

Eaton EDB3125 Molded Case Breakers (MCCBs)
- MPN:
- EDB3125
- UPC:
- 782116152803
- SKU:
- C15-1923
Product Conditions
Surplus
Parts from another distributor or wholesaler that were only removed from the original packaging for inspection and pictures. These parts have never been energized, installed, or modified in any way.
Used
Parts that show any sign of being energized, installed, assembled with other parts, or functional wear or corrosion. These parts are sold as-is and returns may not be accepted.
Repackaged
Parts from another distributor or wholesaler that are missing the original packaging. These parts have never been energized, installed, or modified in any way and will ship in an ARCA box.
Description
SKU: C15-1923
Brand: Eaton
MPN: EDB3125
UPC: 782116152803
Shipping Weight: 4.00 lbs.
Shipping Height: 5.00 In.
Shipping Length: 7.00 In.
Shipping Width: 5.00 In.
Product Notes:
Long Description: Eaton EDB3125 Molded Case Breakers (MCCBs)
Specifications
Series: |
C |
Type: |
Current Limiting |
Type: |
Thermal Magnetic |
Approval: |
UL |
Size: |
4.13 Inch W x 3.38 Inch D x 6 Inch H |
Volts: |
240 VAC at 50/60 Hz |
Volts: |
125 VDC (UL) |
Volts: |
220/240 VAC at 50/60 Hz |
Volts: |
125 VDC (IEC) |
Amps: |
32 A |
Poles: |
3 |
Interrupting Rating: |
22 kA at 240 VAC |
Interrupting Rating: |
10 Kiloampere at 125 VDC (UL) |
Interrupting Rating: |
22 Kiloampere at 220/240 VAC |
Interrupting Rating: |
10 Kiloampere at 125 VDC (IEC) |
Terminal Type: |
Standard Pressure Line Terminal |
Terminal Type: |
Standard Pressure Load Terminal |
Frame Type: |
F |
Maximum AC Voltage Rating: |
240 V |
Maximum DC Voltage Rating: |
125 V |
Catalog: |
|
Data Sheet: |
|
Installation/Operator: |
|
Current Rating: |
125 A |
Voltage Rating: |
240 VAC at 50/60 Hz, 125 VDC (UL), 220/240 VAC at 50/60 Hz, 125 VDC (IEC) |
Number of Poles: |
3 |
Country of Origin: |
Dominican Republic |
TS PIK: |
120215676 |
