Eaton

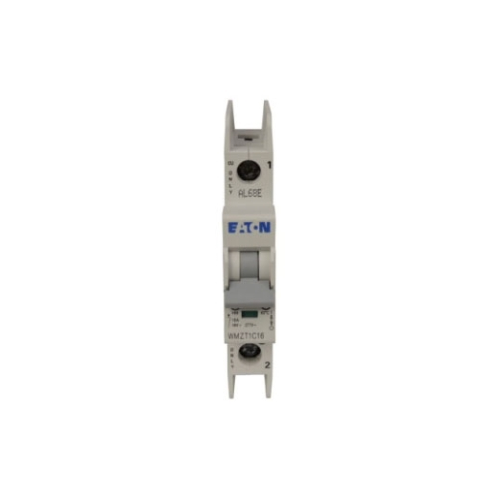

Eaton WMZT1C15 Miniature Circuit Breakers (MCBs)
- MPN:
- WMZT1C15
- UPC:
- 786685256085
- SKU:
- C15-19976
Product Conditions
Surplus
Parts from another distributor or wholesaler that were only removed from the original packaging for inspection and pictures. These parts have never been energized, installed, or modified in any way.
Used
Parts that show any sign of being energized, installed, assembled with other parts, or functional wear or corrosion. These parts are sold as-is and returns may not be accepted.
Repackaged
Parts from another distributor or wholesaler that are missing the original packaging. These parts have never been energized, installed, or modified in any way and will ship in an ARCA box.
Description
SKU: C15-19976
Brand: Eaton
MPN: WMZT1C15
UPC: 786685256085
Shipping Weight: 0.30 lbs.
Shipping Height: 2.00 In.
Shipping Length: 5.00 In.
Shipping Width: 3.00 In.
Product Notes:
Long Description: Eaton WMZT1C15 Miniature Circuit Breakers (MCBs)
Specifications
TS PIK: |
114 |
Series: |
WMZT |
Country of Origin: |
Dominican Republic |
Number of Poles: |
1 |
Interrupting Rating: |
10 kA at 277/480 VAC, 10 kA at 48 VDC (UL, CSA), 15 kA at 240/415 VAC (IEC) |
Current Rating: |
15 A |
Mounting: |
DIN Rail |
Size: |
0.7 Inch W x 2.36 Inch D x 4.13 Inch H |
Type: |
Current Limiting, Thermal Magnetic |
Terminal Type: |
Screw |
Trip Setting: |
5 to 10 x Rated Current |
Voltage Rating: |
277/480 VAC |
Installation/Operator: |
|
Catalog: |
|
Approval: |
UL 489, CSA C22.2 |
CAD Drawings: |
|
Poles: |
1 |
