Description
SKU: C15-22281
Brand: Eaton
MPN: MDL3450
UPC: 78211458596
Shipping Weight: 0.00 lbs.
Shipping Height: 0.00 In.
Shipping Length: 0.00 In.
Shipping Width: 0.00 In.
Product Notes:

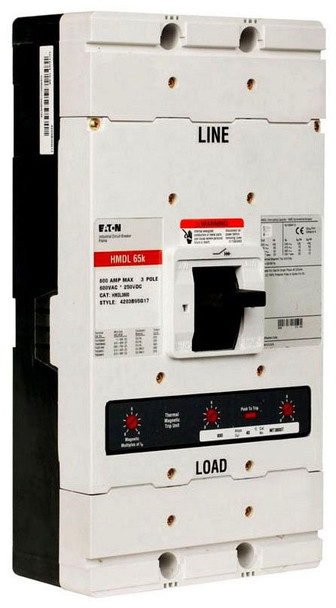

Long Description: Eaton MDL3450 Molded Case Breakers (MCCBs)
Specifications
Number of Poles: |
3 |
Voltage Rating: |
600 VAC 50/60 Hertz, 250 VDC |
Size: |
8.25 Inch Width x 4.06 Inch Depth x 16 Inch Height |
Interrupting Rating: |
65 kA at 240 VAC, 50 kA at 480 VAC, 25 kA at 600 VAC, 22 kA at 250 VDC (UL/CSA), 65/65 kA at 240 VAC, 50/50 kA at 415 VAC, 20/10 kA at 690 VAC, 20/10 kA at 250 VDC (IEC) |
Installation/Operator: |
|
Current Rating: |
450 A |
Approval: |
UL 489, CSA C22.2, CE |
Frame Type: |
MD |
Maximum DC Voltage Rating: |
250 V |
Type: |
Thermal Magnetic, Standard Interrupting Capacity, Molded Case |
Catalog: |
|
Maximum AC Voltage Rating: |
600 V |
