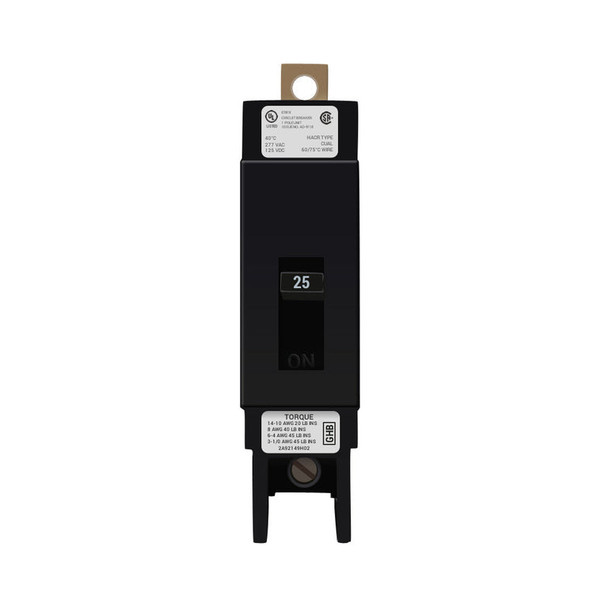

Eaton GHB1025 25A 277/480VAC at 50/60Hz, 125VDC Non-Interchangeable Trip Circuit Breaker
- MPN:
- GHB1025
- UPC:
- 786679023631
- SKU:
- C15-2286
Product Conditions
Surplus
Parts from another distributor or wholesaler that were only removed from the original packaging for inspection and pictures. These parts have never been energized, installed, or modified in any way.
Used
Parts that show any sign of being energized, installed, assembled with other parts, or functional wear or corrosion. These parts are sold as-is and returns may not be accepted.
Repackaged
Parts from another distributor or wholesaler that are missing the original packaging. These parts have never been energized, installed, or modified in any way and will ship in an ARCA box.
Description
SKU: C15-2286
Brand: Eaton
MPN: GHB1025
UPC: 786679023631
Shipping Weight: 0.65 lbs.
Shipping Height: 2.00 In.
Shipping Length: 7.00 In.
Shipping Width: 4.00 In.
Product Notes:
Long Description: Eaton GHB1025 Molded Case Breakers (MCCBs)
Specifications
Series: |
C |
Type: |
Molded Case |
Type: |
Thermal Magnetic |
Approval: |
UL 489 |
Approval: |
CSA |
Volts: |
277/480 VAC at 50/60 Hz |
Volts: |
125 VDC |
Amps: |
32 A |
Poles: |
1 |
Interrupting Rating: |
14 kA at 277 VAC/125 VDC |
Terminal Type: |
Aluminum Pressure Line and Load Terminal |
Frame Type: |
GHB |
Maximum AC Voltage Rating: |
480 |
Maximum DC Voltage Rating: |
125 |
Catalog: |
|
Installation/Operator: |
|
TS PIK: |
113894500 |
Voltage Rating: |
277/480 VAC at 50/60 Hz, 125 VDC |
Number of Poles: |
1 |
Current Rating: |
25 A |
Country of Origin: |
Dominican Republic |
