Siemens

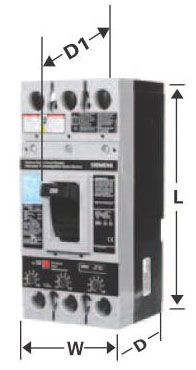

Siemens FD63B125 Molded Case Breakers (MCCBs)
- MPN:
- FD63B125
- UPC:
- 78364321146
- SKU:
- C15-22865
Product Conditions
Surplus
Parts from another distributor or wholesaler that were only removed from the original packaging for inspection and pictures. These parts have never been energized, installed, or modified in any way.
Used
Parts that show any sign of being energized, installed, assembled with other parts, or functional wear or corrosion. These parts are sold as-is and returns may not be accepted.
Repackaged
Parts from another distributor or wholesaler that are missing the original packaging. These parts have never been energized, installed, or modified in any way and will ship in an ARCA box.
Description
SKU: C15-22865
Brand: Siemens
MPN: FD63B125
UPC: 78364321146
Shipping Weight: 0.00 lbs.
Shipping Height: 0.00 In.
Shipping Length: 0.00 In.
Shipping Width: 0.00 In.
Product Notes:
Long Description: Siemens FD63B125 Molded Case Breakers (MCCBs)
Specifications
Number of Poles: |
3 |
Current Rating: |
125 A |
Interrupting Rating: |
65 kA at 240 VAC, 35 kA at 480 VAC, 22 kA at 600 VAC 18 kA at 500 VDC (UL), 65 kA at 220/240 VAC, 35 kA at 380/415 VAC (IEC) |
Type: |
Molded Case, Thermal Magnetic |
Maximum DC Voltage Rating: |
500 V |
Voltage Rating: |
600 VAC, 500 VDC |
Frame Type: |
FD |
Installation/Operator: |
|
Size: |
4.5 Inch Width x 5.25 Inch Depth x 9.5 Inch Height |
Maximum AC Voltage Rating: |
600 V |
Catalog: |
|
Terminal Type: |
Line/Load Lug |
Series: |
FD6 |
Country of Origin: |
MEX |
Approval: |
UL 489, IEC 947-2 |
