Eaton

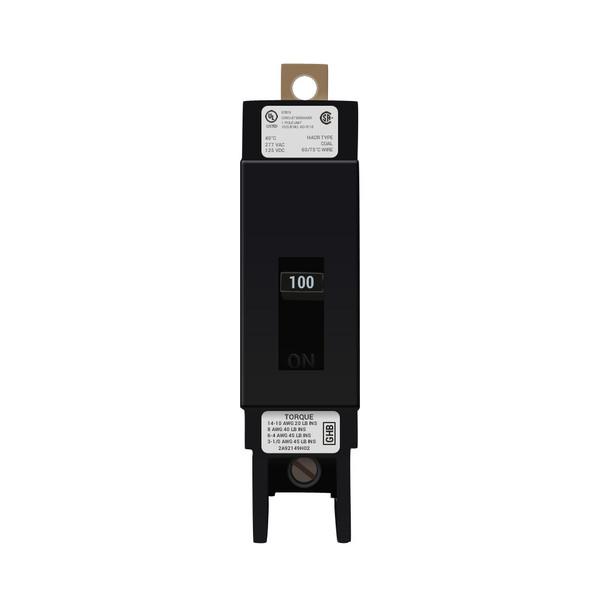

Eaton GHB1100 Molded Case Breakers (MCCBs)
- MPN:
- GHB1100
- UPC:
- 786679021774
- SKU:
- C15-2320
Product Conditions
Surplus
Parts from another distributor or wholesaler that were only removed from the original packaging for inspection and pictures. These parts have never been energized, installed, or modified in any way.
Used
Parts that show any sign of being energized, installed, assembled with other parts, or functional wear or corrosion. These parts are sold as-is and returns may not be accepted.
Repackaged
Parts from another distributor or wholesaler that are missing the original packaging. These parts have never been energized, installed, or modified in any way and will ship in an ARCA box.
Description
SKU: C15-2320
Brand: Eaton
MPN: GHB1100
UPC: 786679021774
Shipping Weight: 0.90 lbs.
Shipping Height: 3.50 In.
Shipping Length: 6.00 In.
Shipping Width: 1.70 In.
Product Notes:
Long Description: Eaton GHB1100 Molded Case Breakers (MCCBs)
Specifications
Approval: |
UL 489 |
Approval: |
CSA C22.2 |
Amps: |
100 A |
Frame: |
G |
Interrupting Rating: |
65 kA at 120/240 VAC |
Interrupting Rating: |
14 Kiloamp at 125 Volt DC |
Maximum AC Voltage: |
277 V |
Maximum DC Voltage: |
125 V |
Poles: |
1 |
Size: |
1 Inch Width x 2.81 Inch Depth x 4.88 Inch Height |
Terminal Type: |
Steel Pressure Line and Load |
Type: |
Fixed Thermal Magnetic |
Type: |
Molded Case |
Volts: |
277 VAC 50/60 Hertz |
Volts: |
125 VDC |
TS PIK: |
113894341 |
Frame Type: |
G |
Maximum AC Voltage Rating: |
277 V |
Number of Poles: |
1 |
Voltage Rating: |
277 VAC 50/60 Hertz, 125 VDC |
Maximum DC Voltage Rating: |
125 V |
Current Rating: |
100 A |
Catalog: |
|
Data Sheet: |
|
Installation/Operator: |
