Eaton

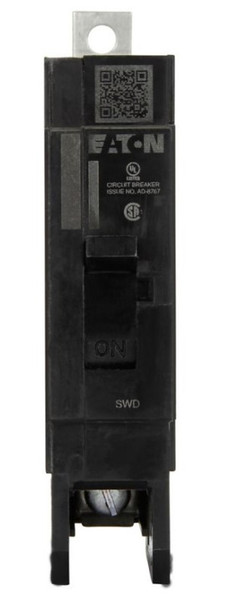

Eaton HGHB1030 30A 277VAC 50/60Hertz, 125VDC Non-Interchangeable Trip Circuit Breaker
- MPN:
- HGHB1030
- UPC:
- 786679114209
- SKU:
- C15-3557
Product Conditions
Surplus
Parts from another distributor or wholesaler that were only removed from the original packaging for inspection and pictures. These parts have never been energized, installed, or modified in any way.
Used
Parts that show any sign of being energized, installed, assembled with other parts, or functional wear or corrosion. These parts are sold as-is and returns may not be accepted.
Repackaged
Parts from another distributor or wholesaler that are missing the original packaging. These parts have never been energized, installed, or modified in any way and will ship in an ARCA box.
Description
SKU: C15-3557
Brand: Eaton
MPN: HGHB1030
UPC: 786679114209
Shipping Weight: 0.60 lbs.
Shipping Height: 2.00 In.
Shipping Length: 7.00 In.
Shipping Width: 4.00 In.
Product Notes:

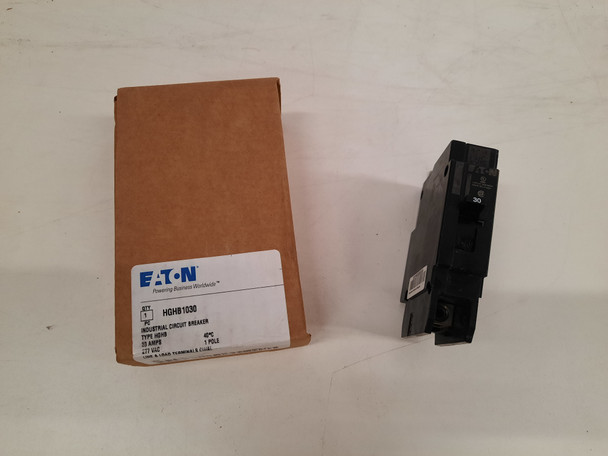

Long Description: Eaton HGHB1030 Molded Case Breakers (MCCBs)
Specifications
Approval: |
UL 489 |
Approval: |
CSA C22.2 |
Amps: |
30 A |
Frame: |
G |
Interrupting Rating: |
65 kA at 120 VAC |
Interrupting Rating: |
25 Kiloamp at 277 Volt AC |
Interrupting Rating: |
14 Kiloamp at 125 Volt DC (UL) |
Maximum AC Voltage: |
277 V |
Maximum DC Voltage: |
125 V |
Poles: |
1 |
Size: |
1 Inch Width x 2.63 Inch Depth x 4 Inch Height |
Terminal Type: |
Aluminum Pressure Line and Load |
Type: |
Fixed Thermal Magnetic |
Type: |
Molded Case |
Volts: |
277 VAC 50/60 Hertz |
Volts: |
125 VDC |
TS PIK: |
117083598 |
Catalog: |
|
Frame Type: |
G |
Data Sheet: |
|
Maximum DC Voltage Rating: |
125 V |
Current Rating: |
30 A |
Voltage Rating: |
277 VAC 50/60 Hertz, 125 VDC |
Number of Poles: |
1 |
Maximum AC Voltage Rating: |
277 V |
Country of Origin: |
United States |
