Our selection of circuit breakers spans a wide range of applications, from heavy-duty air circuit breakers (ACBs) to compact miniature circuit breakers (MCBs). We offer leading brands like Eaton, Siemens, and Square D, known for their reliability and performance. Whatever your power management needs, you can find the perfect solution here at ARCA Supply.

  • Product
  • Qty in Cart
  • Price
  • Contact Us For Quote
    Eaton GHC2100 Molded Case Breakers (MCCBs)
    Quick view

    Eaton GHC2100 Molded Case Breakers (MCCBs)

    MSRP $1,235.48
    Surplus $416.79
    SKU:  U00-8137 Brand:  Eaton MPN:  GHC2100 UPC:  78667917418 Shipping Weight:  1.40 lbs. Shipping Height:  3.00 In. Shipping Length:  6.00 In. Shipping Width:  4.00 In...
    SKU:
    U00-8137
    TS PIK:
    106999109
    Current Rating:
    100 A
    Frame Type:
    G
    Number of Poles:
    2
    Interrupting Rating:
    65 kA at 240 VAC, 14 kA at 480 Star/277 VAC/250 VDC (UL)
    Maximum AC Voltage Rating:
    277 V
    Maximum DC Voltage Rating:
    250 V
    Type:
    Fixed Thermal Magnetic, Molded Case
    Voltage Rating:
    480 Star/277 VAC 50/60 Hertz, 125/250 VDC
    Size:
    2 Inch Width x 2.81 Inch Depth x 4.88 Inch Height
    Data Sheet:
    Eaton_21647_1-12_DATA.pdf
    Installation/Operator:
    Eaton_00167_INST.pdf
    Approval:
    UL 489, CSA C22.2
    Catalog:
    EatonCorp-CutlerHammer_00123_V4T2_254-V4T2_270_CAT.pdf
    Terminal Type:
    Steel Pressure Line and Load
    Short Description:
    EATON SERIES C COMPLETE MOLDED CASE CIRCUIT BREAKER, G-FRAME, GHC, COMPLETE BREAKER, FIXED THERMAL, FIXED MAGNETIC TRIP TYPE, TWO-POLE, 100A, 480Y/277 VAC, 125/250 VDC, 65 kAIC AT 240 VAC, 14 kAIC AT 480Y/277 VAC, 50/60 HZ
    MSRP $1,235.48
    Surplus $416.79
    Contact Us For Quote Quick view
    Qty in Cart: 0
    Price:
    MSRP $1,235.48
    Surplus $416.79
    Contact Us For Quote
  • Contact Us For Quote
    Eaton GHC3100 Molded Case Breakers (MCCBs) EA
    Quick view

    Eaton GHC3100 Molded Case Breakers (MCCBs) EA

    MSRP $1,481.48
    Surplus $712.48
    SKU:  C15-8981 Brand:  Eaton MPN:  GHC3100 UPC:  78667917430 Shipping Weight:  2.05 lbs. Shipping Height:  4.00 In. Shipping Length:  7.00 In. Shipping Width:  5.00 In...
    SKU:
    C15-8981
    Catalog:
    EatonCorp-CutlerHammer_00123_V4T2_254-V4T2_270_CAT.pdf
    Installation/Operator:
    Eaton_00167_INST.pdf
    Interrupting Rating:
    65 kA at 240 V AC, 14 kA at 480 Star/277 V AC/250 V DC (UL)
    Type:
    Fixed Thermal Magnetic, Molded Case
    Terminal Type:
    Steel Pressure Line and Load
    Size:
    3 Inch Width x 2.81 Inch Depth x 4.88 Inch Height
    Current Rating:
    100 A
    Frame Type:
    G
    Maximum AC Voltage Rating:
    277 V
    Voltage Rating:
    480 Star/277 V AC 50/60 Hertz, 125/250 V DC
    Number of Poles:
    3
    Data Sheet:
    Eaton_21647_1-12_DATA.pdf
    Maximum DC Voltage Rating:
    250 V
    MSRP $1,481.48
    Surplus $712.48
    Contact Us For Quote Quick view
    Qty in Cart: 0
    Price:
    MSRP $1,481.48
    Surplus $712.48
    Contact Us For Quote
  • Contact Us For Quote
    Crouse-Hinds GHC3100 Molded Case Breakers (MCCBs) 3P 100A
    Quick view

    Crouse-Hinds GHC3100 Molded Case Breakers (MCCBs) 3P 100A

    MSRP $1,481.48
    Surplus $926.99
    SKU:  C15-6802 Brand:  Crouse-Hinds MPN:  GHC3100 UPC:  78667917430 Shipping Weight:  1.70 lbs. Shipping Height:  3.00 In. Shipping Length:  5.00 In. Shipping Width:  3.00 In...
    SKU:
    C15-6802
    TS PIK:
    21010495
    Data Sheet:
    Eaton_21647_1-12_DATA.pdf
    Interrupting Rating:
    65 kA at 240 VAC, 14 kA at 480 Star/277 VAC/250 VDC (UL)
    Maximum AC Voltage Rating:
    277 V
    Type:
    Fixed Thermal Magnetic, Molded Case
    Frame Type:
    G
    Installation/Operator:
    Eaton_00167_INST.pdf
    Catalog:
    EatonCorp-CutlerHammer_00123_V4T2_254-V4T2_270_CAT.pdf
    Size:
    3 Inch Width x 2.81 Inch Depth x 4.88 Inch Height
    Current Rating:
    100 A
    Number of Poles:
    3
    Maximum DC Voltage Rating:
    250 V
    Terminal Type:
    Steel Pressure Line and Load
    Voltage Rating:
    480 Star/277 VAC 50/60 Hertz, 125/250 VDC
    Short Description:
    EATON SERIES C COMPLETE MOLDED CASE CIRCUIT BREAKER, G-FRAME, GHC, COMPLETE BREAKER, FIXED THERMAL, FIXED MAGNETIC TRIP TYPE, THREE-POLE, 100A, 480Y/277 VAC, 125/250 VDC, 65 kAIC AT 240 VAC, 14 kAIC AT 480Y/277 VAC, 50/60 HZ
    Approval:
    UL 489, CSA C22.2
    MSRP $1,481.48
    Surplus $926.99
    Contact Us For Quote Quick view
    Qty in Cart: 0
    Price:
    MSRP $1,481.48
    Surplus $926.99
    Contact Us For Quote
  • Contact Us For Quote
    Crouse-Hinds HFD1100 Molded Case Breakers (MCCBs)
    Quick view

    Crouse-Hinds HFD1100 Molded Case Breakers (MCCBs)

    MSRP $1,174.79
    Surplus $340.27
    SKU:  C15-5520 Brand:  Crouse-Hinds MPN:  HFD1100 UPC:   Shipping Weight:  0.00 lbs. Shipping Height:  0.00 In. Shipping Length:  0.00 In. Shipping Width:  0.00 In. Product...
    SKU:
    C15-5520
    TS PIK:
    106999153
    Interrupting Rating:
    65 kA at 277 VAC, 10 kA at 125 VDC (UL), 65 kA at 220/240 VAC, 10 kA at 125 VDC (IEC)
    Number of Poles:
    1
    Current Rating:
    100 A
    Catalog:
    EatonCorp-CutlerHammer_00123_V4T2_254-V4T2_290_CAT.pdf
    Type:
    Fixed Thermal Magnetic, Molded Case
    Voltage Rating:
    277 VAC 50/60 Hertz, 125 VDC
    Maximum AC Voltage Rating:
    277 V
    Frame Type:
    FD
    Installation/Operator:
    Eaton_00091_INST.pdf
    Data Sheet:
    Eaton_07831_1-12_DATA.pdf
    CAD Drawings:
    Eaton_41228_1_CAD.pdf
    Maximum DC Voltage Rating:
    125 V
    Terminal Type:
    Load
    Size:
    1.38 Inch Width x 3.88 Inch Depth x 6 Inch Height
    Short Description:
    EATON SERIES C COMPLETE MOLDED CASE CIRCUIT BREAKER, F-FRAME, HFD, COMPLETE BREA
    MSRP $1,174.79
    Surplus $340.27
    Contact Us For Quote Quick view
    Qty in Cart: 0
    Price:
    MSRP $1,174.79
    Surplus $340.27
    Contact Us For Quote
  • Contact Us For Quote
    Eaton GHB1100 Molded Case Breakers (MCCBs) GHB 1P 100A 480V 50/60Hz 1Ph G Frame Eaton GHB1100 Molded Case Breakers (MCCBs) GHB 1P 100A 480V 50/60Hz 1Ph G Frame
    Quick view

    Eaton GHB1100 Molded Case Breakers (MCCBs) GHB 1P 100A 480V 50/60Hz 1Ph G Frame

    MSRP $484.62
    Surplus $295.40
    Eaton GHB1100 Molded Case Breakers (MCCBs) GHB 1P 100A 480V 50/60Hz 1Ph G Frame​ ARCA SKU:  C15-2320 Brand:  Eaton MPN:  GHB1100 UPC:  786679021774 Shipping Weight:  0.90 lbs. Shipping...
    SKU:
    C15-2320
    Approval:
    UL 489
    Approval:
    CSA C22.2
    Amps:
    100 A
    Frame:
    G
    Interrupting Rating:
    65 kA at 120/240 VAC
    Interrupting Rating:
    14 Kiloamp at 125 Volt DC
    Maximum AC Voltage:
    277 V
    Maximum DC Voltage:
    125 V
    Poles:
    1
    Size:
    1 Inch Width x 2.81 Inch Depth x 4.88 Inch Height
    Terminal Type:
    Steel Pressure Line and Load
    Type:
    Fixed Thermal Magnetic
    Type:
    Molded Case
    Volts:
    277 VAC 50/60 Hertz
    Volts:
    125 VDC
    TS PIK:
    113894341
    Frame Type:
    G
    Short Description:
    EATON SERIES C COMPLETE MOLDED CASE CIRCUIT BREAKER, G-FRAME, GHB, COMPLETE BREA
    Maximum AC Voltage Rating:
    277 V
    Number of Poles:
    1
    Voltage Rating:
    277 VAC 50/60 Hertz, 125 VDC
    Maximum DC Voltage Rating:
    125 V
    Current Rating:
    100 A
    Catalog:
    EatonCorp-CutlerHammer_00123_V4T2_254-V4T2_270_CAT.pdf
    Data Sheet:
    Eaton_41351_1-11_DATA.pdf
    Installation/Operator:
    Eaton_00166_INST.pdf
    MSRP $484.62
    Surplus $295.40
    Contact Us For Quote Quick view
    Qty in Cart: 0
    Price:
    MSRP $484.62
    Surplus $295.40
    Contact Us For Quote

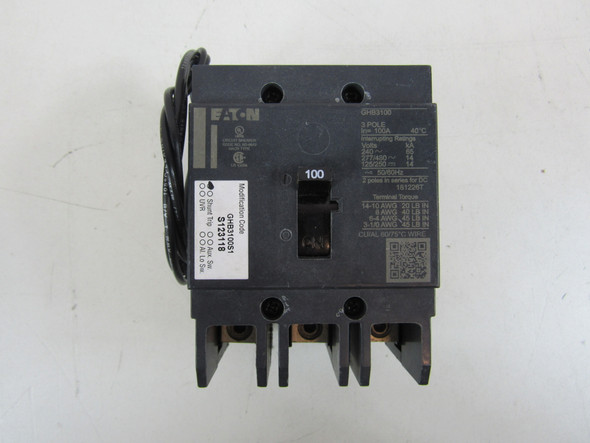

  • Eaton GHB3100S1 Molded Case Breakers (MCCBs) GHB 3P 100A 480V 50/60Hz 3Ph G Frame EA Eaton GHB3100S1 Molded Case Breakers (MCCBs) GHB 3P 100A 480V 50/60Hz 3Ph G Frame EA
    See Availability
    Quick view

    Eaton GHB3100S1 Molded Case Breakers (MCCBs) GHB 3P 100A 480V 50/60Hz 3Ph G Frame EA

    MSRP $2,964.15
    Surplus $1,738.11
    SKU:  C15-3387 Brand:  Eaton MPN:  GHB3100S1 UPC:  78667919434 Shipping Weight:  1.90 lbs. Shipping Height:  5.00 In. Shipping Length:  7.00 In. Shipping Width:  4.00 In...
    SKU:
    C15-3387
    Approval:
    UL 489
    Approval:
    CSA C22.2
    Amps:
    100 A
    Frame:
    G
    Interrupting Rating:
    65 kA at 240 VAC
    Interrupting Rating:
    14 Kiloamp at 277/480 Volt AC
    Interrupting Rating:
    14 Kiloamp at 250 Volt DC
    Maximum AC Voltage:
    277 V
    Maximum DC Voltage:
    250 V
    Poles:
    3
    Size:
    3 Inch Width x 2.81 Inch Depth x 4.88 Inch Height
    Terminal Type:
    Steel Pressure Line and Load
    Type:
    Fixed Thermal Magnetic
    Type:
    Molded Case
    Volts:
    480 Star/277 VAC 50/60 Hertz
    Volts:
    125/250 VDC
    TS PIK:
    106999407
    Maximum AC Voltage Rating:
    277 V
    Installation/Operator:
    Eaton_00166_INST.pdf
    Current Rating:
    100 A
    Short Description:
    EATON SERIES C ELECTRONIC MOLDED CASE CIRCUIT BREAKER, G-FRAME, GHB, FIXED THERM
    Voltage Rating:
    480 Star/277 VAC 50/60 Hertz, 125/250 VDC
    Data Sheet:
    Eaton_41351_1-11_DATA.pdf
    Frame Type:
    G
    Number of Poles:
    3
    Catalog:
    EatonCorp-CutlerHammer_00123_V4T2_254-V4T2_270_V4T2_419_CAT.pdf
    Maximum DC Voltage Rating:
    250 V
    Country of Origin:
    Dominican Republic
    MSRP $2,964.15
    Surplus $1,738.11
    See Availability Quick view
    Qty in Cart: 0
    Price:
    MSRP $2,964.15
    Surplus $1,738.11
    See Availability
  • Eaton HFD1100 Molded Case Breakers (MCCBs) HFD 1P 100A 277V 50/60Hz 1Ph F Frame Eaton HFD1100 Molded Case Breakers (MCCBs) HFD 1P 100A 277V 50/60Hz 1Ph F Frame
    See Availability
    Quick view

    Eaton HFD1100 Molded Case Breakers (MCCBs) HFD 1P 100A 277V 50/60Hz 1Ph F Frame

    MSRP $1,112.18
    Surplus $337.93
    SKU:  C15-2972 Brand:  Eaton MPN:  HFD1100 UPC:  00786679175354 Shipping Weight:  1.65 lbs. Shipping Height:  2.00 In. Shipping Length:  7.00 In. Shipping Width:  5.00 In...
    SKU:
    C15-2972
    Approval:
    UL 489
    Approval:
    CSA C22.2
    Amps:
    100 A
    Frame:
    FD
    Interrupting Rating:
    65 kA at 277 VAC
    Interrupting Rating:
    10 Kiloamp at 125 Volt DC (UL)
    Interrupting Rating:
    65 Kiloamp at 220/240 Volt AC
    Interrupting Rating:
    10 Kiloamp at 125 Volt DC (IEC)
    Maximum AC Voltage:
    277 V
    Maximum DC Voltage:
    125 V
    Poles:
    1
    Size:
    1.38 Inch Width x 3.88 Inch Depth x 6 Inch Height
    Terminal Type:
    Load
    Type:
    Fixed Thermal Magnetic
    Type:
    Molded Case
    Volts:
    277 VAC 50/60 Hertz
    Volts:
    125 VDC
    TS PIK:
    106999153
    CAD Drawings:
    Eaton_41228_1_CAD.pdf
    Maximum AC Voltage Rating:
    277 V
    Short Description:
    EATON SERIES C COMPLETE MOLDED CASE CIRCUIT BREAKER, F-FRAME, HFD, COMPLETE BREA
    Voltage Rating:
    277 VAC 50/60 Hertz, 125 VDC
    Number of Poles:
    1
    Current Rating:
    100 A
    Maximum DC Voltage Rating:
    125 V
    Data Sheet:
    Eaton_07831_1-12_DATA.pdf
    Installation/Operator:
    Eaton_00091_INST.pdf
    Frame Type:
    FD
    Catalog:
    EatonCorp-CutlerHammer_00123_V4T2_254-V4T2_290_CAT.pdf
    Country of Origin:
    United States
    MSRP $1,112.18
    Surplus $337.93
    See Availability Quick view
    Qty in Cart: 0
    Price:
    MSRP $1,112.18
    Surplus $337.93
    See Availability
  • Contact Us For Quote
    GE FBN16TE100RV Molded Case Breakers (MCCBs)
    Quick view

    GE FBN16TE100RV Molded Case Breakers (MCCBs)

    MSRP $1,968.44
    Surplus $531.48
    SKU:  C15-16138 Brand:  GE MPN:  FBN16TE100RV UPC:  78316439420 Shipping Weight:  0.00 lbs. Shipping Height:  0.00 In. Shipping Length:  0.00 In. Shipping Width:  0.00 In...
    SKU:
    C15-16138
    Interrupting Rating:
    65 kA at 240/277 VAC
    Current Rating:
    100 A
    Type:
    Thermal Magnetic
    Approval:
    UL
    Voltage Rating:
    240/277 VAC
    Terminal Type:
    Line and Load Lug
    Number of Poles:
    1
    Maximum AC Voltage Rating:
    277 V
    Frame Type:
    FB100
    Short Description:
    240/277 VAC, 100 A, 65 kA, 1-Pole, 4 to 1/0 AWG, FB100 Frame, Line and Load Lug Terminal, Thermal Magnetic, Non-Interchangeable Molded Case Circuit Breaker
    MSRP $1,968.44
    Surplus $531.48
    Contact Us For Quote Quick view
    Qty in Cart: 0
    Price:
    MSRP $1,968.44
    Surplus $531.48
    Contact Us For Quote
  • Contact Us For Quote
    GE TEY1100 Molded Case Breakers (MCCBs)
    Quick view

    GE TEY1100 Molded Case Breakers (MCCBs)

    MSRP $533.89
    Surplus $144.15
    SKU:  C15-14518 Brand:  GE MPN:  TEY1100 UPC:  78316418219 Shipping Weight:  0.00 lbs. Shipping Height:  0.00 In. Shipping Length:  0.00 In. Shipping Width:  0.00 In...
    SKU:
    C15-14518
    Maximum AC Voltage Rating:
    277 V
    Number of Poles:
    1
    Current Rating:
    100 A
    Frame Type:
    TEY
    Type:
    Thermal Magnetic, Compact
    Interrupting Rating:
    14 kA at 120/240/277 VAC, 65 kA at 120 VAC
    Terminal Type:
    Bolt-On
    CAD Drawings:
    ABBElectrificationProducts-ABBGEIndustrialSolutions_01762_1_CAD.pdf
    Short Description:
    480 VAC Star/277 VAC, 100 A, 65 kA Interrupt, 1-Pole, 4 to 1/0 AWG Aluminum/Copper Integral Load Lug Terminal, 1" Bolt-On Mount, Non-Interchangeable Trip, Compact, Thermal Magnetic, Industrial Molded Case Circuit Breaker
    Catalog:
    ABBElectrificationProducts-ABBGEIndustrialSolutions_00542_6_9_6_64_CAT.pdf
    Approval:
    UL
    Installation/Operator:
    ABBElectrificationProducts-ABBGEIndustrialSolutions_00022_INST.pdf
    Voltage Rating:
    120/240/277 VAC
    MSRP $533.89
    Surplus $144.15
    Contact Us For Quote Quick view
    Qty in Cart: 0
    Price:
    MSRP $533.89
    Surplus $144.15
    Contact Us For Quote
  • Contact Us For Quote
    Siemens ED41B100 Molded Case Breakers (MCCBs)
    Quick view

    Siemens ED41B100 Molded Case Breakers (MCCBs)

    MSRP $1,655.34
    Surplus $446.94
    SKU:  C15-15842 Brand:  Siemens MPN:  ED41B100 UPC:  78364320920 Shipping Weight:  0.00 lbs. Shipping Height:  0.00 In. Shipping Length:  0.00 In. Shipping Width:  0.00 In...
    SKU:
    C15-15842
    Maximum AC Voltage Rating:
    277 V
    Voltage Rating:
    120/277 VAC, 125 VDC
    Country of Origin:
    MEX
    Type:
    Thermal Magnetic
    Current Rating:
    100 A
    Catalog:
    SiemensAG_01698_17_78-17_80_CAT.pdf
    Frame Type:
    ED
    Number of Poles:
    1
    Size:
    1 Inch Width x 4.56 Inch Depth x 6.35 Inch Height
    Installation/Operator:
    SiemensAG_00313_INST.pdf
    Approval:
    UL 489, IEC 947-2
    Interrupting Rating:
    65 kA at 120 V AC (UL 489), 22 kA at 277 V AC (UL 489), 30 kA at 125 V DC (UL 489)
    Maximum DC Voltage Rating:
    125 V
    Terminal Type:
    Load Lug
    Short Description:
    120/277 VAC 50/60 Hz, 125 VDC, 100 A, 22 kA, 1-Pole, 6 to 1/0 AWG Copper/Aluminum, Load Lug Terminal, ED Frame, Thermal Magnetic Trip Unit, Molded Case Circuit Breaker
    Series:
    ED4
    MSRP $1,655.34
    Surplus $446.94
    Contact Us For Quote Quick view
    Qty in Cart: 0
    Price:
    MSRP $1,655.34
    Surplus $446.94
    Contact Us For Quote
  • Contact Us For Quote
    Square D BDA24100Y1 Molded Case Breakers (MCCBs)
    Quick view

    Square D BDA24100Y1 Molded Case Breakers (MCCBs)

    MSRP $1,315.02
    Surplus $355.05
    SKU:  C15-15456 Brand:  Square D MPN:  BDA24100Y1 UPC:  60648115195 Shipping Weight:  0.00 lbs. Shipping Height:  0.00 In. Shipping Length:  0.00 In. Shipping Width:  0.00 In...
    SKU:
    C15-15456
    Current Rating:
    100 A
    Voltage Rating:
    480 Star/277 VAC 50/60 Hertz, 250 VDC
    Short Description:
    480 Star/277 VAC 50/60 Hz, 250 VDC, 100 A, 18 kA, 2-Pole, B-Frame, AB Phase, I-Line Connection Line Lug Load Terminal, Thermal Magnetic, Molded Case Circuit Breaker
    Series:
    BD
    Maximum AC Voltage Rating:
    277 V
    Catalog:
    SchneiderElectric-SquareD_32357_7_31_7_32_CAT.pdf
    Interrupting Rating:
    18 kA at 480 Star/277 VAC, 10 kA at 250 VDC
    Type:
    Thermal Magnetic
    Approval:
    UL, CSA, CE
    Maximum DC Voltage Rating:
    250 V
    Size:
    2.13 Inch Width x 3.5 Inch Depth x 5.39 Inch Height
    Terminal Type:
    I-Line Connection Line Lug Load
    Data Sheet:
    SchneiderElectric-SquareD_34791_1-4_DATA.pdf
    Frame Type:
    B
    Number of Poles:
    2
    Installation/Operator:
    SchneiderElectric-SquareD_01071_INST.pdf
    CAD Drawings:
    SchneiderElectric-SquareD_73415_1_CAD.pdf
    MSRP $1,315.02
    Surplus $355.05
    Contact Us For Quote Quick view
    Qty in Cart: 0
    Price:
    MSRP $1,315.02
    Surplus $355.05
    Contact Us For Quote
  • Contact Us For Quote
    Square D BDA24100Y2 Molded Case Breakers (MCCBs)
    Quick view

    Square D BDA24100Y2 Molded Case Breakers (MCCBs)

    MSRP $845.37
    Surplus $228.25
    SKU:  C15-18663 Brand:  Square D MPN:  BDA24100Y2 UPC:  60648115196 Shipping Weight:  0.00 lbs. Shipping Height:  0.00 In. Shipping Length:  0.00 In. Shipping Width:  0.00 In...
    SKU:
    C15-18663
    Short Description:
    480 Star/277 VAC 50/60 Hz, 250 VDC, 100 A, 18 kA, 2-Pole, B-Frame, AC Phase, I-Line Connection Line Lug Load Terminal, Thermal Magnetic, Molded Case Circuit Breaker
    Interrupting Rating:
    18 kA at 480 Star/277 VAC, 10 kA at 250 VDC
    Number of Poles:
    2
    Frame Type:
    B
    Type:
    Thermal Magnetic
    Maximum DC Voltage Rating:
    250 V
    Approval:
    UL, CSA, CE
    Size:
    2.13 Inch Width x 3.5 Inch Depth x 5.39 Inch Height
    Terminal Type:
    I-Line Connection Line Lug Load
    Voltage Rating:
    480 Star/277 VAC 50/60 Hertz, 250 VDC
    Installation/Operator:
    SchneiderElectric-SquareD_01071_INST.pdf
    Series:
    BD
    Current Rating:
    100 A
    Data Sheet:
    SchneiderElectric-SquareD_34792_1-4_DATA.pdf
    CAD Drawings:
    SchneiderElectric-SquareD_73416_1_CAD.pdf
    Catalog:
    SchneiderElectric-SquareD_32357_7_31_7_32_CAT.pdf
    Maximum AC Voltage Rating:
    277 V
    MSRP $845.37
    Surplus $228.25
    Contact Us For Quote Quick view
    Qty in Cart: 0
    Price:
    MSRP $845.37
    Surplus $228.25
    Contact Us For Quote
  • Contact Us For Quote
    Square D BDA24100Y4 Molded Case Breakers (MCCBs)
    Quick view

    Square D BDA24100Y4 Molded Case Breakers (MCCBs)

    MSRP $845.37
    Surplus $228.25
    SKU:  C15-15457 Brand:  Square D MPN:  BDA24100Y4 UPC:  60648115197 Shipping Weight:  0.00 lbs. Shipping Height:  0.00 In. Shipping Length:  0.00 In. Shipping Width:  0.00 In...
    SKU:
    C15-15457
    Series:
    BD
    Short Description:
    480 Star/277 VAC 50/60 Hz, 250 VDC, 100 A, 18 kA, 2-Pole, B-Frame, BC Phase, I-Line Connection Line Lug Load Terminal, Thermal Magnetic, Molded Case Circuit Breaker
    Number of Poles:
    2
    Interrupting Rating:
    18 kA at 480 Star/277 VAC, 10 kA at 250 VDC
    Maximum AC Voltage Rating:
    277 V
    Voltage Rating:
    480 Star/277 VAC 50/60 Hertz, 250 VDC
    Size:
    2.13 Inch Width x 3.5 Inch Depth x 5.39 Inch Height
    Maximum DC Voltage Rating:
    250 V
    Data Sheet:
    SchneiderElectric-SquareD_34793_1-4_DATA.pdf
    Catalog:
    SchneiderElectric-SquareD_32357_7_31_7_32_CAT.pdf
    CAD Drawings:
    SchneiderElectric-SquareD_73417_1_CAD.pdf
    Approval:
    UL, CSA, CE
    Type:
    Thermal Magnetic
    Frame Type:
    B
    Terminal Type:
    I-Line Connection Line Lug Load
    Current Rating:
    100 A
    Installation/Operator:
    SchneiderElectric-SquareD_01071_INST.pdf
    MSRP $845.37
    Surplus $228.25
    Contact Us For Quote Quick view
    Qty in Cart: 0
    Price:
    MSRP $845.37
    Surplus $228.25
    Contact Us For Quote
  • Contact Us For Quote
    Square D BDA34100Y Molded Case Breakers (MCCBs)
    Quick view

    Square D BDA34100Y Molded Case Breakers (MCCBs)

    MSRP $1,174.80
    Surplus $317.20
    SKU:  C15-15477 Brand:  Square D MPN:  BDA34100Y UPC:  60648115247 Shipping Weight:  0.00 lbs. Shipping Height:  0.00 In. Shipping Length:  0.00 In. Shipping Width:  0.00 In...
    SKU:
    C15-15477
    Series:
    BD
    Number of Poles:
    3
    Short Description:
    480 Star/277 VAC 50/60 Hz, 250 VDC, 100 A, 18 kA, 3-Pole, B-Frame, ABC Phase, I-Line Connection Line Lug Load Terminal, Thermal Magnetic, Molded Case Circuit Breaker
    Terminal Type:
    I-Line Connection Line Lug Load
    Type:
    Thermal Magnetic
    Size:
    3.19 Inch Width x 3.5 Inch Depth x 5.39 Inch Height
    Data Sheet:
    SchneiderElectric-SquareD_34836_1-4_DATA.pdf
    Current Rating:
    100 A
    Frame Type:
    B
    Prop 65 Warning:
    Yes
    Maximum DC Voltage Rating:
    250 V
    Catalog:
    SchneiderElectric-SquareD_32357_7_31_7_32_CAT.pdf
    Installation/Operator:
    SchneiderElectric-SquareD_00008_INST.pdf
    Maximum AC Voltage Rating:
    277 V
    Interrupting Rating:
    18 kA at 480 Star/277 VAC, 10 kA at 250 VDC
    CAD Drawings:
    SchneiderElectric-SquareD_73464_1_CAD.pdf
    Approval:
    UL, CSA, CE
    Voltage Rating:
    480 Star/277 VAC 50/60 Hertz, 250 VDC
    MSRP $1,174.80
    Surplus $317.20
    Contact Us For Quote Quick view
    Qty in Cart: 0
    Price:
    MSRP $1,174.80
    Surplus $317.20
    Contact Us For Quote
  • Contact Us For Quote
    Square D BGA24100Y1 Molded Case Breakers (MCCBs)
    Quick view

    Square D BGA24100Y1 Molded Case Breakers (MCCBs)

    MSRP $1,772.41
    Surplus $478.55
    SKU:  C15-15526 Brand:  Square D MPN:  BGA24100Y1 UPC:  78590146173 Shipping Weight:  0.00 lbs. Shipping Height:  0.00 In. Shipping Length:  0.00 In. Shipping Width:  0.00 In...
    SKU:
    C15-15526
    Voltage Rating:
    480 Star/277 VAC 50/60 Hertz, 250 VDC
    Size:
    54 Millimeter Width x 89 Millimeter Depth x 137 Millimeter Height
    Interrupting Rating:
    35 kA at 480 Star/277 VAC, 20 kA at 250 VDC
    Installation/Operator:
    SchneiderElectric-SquareD_00006_INST.pdf
    Type:
    Thermal Magnetic
    Number of Poles:
    2
    Short Description:
    480 Star/277 VAC 50/60 Hz, 250 VDC, 100 A, 35 kA, 2-Pole, B-Frame, AB Phase, I-Line Connection Line Lug Load Terminal, Thermal Magnetic, Molded Case Circuit Breaker
    Maximum DC Voltage Rating:
    250 V
    Maximum AC Voltage Rating:
    277 V
    Approval:
    UL, CSA, CE
    Current Rating:
    100 A
    Frame Type:
    B
    Series:
    BG
    Data Sheet:
    SchneiderElectric-SquareD_74761_1-3_DATA.pdf
    CAD Drawings:
    SchneiderElectric_29097_1_CAD.pdf
    Terminal Type:
    I-Line Connection Line Lug Load
    Catalog:
    SchneiderElectric-SquareD_32357_7_31_7_32_CAT.pdf
    MSRP $1,772.41
    Surplus $478.55
    Contact Us For Quote Quick view
    Qty in Cart: 0
    Price:
    MSRP $1,772.41
    Surplus $478.55
    Contact Us For Quote
  • Contact Us For Quote
    Square D BGA24100Y2 Molded Case Breakers (MCCBs)
    Quick view

    Square D BGA24100Y2 Molded Case Breakers (MCCBs)

    MSRP $1,140.77
    Surplus $308.01
    SKU:  C15-15527 Brand:  Square D MPN:  BGA24100Y2 UPC:  60648628156 Shipping Weight:  0.00 lbs. Shipping Height:  0.00 In. Shipping Length:  0.00 In. Shipping Width:  0.00 In...
    SKU:
    C15-15527
    Interrupting Rating:
    35 kA at 480 Star/277 VAC, 20 kA at 250 VDC
    Approval:
    UL, CSA, CE
    Voltage Rating:
    480 Star/277 VAC 50/60 Hertz, 250 VDC
    Installation/Operator:
    SchneiderElectric-SquareD_00006_INST.pdf
    CAD Drawings:
    SchneiderElectric-SquareD_73570_1_CAD.pdf
    Size:
    54 Millimeter Width x 89 Millimeter Depth x 137 Millimeter Height
    Current Rating:
    100 A
    Maximum AC Voltage Rating:
    277 V
    Catalog:
    SchneiderElectric-SquareD_32357_7_31_7_32_CAT.pdf
    Number of Poles:
    2
    Data Sheet:
    SchneiderElectric-SquareD_74762_1-3_DATA.pdf
    Maximum DC Voltage Rating:
    250 V
    Type:
    Thermal Magnetic
    Series:
    BG
    Terminal Type:
    I-Line Connection Line Lug Load
    Frame Type:
    B
    Short Description:
    480 Star/277 VAC 50/60 Hz, 250 VDC, 100 A, 35 kA, 2-Pole, B-Frame, AC Phase, I-Line Connection Line Lug Load Terminal, Thermal Magnetic, Molded Case Circuit Breaker
    MSRP $1,140.77
    Surplus $308.01
    Contact Us For Quote Quick view
    Qty in Cart: 0
    Price:
    MSRP $1,140.77
    Surplus $308.01
    Contact Us For Quote
  • Contact Us For Quote
    Square D BGA34100Y Molded Case Breakers (MCCBs)
    Quick view

    Square D BGA34100Y Molded Case Breakers (MCCBs)

    MSRP $2,142.69
    Surplus $520.67
    SKU:  C15-18691 Brand:  Square D MPN:  BGA34100Y UPC:  78590106952 Shipping Weight:  0.00 lbs. Shipping Height:  0.00 In. Shipping Length:  0.00 In. Shipping Width:  0.00 In...
    SKU:
    C15-18691
    Short Description:
    480 Star/277 VAC 50/60 Hz, 250 VDC, 100 A, 35 kA, 3-Pole, B-Frame, ABC Phase, I-Line Connection Line Lug Load Terminal, Thermal Magnetic, Molded Case Circuit Breaker
    Number of Poles:
    3
    Series:
    BG
    Approval:
    UL, CSA, CE
    Catalog:
    SchneiderElectric-SquareD_32357_7_31_7_32_CAT.pdf
    Maximum DC Voltage Rating:
    250 V
    Data Sheet:
    SchneiderElectric-SquareD_74779_1-3_DATA.pdf
    Type:
    Thermal Magnetic
    Size:
    81 Millimeter Width x 89 Millimeter Depth x 137 Millimeter Height
    Interrupting Rating:
    35 kA at 480 Star/277 VAC, 20 kA at 250 VDC
    Installation/Operator:
    SchneiderElectric-SquareD_00008_INST.pdf
    CAD Drawings:
    SchneiderElectric_29120_1_CAD.pdf
    Current Rating:
    100 A
    Maximum AC Voltage Rating:
    277 V
    Frame Type:
    B
    Voltage Rating:
    480 Star/277 VAC 50/60 Hertz, 250 VDC
    Terminal Type:
    I-Line Connection Line Lug Load
    MSRP $2,142.69
    Surplus $520.67
    Contact Us For Quote Quick view
    Qty in Cart: 0
    Price:
    MSRP $2,142.69
    Surplus $520.67
    Contact Us For Quote
  • Contact Us For Quote
    Square D EHB34100 Molded Case Breakers (MCCBs)
    Quick view

    Square D EHB34100 Molded Case Breakers (MCCBs)

    Surplus $6,098.62
    SKU:  C15-8622 Brand:  Square D MPN:  EHB34100 UPC:   Shipping Weight:  0.00 lbs. Shipping Height:  0.00 In. Shipping Length:  0.00 In. Shipping Width:  0.00 In. Product...
    SKU:
    C15-8622
    Number of Poles:
    3
    Type:
    Molded Case, Thermal Magnetic
    Frame Type:
    E
    Interrupting Rating:
    65 kA at 240 VAC, 14 kA at 480 VAC Star/277 VAC (UL/CSA)
    Terminal Type:
    Bolt-On
    Voltage Rating:
    240 VAC at 50/60 Hz, 480 VAC Star/277 VAC at 50/60 Hz (UL/CSA)
    Short Description:
    240/480 Star/277 VAC, 100 A, 65/14 kA, 3-Pole, E-Frame, Bolt-On Mount, Miniature Circuit Breaker
    Series:
    EHB
    Current Rating:
    100 A
    Size:
    3 Inch W x 2.97 Inch D x 3.5 Inch H
    Maximum AC Voltage Rating:
    277 V
    Surplus $6,098.62
    Contact Us For Quote Quick view
    Qty in Cart: 0
    Price:
    Surplus $6,098.62
    Contact Us For Quote

Adding your products to cart

View Cart Continue Shopping

Disclaimer: ARCA Supply is not an authorized distributor, reseller or representative of any manufacturer, brand or product listed. All product names, trademarks, brands and logos are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder. All items sold by ARCA Supply are covered under ARCA Supply's warranty and not the manufacturer warranty.
