Circuit Breakers
Our selection of circuit breakers spans a wide range of applications, from heavy-duty air circuit breakers (ACBs) to compact miniature circuit breakers (MCBs). We offer leading brands like Eaton, Siemens, and Square D, known for their reliability and performance. Whatever your power management needs, you can find the perfect solution here at ARCA Supply.
-
Din Rail Mounted Circuit Breakers
-
Main Breakers
-
Miniature Circuit Breakers (MCBs)
-
Molded Case Breakers (MCCBs)
-
Motor Circuit Protector (MCPs)
-
Lug Terminal Kits
-
Auxiliary, Shunt, Trip Units and UVRs
-
Circuit Breaker Accessories
- Product
- Qty in Cart
- Price
-
Square D HJA36015 Molded Case Breakers (MCCBs)
MSRP $2,706.26Surplus $1,020.98SKU: C15-7134 Brand: Square D MPN: HJA36015 UPC: 78590141904 Shipping Weight: 2.43 lbs. Shipping Height: 6.42 In. Shipping Length: 4.09 In. Shipping Width: 3.39 In...- SKU:
- C15-7134
- TS PIK:
- 21108161
- CAD Drawings:
- SchneiderElectric_29660_1_CAD.pdf
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Type:
- Thermal Magnetic, Current Limiting
- Data Sheet:
- SchneiderElectric-SquareD_46731_1-3_DATA.pdf
- Series:
- HJ
- Number of Poles:
- 3
- Current Rating:
- 15 A
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 15 A, 25 kA, 3-Pole, H-Frame, ABC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Interrupting Rating:
- 25 kA at 600 VAC, 20 kA at 250 VDC
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Prop 65 Warning:
- Yes
- Country of Origin:
- Mexico
- Approval:
- UL, CSA, CE
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Application:
- Distribution
- Trip Setting:
- 350 A (Hold), 750 A (Trip)
MSRP $2,706.26Surplus $1,020.98 -
Contact Us For Quote
Square D HGA36015 Molded Case Breakers (MCCBs)
MSRP $2,144.05Surplus $1,520.84SKU: C15-7151 Brand: Square D MPN: HGA36015 UPC: 78590163256 Shipping Weight: 5.50 lbs. Shipping Height: 6.00 In. Shipping Length: 15.00 In. Shipping Width: 9.00 In...- SKU:
- C15-7151
- TS PIK:
- 121894877
- CAD Drawings:
- SchneiderElectric-SquareD_73202_1_CAD.pdf
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Series:
- HG
- Data Sheet:
- SchneiderElectric-SquareD_46575_1-3_DATA.pdf
- Current Rating:
- 15 A
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 15 A, 18 kA, 3-Pole, H-Frame, ABC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Number of Poles:
- 3
- Type:
- Thermal Magnetic, Current Limiting
- Prop 65 Warning:
- Yes
- Country of Origin:
- United States
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Approval:
- UL, CSA, CE
- Application:
- Distribution
- Trip Setting:
- 350 A (Hold), 750 A (Trip)
MSRP $2,144.05Surplus $1,520.84 -
Contact Us For Quote
Crouse-Hinds FDB3015 Molded Case Breakers (MCCBs)
MSRP $1,542.88Surplus $659.03SKU: C15-7281 Brand: Crouse-Hinds MPN: FDB3015 UPC: Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In. Product...- SKU:
- C15-7281
- TS PIK:
- 21097416
- Size:
- 4.13 Inch Width x 3.38 Inch Depth x 6 Inch Height
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Number of Poles:
- 3
- Current Rating:
- 15 A
- Catalog:
- Eaton_27487_V4T2_254_V4T2_255_V4T2_273_V4T2_274_CAT.pdf
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 15 A, 14/10 kA, 3-Pole, Standard Pressure Load Terminal, FDB Frame, Thermal Magnetic, Molded Case, Non-Interchangeable Trip Circuit Breaker
- Approval:
- UL, CSA
- Terminal Type:
- Load Side Lug
- Installation/Operator:
- Eaton_00091_INST.pdf
- Frame Type:
- F
- Maximum AC Voltage Rating:
- 600 V
- Data Sheet:
- Eaton_07831_1-3_DATA.pdf
- Interrupting Rating:
- 18 kA at 240 VAC, 14 kA at 480 VAC
- Maximum DC Voltage Rating:
- 250 V
- Type:
- Molded Case, Fixed Thermal, Fixed Magnetic
MSRP $1,542.88Surplus $659.03 -
Contact Us For Quote
Eaton HFD2015 Molded Case Breakers (MCCBs) HFD 2P 15A 600V 50/60Hz 2Ph F Frame
MSRP $2,310.13Surplus $1,057.73SKU: C15-2657 Brand: Eaton MPN: HFD2015 UPC: 786679175361 Shipping Weight: 3.00 lbs. Shipping Height: 4.00 In. Shipping Length: 8.00 In. Shipping Width: 6.00 In...- SKU:
- C15-2657
- Approval:
- UL 489
- Approval:
- CSA C22.2
- Amps:
- 15 A
- Frame:
- FD
- Interrupting Rating:
- 100 kA at 240 VAC
- Interrupting Rating:
- 65 Kiloamp at 480 Volt AC
- Interrupting Rating:
- 25 Kiloamp at 600 Volt AC
- Interrupting Rating:
- 22 Kiloamp at 250 Volt DC (UL)
- Interrupting Rating:
- 100 Kiloamp at 220/240 Volt AC
- Interrupting Rating:
- 65 Kiloamp at 380/415/440 Volt AC
- Interrupting Rating:
- 25 Kiloamp at 500 Volt AC
- Interrupting Rating:
- 22 Kiloamp at 250 Volt DC (IEC)
- Maximum AC Voltage:
- 600 V
- Maximum DC Voltage:
- 250 V
- Poles:
- 2
- Size:
- 2.75 Inch Width x 3.88 Inch Depth x 6 Inch Height
- Terminal Type:
- Load
- Type:
- Fixed Thermal Magnetic
- Type:
- Molded Case
- Volts:
- 600 VAC 50/60 Hertz
- Volts:
- 250 VDC
- TS PIK:
- 21506253
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Current Rating:
- 15 A
- Short Description:
- EATON SERIES C COMPLETE MOLDED CASE CIRCUIT BREAKER, F-FRAME, HFD, COMPLETE BREA
- Number of Poles:
- 2
- Data Sheet:
- Eaton_07831_1-12_DATA.pdf
- Frame Type:
- FD
- Installation/Operator:
- Eaton_00091_INST.pdf
- Maximum DC Voltage Rating:
- 250 V
- CAD Drawings:
- Eaton_41229_1_CAD.pdf
- Maximum AC Voltage Rating:
- 600 V
- Catalog:
- EatonCorp-CutlerHammer_00123_V4T2_254-V4T2_290_CAT.pdf
- Country of Origin:
- Dominican Republic
MSRP $2,310.13Surplus $1,057.73 -
Square D HDA260151 Molded Case Breakers (MCCBs) EA
MSRP $1,223.81Surplus $327.30SKU: C15-10983 Brand: Square D MPN: HDA260151 UPC: 78590141897 Shipping Weight: 3.20 lbs. Shipping Height: 10.00 In. Shipping Length: 3.00 In. Shipping Width: 5.00 In...- SKU:
- C15-10983
- TS PIK:
- 120729855
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Data Sheet:
- SchneiderElectric-SquareD_46340_1-3_DATA.pdf
- Interrupting Rating:
- 14 kA at 600 VAC, 20 kA at 250 VDC
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 15 A, 14 kA, 2-Pole, H-Frame, AB Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- CAD Drawings:
- SchneiderElectric_29516_1_CAD.pdf
- Series:
- HD
- Type:
- Thermal Magnetic, Current Limiting
- Current Rating:
- 15 A
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Number of Poles:
- 2
- Country of Origin:
- United States
- Approval:
- UL, CSA, CE
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Application:
- Distribution
- Trip Setting:
- 350 A (Hold), 750 A (Trip)
MSRP $1,223.81Surplus $327.30 -
Contact Us For Quote

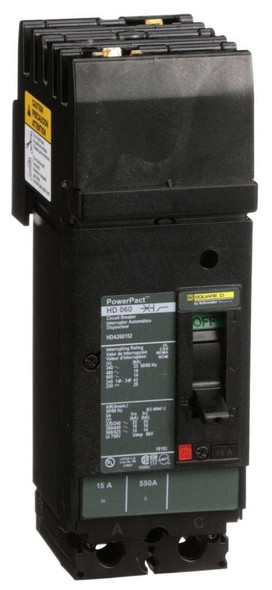

Square D HDA260152 Molded Case Breakers (MCCBs)
MSRP $1,543.71Surplus $416.80SKU: C15-18730 Brand: Square D MPN: HDA260152 UPC: 78590141293 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-18730
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 15 A, 14 kA, 2-Pole, H-Frame, AC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Interrupting Rating:
- 14 kA at 600 VAC, 20 kA at 250 VDC
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Series:
- HD
- Trip Setting:
- 350 A (Hold), 750 A (Trip)
- Prop 65 Warning:
- Yes
- CAD Drawings:
- SchneiderElectric_29517_1_CAD.pdf
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Current Rating:
- 15 A
- Number of Poles:
- 2
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Approval:
- UL, CSA, CE
- Data Sheet:
- SchneiderElectric-SquareD_46341_1-3_DATA.pdf
- Application:
- Distribution
- Type:
- Thermal Magnetic, Current Limiting
MSRP $1,543.71Surplus $416.80 -
Contact Us For Quote
Square D HDA260154 Molded Case Breakers (MCCBs)
MSRP $1,067.61Surplus $288.26SKU: C15-16395 Brand: Square D MPN: HDA260154 UPC: 78590141305 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16395
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Series:
- HD
- Data Sheet:
- SchneiderElectric-SquareD_46342_1-3_DATA.pdf
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Current Rating:
- 15 A
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Trip Setting:
- 350 A (Hold), 750 A (Trip)
- Number of Poles:
- 2
- Application:
- Distribution
- Type:
- Thermal Magnetic, Current Limiting
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 15 A, 14 kA, 2-Pole, H-Frame, BC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Interrupting Rating:
- 14 kA at 600 VAC, 20 kA at 250 VDC
- Approval:
- UL, CSA, CE
- CAD Drawings:
- SchneiderElectric_29518_1_CAD.pdf
MSRP $1,067.61Surplus $288.26 -
Square D HDA36015 Molded Case Breakers (MCCBs)
MSRP $1,530.10Surplus $1,231.16Square D HDA36015 Molded Case Breakers (MCCBs)​ ARCA SKU: C15-6432 Brand: Square D MPN: HDA36015 UPC: 78590141910 Shipping Weight: 5.95 lbs. Shipping Height: 7.00 In. Shipping...- SKU:
- C15-6432
- TS PIK:
- 21032767
- Number of Poles:
- 3
- Interrupting Rating:
- 14 kA at 600 VAC, 20 kA at 250 VDC
- Series:
- HD
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 15 A, 14 kA, 3-Pole, H-Frame, ABC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Data Sheet:
- SchneiderElectric-SquareD_46390_1-3_DATA.pdf
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Type:
- Thermal Magnetic, Current Limiting
- Current Rating:
- 15 A
- CAD Drawings:
- SchneiderElectric_29570_1_CAD.pdf
- Prop 65 Warning:
- Yes
- Country of Origin:
- Mexico
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Approval:
- UL, CSA, CE
- Trip Setting:
- 350 A (Hold), 750 A (Trip)
- Application:
- Distribution
MSRP $1,530.10Surplus $1,231.16 -
Contact Us For Quote
Square D HDL26015 Molded Case Breakers (MCCBs)
MSRP $820.29Surplus $991.03SKU: C15-10708 Brand: Square D MPN: HDL26015 UPC: 78590145886 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-10708
- TS PIK:
- 120730223
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 15 A, 14 kA, 2-Pole, H-Frame, Unit Mount, Line/Load Lug Terminal, 80% Continuous Current, Thermal Magnetic, Current Limiting, Molded Case Circuit Breaker
- Series:
- HD
- Size:
- 4.09 Inch Width x 3.39 Inch Depth x 6.42 Inch Height
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Interrupting Rating:
- 14 kA at 600 VAC, 20 kA at 250 VDC
- Maximum AC Voltage Rating:
- 600 V
- CAD Drawings:
- SchneiderElectric-SquareD_74671_1_CAD.pdf
- Prop 65 Warning:
- Yes
- Frame Type:
- H
- Number of Poles:
- 2
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Maximum DC Voltage Rating:
- 250 V
- Data Sheet:
- SchneiderElectric-SquareD_46417_1-3_DATA.pdf
- Terminal Type:
- Line/Load Lug
- Approval:
- UL, CSA, CE
- Catalog:
- SchneiderElectric-SquareD_32357_7_6_7_31_7_33_7_34_CAT.pdf
- Current Rating:
- 15 A
- Type:
- Thermal Magnetic, Current Limiting
MSRP $820.29Surplus $991.03 -
Square D HDL36015 Molded Case Breakers (MCCBs)
MSRP $1,481.09Surplus $781.92SKU: C15-10713 Brand: Square D MPN: HDL36015 UPC: 78590157786 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-10713
- TS PIK:
- 120730798
- Frame Type:
- H
- Prop 65 Warning:
- Yes
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 15 A, 14 kA, 3-Pole, H-Frame, Unit Mount, Line/Load Lug Terminal, 80% Continuous Current, Thermal Magnetic, Current Limiting, Molded Case Circuit Breaker
- Catalog:
- SchneiderElectric-SquareD_32357_7_6_7_31_7_33_7_34_CAT.pdf
- Maximum DC Voltage Rating:
- 250 V
- Data Sheet:
- SchneiderElectric-SquareD_46443_1-3_DATA.pdf
- Current Rating:
- 15 A
- Number of Poles:
- 3
- Type:
- Thermal Magnetic, Current Limiting
- CAD Drawings:
- SchneiderElectric-SquareD_74672_1_CAD.pdf
- Size:
- 4.09 Inch Width x 3.39 Inch Depth x 6.42 Inch Height
- Maximum AC Voltage Rating:
- 600 V
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Interrupting Rating:
- 14 kA at 600 VAC, 20 kA at 250 VDC
- Terminal Type:
- Line/Load Lug
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Series:
- HD
- Country of Origin:
- Mexico
- Approval:
- UL, CSA, CE
MSRP $1,481.09Surplus $781.92 -
Contact Us For Quote
Square D HGA260151 Molded Case Breakers (MCCBs)
MSRP $3,042.51Surplus $821.48SKU: C15-16493 Brand: Square D MPN: HGA260151 UPC: 78590153967 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16493
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 15 A, 18 kA, 2-Pole, H-Frame, AB Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Series:
- HG
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Current Rating:
- 15 A
- Trip Setting:
- 350 A (Hold), 750 A (Trip)
- Application:
- Distribution
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Approval:
- UL, CSA, CE
- Number of Poles:
- 2
- CAD Drawings:
- SchneiderElectric-SquareD_73130_1_CAD.pdf
- Type:
- Thermal Magnetic, Current Limiting
- Data Sheet:
- SchneiderElectric-SquareD_46526_1-3_DATA.pdf
MSRP $3,042.51Surplus $821.48 -
Contact Us For Quote
Square D HGA260152 Molded Case Breakers (MCCBs)
MSRP $3,042.51Surplus $821.48SKU: C15-16494 Brand: Square D MPN: HGA260152 UPC: 78590191228 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16494
- Number of Poles:
- 2
- Data Sheet:
- SchneiderElectric-SquareD_46527_1-3_DATA.pdf
- Approval:
- UL, CSA, CE
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Trip Setting:
- 350 A (Hold), 750 A (Trip)
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 15 A, 18 kA, 2-Pole, H-Frame, AC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- CAD Drawings:
- SchneiderElectric-SquareD_73131_1_CAD.pdf
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Type:
- Thermal Magnetic, Current Limiting
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Application:
- Distribution
- Current Rating:
- 15 A
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Series:
- HG
MSRP $3,042.51Surplus $821.48 -
Contact Us For Quote
Square D HGA260154 Molded Case Breakers (MCCBs)
MSRP $2,133.16Surplus $575.95SKU: C15-16495 Brand: Square D MPN: HGA260154 UPC: 78590191229 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16495
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 15 A, 18 kA, 2-Pole, H-Frame, BC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Series:
- HG
- Current Rating:
- 15 A
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Number of Poles:
- 2
- Approval:
- UL, CSA, CE
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Data Sheet:
- SchneiderElectric-SquareD_46528_1-3_DATA.pdf
- Type:
- Thermal Magnetic, Current Limiting
- CAD Drawings:
- SchneiderElectric-SquareD_73132_1_CAD.pdf
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Trip Setting:
- 350 A (Hold), 750 A (Trip)
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Application:
- Distribution
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
MSRP $2,133.16Surplus $575.95 -
Contact Us For Quote
Square D HGL26015 Molded Case Breakers (MCCBs)
MSRP $1,361.30Surplus $367.55SKU: C15-16531 Brand: Square D MPN: HGL26015 UPC: 78590143375 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16531
- Catalog:
- SchneiderElectric-SquareD_32357_7_6_7_31_7_33_7_34_CAT.pdf
- Current Rating:
- 15 A
- CAD Drawings:
- SchneiderElectric-SquareD_74671_1_CAD.pdf
- Installation/Operator:
- SchneiderElectric-SquareD_00142_INST.pdf
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Series:
- HG
- Size:
- 4.09 Inch Width x 3.39 Inch Depth x 6.42 Inch Height
- Maximum AC Voltage Rating:
- 600 V
- Terminal Type:
- Line/Load Lug
- Prop 65 Warning:
- Yes
- Maximum DC Voltage Rating:
- 250 V
- Frame Type:
- H
- Data Sheet:
- SchneiderElectric-SquareD_46606_1-3_DATA.pdf
- Number of Poles:
- 2
- Approval:
- UL, CSA, CE
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Type:
- Thermal Magnetic, Current Limiting
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 15 A, 18 kA, 2-Pole, H-Frame, Unit Mount, Line/Load Lug Terminal, 80% Continuous Current, Thermal Magnetic, Current Limiting, Molded Case Circuit Breaker
MSRP $1,361.30Surplus $367.55 -
Square D HGL36015 Molded Case Breakers (MCCBs)
MSRP $2,032.42Surplus $902.02SKU: C15-10729 Brand: Square D MPN: HGL36015 UPC: 78590143398 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-10729
- TS PIK:
- 120730059
- Number of Poles:
- 3
- Type:
- Thermal Magnetic, Current Limiting
- Catalog:
- SchneiderElectric-SquareD_32357_7_6_7_31_7_33_7_34_CAT.pdf
- Series:
- HG
- Installation/Operator:
- SchneiderElectric-SquareD_00142_INST.pdf
- Current Rating:
- 15 A
- Data Sheet:
- SchneiderElectric-SquareD_46623_1-3_DATA.pdf
- Maximum AC Voltage Rating:
- 600 V
- Maximum DC Voltage Rating:
- 250 V
- CAD Drawings:
- SchneiderElectric-SquareD_74672_1_CAD.pdf
- Terminal Type:
- Line/Load Lug
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 15 A, 18 kA, 3-Pole, H-Frame, Unit Mount, Line/Load Lug Terminal, 80% Continuous Current, Thermal Magnetic, Current Limiting, Molded Case Circuit Breaker
- Size:
- 4.09 Inch Width x 3.39 Inch Depth x 6.42 Inch Height
- Frame Type:
- H
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Prop 65 Warning:
- Yes
- Country of Origin:
- Mexico
- Approval:
- UL, CSA, CE
MSRP $2,032.42Surplus $902.02 -
Contact Us For Quote
Square D HJA260151 Molded Case Breakers (MCCBs)
MSRP $1,818.70Surplus $491.05SKU: C15-16554 Brand: Square D MPN: HJA260151 UPC: 78590183418 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16554
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Data Sheet:
- SchneiderElectric-SquareD_46689_1-3_DATA.pdf
- Type:
- Thermal Magnetic, Current Limiting
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Series:
- HJ
- Current Rating:
- 15 A
- Number of Poles:
- 2
- Approval:
- UL, CSA, CE
- Application:
- Distribution
- Interrupting Rating:
- 25 kA at 600 VAC, 20 kA at 250 VDC
- Trip Setting:
- 350 A (Hold), 750 A (Trip)
- CAD Drawings:
- SchneiderElectric_29611_1_CAD.pdf
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 15 A, 25 kA, 2-Pole, H-Frame, AB Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
MSRP $1,818.70Surplus $491.05 -
Contact Us For Quote
Square D HJA260155 Molded Case Breakers (MCCBs)
MSRP $2,006.56Surplus $541.77SKU: C15-16555 Brand: Square D MPN: HJA260155 UPC: 78590160102 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16555
- Current Rating:
- 15 A
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Series:
- HJ
- Type:
- Thermal Magnetic, Current Limiting
- Approval:
- UL, CSA, CE
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Data Sheet:
- SchneiderElectric-SquareD_46692_1-3_DATA.pdf
- Number of Poles:
- 2
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Trip Setting:
- 350 A (Hold), 750 A (Trip)
- Application:
- Distribution
- CAD Drawings:
- SchneiderElectric_29614_1_CAD.pdf
- Interrupting Rating:
- 25 kA at 600 VAC, 20 kA at 250 VDC
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 15 A, 25 kA, 2-Pole, H-Frame, CA Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
MSRP $2,006.56Surplus $541.77 -
Square D HJL36015 Molded Case Breakers (MCCBs)
MSRP $2,653.17Surplus $1,241.10SKU: C15-8574 Brand: Square D MPN: HJL36015 UPC: Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In. Product...- SKU:
- C15-8574
- Series:
- HJ
- Catalog:
- SchneiderElectric-SquareD_32357_7_6_7_31_7_33_7_34_CAT.pdf
- Size:
- 4.09 Inch Width x 3.39 Inch Depth x 6.42 Inch Height
- Terminal Type:
- Line/Load Lug
- Maximum DC Voltage Rating:
- 250 V
- Maximum AC Voltage Rating:
- 600 V
- Number of Poles:
- 3
- Interrupting Rating:
- 25 kA at 600 VAC, 20 kA at 250 VDC
- Data Sheet:
- SchneiderElectric-SquareD_46788_1-3_DATA.pdf
- Type:
- Thermal Magnetic, Current Limiting
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Prop 65 Warning:
- Yes
- CAD Drawings:
- SchneiderElectric-SquareD_74672_1_CAD.pdf
- Frame Type:
- H
- Current Rating:
- 15 A
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 15 A, 25 kA, 3-Pole, H-Frame, Unit Mount, Line/Load Lug Terminal, 80% Continuous Current, Thermal Magnetic, Current Limiting, Molded Case Circuit Breaker
- Country of Origin:
- United States
- Approval:
- UL, CSA, CE
- TS PIK:
- 21330945
MSRP $2,653.17Surplus $1,241.10 -
Square D HLA36015 Molded Case Breakers (MCCBs)
MSRP $2,425.29Surplus $1,612.81SKU: C15-10750 Brand: Square D MPN: HLA36015 UPC: 78590170064 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-10750
- TS PIK:
- 120736859
- Prop 65 Warning:
- Yes
- Number of Poles:
- 3
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- CAD Drawings:
- SchneiderElectric_29696_1_CAD.pdf
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Type:
- Thermal Magnetic, Current Limiting
- Data Sheet:
- SchneiderElectric-SquareD_46859_1-3_DATA.pdf
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Series:
- HL
- Current Rating:
- 15 A
- Interrupting Rating:
- 50 kA at 600 VAC, 20 kA at 250 VDC
- Approval:
- UL, CSA, CE
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 15 A, 50 kA, 3-Pole, H-Frame, ABC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Trip Setting:
- 350 A (Hold), 750 A (Trip)
- Application:
- Distribution
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Country of Origin:
- Mexico
MSRP $2,425.29Surplus $1,612.81 -
Square D HLL36015 Molded Case Breakers (MCCBs)
MSRP $2,442.17Surplus $1,624.04SKU: C15-10757 Brand: Square D MPN: HLL36015 UPC: 78590159887 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-10757
- TS PIK:
- 120736792
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 15 A, 50 kA, 3-Pole, H-Frame, Unit Mount, Line/Load Lug Terminal, 80% Continuous Current, Thermal Magnetic, Current Limiting, Molded Case Circuit Breaker
- Number of Poles:
- 3
- Prop 65 Warning:
- Yes
- Series:
- HL
- Installation/Operator:
- SchneiderElectric-SquareD_00142_INST.pdf
- Data Sheet:
- SchneiderElectric-SquareD_46881_1-3_DATA.pdf
- Current Rating:
- 15 A
- CAD Drawings:
- SchneiderElectric-SquareD_74672_1_CAD.pdf
- Size:
- 4.09 Inch Width x 3.39 Inch Depth x 6.42 Inch Height
- Maximum DC Voltage Rating:
- 250 V
- Approval:
- UL, CSA, CE
- Interrupting Rating:
- 50 kA at 600 VAC, 20 kA at 250 VDC
- Maximum AC Voltage Rating:
- 600 V
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Type:
- Thermal Magnetic, Current Limiting
- Catalog:
- SchneiderElectric-SquareD_32357_7_6_7_31_7_33_7_34_CAT.pdf
- Frame Type:
- H
- Terminal Type:
- Line/Load Lug
- Country of Origin:
- Mexico
MSRP $2,442.17Surplus $1,624.04
Disclaimer: ARCA Supply is not an authorized distributor, reseller or representative of any manufacturer, brand or product listed. All product names, trademarks, brands and logos are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder. All items sold by ARCA Supply are covered under ARCA Supply's warranty and not the manufacturer warranty.
