Circuit Breakers
Our selection of circuit breakers spans a wide range of applications, from heavy-duty air circuit breakers (ACBs) to compact miniature circuit breakers (MCBs). We offer leading brands like Eaton, Siemens, and Square D, known for their reliability and performance. Whatever your power management needs, you can find the perfect solution here at ARCA Supply.
-
Din Rail Mounted Circuit Breakers
-
Main Breakers
-
Miniature Circuit Breakers (MCBs)
-
Molded Case Breakers (MCCBs)
-
Motor Circuit Protector (MCPs)
-
Lug Terminal Kits
-
Auxiliary, Shunt, Trip Units and UVRs
-
Circuit Breaker Accessories
- Product
- Qty in Cart
- Price
-
Square D BGA36070 Din Rail Mounted Circuit Breakers
MSRP $2,171.27Surplus $1,520.84SKU: C15-10657 Brand: Square D MPN: BGA36070 UPC: 60648115385 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-10657
- TS PIK:
- 127013724
- Country of Origin:
- United States
- Short Description:
- 600 Star/347 VAC 50/60 Hz, 250 VDC, 70 A, 18 kA, 3-Pole, B-Frame, ABC Phase, I-Line Connection Line Lug Load Terminal, Thermal Magnetic, Molded Case Circuit Breaker
- Series:
- BG
- Interrupting Rating:
- 18 kA at 600 Star/347 V, 20 kA at 250 VDC
- Prop 65 Warning:
- Yes
- Voltage Rating:
- 600 Star/347 VAC 50/60 Hertz, 250 VDC
- Type:
- Thermal Magnetic
- Current Rating:
- 70 A
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_7_32_CAT.pdf
- Data Sheet:
- SchneiderElectric-SquareD_35057_1-4_DATA.pdf
- Size:
- 3.19 Inch Width x 3.5 Inch Depth x 5.39 Inch Height
- Installation/Operator:
- SchneiderElectric-SquareD_00008_INST.pdf
- Approval:
- UL, CSA, CE
- Number of Poles:
- 3
- Terminal Type:
- I-Line Connection Line Lug Load
- CAD Drawings:
- SchneiderElectric-SquareD_73610_1_CAD.pdf
- Maximum DC Voltage Rating:
- 250 V
- Frame Type:
- B
- Maximum AC Voltage Rating:
- 347 V
MSRP $2,171.27Surplus $1,520.84 -
Eaton BAB3070H Miniature Circuit Breakers (MCBs) 3P 70A 240V EA
MSRP $779.73Surplus $197.77SKU: C15-1104 Brand: Eaton MPN: BAB3070H UPC: 78667930370 Shipping Weight: 1.15 lbs. Shipping Height: 3.00 In. Shipping Length: 4.00 In. Shipping Width: 4.00 In...- SKU:
- C15-1104
- Series:
- BAB
- Type:
- Thermal Magnetic
- Type:
- Miniature
- Approval:
- UL 489
- Approval:
- CSA
- Size:
- 3.9 Inch Length x 3.2 Inch Width x 4.9 Inch Height
- Volts:
- 240 VAC
- Amps:
- 32 A
- Poles:
- 3
- Mounting:
- Bolt-On
- Interrupting Rating:
- 10 kA at 240 VAC
- Terminal Type:
- Extended Tang Line
- Terminal Type:
- Box Lug Load
- Wire Size:
- 8 to 1/0 AWG (Copper/Aluminum)
- Short Description:
- 240 VAC, 70 A, 10 kA, 3-Pole, Extended Tang Line/Box Lug Load Terminal, Bolt-On Mount, Thermal Magnetic, Miniature
- Catalog:
- Eaton_03771_V4T1_3_V4T1_11_V4T1_12_CAT.pdf
- TS PIK:
- 21508714
- Current Rating:
- 70 A
- Voltage Rating:
- 240 VAC
- Number of Poles:
- 3
- Country of Origin:
- Dominican Republic
MSRP $779.73Surplus $197.77 -
Eaton QBHW3070H Miniature Circuit Breakers (MCBs) 3P 70A 240V EA
MSRP $1,398.71Surplus $311.98SKU: C15-4083 Brand: Eaton MPN: QBHW3070H UPC: 786679393550 Shipping Weight: 1.15 lbs. Shipping Height: 3.00 In. Shipping Length: 4.00 In. Shipping Width: 4.00 In...- SKU:
- C15-4083
- Series:
- QBHW
- Type:
- Thermal Magnetic
- Approval:
- UL 489
- Approval:
- CSA
- Volts:
- 240 VAC
- Amps:
- 32 A
- Poles:
- 3
- Mounting:
- Bolt-On
- Interrupting Rating:
- 22000 A at 240 VAC
- Terminal Type:
- Extended Tang Line Terminal
- Terminal Type:
- Box Lug Load Terminal
- Wire Size:
- 8 to 1/0 AWG (Aluminum/Copper
- Wire Size:
- Load)
- Short Description:
- 240 VAC, 70 A, 22 kA, 3-Pole, Extended Tang Line/Steel Box Lug Load Terminal, Bolt-On Mount, Thermal Magnetic, Miniature
- Catalog:
- Eaton_03771_V4T1_12_CAT.pdf
- TS PIK:
- 21510613
- Country of Origin:
- Dominican Republic
- Current Rating:
- 70 A
- Voltage Rating:
- 240 VAC
- Number of Poles:
- 3
MSRP $1,398.71Surplus $311.98 -
Eaton GHB3070 Molded Case Breakers (MCCBs) GHB 3P 70A 277V 50/60Hz 3Ph G Frame EA
MSRP $1,633.56Surplus $571.75SKU: C15-3735 Brand: Eaton MPN: GHB3070 UPC: 786679911310 Shipping Weight: 1.50 lbs. Shipping Height: 4.00 In. Shipping Length: 5.00 In. Shipping Width: 4.00 In...- SKU:
- C15-3735
- Series:
- C
- Type:
- Molded Case
- Type:
- Thermal Magnetic
- Approval:
- UL 489
- Approval:
- CSA C22.2
- Size:
- 3.8 Inch Width x 6.6 Inch Depth x 4 Inch Height
- Volts:
- 277/480 VAC at 50/60 Hertz
- Volts:
- 125/250 VDC
- Amps:
- 32 A
- Poles:
- 3
- Interrupting Rating:
- 14 kA at 480 VAC Star/277 VAC/125/250 VDC
- Terminal Type:
- Aluminum Pressure Line and Load
- Frame Type:
- GHB
- Maximum AC Voltage Rating:
- 480 V
- Maximum DC Voltage Rating:
- 250 V
- Short Description:
- 277/480 VAC 50/60 Hz, 125 VDC, 70 A, 14 kA, 3-Pole, Steel Pressure Screw Line and Load Terminal, GHB Frame, Thermal Magnetic, Molded Case
- Catalog:
- Eaton_27487_V4T2_254_V4T2_255_V4T2_259_V4T2_260_CAT.pdf
- Installation/Operator:
- Eaton_00166_INST.pdf
- TS PIK:
- 21517408
- Number of Poles:
- 3
- Voltage Rating:
- 277/480 VAC, 125/250 VDC
- Current Rating:
- 70 A
- Country of Origin:
- Dominican Republic
MSRP $1,633.56Surplus $571.75 -
Square D QOB370 Miniature Circuit Breakers (MCBs) EA
MSRP $542.51Surplus $133.41Square D QOB370 Miniature Circuit Breakers (MCBs) EA​ ARCA SKU: C15-3992 Brand: Square D MPN: QOB370 UPC: 78590101974 Shipping Weight: 1.05 lbs. Shipping Height: 4.00 In. Shipping...- SKU:
- C15-3992
- Type:
- Miniature, Standard
- Voltage Rating:
- 120/240 VAC
- Current Rating:
- 70 A
- Number of Poles:
- 3
- Interrupting Rating:
- 10 kA at 120/240 VAC, 5 kA at 48 VDC
- Used On:
- NQ Panelboard
- Short Description:
- 120/240 VAC 50/60 Hz, 48 VDC, 70 A, 10 kA, 3-Pole, Q-Frame, Bolt-On Mount, Box Lug Terminal, Miniature, Standard, Panelboard Circuit Breaker
- Catalog:
- SchneiderElectric-SquareD_32357_9_16_CAT.pdf
- Data Sheet:
- SchneiderElectric_21404_1_2_DATA.pdf
- Installation/Operator:
- SchneiderElectric-SquareD_02166_INST.pdf
- TS PIK:
- 111080233
- Series:
- QOB
- Mounting:
- Bolt-On
- Country of Origin:
- United States
- Approval:
- UL, CSA
- Installation:
- Bolt-On
MSRP $542.51Surplus $133.41 -
Siemens BQ3B070 Miniature Circuit Breakers (MCBs)
MSRP $1,044.12Surplus $225.64Siemens BQ3B070 Miniature Circuit Breakers (MCBs)​ ARCA SKU: C15-8430 Brand: Siemens MPN: BQ3B070 UPC: 78364310264 Shipping Weight: 4.45 lbs. Shipping Height: 4.00 In. Shipping...- SKU:
- C15-8430
- TS PIK:
- 21366172
- Voltage Rating:
- 240 VAC at 50/60 Hz (UL)
- Series:
- BQ
- Short Description:
- 240 VAC, 70 A, 10 kA, 3-Pole, Load Lug Terminal, BQ Frame, Bolt-On, Common Trip, Molded Case Circuit Breaker
- Used On:
- P1/P2/P3/P4/P5 Panelboard
- Type:
- Molded Case, Thermal and Fixed Magnetic, Common Trip
- Data Sheet:
- SiemensAG_05403_1_DATA.pdf
- Catalog:
- SiemensAG_01698_17_1_17_7_17_110_CAT.pdf
- Size:
- 3 Inch W x 3 Inch D x 4 Inch H
- Interrupting Rating:
- 10 kA at 240 VAC Symmetrical (UL)
- Current Rating:
- 70 A
- Wire Size:
- 8 to 4 AWG (Copper), 8 to 2 AWG (Aluminum)
- Number of Poles:
- 3
- Terminal Type:
- Load Lug
- Country of Origin:
- Mexico
- Approval:
- UL
MSRP $1,044.12Surplus $225.64 -
Siemens BQD370 Miniature Circuit Breakers (MCBs) 3P 70A 277/480V EA
MSRP $2,124.99Surplus $276.07SKU: C15-7528 Brand: Siemens MPN: BQD370 UPC: Shipping Weight: 1.80 lbs. Shipping Height: 4.00 In. Shipping Length: 6.00 In. Shipping Width: 5.00 In. Product...- SKU:
- C15-7528
- TS PIK:
- 120152001
- Type:
- Branch, Molded Case
- Voltage Rating:
- 480 VAC Star/277 VAC
- Number of Poles:
- 3
- Short Description:
- 480 VAC Star/277 VAC, 70 A, 14 kA, 3-Pole, Bolt-On Mount, Molded Case, Branch, Thermal Magnetic, Panelboard Circuit Breaker
- Data Sheet:
- SiemensAG_01623_1_DATA.pdf
- Catalog:
- SiemensAG_00876_5_18_5_20_CAT.pdf
- Used On:
- P1/P2/P3/P4/P5 Panelboard
- Series:
- BQD
- Interrupting Rating:
- 14 kA at 480 Star/277 VAC (UL)
- Current Rating:
- 70 A
- Country of Origin:
- Mexico
- Approval:
- UL
- Installation:
- Bolt-On
- Application:
- Lighting, Distribution
MSRP $2,124.99Surplus $276.07 -
Square D HJA36070 Molded Case Breakers (MCCBs)
MSRP $3,028.89Surplus $1,470.15SKU: C15-7145 Brand: Square D MPN: HJA36070 UPC: 78590170066 Shipping Weight: 5.46 lbs. Shipping Height: 6.00 In. Shipping Length: 15.00 In. Shipping Width: 9.00 In...- SKU:
- C15-7145
- TS PIK:
- 120071893
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 70 A, 25 kA, 3-Pole, H-Frame, ABC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Current Rating:
- 70 A
- Number of Poles:
- 3
- CAD Drawings:
- SchneiderElectric_29670_1_CAD.pdf
- Type:
- Thermal Magnetic, Current Limiting
- Interrupting Rating:
- 25 kA at 600 VAC, 20 kA at 250 VDC
- Series:
- HJ
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Data Sheet:
- SchneiderElectric-SquareD_46751_1-3_DATA.pdf
- Prop 65 Warning:
- Yes
- Country of Origin:
- Canada
- Application:
- Distribution
- Approval:
- UL, CSA, CE
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Trip Setting:
- 800 A (Hold), 1450 A (Trip)
MSRP $3,028.89Surplus $1,470.15 -

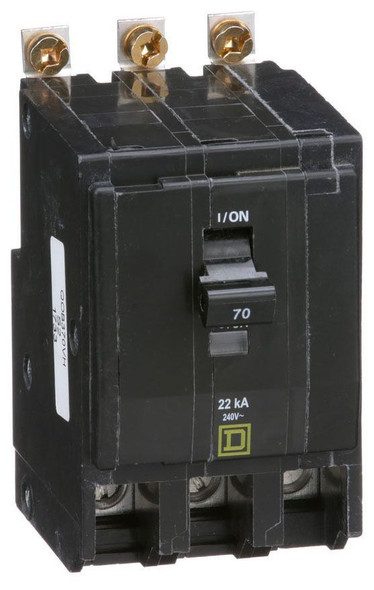

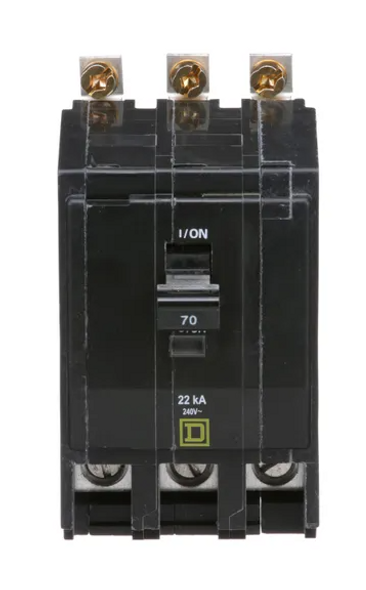

Square D QOB370VH Miniature Circuit Breakers (MCBs)
MSRP $823.31Surplus $416.42Square D QOB370VH Miniature Circuit Breakers (MCBs)​ ARCA SKU: C15-6560 Brand: Square D MPN: QOB370VH UPC: 78590105484 Shipping Weight: 1.10 lbs. Shipping Height: 3.00 In. Shipping...- SKU:
- C15-6560
- TS PIK:
- 109594913
- Used On:
- NQ Panelboard
- Interrupting Rating:
- 22 kA at 120/240 VAC
- Current Rating:
- 70 A
- Data Sheet:
- SchneiderElectric_21405_1_2_DATA.pdf
- Number of Poles:
- 3
- Catalog:
- SchneiderElectric-SquareD_32357_9_16_CAT.pdf
- Short Description:
- 120/240 VAC 50/60 Hz, 48 VDC, 70 A, 22 kA, 3-Pole, Q-Frame, Bolt-On Mount, Box Lug Terminal, Miniature, Standard, Panelboard Circuit Breaker
- Series:
- QOB-VH
- Voltage Rating:
- 120/240 VAC
- Type:
- Miniature, Standard
- Installation/Operator:
- SchneiderElectric-SquareD_02166_INST.pdf
- Country of Origin:
- Mexico
- Approval:
- UL, CSA
- Installation:
- Bolt-On
MSRP $823.31Surplus $416.42 -
Eaton BR370 Miniature Circuit Breakers (MCBs) 1P 15A 240V EA
MSRP $811.61Surplus $148.65Eaton BR370 Miniature Circuit Breakers (MCBs) 1P 15A 240V EA​ ARCA SKU: C15-1266 Brand: Eaton MPN: BR370 UPC: 786676368001 Shipping Weight: 1.00 lbs. Shipping Height: 3.00 In...- SKU:
- C15-1266
- Series:
- BR
- Type:
- Bi-Metallic
- Approval:
- UL 489
- Size:
- 1.9 Inch Length x 2.9 Inch Width x 2.5 Inch Height
- Volts:
- 240 VAC
- Amps:
- 32 A
- Used On:
- Type BR Load Center
- Poles:
- 3
- Mounting:
- Plug-On
- Interrupting Rating:
- 10 kA at 240 VAC
- Enclosure:
- IP20
- Wire Size:
- 4 to 1/0 AWG (Aluminum/Copper)
- Short Description:
- 240 VAC, 70 A, 10 kA, 3-Pole, Plug-On Mount, Common Trip
- Catalog:
- Eaton_36620_V1T1_85_CAT.pdf
- Data Sheet:
- Eaton_41007_1-6_DATA.pdf
- TS PIK:
- 21493900
- Number of Poles:
- 3
- Voltage Rating:
- 240 VAC
- Current Rating:
- 70 A
- Country of Origin:
- Dominican Republic
MSRP $811.61Surplus $148.65 -
Eaton QC3070H Molded Case Breakers (MCCBs)
MSRP $1,007.36Surplus $164.68SKU: C15-3099 Brand: Eaton MPN: QC3070H UPC: 786679240243 Shipping Weight: 1.10 lbs. Shipping Height: 4.00 In. Shipping Length: 3.00 In. Shipping Width: 3.00 In...- SKU:
- C15-3099
- Series:
- QC
- Type:
- Thermal Magnetic
- Approval:
- UL 489
- Approval:
- CSA
- Volts:
- 240 VAC
- Amps:
- 32 A
- Poles:
- 3
- Mounting:
- Cable-In
- Mounting:
- Cable Out
- Interrupting Rating:
- 10000 A
- Terminal Type:
- Box Lug
- Wire Size:
- 8 to 1/0 AWG Aluminum/Copper (Load)
- Short Description:
- 240 VAC, 70 A, 10 kA, 3-Pole, Aluminum Box Lug Line/Steel Box Lug Load Terminal, Cable-In/Out Mount, Thermal Magnetic, Miniature
- Catalog:
- Eaton_03771_V4T1_19_V4T1_20_V4T1_46_CAT.pdf
- Number of Poles:
- 3
- Current Rating:
- 70 A
- Voltage Rating:
- 240 VAC
- TS PIK:
- 21507386
- Country of Origin:
- Dominican Republic
MSRP $1,007.36Surplus $164.68 -
GENERAL ELECTRIC TEB132070 Molded Case Breakers (MCCBs)
MSRP $2,099.30Surplus $672.52SKU: C15-6907 Brand: GENERAL ELECTRIC MPN: TEB132070 UPC: 78316406896 Shipping Weight: 3.05 lbs. Shipping Height: 3.00 In. Shipping Length: 7.00 In. Shipping Width: 4...- SKU:
- C15-6907
- TS PIK:
- 115928003
- Current Rating:
- 70 A
- Interrupting Rating:
- 10 kA at 120/240 VAC
- Number of Poles:
- 3
- Type:
- Thermal Magnetic
- Terminal Type:
- Copper/Aluminum Line and Load Lug
- Short Description:
- 120/240 VAC, 70 A, 10 kA, 3-Pole, E150 Frame, Copper/Aluminum Line and Load Lug Terminal, Thermal Magnetic, Molded Case Circuit Breaker
- Voltage Rating:
- 120/240 VAC
- Country of Origin:
- Mexico
MSRP $2,099.30Surplus $672.52 -
Square D FAL36070 Molded Case Breakers (MCCBs)
MSRP $2,722.60Surplus $955.63SKU: C15-6426 Brand: Square D MPN: FAL36070 UPC: Shipping Weight: 4.40 lbs. Shipping Height: 5.00 In. Shipping Length: 8.00 In. Shipping Width: 6.00 In. Product...- SKU:
- C15-6426
- Catalog:
- SchneiderElectric-SquareD_00096_25_26_CAT.pdf
- Frame Type:
- F
- Data Sheet:
- SchneiderElectric-SquareD_04494_1_2_DATA.pdf
- Current Rating:
- 70 A
- Short Description:
- 600 AC, 250 VDC, 70 A, 14/10 kA, 3-Pole, F-Frame, Unit Mount, Thermal Magnetic, Molded Case Circuit Breaker
- Terminal Type:
- Lug
- Voltage Rating:
- 600 VAC, 250 VDC
- Number of Poles:
- 3
- Size:
- 4.5 Inch Width x 4.13 Inch Depth x 6 Inch Height
- Installation/Operator:
- SchneiderElectric-SquareD_00076_INST.pdf
- Type:
- Thermal Magnetic
- Series:
- FA
- Interrupting Rating:
- 14 kA at 600 VAC
- Prop 65 Warning:
- Yes
- Approval:
- UL, CSA, IEC, Federal Specification W-C-375B/GEN
- Country of Origin:
- Mexico
MSRP $2,722.60Surplus $955.63 -
Square D FHL36070 Molded Case Breakers (MCCBs)
MSRP $2,041.95Surplus $1,274.18SKU: C15-7177 Brand: Square D MPN: FHL36070 UPC: Shipping Weight: 4.80 lbs. Shipping Height: 5.00 In. Shipping Length: 8.00 In. Shipping Width: 6.00 In. Product...- SKU:
- C15-7177
- Series:
- FH
- Frame Type:
- F
- Short Description:
- 600 VAC, 250 VDC, 70 A, 18/10 kA, 3-Pole, F-Frame, Unit Mount, Thermal Magnetic, Molded Case Circuit Breaker
- Current Rating:
- 70 A
- Terminal Type:
- Lug
- Catalog:
- SchneiderElectric_00256_11_8_CAT.pdf
- Data Sheet:
- SchneiderElectric-SquareD_04577_1_2_DATA.pdf
- Installation/Operator:
- SchneiderElectric-SquareD_00076_INST.pdf
- Number of Poles:
- 3
- Type:
- Thermal Magnetic
- Voltage Rating:
- 600 VAC, 250 VDC
- Interrupting Rating:
- 18 kA at 600 VAC
- Size:
- 4.5 Inch Width x 4.13 Inch Depth x 6 Inch Height
- Prop 65 Warning:
- Yes
- Approval:
- UL, CSA, IEC, Federal Specification W-C-375B/GEN
- Country of Origin:
- Mexico
MSRP $2,041.95Surplus $1,274.18 -
Square D HGA36070 Molded Case Breakers (MCCBs)
MSRP $2,412.22Surplus $714.68SKU: C15-4897 Brand: Square D MPN: HGA36070 UPC: 78590149129 Shipping Weight: 5.45 lbs. Shipping Height: 6.00 In. Shipping Length: 15.00 In. Shipping Width: 9.00 In...- SKU:
- C15-4897
- Series:
- HG
- Type:
- Thermal Magnetic
- Type:
- Current Limiting
- Approval:
- UL
- Approval:
- CSA
- Approval:
- CE
- Volts:
- 600 VAC 50/60 Hertz
- Volts:
- 250 VDC
- Amps:
- 32 A
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Poles:
- 3
- Interrupting Rating:
- 18 kA at 600 VAC
- Interrupting Rating:
- 20 kA at 250 Volt DC
- Application:
- Distribution
- Trip Setting:
- 800 A (Hold)
- Trip Setting:
- 1450 Amp (Trip)
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 70 A, 18 kA, 3-Pole, H-Frame, ABC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Data Sheet:
- SchneiderElectric-SquareD_46590_1-3_DATA.pdf
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- CAD Drawing:
- SchneiderElectric-SquareD_73211_1_CAD.pdf
- Manufacturer Warranty:
- SchneiderElectric-SquareD_00002_WARR.pdf
- TS PIK:
- 122438370
- CAD Drawings:
- SchneiderElectric-SquareD_73211_1_CAD.pdf
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Number of Poles:
- 3
- Current Rating:
- 70 A
- Prop 65 Warning:
- Yes
- Country of Origin:
- Mexico
MSRP $2,412.22Surplus $714.68 -
Square D QOM70 Other Circuit Breakers EA
MSRP $272.26Surplus $59.68Square D QOM70 Other Circuit Breakers EA​ ARCA SKU: C15-10991 Brand: Square D MPN: QOM70 UPC: Shipping Weight: 1.35 lbs. Shipping Height: 5.00 In. Shipping Length: 6.00...- SKU:
- C15-10991
- Interrupting Rating:
- 10 kA
- Mounting:
- Plug-On Mount
- Current Rating:
- 70 A
- Number of Poles:
- 3
- Voltage Rating:
- 120/240 VAC
- Short Description:
- Mini circuit breaker, QO, 70A, 3 pole, 120/240VAC, 10kA, plug in
- Country of Origin:
- Mexico
MSRP $272.26Surplus $59.68 -
Square D BDA34070Y Molded Case Breakers (MCCBs)
MSRP $1,540.99Surplus $480.29SKU: C15-11966 Brand: Square D MPN: BDA34070Y UPC: 60648115244 Shipping Weight: 3.85 lbs. Shipping Height: 6.00 In. Shipping Length: 12.00 In. Shipping Width: 8.00 In...- SKU:
- C15-11966
- TS PIK:
- 127013798
- Short Description:
- 480 Star/277 VAC 50/60 Hz, 250 VDC, 70 A, 18 kA, 3-Pole, B-Frame, ABC Phase, I-Line Connection Line Lug Load Terminal, Thermal Magnetic, Molded Case Circuit Breaker
- Current Rating:
- 70 A
- Number of Poles:
- 3
- Approval:
- UL, CSA, CE
- Voltage Rating:
- 480 Star/277 VAC 50/60 Hertz, 250 VDC
- Type:
- Thermal Magnetic
- Installation/Operator:
- SchneiderElectric-SquareD_00008_INST.pdf
- Series:
- BD
- Size:
- 3.19 Inch Width x 3.5 Inch Depth x 5.39 Inch Height
- Interrupting Rating:
- 18 kA at 480 Star/277 VAC, 10 kA at 250 VDC
- Data Sheet:
- SchneiderElectric-SquareD_34833_1-4_DATA.pdf
- Maximum DC Voltage Rating:
- 250 V
- Frame Type:
- B
- Maximum AC Voltage Rating:
- 277 V
- CAD Drawings:
- SchneiderElectric-SquareD_73461_1_CAD.pdf
- Terminal Type:
- I-Line Connection Line Lug Load
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_7_32_CAT.pdf
- Country of Origin:
- Mexico
MSRP $1,540.99Surplus $480.29 -
Square D HDA36070 Molded Case Breakers (MCCBs)
MSRP $1,852.73Surplus $1,265.56SKU: C15-7147 Brand: Square D MPN: HDA36070 UPC: 78590141997 Shipping Weight: 5.45 lbs. Shipping Height: 6.00 In. Shipping Length: 15.00 In. Shipping Width: 9.00 In...- SKU:
- C15-7147
- TS PIK:
- 126554038
- Interrupting Rating:
- 14 kA at 600 VAC, 20 kA at 250 VDC
- Data Sheet:
- SchneiderElectric-SquareD_46402_1-3_DATA.pdf
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Type:
- Thermal Magnetic, Current Limiting
- Series:
- HD
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- CAD Drawings:
- SchneiderElectric_29579_1_CAD.pdf
- Current Rating:
- 70 A
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 70 A, 14 kA, 3-Pole, H-Frame, ABC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Number of Poles:
- 3
- Prop 65 Warning:
- Yes
- Country of Origin:
- United States
- Approval:
- UL, CSA, CE
- Application:
- Distribution
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Trip Setting:
- 800 A (Hold), 1450 A (Trip)
MSRP $1,852.73Surplus $1,265.56 -
Cutler-Hammer BR370 Miniature Circuit Breakers (MCBs)
MSRP $1,353.13Surplus $581.21SKU: C15-11451 Brand: Cutler-Hammer MPN: BR370 UPC: Shipping Weight: 1.00 lbs. Shipping Height: 3.00 In. Shipping Length: 3.00 In. Shipping Width: 3.00 In. Product...- SKU:
- C15-11451
- TS PIK:
- 21493900
- Number of Poles:
- 3
- Wire Size:
- 4 to 1/0 AWG (Aluminum/Copper)
- Short Description:
- 240 VAC, 70 A, 10 kA, 3-Pole, Plug-On Mount, Common Trip, Circuit Breaker
- Used On:
- Type BR Load Center
- Voltage Rating:
- 240 VAC
- Type:
- Common Trip
- Series:
- BR
- Mounting:
- Plug-On
- Current Rating:
- 70 A
- Catalog:
- Eaton_36620_V1T1_85_CAT.pdf
- Size:
- 1.9 Inch Length x 2.9 Inch Width x 2.5 Inch Height
- Interrupting Rating:
- 10 kA at 240 VAC
- Approval:
- UL 489
- Country of Origin:
- Dominican Republic
MSRP $1,353.13Surplus $581.21 -
Eaton BAB3070HS Molded Case Breakers (MCCBs)
MSRP $710.60Surplus $472.55SKU: U00-7846 Brand: Eaton MPN: BAB3070HS UPC: 78667950969 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- U00-7846
- Series:
- BAB
- Number of Poles:
- 3
- Mounting:
- Bolt-On
- Type:
- Thermal Magnetic
- Current Rating:
- 70 A
- Terminal Type:
- Extended Tang Line Terminal, Box Lug Load Terminal
- Wire Size:
- 8 to 1/0 AWG (Aluminum/Copper, Load)
- Interrupting Rating:
- 10000 A at 240 VAC
- Catalog:
- Eaton_03771_V4T1_11_V4T1_12_V4T1_45_CAT.pdf
- Approval:
- UL 489, CSA
- Short Description:
- 240 VAC, 70 A, 10 kA, 3-Pole, Extended Tang Line/Box Lug Load Terminal, Bolt-On Mount, Shunt Trip, Thermal Magnetic, Miniature, Circuit Breaker
- Voltage Rating:
- 240 VAC
- Country of Origin:
- Mexico
MSRP $710.60Surplus $472.55 -
Eaton EGS3070FFG Molded Case Breakers (MCCBs) EGS 3P 70A 480V 50/60Hz 3Ph EG Frame
MSRP $2,197.14Surplus $1,257.84SKU: C15-2777 Brand: Eaton MPN: EGS3070FFG UPC: 782114877197 Shipping Weight: 2.50 lbs. Shipping Height: 5.00 In. Shipping Length: 6.00 In. Shipping Width: 3.00 In...- SKU:
- C15-2777
- Approval:
- UL 489
- Approval:
- CSA C22.2
- Approval:
- CE
- Amps:
- 70 A
- Frame:
- EG
- Interrupting Rating:
- 22 kA at 600 Star/347 VAC
- Interrupting Rating:
- 35 Kiloamp at 480 Volt AC
- Interrupting Rating:
- 40 Kiloamp at 415 Volt AC
- Interrupting Rating:
- 85 Kiloamp at 240 Volt AC
- Maximum AC Voltage:
- 480 V
- Poles:
- 3
- Size:
- 3 Inch Width x 2.99 Inch Depth x 5.5 Inch Height
- Terminal Type:
- Standard Line and Load
- Type:
- Fixed Thermal Magnetic
- Type:
- Molded Case
- Volts:
- 240/415/480/600 Star/347 VAC 50/60 Hz
- TS PIK:
- 116533589
- Short Description:
- EATON SERIES G MOLDED CASE CIRCUIT BREAkER, EG-FRAME, EG, FIXED THERMAL, FIXED M
- Voltage Rating:
- 240/415/480/600 Star/347 VAC 50/60 Hz
- Frame Type:
- EG
- Catalog:
- EatonCorp-CutlerHammer_00123_V4T2_142-V4T2_166_CAT.pdf
- Current Rating:
- 70 A
- Data Sheet:
- Eaton_21533_1-12_DATA.pdf
- Maximum AC Voltage Rating:
- 480 V
- Number of Poles:
- 3
- Country of Origin:
- Dominican Republic
MSRP $2,197.14Surplus $1,257.84 -
Eaton GD3070 Molded Case Breakers (MCCBs) EA
MSRP $2,297.87Surplus $255.24SKU: C15-9715 Brand: Eaton MPN: GD3070 UPC: Shipping Weight: 2.05 lbs. Shipping Height: 5.00 In. Shipping Length: 7.00 In. Shipping Width: 4.00 In. Product...- SKU:
- C15-9715
- TS PIK:
- 106999856
- Frame Type:
- G
- Maximum AC Voltage Rating:
- 480 V
- Installation/Operator:
- Eaton_00165_INST.pdf
- Maximum DC Voltage Rating:
- 250 V
- Catalog:
- EatonCorp-CutlerHammer_00123_V4T2_254-V4T2_256_V4T2_259-V4T2_261_CAT.pdf
- Interrupting Rating:
- 65 kA at 240 VAC, 22 kA at 480 VAC, 10 kA at 250 VDC
- Type:
- Fixed Thermal Magnetic, Molded Case
- Voltage Rating:
- 480 VAC 50/60 Hertz, 250 VDC
- Terminal Type:
- Steel Pressure Line and Load
- Number of Poles:
- 3
- Size:
- 3 Inch Width x 2.81 Inch Depth x 4.88 Inch Height
- Current Rating:
- 70 A
- Country of Origin:
- Dominican Republic
- Approval:
- UL 489, CSA C22.2
- Short Description:
- EATON SERIES C COMPLETE MOLDED CASE CIRCUIT BREAKER, G-FRAME, GD, COMPLETE BREAKER, FIXED THERMAL, FIXED MAGNETIC TRIP TYPE, THREE-POLE, 70A, 480 VAC, 125/250 VDC, 65 kAIC AT 240 VAC, 22 kAIC AT 480 VAC, 50/60 HZ
MSRP $2,297.87Surplus $255.24 -
Eaton GHB3070S1 Molded Case Breakers (MCCBs)
MSRP $4,006.31Surplus $1,865.27SKU: U00-8135 Brand: Eaton MPN: GHB3070S1 UPC: 78667902982 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- U00-8135
- Approval:
- UL 489, CSA
- Size:
- 3 Inch W x 2.63 Inch D x 4 Inch H
- Catalog:
- Eaton_27487_V4T2_254_V4T2_255_V4T2_259_V4T2_260_CAT.pdf
- Maximum AC Voltage Rating:
- 480
- Maximum DC Voltage Rating:
- 250
- Installation/Operator:
- Eaton_00166_INST.pdf
- Terminal Type:
- Aluminum Pressure Line and Load Terminal
- Frame Type:
- GHB
- Type:
- Molded Case, Thermal Magnetic
- Interrupting Rating:
- 14 kA at 480 VAC Star/277 VAC/125/250 VDC
- Series:
- C, GHB
- Voltage Rating:
- 277/480 VAC at 50/60 Hz, 125/250 VDC
- Number of Poles:
- 3
- Current Rating:
- 70 A
- Short Description:
- 480 VAC Star/277 VAC 50/60 Hz, 125 VDC, 70 A, 14 kA, 3-Pole, Steel Pressure Screw Line and Load Terminal, GHB Frame, Shunt Trip, Thermal Magnetic, Molded Case, Non-Interchangeable Trip Circuit Breaker
- Country of Origin:
- Mexico
MSRP $4,006.31Surplus $1,865.27 -
Eaton HMCP070M2C Motor Circuit Protector (MCPs) HMCP 3P 70A 600V 50/60Hz 3Ph M Frame
MSRP $3,062.93Surplus $664.95SKU: C15-2638 Brand: Eaton MPN: HMCP070M2C UPC: 78667915084 Shipping Weight: 4.10 lbs. Shipping Height: 4.00 In. Shipping Length: 6.00 In. Shipping Width: 5.00 In...- SKU:
- C15-2638
- Series:
- C, HMCP
- Type:
- Molded Case
- Type:
- Magnetic
- Approval:
- UL 489
- Approval:
- CSA C22.2
- Approval:
- CE
- Volts:
- 600 VAC
- Volts:
- 250 VDC
- Amps:
- 32 A
- Poles:
- 3
- Terminal Type:
- Non-Aluminum Line and Load Terminal
- Frame Type:
- F
- Maximum AC Voltage Rating:
- 600 VAC
- Motor FLA:
- 16.1 to 59.1 A
- Maximum DC Voltage Rating:
- 250 VDC
- Trip Setting:
- 210 to 700 A
- Starter Size:
- NEMA 2
- Short Description:
- 600 VAC, 250 VDC, 70 A, 210 to 700 A Trip, 16.1 to 59.1 A FLA, 3-Pole, NEMA 2, Non-Aluminum Line and Load Terminal, F Frame, Magnetic, Molded Case
- Catalog:
- Eaton_27487_V4T2_394_V4T2_395_V4T2_398_CAT.pdf
- Installation/Operator:
- Eaton_00176_INST.pdf
- CAD Drawing:
- Eaton_00054_1-9_CAD.pdf
- Current Rating:
- 70 A
- CAD Drawings:
- Eaton_00054_1-9_CAD.pdf
- Number of Poles:
- 3
- Voltage Rating:
- 600 VAC, 250 VDC
- Country of Origin:
- Dominican Republic
MSRP $3,062.93Surplus $664.95 -
Eaton JT3070T Trip Units EA
MSRP $3,156.24Surplus $775.67SKU: A13-1355 Brand: Eaton MPN: JT3070T UPC: 786679404096 Shipping Weight: 0.95 lbs. Shipping Height: 3.00 In. Shipping Length: 4.00 In. Shipping Width: 4.00 In...- SKU:
- A13-1355
- Adjustment:
- Magnetic Trip
- Approval:
- UL 489
- Approval:
- CSA C22.2
- Amps:
- 70 A
- Frame:
- J
- Poles:
- 3
- Type:
- Fixed Thermal
- Type:
- Adjustable Magnetic
- Specification/Technical:
- Eaton_08339_1_2_SPEC.pdf
- Installation/Operator:
- Eaton_00707_INST.pdf
- Frame Type:
- J
- Number of Poles:
- 3
- Current Rating:
- 70 A
- Catalog:
- EatonCorp-CutlerHammer_00123_V4T2_254_V4T2_255_V4T2_291-V4T2_293_CAT.pdf
- Country of Origin:
- Dominican Republic
- Short Description:
- EATON MOLDED CASE CIRCUIT BREAKER ACCESSORY TRIP UNIT, TRIP UNIT, TRIP UNIT THERMAL-MAGNETIC, 70 A, THREE-POLE, FIXED THERMAL, ADJUSTABLE MAGNETIC, JT, FRAME J, SERIES C
MSRP $3,156.24Surplus $775.67 -
GENERAL ELECTRIC TED134070 Molded Case Breakers (MCCBs)
MSRP $2,309.45Surplus $643.28GENERAL ELECTRIC TED134070 Molded Case Breakers (MCCBs)​ ARCA SKU: C15-7126 Brand: GENERAL ELECTRIC MPN: TED134070 UPC: 78316406389 Shipping Weight: 4.15 lbs. Shipping Height: 5.00...- SKU:
- C15-7126
- TS PIK:
- 112090586
- Type:
- Thermal Magnetic
- Terminal Type:
- Copper/Aluminum Line and Load Lug
- Interrupting Rating:
- 14 kA at 600 VAC, 18 kA at 120/240/277/480 VAC, 10 kA at 125/250/500 VDC
- Voltage Rating:
- 120/240/277/480/600 VAC, 125/250/500 VDC
- Number of Poles:
- 3
- Short Description:
- 480 VAC, 70 A, 18 kA Interrupt, 3-Pole, Aluminum/Copper Load Lug Terminal, E150-Frame, Non-Interchangeable Trip, Core E/Mid Tier, Thermal Magnetic, Industrial Molded Case Circuit Breaker
- Current Rating:
- 70 A
- Country of Origin:
- Mexico
MSRP $2,309.45Surplus $643.28 -
GENERAL ELECTRIC TED136070 Molded Case Breakers (MCCBs)
MSRP $2,442.17Surplus $414.28SKU: C15-6959 Brand: GENERAL ELECTRIC MPN: TED136070 UPC: 78316406351 Shipping Weight: 4.15 lbs. Shipping Height: 5.00 In. Shipping Length: 9.00 In. Shipping Width: 5...- SKU:
- C15-6959
- TS PIK:
- 122847165
- Terminal Type:
- Copper/Aluminum Line and Load Lug
- Current Rating:
- 70 A
- Number of Poles:
- 3
- Interrupting Rating:
- 14 kA at 600 VAC, 18 kA at 120/240/277/480 VAC, 10 kA at 125/250/500 VDC
- Type:
- Thermal Magnetic
- Voltage Rating:
- 120/240/277/480/600 VAC, 125/250/500 VDC
- Short Description:
- 600 VAC, 70 A, 18 kA Interrupt, 3-Pole, Aluminum/Copper Load Lug Terminal, E150-Frame, Non-Interchangeable Trip, Core E/Mid Tier, Thermal Magnetic, Industrial Molded Case Circuit Breaker
- Country of Origin:
- United States
MSRP $2,442.17Surplus $414.28 -
Siemens B370 Miniature Circuit Breakers (MCBs) B 3P 70A 240V 50/60Hz 3Ph EA
MSRP $1,080.87Surplus $139.67Siemens B370 Miniature Circuit Breakers (MCBs) B 3P 70A 240V 50/60Hz 3Ph EA​ ARCA SKU: C15-4754 Brand: Siemens MPN: B370 UPC: 783643263772 Shipping Weight: 1.05 lbs. Shipping...- SKU:
- C15-4754
- Type:
- Branch
- Type:
- Molded Case
- Approval:
- UL 489
- Approval:
- CSA C22.2
- Volts:
- 240 VAC at 50/60 Hz
- Amps:
- 32 A
- Used On:
- P1/P2/P3/P4/P5 Panelboard
- Poles:
- 3
- Interrupting Rating:
- 10 kA
- Application:
- Lighting
- Application:
- Distribution
- Installation:
- Bolt-On
- Short Description:
- 240 VAC, 70 A, 10 kA, 3-Pole, Bolt-On Mount, Molded Case, Common Trip, Thermal Magnetic Trip Unit, Branch
- Catalog:
- SiemensAG_00564_7_29_CAT.pdf
- Data Sheet:
- SiemensAG_05274_1_DATA.pdf
- Installation/Operator:
- SiemensAG_00215_INST.pdf
- Voltage Rating:
- 240 VAC
- Number of Poles:
- 3
- Current Rating:
- 70 A
- Country of Origin:
- Mexico
MSRP $1,080.87Surplus $139.67 -
Siemens B370HH Miniature Circuit Breakers (MCBs)
MSRP $2,105.93Surplus $292.00SKU: C15-7399 Brand: Siemens MPN: B370HH UPC: 78364326426 Shipping Weight: 1.05 lbs. Shipping Height: 3.00 In. Shipping Length: 4.00 In. Shipping Width: 3.00 In...- SKU:
- C15-7399
- TS PIK:
- 106248782
- Type:
- Molded Case, Thermal and Fixed Magnetic
- Voltage Rating:
- 240 VAC at 50/60 Hz (UL)
- Number of Poles:
- 3
- Current Rating:
- 70 A
- Short Description:
- 240 VAC, 70 A, 65 kA, 3-Pole, Bolt-On Mount, Molded Case, Common Trip, Thermal Magnetic Trip Unit, Branch, Panelboard Circuit Breaker
- Catalog:
- SiemensAG_00564_7_29_CAT.pdf
- Data Sheet:
- SiemensAG_05277_1_DATA.pdf
- Interrupting Rating:
- 65 kA at 240 VAC (UL)
- Used On:
- P1/P2/P3/P4/P5 Panelboard
- Installation/Operator:
- SiemensAG_00215_INST.pdf
- Mounting:
- Bolt-On
- Country of Origin:
- Mexico
- Approval:
- UL 489, CSA C22.2
- Installation:
- Bolt-On
- Application:
- Lighting, Distribution
MSRP $2,105.93Surplus $292.00 -
Siemens CED63B070 Molded Case Breakers (MCCBs) 3P 70A 600V
MSRP $12,871.09Surplus $1,276.22SKU: C15-6168 Brand: Siemens MPN: CED63B070 UPC: 78364321072 Shipping Weight: 5.70 lbs. Shipping Height: 4.00 In. Shipping Length: 10.00 In. Shipping Width: 6.00 In...- SKU:
- C15-6168
- TS PIK:
- 115704601
- Maximum AC Voltage Rating:
- 600 V
- Installation/Operator:
- SiemensAG_00223_INST.pdf
- Size:
- 3 Inch Width x 4.56 Inch Depth x 9.58 Inch Height
- Maximum DC Voltage Rating:
- 500 V
- Type:
- Molded Case, Thermal Magnetic, Fuseless Current Limiting
- Number of Poles:
- 3
- Terminal Type:
- Load Lug
- Current Rating:
- 70 A
- Catalog:
- SiemensAG_01698_17_78-17_80_CAT.pdf
- Interrupting Rating:
- 200 kA at 240/480 VAC, 100 kA at 600 VAC, 50 kA at 500 VDC (UL/CSA)
- Frame Type:
- ED
- Series:
- CED6
- Voltage Rating:
- 600 VAC, 500 VDC
- Short Description:
- 600 VAC, 500 VDC, 70 A at 40 Deg C, 200 kA at 480 VAC, 3-Pole, 10 to 1/0 AWG Copper/Aluminum, Load Lug Terminal, ED Frame, Fuseless, Current Limiting, Thermal Magnetic Trip Unit, Molded Case Circuit Breaker
- Country of Origin:
- Mexico
- Approval:
- UL 489, CSA C22.2, IEC 947
MSRP $12,871.09Surplus $1,276.22 -
Siemens LGB3B070B Molded Case Breakers (MCCBs)
MSRP $4,628.42Surplus $1,325.40SKU: C15-10484 Brand: Siemens MPN: LGB3B070B UPC: 88762122030 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-10484
- TS PIK:
- 125266294
- Number of Poles:
- 3
- Voltage Rating:
- 600 Star/347 VAC 50/60 Hertz
- Interrupting Rating:
- 14 kA at 600 Star/347 VAC
- Current Rating:
- 70 A
- Catalog:
- SiemensAG_01796_7_7_7_33_CAT.pdf
- Country of Origin:
- Mexico
- Type:
- Molded Case, Low Vage, Thermal and Fixed Magnetic, Very High Breaking Capacity
- Application:
- Lighting, Distribution
- Used On:
- P1/P2/P3/P4/P5 Panelboard
- Approval:
- UL 489
- Short Description:
- BRKR LGB 70A 3P 480Y 65K LD LUG
MSRP $4,628.42Surplus $1,325.40 -
Siemens Q370 Miniature Circuit Breakers (MCBs) 3P 70A
Surplus $88.93Siemens Q370 Miniature Circuit Breakers (MCBs) 3P 70A​ ARCA SKU: C15-8489 Brand: Siemens MPN: Q370 UPC: Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping...- SKU:
- C15-8489
- TS PIK:
- 21332137
- Short Description:
- 240 VAC, 70 A, 10 kA Interrupt, 3-Pole, Plug-On Mount, QP-Frame, Low Vage, Common Trip, Thermal Magnetic, Miniature, Circuit Breaker
- Size:
- 4 Inch Width x 13 Inch Depth x 3.4 Inch Height
- Number of Poles:
- 3
- Voltage Rating:
- 240 VAC
- Installation/Operator:
- SiemensAG_00053_INST.pdf
- Interrupting Rating:
- 10 kA
- Catalog:
- SiemensAG_23945_7_20_CAT.pdf
- Mounting:
- Plug-On
- Type:
- Low Vage, Common Trip, Thermal Magnetic, Miniature
- Current Rating:
- 70 A
- Used On:
- Load Center
- Country of Origin:
- Mexico
- Approval:
- UL 489
Surplus $88.93 -
Square D BDA36070 Molded Case Breakers (MCCBs)
MSRP $1,667.59Surplus $972.54SKU: C15-10639 Brand: Square D MPN: BDA36070 UPC: 60648115266 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-10639
- TS PIK:
- 127013686
- Short Description:
- 600 Star/347 VAC 50/60 Hz, 250 VDC, 70 A, 14 kA, 3-Pole, B-Frame, ABC Phase, I-Line Connection Line Lug Load Terminal, Thermal Magnetic, Molded Case Circuit Breaker
- Series:
- BD
- Type:
- Thermal Magnetic
- Frame Type:
- B
- Current Rating:
- 70 A
- Voltage Rating:
- 600 Star/347 VAC 50/60 Hertz, 250 VDC
- Interrupting Rating:
- 14 kA at 600 Star/347 VAC, 10 kA at 250 VDC
- Prop 65 Warning:
- Yes
- Data Sheet:
- SchneiderElectric-SquareD_34845_1-4_DATA.pdf
- Installation/Operator:
- SchneiderElectric-SquareD_00008_INST.pdf
- Number of Poles:
- 3
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_7_32_CAT.pdf
- CAD Drawings:
- SchneiderElectric-SquareD_73472_1_CAD.pdf
- Maximum AC Voltage Rating:
- 347 V
- Maximum DC Voltage Rating:
- 250 V
- Size:
- 3.19 Inch Width x 3.5 Inch Depth x 5.39 Inch Height
- Terminal Type:
- I-Line Connection Line Lug Load
- Country of Origin:
- Mexico
- Approval:
- UL, CSA, CE
MSRP $1,667.59Surplus $972.54 -
Square D BDL36070 Molded Case Breakers (MCCBs)
MSRP $1,626.75Surplus $1,532.16SKU: U00-7863 Brand: Square D MPN: BDL36070 UPC: 60648115316 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- U00-7863
- Short Description:
- 600 Star/347 VAC 50/60 Hz, 250 VDC, 70 A, 14 kA, 3-Pole, B-Frame, Clip-On Mount, Line/Load Lug Terminal, 80% Continuous Current, Thermal Magnetic, Molded Case Circuit Breaker
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_7_32_CAT.pdf
- Prop 65 Warning:
- Yes
- Voltage Rating:
- 600 Star/347 VAC 50/60 Hertz, 250 VDC
- Number of Poles:
- 3
- Current Rating:
- 70 A
- Maximum AC Voltage Rating:
- 347 V
- Approval:
- UL, CSA, CE
- CAD Drawings:
- SchneiderElectric-SquareD_73527_1_CAD.pdf
- Maximum DC Voltage Rating:
- 250 V
- Data Sheet:
- SchneiderElectric-SquareD_34963_1-4_DATA.pdf
- Size:
- 3.19 Inch Width x 3.15 Inch Depth x 5.39 Inch Height
- Series:
- BD
- Interrupting Rating:
- 14 kA at 600 Star/347 VAC, 10 kA at 250 VDC
- Frame Type:
- B
- Type:
- Thermal Magnetic
- Terminal Type:
- Line/Load Lug
- Country of Origin:
- Mexico
MSRP $1,626.75Surplus $1,532.16 -
Square D BJA36070 Din Rail Mounted Circuit Breakers
MSRP $2,937.69Surplus $1,792.42SKU: C15-10671 Brand: Square D MPN: BJA36070 UPC: 60648118589 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-10671
- TS PIK:
- 127013744
- Short Description:
- 600 Star/347 VAC 50/60 Hz, 250 VDC, 70 A, 25 kA, 3-Pole, B-Frame, ABC Phase, I-Line Connection Line Lug Load Terminal, Thermal Magnetic, Molded Case Circuit Breaker
- Prop 65 Warning:
- Yes
- Type:
- Thermal Magnetic
- Voltage Rating:
- 600 Star/347 VAC 50/60 Hertz, 250 VDC
- Series:
- BJ
- Terminal Type:
- I-Line Connection Line Lug Load
- Interrupting Rating:
- 25 kA at 600 Star/347 V, 50 kA at 250 VDC
- Data Sheet:
- SchneiderElectric-SquareD_35202_1-4_DATA.pdf
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_7_32_CAT.pdf
- Current Rating:
- 70 A
- Size:
- 3.19 Inch Width x 3.5 Inch Depth x 5.39 Inch Height
- Installation/Operator:
- SchneiderElectric-SquareD_00008_INST.pdf
- CAD Drawings:
- SchneiderElectric-SquareD_73678_1_CAD.pdf
- Number of Poles:
- 3
- Approval:
- UL, CSA, CE
- Frame Type:
- B
- Maximum AC Voltage Rating:
- 347 V
- Maximum DC Voltage Rating:
- 250 V
- Country of Origin:
- United States
MSRP $2,937.69Surplus $1,792.42 -
Square D EDB34070 Miniature Circuit Breaker (MCBs) 3P 70A EA
MSRP $1,004.52Surplus $400.22SKU: C15-6360 Brand: Square D MPN: EDB34070 UPC: 785901875352 Shipping Weight: 4.00 lbs. Shipping Height: 5.66 In. Shipping Length: 4.05 In. Shipping Width: 2.94 In. Product...- SKU:
- C15-6360
- Number of Poles:
- 3
- Interrupting Rating:
- 18 kA at 480 Star/277 VAC
- Short Description:
- 480 Star/277 VAC, 70 A, 18 kA, 3-Pole, E-Frame, Bolt-On Mount, Aluminum Lug Terminal, Thermal Magnetic, Branch, Miniature, Panelboard Circuit Breaker
- Current Rating:
- 70 A
- Series:
- EDB
- Approval:
- UL (Canada and US)
- Type:
- Thermal Magnetic, Branch, Miniature
- Catalog:
- SchneiderElectric-SquareD_32357_9_31-9_33_CAT.pdf
- Voltage Rating:
- 480 Star/277 VAC
- Installation/Operator:
- SchneiderElectric-SquareD_01117_INST.pdf
- Application:
- Lighting
- Data Sheet:
- SchneiderElectric-SquareD_45624_1_2_DATA.pdf
- Trip Setting:
- 630 A (Hold), 1800 A (Trip)
- Used On:
- NF Merchandised Panelboard
- Installation:
- Bolt-On
- Country of Origin:
- Mexico
MSRP $1,004.52Surplus $400.22 -
Square D EGB34070SA Molded Case Breakers (MCCBs)
MSRP $2,616.42Surplus $2,005.49SKU: U00-8009 Brand: Square D MPN: EGB34070SA UPC: 78590177708 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- U00-8009
- Interrupting Rating:
- 35 kA at 480 Star/277 VAC
- Current Rating:
- 70 A
- Type:
- Thermal Magnetic, Branch, Miniature
- Approval:
- UL (Canada and US)
- Installation/Operator:
- SchneiderElectric-SquareD_01117_INST.pdf
- Data Sheet:
- SchneiderElectric-SquareD_45687_1_2_DATA.pdf
- Voltage Rating:
- 480 Star/277 VAC
- Catalog:
- SchneiderElectric-SquareD_32357_9_31-9_33_CAT.pdf
- Series:
- EGB
- Short Description:
- 480 Star/277 VAC, 70 A, 35 kA, 3-Pole, E-Frame, Bolt-On Mount, Aluminum Lug Terminal, Thermal Magnetic, Branch, Miniature, Panelboard Circuit Breaker with Shunt Trip Package
- Application:
- Lighting
- Number of Poles:
- 3
- Installation:
- Bolt-On
- Used On:
- NF Merchandised Panelboard
- Trip Setting:
- 630 A (Hold), 1800 A (Trip)
- Country of Origin:
- Mexico
MSRP $2,616.42Surplus $2,005.49 -
Square D FA36070 Everything Else
MSRP $4,151.97Surplus $381.37SKU: E30-10197 Brand: Square D MPN: FA36070 UPC: Shipping Weight: 6.45 lbs. Shipping Height: 6.00 In. Shipping Length: 13.00 In. Shipping Width: 8.00 In. Product...- SKU:
- E30-10197
- Number of Poles:
- 3
- Series:
- FA
- Short Description:
- 600 VAC, 250 VDC, 70 A, 10/14/18/25 kA, 3-Pole, F-Frame, I-Line Mount, Thermal Magnetic, Molded Case Circuit Breaker
- Voltage Rating:
- 600 VAC, 250 VDC
- Type:
- Molded Case, Thermal Magnetic, Main
- Data Sheet:
- SchneiderElectric-SquareD_04366_1_2_DATA.pdf
- Interrupting Rating:
- 14 kA at 600 VAC
- Installation/Operator:
- SchneiderElectric-SquareD_00076_INST.pdf
- Catalog:
- SchneiderElectric-SquareD_00096_25_28_CAT.pdf
- Current Rating:
- 70 A
- Application:
- Construction, Commercial Building, Control Equipment Panel, Industrial Building, OEM Commercial
- Approval:
- UL 489, CSA, IEC, Federal Specification W-C-375B/GEN
- Trip Setting:
- 800 A Hold, 1450 A Trip
- Installation:
- Plug-On
- Used On:
- I-Line Panelboard and Switchboard
- Country of Origin:
- Mexico
MSRP $4,151.97Surplus $381.37 -
Square D FAL32070 Other Circuit Breakers
MSRP $2,041.95Surplus $836.18SKU: C15-7051 Brand: Square D MPN: FAL32070 UPC: Shipping Weight: 3.75 lbs. Shipping Height: 4.00 In. Shipping Length: 6.00 In. Shipping Width: 5.00 In. Product...- SKU:
- C15-7051
- Maximum AC Voltage Rating:
- 240 V
- Series:
- FA
- Short Description:
- 240 VAC, 250 VDC, 70 A, 10/5 kA, 3-Pole, F-Frame, Unit Mount, Thermal Magnetic, Molded Case Circuit Breaker
- Current Rating:
- 70 A
- Frame Type:
- F
- Catalog:
- SchneiderElectric-SquareD_00096_25_26_CAT.pdf
- Voltage Rating:
- 240 VAC at 50/60 Hz (UL/CSA/NOM)
- Installation/Operator:
- SchneiderElectric-SquareD_00076_INST.pdf
- Type:
- Molded Case, Thermal Magnetic
- Size:
- 4.5 Inch W x 4.13 Inch D x 6 Inch H
- Interrupting Rating:
- 10 kA at 240 VAC (UL/CSA/NOM)
- Number of Poles:
- 3
- Terminal Type:
- Line Lug, Load Lug
- Data Sheet:
- SchneiderElectric-SquareD_04446_1_2_DATA.pdf
- Prop 65 Warning:
- Yes
- Approval:
- UL, CSA
- Country of Origin:
- Mexico
MSRP $2,041.95Surplus $836.18 -
Square D HDL36070 Molded Case Breakers (MCCBs)
MSRP $1,807.81Surplus $961.54SKU: C15-10718 Brand: Square D MPN: HDL36070 UPC: 78590183985 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-10718
- TS PIK:
- 120732133
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 70 A, 14 kA, 3-Pole, H-Frame, Unit Mount, Line/Load Lug Terminal, 80% Continuous Current, Thermal Magnetic, Current Limiting, Molded Case Circuit Breaker
- Current Rating:
- 70 A
- Number of Poles:
- 3
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Data Sheet:
- SchneiderElectric-SquareD_46476_1-3_DATA.pdf
- CAD Drawings:
- SchneiderElectric-SquareD_74672_1_CAD.pdf
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Maximum AC Voltage Rating:
- 600 V
- Terminal Type:
- Line/Load Lug
- Maximum DC Voltage Rating:
- 250 V
- Interrupting Rating:
- 14 kA at 600 VAC, 20 kA at 250 VDC
- Type:
- Thermal Magnetic, Current Limiting
- Series:
- HD
- Prop 65 Warning:
- Yes
- Size:
- 4.09 Inch Width x 3.39 Inch Depth x 6.42 Inch Height
- Catalog:
- SchneiderElectric-SquareD_32357_7_6_7_31_7_33_7_34_CAT.pdf
- Frame Type:
- H
- Country of Origin:
- Mexico
- Approval:
- UL, CSA, CE
MSRP $1,807.81Surplus $961.54 -
Square D HGL36070 Molded Case Breakers (MCCBs)
MSRP $2,315.57Surplus $1,102.16SKU: C15-10735 Brand: Square D MPN: HGL36070 UPC: 78590159878 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-10735
- TS PIK:
- 120730890
- Series:
- HG
- Prop 65 Warning:
- Yes
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Current Rating:
- 70 A
- Number of Poles:
- 3
- Frame Type:
- H
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Type:
- Thermal Magnetic, Current Limiting
- Catalog:
- SchneiderElectric-SquareD_32357_7_6_7_31_7_33_7_34_CAT.pdf
- Data Sheet:
- SchneiderElectric-SquareD_46650_1-3_DATA.pdf
- Installation/Operator:
- SchneiderElectric-SquareD_00142_INST.pdf
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 70 A, 18 kA, 3-Pole, H-Frame, Unit Mount, Line/Load Lug Terminal, 80% Continuous Current, Thermal Magnetic, Current Limiting, Molded Case Circuit Breaker
- Terminal Type:
- Line/Load Lug
- Maximum DC Voltage Rating:
- 250 V
- Size:
- 4.09 Inch Width x 3.39 Inch Depth x 6.42 Inch Height
- CAD Drawings:
- SchneiderElectric-SquareD_74672_1_CAD.pdf
- Maximum AC Voltage Rating:
- 600 V
- Country of Origin:
- Mexico
- Approval:
- UL, CSA, CE
MSRP $2,315.57Surplus $1,102.16 -
Square D QOU370 Miniature Circuit Breakers (MCBs)
MSRP $534.99Surplus $237.00SKU: C15-10937 Brand: Square D MPN: QOU370 UPC: 78590106030 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-10937
- TS PIK:
- 111081745
- Current Rating:
- 70 A
- Number of Poles:
- 3
- Voltage Rating:
- 120/240 VAC 50/60 Hertz, 60 VDC
- Terminal Type:
- Slotted Box Lug Line/Load
- Type:
- Miniature, Standard
- Series:
- QOU
- Installation/Operator:
- SchneiderElectric-SquareD_02171_INST.pdf
- Used On:
- OEM
- CAD Drawings:
- SchneiderElectric_30266_1_CAD.pdf
- Size:
- 2.25 Inch Width x 2.95 Inch Depth x 4.05 Inch Height
- Catalog:
- SchneiderElectric-SquareD_32357_7_19_7_21_CAT.pdf
- Data Sheet:
- SchneiderElectric_21701_1_2_DATA.pdf
- Interrupting Rating:
- 10 kA
- Wire Size:
- 14 to 2 AWG (Copper/Aluminum)
- Short Description:
- 120/240 VAC 50/60 Hz, 60 VDC, 70 A, 10 kA Interrupt, 3-Pole, 14 to 2 AWG Copper/Aluminum, Unit Mount, Slotted Box Lug Line/Load Terminal, Standard, Miniature Circuit Breaker
- Mounting:
- DIN Rail/Unit/Surface/Flush
- Approval:
- UL, CSA
- Country of Origin:
- Mexico
MSRP $534.99Surplus $237.00 -
THQB32070 Miniature Circuit Breakers (MCBs) 3P 70A 120V
MSRP $694.26Surplus $123.88SKU: C15-3998 Brand: GENERAL ELECTRIC MPN: THQB32070 UPC: 78316401245 Shipping Weight: 1.05 lbs. Shipping Height: 4.00 In. Shipping Length: 4.00 In. Shipping Width: 3...- SKU:
- C15-3998
- Type:
- Thermal Magnetic
- Type:
- Compact
- Amps:
- 32 A
- Terminal Type:
- Bolt-On
- Short Description:
- 240 VAC, 70 A, 10 kA, 3-Pole, 6 to 1/0 AWG Copper/4 to 1/0 AWG Aluminum, 1" Bolt-On Mount, Q-Line Frame, Molded Case, Non-Interchangeable/Common Trip, Compact, Fixed Thermal Magnetic
- Catalog:
- ABBElectrificationProducts-ABBGEIndustrialSolutions_00015_6_8_6_35_CAT.pdf
- Installation/Operator:
- ABBElectrificationProducts-ABBGEIndustrialSolutions_00005_INST.pdf
- Current Rating:
- 70 A
- Mounting:
- Bolt-On
- Number of Poles:
- 3
- Series:
- THQ
- Country of Origin:
- United States
MSRP $694.26Surplus $123.88
Disclaimer: ARCA Supply is not an authorized distributor, reseller or representative of any manufacturer, brand or product listed. All product names, trademarks, brands and logos are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder. All items sold by ARCA Supply are covered under ARCA Supply's warranty and not the manufacturer warranty.
