Circuit Breakers
Our selection of circuit breakers spans a wide range of applications, from heavy-duty air circuit breakers (ACBs) to compact miniature circuit breakers (MCBs). We offer leading brands like Eaton, Siemens, and Square D, known for their reliability and performance. Whatever your power management needs, you can find the perfect solution here at ARCA Supply.
-
Din Rail Mounted Circuit Breakers
-
Main Breakers
-
Miniature Circuit Breakers (MCBs)
-
Molded Case Breakers (MCCBs)
-
Motor Circuit Protector (MCPs)
-
Lug Terminal Kits
-
Auxiliary, Shunt, Trip Units and UVRs
-
Circuit Breaker Accessories
- Product
- Qty in Cart
- Price
-
Contact Us For Quote
Square D HDL26060 Molded Case Breakers (MCCBs)
MSRP $1,690.29Surplus $456.38SKU: C15-18759 Brand: Square D MPN: HDL26060 UPC: 78590157787 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-18759
- Current Rating:
- 60 A
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 60 A, 14 kA, 2-Pole, H-Frame, Unit Mount, Line/Load Lug Terminal, 80% Continuous Current, Thermal Magnetic, Current Limiting, Molded Case Circuit Breaker
- Interrupting Rating:
- 14 kA at 600 VAC, 20 kA at 250 VDC
- Approval:
- UL, CSA, CE
- Terminal Type:
- Line/Load Lug
- Data Sheet:
- SchneiderElectric-SquareD_46431_1-3_DATA.pdf
- Catalog:
- SchneiderElectric-SquareD_32357_7_6_7_31_7_33_7_34_CAT.pdf
- CAD Drawings:
- SchneiderElectric-SquareD_74671_1_CAD.pdf
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Frame Type:
- H
- Number of Poles:
- 2
- Prop 65 Warning:
- Yes
- Series:
- HD
- Maximum DC Voltage Rating:
- 250 V
- Maximum AC Voltage Rating:
- 600 V
- Type:
- Thermal Magnetic, Current Limiting
- Size:
- 4.09 Inch Width x 3.39 Inch Depth x 6.42 Inch Height
MSRP $1,690.29Surplus $456.38 -
Contact Us For Quote
Square D HDL26070 Molded Case Breakers (MCCBs)
MSRP $1,002.90Surplus $1,105.38SKU: C15-10710 Brand: Square D MPN: HDL26070 UPC: 78590146191 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-10710
- TS PIK:
- 120730236
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Frame Type:
- H
- Maximum DC Voltage Rating:
- 250 V
- Type:
- Thermal Magnetic, Current Limiting
- Approval:
- UL, CSA, CE
- Catalog:
- SchneiderElectric-SquareD_32357_7_6_7_31_7_33_7_34_CAT.pdf
- CAD Drawings:
- SchneiderElectric-SquareD_74671_1_CAD.pdf
- Data Sheet:
- SchneiderElectric-SquareD_46433_1-3_DATA.pdf
- Series:
- HD
- Number of Poles:
- 2
- Maximum AC Voltage Rating:
- 600 V
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 70 A, 14 kA, 2-Pole, H-Frame, Unit Mount, Line/Load Lug Terminal, 80% Continuous Current, Thermal Magnetic, Current Limiting, Molded Case Circuit Breaker
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Terminal Type:
- Line/Load Lug
- Prop 65 Warning:
- Yes
- Current Rating:
- 70 A
- Size:
- 4.09 Inch Width x 3.39 Inch Depth x 6.42 Inch Height
- Interrupting Rating:
- 14 kA at 600 VAC, 20 kA at 250 VDC
MSRP $1,002.90Surplus $1,105.38 -
Contact Us For Quote
Square D HDL26080 Molded Case Breakers (MCCBs)
MSRP $1,402.14Surplus $932.42SKU: C15-10711 Brand: Square D MPN: HDL26080 UPC: 78590146192 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-10711
- TS PIK:
- 120730237
- Current Rating:
- 80 A
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 80 A, 14 kA, 2-Pole, H-Frame, Unit Mount, Line/Load Lug Terminal, 80% Continuous Current, Thermal Magnetic, Current Limiting, Molded Case Circuit Breaker
- Maximum AC Voltage Rating:
- 600 V
- Prop 65 Warning:
- Yes
- Size:
- 4.09 Inch Width x 3.39 Inch Depth x 6.42 Inch Height
- Data Sheet:
- SchneiderElectric-SquareD_46434_1-3_DATA.pdf
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Type:
- Thermal Magnetic, Current Limiting
- Maximum DC Voltage Rating:
- 250 V
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Interrupting Rating:
- 14 kA at 600 VAC, 20 kA at 250 VDC
- Number of Poles:
- 2
- CAD Drawings:
- SchneiderElectric-SquareD_74671_1_CAD.pdf
- Series:
- HD
- Catalog:
- SchneiderElectric-SquareD_32357_7_6_7_31_7_33_7_34_CAT.pdf
- Terminal Type:
- Line/Load Lug
- Approval:
- UL, CSA, CE
- Frame Type:
- H
MSRP $1,402.14Surplus $932.42 -
Contact Us For Quote
Square D HDL26090 Molded Case Breakers (MCCBs)
MSRP $909.06Surplus $1,105.38SKU: C15-10712 Brand: Square D MPN: HDL26090 UPC: 78590162519 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-10712
- TS PIK:
- 121727510
- Maximum AC Voltage Rating:
- 600 V
- Size:
- 4.09 Inch Width x 3.39 Inch Depth x 6.42 Inch Height
- Frame Type:
- H
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 90 A, 14 kA, 2-Pole, H-Frame, Unit Mount, Line/Load Lug Terminal, 80% Continuous Current, Thermal Magnetic, Current Limiting, Molded Case Circuit Breaker
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Number of Poles:
- 2
- Current Rating:
- 90 A
- Data Sheet:
- SchneiderElectric-SquareD_46435_1-3_DATA.pdf
- Approval:
- UL, CSA, CE
- Catalog:
- SchneiderElectric-SquareD_32357_7_6_7_31_7_33_7_34_CAT.pdf
- Interrupting Rating:
- 14 kA at 600 VAC, 20 kA at 250 VDC
- CAD Drawings:
- SchneiderElectric-SquareD_74671_1_CAD.pdf
- Series:
- HD
- Terminal Type:
- Line/Load Lug
- Type:
- Thermal Magnetic, Current Limiting
- Maximum DC Voltage Rating:
- 250 V
MSRP $909.06Surplus $1,105.38 -
Contact Us For Quote
Square D HDL26100 Molded Case Breakers (MCCBs)
MSRP $1,256.48Surplus $339.25SKU: C15-18760 Brand: Square D MPN: HDL26100 UPC: 78590157794 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-18760
- Approval:
- UL, CSA, CE
- Type:
- Thermal Magnetic, Current Limiting
- Series:
- HD
- Catalog:
- SchneiderElectric-SquareD_32357_7_6_7_31_7_33_7_34_CAT.pdf
- Current Rating:
- 100 A
- Number of Poles:
- 2
- Size:
- 4.09 Inch Width x 3.39 Inch Depth x 6.42 Inch Height
- Interrupting Rating:
- 14 kA at 600 VAC, 20 kA at 250 VDC
- Terminal Type:
- Line/Load Lug
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 100 A, 14 kA, 2-Pole, H-Frame, Unit Mount, Line/Load Lug Terminal, Thermal Magnetic, Current Limiting, Molded Case Circuit Breaker
- Frame Type:
- H
- Maximum AC Voltage Rating:
- 600 V
- Maximum DC Voltage Rating:
- 250 V
- CAD Drawings:
- SchneiderElectric-SquareD_74671_1_CAD.pdf
- Prop 65 Warning:
- Yes
- Data Sheet:
- SchneiderElectric-SquareD_46436_1-3_DATA.pdf
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
MSRP $1,256.48Surplus $339.25 -
Contact Us For Quote
Square D HDL26110 Molded Case Breakers (MCCBs)
MSRP $4,956.49Surplus $1,338.25SKU: C15-16427 Brand: Square D MPN: HDL26110 UPC: 78590157837 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16427
- Type:
- Thermal Magnetic, Current Limiting
- Series:
- HD
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 110 A, 14 kA, 2-Pole, H-Frame, Unit Mount, Line/Load Lug Terminal, Thermal Magnetic, Current Limiting, Molded Case Circuit Breaker
- Data Sheet:
- SchneiderElectric-SquareD_46438_1-3_DATA.pdf
- Frame Type:
- H
- Current Rating:
- 110 A
- Catalog:
- SchneiderElectric-SquareD_32357_7_6_7_31_7_33_7_34_CAT.pdf
- CAD Drawings:
- SchneiderElectric-SquareD_74671_1_CAD.pdf
- Maximum AC Voltage Rating:
- 600 V
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Maximum DC Voltage Rating:
- 250 V
- Approval:
- UL, CSA, CE
- Interrupting Rating:
- 14 kA at 600 VAC, 20 kA at 250 VDC
- Number of Poles:
- 2
- Terminal Type:
- Line/Load Lug
- Size:
- 4.09 Inch Width x 3.39 Inch Depth x 6.42 Inch Height
MSRP $4,956.49Surplus $1,338.25 -
Contact Us For Quote
Square D HDL26125 Molded Case Breakers (MCCBs)
MSRP $2,820.61Surplus $1,357.90SKU: C15-7156 Brand: Square D MPN: HDL26125 UPC: 78590146194 Shipping Weight: 3.05 lbs. Shipping Height: 6.00 In. Shipping Length: 9.00 In. Shipping Width: 8.00 In...- SKU:
- C15-7156
- TS PIK:
- 122846804
- Maximum AC Voltage Rating:
- 600 V
- Maximum DC Voltage Rating:
- 250 V
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 125 A, 14 kA, 2-Pole, H-Frame, Unit Mount, Line/Load Lug Terminal, Thermal Magnetic, Current Limiting, Molded Case Circuit Breaker
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Frame Type:
- H
- Series:
- HD
- Number of Poles:
- 2
- Catalog:
- SchneiderElectric-SquareD_32357_7_6_7_31_7_33_7_34_CAT.pdf
- Data Sheet:
- SchneiderElectric-SquareD_46439_1-3_DATA.pdf
- Interrupting Rating:
- 14 kA at 600 VAC, 20 kA at 250 VDC
- CAD Drawings:
- SchneiderElectric-SquareD_74671_1_CAD.pdf
- Current Rating:
- 125 A
- Type:
- Thermal Magnetic, Current Limiting
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Terminal Type:
- Line/Load Lug
- Size:
- 4.09 Inch Width x 3.39 Inch Depth x 6.42 Inch Height
- Prop 65 Warning:
- Yes
- Approval:
- UL, CSA, CE
MSRP $2,820.61Surplus $1,357.90 -
Contact Us For Quote
Square D HDL26150 Molded Case Breakers (MCCBs)
MSRP $1,163.73Surplus $314.20SKU: C15-18761 Brand: Square D MPN: HDL26150 UPC: 78590157785 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-18761
- Series:
- HD
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 150 A, 14 kA, 2-Pole, H-Frame, Unit Mount, Line/Load Lug Terminal, Thermal Magnetic, Current Limiting, Molded Case Circuit Breaker
- Number of Poles:
- 2
- Current Rating:
- 150 A
- Maximum AC Voltage Rating:
- 600 V
- Approval:
- UL, CSA, CE
- Maximum DC Voltage Rating:
- 250 V
- Prop 65 Warning:
- Yes
- Catalog:
- SchneiderElectric-SquareD_32357_7_6_7_31_7_33_7_34_CAT.pdf
- CAD Drawings:
- SchneiderElectric-SquareD_74671_1_CAD.pdf
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Size:
- 4.09 Inch Width x 3.39 Inch Depth x 6.42 Inch Height
- Type:
- Thermal Magnetic, Current Limiting
- Data Sheet:
- SchneiderElectric-SquareD_46441_1-3_DATA.pdf
- Frame Type:
- H
- Terminal Type:
- Line/Load Lug
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Interrupting Rating:
- 14 kA at 600 VAC, 20 kA at 250 VDC
MSRP $1,163.73Surplus $314.20 -
Contact Us For Quote

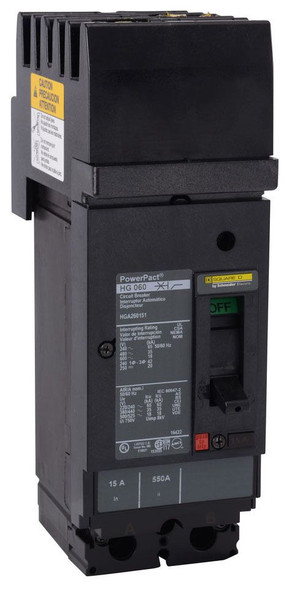

Square D HGA260151 Molded Case Breakers (MCCBs)
MSRP $3,042.51Surplus $821.48SKU: C15-16493 Brand: Square D MPN: HGA260151 UPC: 78590153967 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16493
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 15 A, 18 kA, 2-Pole, H-Frame, AB Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Series:
- HG
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Current Rating:
- 15 A
- Trip Setting:
- 350 A (Hold), 750 A (Trip)
- Application:
- Distribution
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Approval:
- UL, CSA, CE
- Number of Poles:
- 2
- CAD Drawings:
- SchneiderElectric-SquareD_73130_1_CAD.pdf
- Type:
- Thermal Magnetic, Current Limiting
- Data Sheet:
- SchneiderElectric-SquareD_46526_1-3_DATA.pdf
MSRP $3,042.51Surplus $821.48 -
Contact Us For Quote
Square D HGA260152 Molded Case Breakers (MCCBs)
MSRP $3,042.51Surplus $821.48SKU: C15-16494 Brand: Square D MPN: HGA260152 UPC: 78590191228 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16494
- Number of Poles:
- 2
- Data Sheet:
- SchneiderElectric-SquareD_46527_1-3_DATA.pdf
- Approval:
- UL, CSA, CE
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Trip Setting:
- 350 A (Hold), 750 A (Trip)
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 15 A, 18 kA, 2-Pole, H-Frame, AC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- CAD Drawings:
- SchneiderElectric-SquareD_73131_1_CAD.pdf
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Type:
- Thermal Magnetic, Current Limiting
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Application:
- Distribution
- Current Rating:
- 15 A
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Series:
- HG
MSRP $3,042.51Surplus $821.48 -
Contact Us For Quote
Square D HGA260154 Molded Case Breakers (MCCBs)
MSRP $2,133.16Surplus $575.95SKU: C15-16495 Brand: Square D MPN: HGA260154 UPC: 78590191229 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16495
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 15 A, 18 kA, 2-Pole, H-Frame, BC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Series:
- HG
- Current Rating:
- 15 A
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Number of Poles:
- 2
- Approval:
- UL, CSA, CE
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Data Sheet:
- SchneiderElectric-SquareD_46528_1-3_DATA.pdf
- Type:
- Thermal Magnetic, Current Limiting
- CAD Drawings:
- SchneiderElectric-SquareD_73132_1_CAD.pdf
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Trip Setting:
- 350 A (Hold), 750 A (Trip)
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Application:
- Distribution
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
MSRP $2,133.16Surplus $575.95 -
Contact Us For Quote
Square D HGA260201 Molded Case Breakers (MCCBs)
MSRP $1,815.05Surplus $490.07SKU: C15-18765 Brand: Square D MPN: HGA260201 UPC: 78590153969 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-18765
- CAD Drawings:
- SchneiderElectric-SquareD_73134_1_CAD.pdf
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Approval:
- UL, CSA, CE
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Trip Setting:
- 350 A (Hold), 750 A (Trip)
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Application:
- Distribution
- Data Sheet:
- SchneiderElectric-SquareD_46529_1-3_DATA.pdf
- Series:
- HG
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 20 A, 18 kA, 2-Pole, H-Frame, AB Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Number of Poles:
- 2
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Type:
- Thermal Magnetic, Current Limiting
- Current Rating:
- 20 A
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
MSRP $1,815.05Surplus $490.07 -
Contact Us For Quote
Square D HGA260202 Molded Case Breakers (MCCBs)
MSRP $2,031.06Surplus $548.39SKU: C15-18766 Brand: Square D MPN: HGA260202 UPC: 78590191231 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-18766
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Current Rating:
- 20 A
- Data Sheet:
- SchneiderElectric-SquareD_46530_1-3_DATA.pdf
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 20 A, 18 kA, 2-Pole, H-Frame, AC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Trip Setting:
- 350 A (Hold), 750 A (Trip)
- Number of Poles:
- 2
- Approval:
- UL, CSA, CE
- Application:
- Distribution
- Type:
- Thermal Magnetic, Current Limiting
- Series:
- HG
- CAD Drawings:
- SchneiderElectric-SquareD_73135_1_CAD.pdf
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
MSRP $2,031.06Surplus $548.39 -
Contact Us For Quote
Square D HGA260204 Molded Case Breakers (MCCBs)
MSRP $2,031.06Surplus $548.39SKU: C15-18767 Brand: Square D MPN: HGA260204 UPC: 78590191233 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-18767
- Number of Poles:
- 2
- Series:
- HG
- Approval:
- UL, CSA, CE
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 20 A, 18 kA, 2-Pole, H-Frame, BC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Type:
- Thermal Magnetic, Current Limiting
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Trip Setting:
- 350 A (Hold), 750 A (Trip)
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Application:
- Distribution
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Data Sheet:
- SchneiderElectric-SquareD_46532_1-3_DATA.pdf
- CAD Drawings:
- SchneiderElectric-SquareD_73137_1_CAD.pdf
- Current Rating:
- 20 A
MSRP $2,031.06Surplus $548.39 -
Contact Us For Quote
Square D HGA260301 Molded Case Breakers (MCCBs)
MSRP $2,031.06Surplus $548.39SKU: C15-18768 Brand: Square D MPN: HGA260301 UPC: 78590153985 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-18768
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Data Sheet:
- SchneiderElectric-SquareD_46537_1-3_DATA.pdf
- CAD Drawings:
- SchneiderElectric-SquareD_73143_1_CAD.pdf
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Application:
- Distribution
- Trip Setting:
- 350 A (Hold), 750 A (Trip)
- Series:
- HG
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 30 A, 18 kA, 2-Pole, H-Frame, AB Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Type:
- Thermal Magnetic, Current Limiting
- Current Rating:
- 30 A
- Approval:
- UL, CSA, CE
- Number of Poles:
- 2
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
MSRP $2,031.06Surplus $548.39 -
Contact Us For Quote
Square D HGA260302 Molded Case Breakers (MCCBs)
MSRP $2,031.06Surplus $548.39SKU: C15-18769 Brand: Square D MPN: HGA260302 UPC: 78590183427 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-18769
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 30 A, 18 kA, 2-Pole, H-Frame, AC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- CAD Drawings:
- SchneiderElectric-SquareD_73144_1_CAD.pdf
- Data Sheet:
- SchneiderElectric-SquareD_46538_1-3_DATA.pdf
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Application:
- Distribution
- Type:
- Thermal Magnetic, Current Limiting
- Trip Setting:
- 350 A (Hold), 750 A (Trip)
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Number of Poles:
- 2
- Approval:
- UL, CSA, CE
- Series:
- HG
- Prop 65 Warning:
- Yes
- Current Rating:
- 30 A
MSRP $2,031.06Surplus $548.39 -
Contact Us For Quote
Square D HGA260304 Molded Case Breakers (MCCBs)
MSRP $1,381.72Surplus $373.06SKU: C15-18770 Brand: Square D MPN: HGA260304 UPC: 78590183411 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-18770
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Application:
- Distribution
- Trip Setting:
- 350 A (Hold), 750 A (Trip)
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- CAD Drawings:
- SchneiderElectric-SquareD_73146_1_CAD.pdf
- Type:
- Thermal Magnetic, Current Limiting
- Data Sheet:
- SchneiderElectric-SquareD_46540_1-3_DATA.pdf
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 30 A, 18 kA, 2-Pole, H-Frame, BC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Approval:
- UL, CSA, CE
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Series:
- HG
- Current Rating:
- 30 A
- Number of Poles:
- 2
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Prop 65 Warning:
- Yes
MSRP $1,381.72Surplus $373.06 -
Contact Us For Quote
Square D HGA260401 Molded Case Breakers (MCCBs)
MSRP $2,092.32Surplus $564.93SKU: C15-16496 Brand: Square D MPN: HGA260401 UPC: 78590153959 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16496
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 40 A, 18 kA, 2-Pole, H-Frame, AB Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Current Rating:
- 40 A
- Number of Poles:
- 2
- Type:
- Thermal Magnetic, Current Limiting
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Data Sheet:
- SchneiderElectric-SquareD_46546_1-3_DATA.pdf
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Trip Setting:
- 400 A (Hold), 850 A (Trip)
- Prop 65 Warning:
- Yes
- Series:
- HG
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Approval:
- UL, CSA, CE
- Application:
- Distribution
- CAD Drawings:
- SchneiderElectric-SquareD_73152_1_CAD.pdf
MSRP $2,092.32Surplus $564.93 -
Contact Us For Quote
Square D HGA260402 Molded Case Breakers (MCCBs)
MSRP $3,042.51Surplus $821.48SKU: C15-16497 Brand: Square D MPN: HGA260402 UPC: 78590153961 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16497
- Series:
- HG
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 40 A, 18 kA, 2-Pole, H-Frame, AC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Approval:
- UL, CSA, CE
- Trip Setting:
- 400 A (Hold), 850 A (Trip)
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Current Rating:
- 40 A
- Data Sheet:
- SchneiderElectric-SquareD_46547_1-3_DATA.pdf
- Application:
- Distribution
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- CAD Drawings:
- SchneiderElectric-SquareD_73153_1_CAD.pdf
- Number of Poles:
- 2
- Prop 65 Warning:
- Yes
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Type:
- Thermal Magnetic, Current Limiting
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
MSRP $3,042.51Surplus $821.48 -
Contact Us For Quote
Square D HGA260404 Molded Case Breakers (MCCBs)
MSRP $4,364.33Surplus $1,178.37SKU: C15-16498 Brand: Square D MPN: HGA260404 UPC: 78590153962 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16498
- Approval:
- UL, CSA, CE
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 40 A, 18 kA, 2-Pole, H-Frame, BC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Number of Poles:
- 2
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Series:
- HG
- Type:
- Thermal Magnetic, Current Limiting
- Data Sheet:
- SchneiderElectric-SquareD_46548_1-3_DATA.pdf
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Application:
- Distribution
- CAD Drawings:
- SchneiderElectric-SquareD_73155_1_CAD.pdf
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Trip Setting:
- 400 A (Hold), 850 A (Trip)
- Current Rating:
- 40 A
MSRP $4,364.33Surplus $1,178.37 -
Contact Us For Quote
Square D HGA260501 Molded Case Breakers (MCCBs)
MSRP $2,031.06Surplus $548.39SKU: C15-18771 Brand: Square D MPN: HGA260501 UPC: 78590165151 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-18771
- Approval:
- UL, CSA, CE
- Current Rating:
- 50 A
- Data Sheet:
- SchneiderElectric-SquareD_46551_1-3_DATA.pdf
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 50 A, 18 kA, 2-Pole, H-Frame, AB Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Type:
- Thermal Magnetic, Current Limiting
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- CAD Drawings:
- SchneiderElectric-SquareD_73159_1_CAD.pdf
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Trip Setting:
- 400 A (Hold), 850 A (Trip)
- Series:
- HG
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Application:
- Distribution
- Number of Poles:
- 2
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
MSRP $2,031.06Surplus $548.39 -
Contact Us For Quote
Square D HGA260502 Molded Case Breakers (MCCBs)
MSRP $2,031.06Surplus $548.39SKU: C15-18772 Brand: Square D MPN: HGA260502 UPC: 78590149114 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-18772
- Series:
- HG
- Current Rating:
- 50 A
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 50 A, 18 kA, 2-Pole, H-Frame, AC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Data Sheet:
- SchneiderElectric-SquareD_46552_1-3_DATA.pdf
- Type:
- Thermal Magnetic, Current Limiting
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Trip Setting:
- 400 A (Hold), 850 A (Trip)
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Number of Poles:
- 2
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Approval:
- UL, CSA, CE
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- CAD Drawings:
- SchneiderElectric-SquareD_73160_1_CAD.pdf
- Application:
- Distribution
MSRP $2,031.06Surplus $548.39 -
Contact Us For Quote
Square D HGA260504 Molded Case Breakers (MCCBs)
MSRP $2,077.34Surplus $560.88SKU: C15-16499 Brand: Square D MPN: HGA260504 UPC: 78590183422 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16499
- Number of Poles:
- 2
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 50 A, 18 kA, 2-Pole, H-Frame, BC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Current Rating:
- 50 A
- Series:
- HG
- Type:
- Thermal Magnetic, Current Limiting
- Approval:
- UL, CSA, CE
- Data Sheet:
- SchneiderElectric-SquareD_46553_1-3_DATA.pdf
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- CAD Drawings:
- SchneiderElectric-SquareD_73161_1_CAD.pdf
- Trip Setting:
- 400 A (Hold), 850 A (Trip)
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Application:
- Distribution
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
MSRP $2,077.34Surplus $560.88 -
Contact Us For Quote
Square D HGA260601 Molded Case Breakers (MCCBs)
MSRP $1,125.89Surplus $303.99SKU: C15-16500 Brand: Square D MPN: HGA260601 UPC: 78590153982 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16500
- Approval:
- UL, CSA, CE
- Current Rating:
- 60 A
- Type:
- Thermal Magnetic, Current Limiting
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 60 A, 18 kA, 2-Pole, H-Frame, AB Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Series:
- HG
- Number of Poles:
- 2
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Data Sheet:
- SchneiderElectric-SquareD_46555_1-3_DATA.pdf
- Application:
- Distribution
- CAD Drawings:
- SchneiderElectric-SquareD_73163_1_CAD.pdf
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Trip Setting:
- 800 A (Hold), 1450 A (Trip)
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
MSRP $1,125.89Surplus $303.99 -
Contact Us For Quote
Square D HGA260602 Molded Case Breakers (MCCBs)
MSRP $2,031.06Surplus $548.39SKU: C15-18773 Brand: Square D MPN: HGA260602 UPC: 78590183424 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-18773
- Approval:
- UL, CSA, CE
- Prop 65 Warning:
- Yes
- Series:
- HG
- Current Rating:
- 60 A
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 60 A, 18 kA, 2-Pole, H-Frame, AC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Data Sheet:
- SchneiderElectric-SquareD_46556_1-3_DATA.pdf
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Type:
- Thermal Magnetic, Current Limiting
- Number of Poles:
- 2
- CAD Drawings:
- SchneiderElectric-SquareD_73164_1_CAD.pdf
- Trip Setting:
- 800 A (Hold), 1450 A (Trip)
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Application:
- Distribution
MSRP $2,031.06Surplus $548.39 -
Contact Us For Quote
Square D HGA260604 Molded Case Breakers (MCCBs)
MSRP $3,042.51Surplus $821.48SKU: C15-16501 Brand: Square D MPN: HGA260604 UPC: 78590183425 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16501
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 60 A, 18 kA, 2-Pole, H-Frame, BC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Approval:
- UL, CSA, CE
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Series:
- HG
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Current Rating:
- 60 A
- Data Sheet:
- SchneiderElectric-SquareD_46557_1-3_DATA.pdf
- Trip Setting:
- 800 A (Hold), 1450 A (Trip)
- Type:
- Thermal Magnetic, Current Limiting
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- CAD Drawings:
- SchneiderElectric-SquareD_73166_1_CAD.pdf
- Application:
- Distribution
- Number of Poles:
- 2
MSRP $3,042.51Surplus $821.48 -
Contact Us For Quote
Square D HGA260701 Molded Case Breakers (MCCBs)
MSRP $6,289.21Surplus $1,698.09SKU: C15-16502 Brand: Square D MPN: HGA260701 UPC: 78590153974 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16502
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Number of Poles:
- 2
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Approval:
- UL, CSA, CE
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 70 A, 18 kA, 2-Pole, H-Frame, AB Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Current Rating:
- 70 A
- CAD Drawings:
- SchneiderElectric-SquareD_73168_1_CAD.pdf
- Data Sheet:
- SchneiderElectric-SquareD_46558_1-3_DATA.pdf
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Series:
- HG
- Trip Setting:
- 800 A (Hold), 1450 A (Trip)
- Application:
- Distribution
- Type:
- Thermal Magnetic, Current Limiting
MSRP $6,289.21Surplus $1,698.09 -
Contact Us For Quote
Square D HGA260702 Molded Case Breakers (MCCBs)
MSRP $4,912.93Surplus $1,326.49SKU: C15-16503 Brand: Square D MPN: HGA260702 UPC: 78590191246 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16503
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 70 A, 18 kA, 2-Pole, H-Frame, AC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Series:
- HG
- Data Sheet:
- SchneiderElectric-SquareD_46559_1-3_DATA.pdf
- CAD Drawings:
- SchneiderElectric-SquareD_73169_1_CAD.pdf
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Application:
- Distribution
- Number of Poles:
- 2
- Type:
- Thermal Magnetic, Current Limiting
- Trip Setting:
- 800 A (Hold), 1450 A (Trip)
- Approval:
- UL, CSA, CE
- Current Rating:
- 70 A
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
MSRP $4,912.93Surplus $1,326.49 -
Contact Us For Quote
Square D HGA260704 Molded Case Breakers (MCCBs)
MSRP $1,199.31Surplus $323.81SKU: C15-16504 Brand: Square D MPN: HGA260704 UPC: 78590160095 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16504
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 70 A, 18 kA, 2-Pole, H-Frame, BC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Number of Poles:
- 2
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Current Rating:
- 70 A
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Trip Setting:
- 800 A (Hold), 1450 A (Trip)
- CAD Drawings:
- SchneiderElectric-SquareD_73171_1_CAD.pdf
- Type:
- Thermal Magnetic, Current Limiting
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Series:
- HG
- Approval:
- UL, CSA, CE
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Data Sheet:
- SchneiderElectric-SquareD_46560_1-3_DATA.pdf
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Application:
- Distribution
MSRP $1,199.31Surplus $323.81 -
Contact Us For Quote
Square D HGA260801 Molded Case Breakers (MCCBs)
MSRP $1,576.39Surplus $425.62SKU: C15-16505 Brand: Square D MPN: HGA260801 UPC: 78590149106 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16505
- Current Rating:
- 80 A
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Type:
- Thermal Magnetic, Current Limiting
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Approval:
- UL, CSA, CE
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 80 A, 18 kA, 2-Pole, H-Frame, AB Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Series:
- HG
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Number of Poles:
- 2
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- CAD Drawings:
- SchneiderElectric-SquareD_73174_1_CAD.pdf
- Trip Setting:
- 800 A (Hold), 1450 A (Trip)
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Application:
- Distribution
- Data Sheet:
- SchneiderElectric-SquareD_46561_1-3_DATA.pdf
MSRP $1,576.39Surplus $425.62 -
Contact Us For Quote
Square D HGA260802 Molded Case Breakers (MCCBs)
MSRP $5,085.82Surplus $1,373.17SKU: C15-16506 Brand: Square D MPN: HGA260802 UPC: 78590149107 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16506
- Current Rating:
- 80 A
- Number of Poles:
- 2
- Type:
- Thermal Magnetic, Current Limiting
- Application:
- Distribution
- CAD Drawings:
- SchneiderElectric-SquareD_73175_1_CAD.pdf
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 80 A, 18 kA, 2-Pole, H-Frame, AC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Approval:
- UL, CSA, CE
- Series:
- HG
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Data Sheet:
- SchneiderElectric-SquareD_46562_1-3_DATA.pdf
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Trip Setting:
- 800 A (Hold), 1450 A (Trip)
MSRP $5,085.82Surplus $1,373.17 -
Contact Us For Quote
Square D HGA260804 Molded Case Breakers (MCCBs)
MSRP $1,307.32Surplus $352.99SKU: C15-16507 Brand: Square D MPN: HGA260804 UPC: 78590149108 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16507
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 80 A, 18 kA, 2-Pole, H-Frame, BC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Type:
- Thermal Magnetic, Current Limiting
- Current Rating:
- 80 A
- Series:
- HG
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Number of Poles:
- 2
- Data Sheet:
- SchneiderElectric-SquareD_46563_1-3_DATA.pdf
- Application:
- Distribution
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Trip Setting:
- 800 A (Hold), 1450 A (Trip)
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Approval:
- UL, CSA, CE
- CAD Drawings:
- SchneiderElectric-SquareD_73176_1_CAD.pdf
MSRP $1,307.32Surplus $352.99 -
Contact Us For Quote
Square D HGA260901 Molded Case Breakers (MCCBs)
MSRP $1,576.39Surplus $425.62SKU: C15-16508 Brand: Square D MPN: HGA260901 UPC: 78590149248 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16508
- Series:
- HG
- Approval:
- UL, CSA, CE
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- CAD Drawings:
- SchneiderElectric-SquareD_73178_1_CAD.pdf
- Trip Setting:
- 800 A (Hold), 1450 A (Trip)
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 90 A, 18 kA, 2-Pole, H-Frame, AB Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Type:
- Thermal Magnetic, Current Limiting
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Application:
- Distribution
- Data Sheet:
- SchneiderElectric-SquareD_46564_1-3_DATA.pdf
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Number of Poles:
- 2
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Current Rating:
- 90 A
MSRP $1,576.39Surplus $425.62 -
Contact Us For Quote
Square D HGA260904 Molded Case Breakers (MCCBs)
MSRP $1,199.31Surplus $323.81SKU: C15-16510 Brand: Square D MPN: HGA260904 UPC: 78590154242 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16510
- Series:
- HG
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Approval:
- UL, CSA, CE
- Current Rating:
- 90 A
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 90 A, 18 kA, 2-Pole, H-Frame, BC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- CAD Drawings:
- SchneiderElectric-SquareD_73180_1_CAD.pdf
- Type:
- Thermal Magnetic, Current Limiting
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Trip Setting:
- 800 A (Hold), 1450 A (Trip)
- Data Sheet:
- SchneiderElectric-SquareD_46565_1-3_DATA.pdf
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Number of Poles:
- 2
- Application:
- Distribution
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
MSRP $1,199.31Surplus $323.81 -
Contact Us For Quote
Square D HGA261001 Molded Case Breakers (MCCBs)
MSRP $2,364.58Surplus $638.44SKU: C15-16511 Brand: Square D MPN: HGA261001 UPC: 78590165152 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16511
- Series:
- HG
- Type:
- Thermal Magnetic, Current Limiting
- Number of Poles:
- 2
- Application:
- Distribution
- CAD Drawings:
- SchneiderElectric-SquareD_73183_1_CAD.pdf
- Approval:
- UL, CSA, CE
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 100 A, 18 kA, 2-Pole, H-Frame, AB Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Data Sheet:
- SchneiderElectric-SquareD_46566_1-3_DATA.pdf
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Trip Setting:
- 800 A (Hold), 1700 A (Trip)
- Current Rating:
- 100 A
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
MSRP $2,364.58Surplus $638.44 -
Contact Us For Quote
Square D HGA261002 Molded Case Breakers (MCCBs)
MSRP $1,287.07Surplus $347.51SKU: C15-18774 Brand: Square D MPN: HGA261002 UPC: 78590174961 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-18774
- Number of Poles:
- 2
- Current Rating:
- 100 A
- Type:
- Thermal Magnetic, Current Limiting
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 100 A, 18 kA, 2-Pole, H-Frame, AC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Application:
- Distribution
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Data Sheet:
- SchneiderElectric-SquareD_46567_1-3_DATA.pdf
- Approval:
- UL, CSA, CE
- Series:
- HG
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- CAD Drawings:
- SchneiderElectric-SquareD_73184_1_CAD.pdf
- Trip Setting:
- 800 A (Hold), 1700 A (Trip)
MSRP $1,287.07Surplus $347.51 -
Contact Us For Quote
Square D HGA261004 Molded Case Breakers (MCCBs)
MSRP $4,912.93Surplus $1,326.49SKU: C15-16512 Brand: Square D MPN: HGA261004 UPC: 78590149110 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16512
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 100 A, 18 kA, 2-Pole, H-Frame, BC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Series:
- HG
- Number of Poles:
- 2
- Approval:
- UL, CSA, CE
- Type:
- Thermal Magnetic, Current Limiting
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- CAD Drawings:
- SchneiderElectric-SquareD_73186_1_CAD.pdf
- Data Sheet:
- SchneiderElectric-SquareD_46568_1-3_DATA.pdf
- Current Rating:
- 100 A
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Trip Setting:
- 800 A (Hold), 1700 A (Trip)
- Application:
- Distribution
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
MSRP $4,912.93Surplus $1,326.49 -
Contact Us For Quote
Square D HGA261251 Molded Case Breakers (MCCBs)
MSRP $4,500.46Surplus $1,215.12SKU: C15-16513 Brand: Square D MPN: HGA261251 UPC: 78590153988 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16513
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Series:
- HG
- Number of Poles:
- 2
- Approval:
- UL, CSA, CE
- Current Rating:
- 125 A
- Data Sheet:
- SchneiderElectric-SquareD_46569_1-3_DATA.pdf
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Application:
- Distribution
- Trip Setting:
- 900 A (Hold), 1700 A (Trip)
- Type:
- Thermal Magnetic, Current Limiting
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- CAD Drawings:
- SchneiderElectric-SquareD_73192_1_CAD.pdf
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 125 A, 18 kA, 2-Pole, H-Frame, AB Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
MSRP $4,500.46Surplus $1,215.12 -
Contact Us For Quote
Square D HGA261252 Molded Case Breakers (MCCBs)
MSRP $6,749.33Surplus $1,822.32SKU: C15-16514 Brand: Square D MPN: HGA261252 UPC: 78590149113 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16514
- Number of Poles:
- 2
- Approval:
- UL, CSA, CE
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Trip Setting:
- 900 A (Hold), 1700 A (Trip)
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Current Rating:
- 125 A
- Application:
- Distribution
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 125 A, 18 kA, 2-Pole, H-Frame, AC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- CAD Drawings:
- SchneiderElectric-SquareD_73193_1_CAD.pdf
- Type:
- Thermal Magnetic, Current Limiting
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Data Sheet:
- SchneiderElectric-SquareD_46570_1-3_DATA.pdf
- Series:
- HG
MSRP $6,749.33Surplus $1,822.32 -
Contact Us For Quote
Square D HGA261254 Molded Case Breakers (MCCBs)
MSRP $10,121.27Surplus $2,732.74SKU: C15-16515 Brand: Square D MPN: HGA261254 UPC: 78590183421 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16515
- Series:
- HG
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 125 A, 18 kA, 2-Pole, H-Frame, BC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Number of Poles:
- 2
- Current Rating:
- 125 A
- Type:
- Thermal Magnetic, Current Limiting
- Trip Setting:
- 900 A (Hold), 1700 A (Trip)
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Approval:
- UL, CSA, CE
- Application:
- Distribution
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- CAD Drawings:
- SchneiderElectric-SquareD_73195_1_CAD.pdf
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Data Sheet:
- SchneiderElectric-SquareD_46571_1-3_DATA.pdf
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
MSRP $10,121.27Surplus $2,732.74 -
Contact Us For Quote
Square D HGA261501 Molded Case Breakers (MCCBs)
MSRP $2,896.85Surplus $782.15SKU: C15-16516 Brand: Square D MPN: HGA261501 UPC: 78590153989 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16516
- Current Rating:
- 150 A
- Number of Poles:
- 2
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 150 A, 18 kA, 2-Pole, H-Frame, AB Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Trip Setting:
- 900 A (Hold), 1700 A (Trip)
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Application:
- Distribution
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Approval:
- UL, CSA, CE
- Type:
- Thermal Magnetic, Current Limiting
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Series:
- HG
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Data Sheet:
- SchneiderElectric-SquareD_46572_1-3_DATA.pdf
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- CAD Drawings:
- SchneiderElectric-SquareD_73197_1_CAD.pdf
MSRP $2,896.85Surplus $782.15 -
Contact Us For Quote
Square D HGA261502 Molded Case Breakers (MCCBs)
MSRP $3,252.15Surplus $878.08SKU: C15-16517 Brand: Square D MPN: HGA261502 UPC: 78590149116 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16517
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Data Sheet:
- SchneiderElectric-SquareD_46573_1-3_DATA.pdf
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Type:
- Thermal Magnetic, Current Limiting
- Current Rating:
- 150 A
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 150 A, 18 kA, 2-Pole, H-Frame, AC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Number of Poles:
- 2
- Series:
- HG
- Approval:
- UL, CSA, CE
- Trip Setting:
- 900 A (Hold), 1700 A (Trip)
- Application:
- Distribution
- CAD Drawings:
- SchneiderElectric-SquareD_73198_1_CAD.pdf
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
MSRP $3,252.15Surplus $878.08 -
Contact Us For Quote
Square D HGA261504 Molded Case Breakers (MCCBs)
MSRP $6,749.33Surplus $1,822.32SKU: C15-16518 Brand: Square D MPN: HGA261504 UPC: 78590183426 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16518
- Type:
- Thermal Magnetic, Current Limiting
- Current Rating:
- 150 A
- Approval:
- UL, CSA, CE
- Series:
- HG
- Application:
- Distribution
- Number of Poles:
- 2
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Trip Setting:
- 900 A (Hold), 1700 A (Trip)
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 150 A, 18 kA, 2-Pole, H-Frame, BC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Data Sheet:
- SchneiderElectric-SquareD_46574_1-3_DATA.pdf
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- CAD Drawings:
- SchneiderElectric-SquareD_73199_1_CAD.pdf
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
MSRP $6,749.33Surplus $1,822.32 -
Contact Us For Quote
Square D HGL26015 Molded Case Breakers (MCCBs)
MSRP $1,361.30Surplus $367.55SKU: C15-16531 Brand: Square D MPN: HGL26015 UPC: 78590143375 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16531
- Catalog:
- SchneiderElectric-SquareD_32357_7_6_7_31_7_33_7_34_CAT.pdf
- Current Rating:
- 15 A
- CAD Drawings:
- SchneiderElectric-SquareD_74671_1_CAD.pdf
- Installation/Operator:
- SchneiderElectric-SquareD_00142_INST.pdf
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Series:
- HG
- Size:
- 4.09 Inch Width x 3.39 Inch Depth x 6.42 Inch Height
- Maximum AC Voltage Rating:
- 600 V
- Terminal Type:
- Line/Load Lug
- Prop 65 Warning:
- Yes
- Maximum DC Voltage Rating:
- 250 V
- Frame Type:
- H
- Data Sheet:
- SchneiderElectric-SquareD_46606_1-3_DATA.pdf
- Number of Poles:
- 2
- Approval:
- UL, CSA, CE
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Type:
- Thermal Magnetic, Current Limiting
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 15 A, 18 kA, 2-Pole, H-Frame, Unit Mount, Line/Load Lug Terminal, 80% Continuous Current, Thermal Magnetic, Current Limiting, Molded Case Circuit Breaker
MSRP $1,361.30Surplus $367.55 -
Contact Us For Quote
Square D HGL26020 Molded Case Breakers (MCCBs)
MSRP $1,272.13Surplus $477.99SKU: U00-8185 Brand: Square D MPN: HGL26020 UPC: 78590143376 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- U00-8185
- Current Rating:
- 20 A
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Size:
- 4.09 Inch Width x 3.39 Inch Depth x 6.42 Inch Height
- Frame Type:
- H
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Maximum AC Voltage Rating:
- 600 V
- Number of Poles:
- 2
- Installation/Operator:
- SchneiderElectric-SquareD_00142_INST.pdf
- Approval:
- UL, CSA, CE
- Series:
- HG
- Type:
- Thermal Magnetic, Current Limiting
- CAD Drawings:
- SchneiderElectric-SquareD_74671_1_CAD.pdf
- Terminal Type:
- Line/Load Lug
- Maximum DC Voltage Rating:
- 250 V
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 20 A, 18 kA, 2-Pole, H-Frame, Unit Mount, Line/Load Lug Terminal, 80% Continuous Current, Thermal Magnetic, Current Limiting, Molded Case Circuit Breaker
- Data Sheet:
- SchneiderElectric-SquareD_46607_1-3_DATA.pdf
- Catalog:
- SchneiderElectric-SquareD_32357_7_6_7_31_7_33_7_34_CAT.pdf
MSRP $1,272.13Surplus $477.99 -
Contact Us For Quote
Square D HGL26030 Molded Case Breakers (MCCBs)
MSRP $1,272.13Surplus $343.48SKU: C15-16532 Brand: Square D MPN: HGL26030 UPC: 78590168325 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16532
- Current Rating:
- 30 A
- Number of Poles:
- 2
- Series:
- HG
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Maximum AC Voltage Rating:
- 600 V
- Frame Type:
- H
- Type:
- Thermal Magnetic, Current Limiting
- Approval:
- UL, CSA, CE
- Terminal Type:
- Line/Load Lug
- Size:
- 4.09 Inch Width x 3.39 Inch Depth x 6.42 Inch Height
- Maximum DC Voltage Rating:
- 250 V
- Catalog:
- SchneiderElectric-SquareD_32357_7_6_7_31_7_33_7_34_CAT.pdf
- Installation/Operator:
- SchneiderElectric-SquareD_00142_INST.pdf
- Data Sheet:
- SchneiderElectric-SquareD_46609_1-3_DATA.pdf
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 30 A, 18 kA, 2-Pole, H-Frame, Unit Mount, Line/Load Lug Terminal, 80% Continuous Current, Thermal Magnetic, Current Limiting, Molded Case Circuit Breaker
- CAD Drawings:
- SchneiderElectric-SquareD_74671_1_CAD.pdf
MSRP $1,272.13Surplus $343.48 -
Contact Us For Quote
Square D HGL26040 Molded Case Breakers (MCCBs)
MSRP $2,676.32Surplus $722.61SKU: C15-16533 Brand: Square D MPN: HGL26040 UPC: 78590143381 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16533
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 40 A, 18 kA, 2-Pole, H-Frame, Unit Mount, Line/Load Lug Terminal, 80% Continuous Current, Thermal Magnetic, Current Limiting, Molded Case Circuit Breaker
- Series:
- HG
- Frame Type:
- H
- Size:
- 4.09 Inch Width x 3.39 Inch Depth x 6.42 Inch Height
- Terminal Type:
- Line/Load Lug
- Maximum AC Voltage Rating:
- 600 V
- Data Sheet:
- SchneiderElectric-SquareD_46611_1-3_DATA.pdf
- Catalog:
- SchneiderElectric-SquareD_32357_7_6_7_31_7_33_7_34_CAT.pdf
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Maximum DC Voltage Rating:
- 250 V
- CAD Drawings:
- SchneiderElectric-SquareD_74671_1_CAD.pdf
- Installation/Operator:
- SchneiderElectric-SquareD_00142_INST.pdf
- Current Rating:
- 40 A
- Number of Poles:
- 2
- Approval:
- UL, CSA, CE
- Type:
- Thermal Magnetic, Current Limiting
MSRP $2,676.32Surplus $722.61 -
Contact Us For Quote
Square D HGL26050 Molded Case Breakers (MCCBs)
MSRP $2,598.72Surplus $701.65SKU: C15-16534 Brand: Square D MPN: HGL26050 UPC: 78590188377 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16534
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Terminal Type:
- Line/Load Lug
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Number of Poles:
- 2
- Frame Type:
- H
- Maximum AC Voltage Rating:
- 600 V
- Series:
- HG
- Approval:
- UL, CSA, CE
- Maximum DC Voltage Rating:
- 250 V
- Size:
- 4.09 Inch Width x 3.39 Inch Depth x 6.42 Inch Height
- Data Sheet:
- SchneiderElectric-SquareD_46613_1-3_DATA.pdf
- Current Rating:
- 50 A
- Installation/Operator:
- SchneiderElectric-SquareD_00142_INST.pdf
- CAD Drawings:
- SchneiderElectric-SquareD_74671_1_CAD.pdf
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 50 A, 18 kA, 2-Pole, H-Frame, Unit Mount, Line/Load Lug Terminal, 80% Continuous Current, Thermal Magnetic, Current Limiting, Molded Case Circuit Breaker
- Type:
- Thermal Magnetic, Current Limiting
- Catalog:
- SchneiderElectric-SquareD_32357_7_6_7_31_7_33_7_34_CAT.pdf
MSRP $2,598.72Surplus $701.65 -
Contact Us For Quote
Square D HGL26060 Molded Case Breakers (MCCBs)
MSRP $1,272.13Surplus $343.48SKU: C15-16535 Brand: Square D MPN: HGL26060 UPC: 78590143385 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16535
- Series:
- HG
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 60 A, 18 kA, 2-Pole, H-Frame, Unit Mount, Line/Load Lug Terminal, 80% Continuous Current, Thermal Magnetic, Current Limiting, Molded Case Circuit Breaker
- Type:
- Thermal Magnetic, Current Limiting
- Frame Type:
- H
- Number of Poles:
- 2
- Size:
- 4.09 Inch Width x 3.39 Inch Depth x 6.42 Inch Height
- CAD Drawings:
- SchneiderElectric-SquareD_74671_1_CAD.pdf
- Data Sheet:
- SchneiderElectric-SquareD_46614_1-3_DATA.pdf
- Catalog:
- SchneiderElectric-SquareD_32357_7_6_7_31_7_33_7_34_CAT.pdf
- Maximum AC Voltage Rating:
- 600 V
- Maximum DC Voltage Rating:
- 250 V
- Approval:
- UL, CSA, CE
- Current Rating:
- 60 A
- Terminal Type:
- Line/Load Lug
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Installation/Operator:
- SchneiderElectric-SquareD_00142_INST.pdf
MSRP $1,272.13Surplus $343.48 -
Contact Us For Quote
Square D HGL26070 Molded Case Breakers (MCCBs)
MSRP $1,999.48Surplus $539.86SKU: C15-16536 Brand: Square D MPN: HGL26070 UPC: 78590159880 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16536
- Frame Type:
- H
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 70 A, 18 kA, 2-Pole, H-Frame, Unit Mount, Line/Load Lug Terminal, 80% Continuous Current, Thermal Magnetic, Current Limiting, Molded Case Circuit Breaker
- Terminal Type:
- Line/Load Lug
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Installation/Operator:
- SchneiderElectric-SquareD_00142_INST.pdf
- Size:
- 4.09 Inch Width x 3.39 Inch Depth x 6.42 Inch Height
- Approval:
- UL, CSA, CE
- Type:
- Thermal Magnetic, Current Limiting
- Number of Poles:
- 2
- Series:
- HG
- Current Rating:
- 70 A
- CAD Drawings:
- SchneiderElectric-SquareD_74671_1_CAD.pdf
- Data Sheet:
- SchneiderElectric-SquareD_46615_1-3_DATA.pdf
- Catalog:
- SchneiderElectric-SquareD_32357_7_6_7_31_7_33_7_34_CAT.pdf
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Maximum AC Voltage Rating:
- 600 V
- Maximum DC Voltage Rating:
- 250 V
MSRP $1,999.48Surplus $539.86 -
Contact Us For Quote
Square D HGL26080 Molded Case Breakers (MCCBs)
MSRP $1,901.74Surplus $513.47SKU: C15-16537 Brand: Square D MPN: HGL26080 UPC: 78590143387 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16537
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Catalog:
- SchneiderElectric-SquareD_32357_7_6_7_31_7_33_7_34_CAT.pdf
- Type:
- Thermal Magnetic, Current Limiting
- Number of Poles:
- 2
- Installation/Operator:
- SchneiderElectric-SquareD_00142_INST.pdf
- Current Rating:
- 80 A
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- CAD Drawings:
- SchneiderElectric-SquareD_74671_1_CAD.pdf
- Data Sheet:
- SchneiderElectric-SquareD_46616_1-3_DATA.pdf
- Approval:
- UL, CSA, CE
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 80 A, 18 kA, 2-Pole, H-Frame, Unit Mount, Line/Load Lug Terminal, 80% Continuous Current, Thermal Magnetic, Current Limiting, Molded Case Circuit Breaker
- Maximum DC Voltage Rating:
- 250 V
- Series:
- HG
- Size:
- 4.09 Inch Width x 3.39 Inch Depth x 6.42 Inch Height
- Terminal Type:
- Line/Load Lug
- Maximum AC Voltage Rating:
- 600 V
- Frame Type:
- H
MSRP $1,901.74Surplus $513.47 -
Contact Us For Quote
Square D HGL26090 Molded Case Breakers (MCCBs)
MSRP $1,486.54Surplus $401.37SKU: C15-16538 Brand: Square D MPN: HGL26090 UPC: 78590159881 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16538
- Maximum DC Voltage Rating:
- 250 V
- Data Sheet:
- SchneiderElectric-SquareD_46617_1-3_DATA.pdf
- Approval:
- UL, CSA, CE
- CAD Drawings:
- SchneiderElectric-SquareD_74671_1_CAD.pdf
- Catalog:
- SchneiderElectric-SquareD_32357_7_6_7_31_7_33_7_34_CAT.pdf
- Installation/Operator:
- SchneiderElectric-SquareD_00142_INST.pdf
- Current Rating:
- 90 A
- Maximum AC Voltage Rating:
- 600 V
- Number of Poles:
- 2
- Terminal Type:
- Line/Load Lug
- Size:
- 4.09 Inch Width x 3.39 Inch Depth x 6.42 Inch Height
- Type:
- Thermal Magnetic, Current Limiting
- Series:
- HG
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 90 A, 18 kA, 2-Pole, H-Frame, Unit Mount, Line/Load Lug Terminal, 80% Continuous Current, Thermal Magnetic, Current Limiting, Molded Case Circuit Breaker
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Frame Type:
- H
MSRP $1,486.54Surplus $401.37 -
Contact Us For Quote
Square D HGL26100 Molded Case Breakers (MCCBs)
MSRP $1,300.72Surplus $351.20SKU: C15-16539 Brand: Square D MPN: HGL26100 UPC: 78590188368 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16539
- Number of Poles:
- 2
- Size:
- 4.09 Inch Width x 3.39 Inch Depth x 6.42 Inch Height
- CAD Drawings:
- SchneiderElectric-SquareD_74671_1_CAD.pdf
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Maximum DC Voltage Rating:
- 250 V
- Frame Type:
- H
- Maximum AC Voltage Rating:
- 600 V
- Approval:
- UL, CSA, CE
- Current Rating:
- 100 A
- Type:
- Thermal Magnetic, Current Limiting
- Terminal Type:
- Line/Load Lug
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Series:
- HG
- Installation/Operator:
- SchneiderElectric-SquareD_00142_INST.pdf
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 100 A, 18 kA, 2-Pole, H-Frame, Unit Mount, Line/Load Lug Terminal, Thermal Magnetic, Current Limiting, Molded Case Circuit Breaker
- Catalog:
- SchneiderElectric-SquareD_32357_7_6_7_31_7_33_7_34_CAT.pdf
- Data Sheet:
- SchneiderElectric-SquareD_46618_1-3_DATA.pdf
MSRP $1,300.72Surplus $351.20 -
Contact Us For Quote
Square D HGL26125 Molded Case Breakers (MCCBs)
MSRP $1,535.45Surplus $414.57SKU: C15-16540 Brand: Square D MPN: HGL26125 UPC: 78590159884 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16540
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Maximum AC Voltage Rating:
- 600 V
- Type:
- Thermal Magnetic, Current Limiting
- Current Rating:
- 125 A
- Catalog:
- SchneiderElectric-SquareD_32357_7_6_7_31_7_33_7_34_CAT.pdf
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 125 A, 18 kA, 2-Pole, H-Frame, Unit Mount, Line/Load Lug Terminal, Thermal Magnetic, Current Limiting, Molded Case Circuit Breaker
- Terminal Type:
- Line/Load Lug
- Maximum DC Voltage Rating:
- 250 V
- Series:
- HG
- Approval:
- UL, CSA, CE
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Frame Type:
- H
- Number of Poles:
- 2
- Size:
- 4.09 Inch Width x 3.39 Inch Depth x 6.42 Inch Height
- Data Sheet:
- SchneiderElectric-SquareD_46619_1-3_DATA.pdf
- Installation/Operator:
- SchneiderElectric-SquareD_00142_INST.pdf
- CAD Drawings:
- SchneiderElectric-SquareD_74671_1_CAD.pdf
MSRP $1,535.45Surplus $414.57 -
Square D HGL26150 Molded Case Breakers (MCCBs)
MSRP $4,164.22Surplus $1,274.18SKU: C15-7132 Brand: Square D MPN: HGL26150 UPC: 78590143393 Shipping Weight: 2.85 lbs. Shipping Height: 5.00 In. Shipping Length: 8.00 In. Shipping Width: 6.00 In...- SKU:
- C15-7132
- TS PIK:
- 21108286
- Terminal Type:
- Line/Load Lug
- Size:
- 4.09 Inch Width x 3.39 Inch Depth x 6.42 Inch Height
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 150 A, 18 kA, 2-Pole, H-Frame, Unit Mount, Line/Load Lug Terminal, Thermal Magnetic, Current Limiting, Molded Case Circuit Breaker
- Current Rating:
- 150 A
- Frame Type:
- H
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Maximum DC Voltage Rating:
- 250 V
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Series:
- HG
- CAD Drawings:
- SchneiderElectric-SquareD_74671_1_CAD.pdf
- Catalog:
- SchneiderElectric-SquareD_32357_7_6_7_31_7_33_7_34_CAT.pdf
- Type:
- Thermal Magnetic, Current Limiting
- Number of Poles:
- 2
- Data Sheet:
- SchneiderElectric-SquareD_46620_1-3_DATA.pdf
- Installation/Operator:
- SchneiderElectric-SquareD_00142_INST.pdf
- Maximum AC Voltage Rating:
- 600 V
- Country of Origin:
- United States
- Approval:
- UL, CSA, CE
MSRP $4,164.22Surplus $1,274.18 -
Contact Us For Quote
Square D HJA260151 Molded Case Breakers (MCCBs)
MSRP $1,818.70Surplus $491.05SKU: C15-16554 Brand: Square D MPN: HJA260151 UPC: 78590183418 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16554
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Data Sheet:
- SchneiderElectric-SquareD_46689_1-3_DATA.pdf
- Type:
- Thermal Magnetic, Current Limiting
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Series:
- HJ
- Current Rating:
- 15 A
- Number of Poles:
- 2
- Approval:
- UL, CSA, CE
- Application:
- Distribution
- Interrupting Rating:
- 25 kA at 600 VAC, 20 kA at 250 VDC
- Trip Setting:
- 350 A (Hold), 750 A (Trip)
- CAD Drawings:
- SchneiderElectric_29611_1_CAD.pdf
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 15 A, 25 kA, 2-Pole, H-Frame, AB Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
MSRP $1,818.70Surplus $491.05 -
Contact Us For Quote
Square D HJA260155 Molded Case Breakers (MCCBs)
MSRP $2,006.56Surplus $541.77SKU: C15-16555 Brand: Square D MPN: HJA260155 UPC: 78590160102 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16555
- Current Rating:
- 15 A
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Series:
- HJ
- Type:
- Thermal Magnetic, Current Limiting
- Approval:
- UL, CSA, CE
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Data Sheet:
- SchneiderElectric-SquareD_46692_1-3_DATA.pdf
- Number of Poles:
- 2
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Trip Setting:
- 350 A (Hold), 750 A (Trip)
- Application:
- Distribution
- CAD Drawings:
- SchneiderElectric_29614_1_CAD.pdf
- Interrupting Rating:
- 25 kA at 600 VAC, 20 kA at 250 VDC
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 15 A, 25 kA, 2-Pole, H-Frame, CA Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
MSRP $2,006.56Surplus $541.77 -
Contact Us For Quote
Square D HJA260301 Molded Case Breakers (MCCBs)
MSRP $2,409.50Surplus $650.57SKU: C15-16556 Brand: Square D MPN: HJA260301 UPC: 78590161163 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16556
- Type:
- Thermal Magnetic, Current Limiting
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Interrupting Rating:
- 25 kA at 600 VAC, 20 kA at 250 VDC
- Approval:
- UL, CSA, CE
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Application:
- Distribution
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- CAD Drawings:
- SchneiderElectric_29621_1_CAD.pdf
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Number of Poles:
- 2
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 30 A, 25 kA, 2-Pole, H-Frame, AB Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Series:
- HJ
- Data Sheet:
- SchneiderElectric-SquareD_46701_1-3_DATA.pdf
- Trip Setting:
- 350 A (Hold), 750 A (Trip)
- Current Rating:
- 30 A
MSRP $2,409.50Surplus $650.57 -
Contact Us For Quote
Square D HJA260302 Molded Case Breakers (MCCBs)
MSRP $3,612.89Surplus $975.48SKU: C15-16557 Brand: Square D MPN: HJA260302 UPC: 78590160106 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16557
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 30 A, 25 kA, 2-Pole, H-Frame, AC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Number of Poles:
- 2
- Current Rating:
- 30 A
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Approval:
- UL, CSA, CE
- Data Sheet:
- SchneiderElectric-SquareD_46702_1-3_DATA.pdf
- Trip Setting:
- 350 A (Hold), 750 A (Trip)
- Interrupting Rating:
- 25 kA at 600 VAC, 20 kA at 250 VDC
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- CAD Drawings:
- SchneiderElectric_29622_1_CAD.pdf
- Application:
- Distribution
- Series:
- HJ
- Type:
- Thermal Magnetic, Current Limiting
MSRP $3,612.89Surplus $975.48 -
Square D HJA260601 Molded Case Breakers (MCCBs)
MSRP $2,163.11Surplus $1,359.71SKU: U00-8188 Brand: Square D MPN: HJA260601 UPC: 78590151163 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- U00-8188
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Data Sheet:
- SchneiderElectric-SquareD_46713_1-3_DATA.pdf
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 60 A, 25 kA, 2-Pole, H-Frame, AB Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Number of Poles:
- 2
- Trip Setting:
- 800 A (Hold), 1450 A (Trip)
- Series:
- HJ
- Type:
- Thermal Magnetic, Current Limiting
- Application:
- Distribution
- Prop 65 Warning:
- Yes
- CAD Drawings:
- SchneiderElectric_29636_1_CAD.pdf
- Approval:
- UL, CSA, CE
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Current Rating:
- 60 A
- Interrupting Rating:
- 25 kA at 600 VAC, 20 kA at 250 VDC
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Country of Origin:
- Mexico
MSRP $2,163.11Surplus $1,359.71 -
Contact Us For Quote
Square D HJA260602 Molded Case Breakers (MCCBs)
MSRP $1,972.52Surplus $532.58SKU: C15-16558 Brand: Square D MPN: HJA260602 UPC: 78590179569 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16558
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Interrupting Rating:
- 25 kA at 600 VAC, 20 kA at 250 VDC
- Data Sheet:
- SchneiderElectric-SquareD_46714_1-3_DATA.pdf
- Type:
- Thermal Magnetic, Current Limiting
- Number of Poles:
- 2
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Approval:
- UL, CSA, CE
- Trip Setting:
- 800 A (Hold), 1450 A (Trip)
- Application:
- Distribution
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- CAD Drawings:
- SchneiderElectric_29637_1_CAD.pdf
- Series:
- HJ
- Current Rating:
- 60 A
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 60 A, 25 kA, 2-Pole, H-Frame, AC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
MSRP $1,972.52Surplus $532.58 -
Contact Us For Quote
Square D HLL26020 Molded Case Breakers (MCCBs)
MSRP $2,813.81Surplus $759.73SKU: C15-16598 Brand: Square D MPN: HLL26020 UPC: 60648628282 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16598
- Current Rating:
- 20 A
- Maximum AC Voltage Rating:
- 600 V
- Maximum DC Voltage Rating:
- 250 V
- CAD Drawings:
- SchneiderElectric-SquareD_74672_1_CAD.pdf
- Size:
- 4.09 Inch Width x 3.39 Inch Depth x 6.42 Inch Height
- Installation/Operator:
- SchneiderElectric-SquareD_00142_INST.pdf
- Number of Poles:
- 2
- Series:
- HL
- Type:
- Thermal Magnetic, Current Limiting
- Interrupting Rating:
- 50 kA at 600 VAC, 20 kA at 250 VDC
- Terminal Type:
- Line/Load Lug
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 20 A, 50 kA, 2-Pole, H-Frame, Unit Mount, Line/Load Lug Terminal, 80% Continuous Current, Thermal Magnetic, Current Limiting, Molded Case Circuit Breaker
- Catalog:
- SchneiderElectric-SquareD_32357_7_6_7_31_7_33_7_34_CAT.pdf
- Frame Type:
- H
- Data Sheet:
- SchneiderElectric-SquareD_42476_1-3_DATA.pdf
- Approval:
- UL, CSA, CE
MSRP $2,813.81Surplus $759.73 -
Square D HLL26025 Molded Case Breakers (MCCBs)
MSRP $3,218.11Surplus $603.76SKU: C15-7121 Brand: Square D MPN: HLL26025 UPC: 60648628283 Shipping Weight: 3.50 lbs. Shipping Height: 6.00 In. Shipping Length: 7.00 In. Shipping Width: 5.00 In...- SKU:
- C15-7121
- TS PIK:
- 120072010
- Installation/Operator:
- SchneiderElectric-SquareD_00142_INST.pdf
- Maximum DC Voltage Rating:
- 250 V
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Data Sheet:
- SchneiderElectric-SquareD_42477_1-3_DATA.pdf
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 25 A, 50 kA, 2-Pole, H-Frame, Unit Mount, Line/Load Lug Terminal, 80% Continuous Current, Thermal Magnetic, Current Limiting, Molded Case Circuit Breaker
- Current Rating:
- 25 A
- Interrupting Rating:
- 50 kA at 600 VAC, 20 kA at 250 VDC
- Number of Poles:
- 2
- Size:
- 4.09 Inch Width x 3.39 Inch Depth x 6.42 Inch Height
- Type:
- Thermal Magnetic, Current Limiting
- Maximum AC Voltage Rating:
- 600 V
- CAD Drawings:
- SchneiderElectric-SquareD_74672_1_CAD.pdf
- Series:
- HL
- Terminal Type:
- Line/Load Lug
- Frame Type:
- H
- Catalog:
- SchneiderElectric-SquareD_32357_7_6_7_31_7_33_7_34_CAT.pdf
- Country of Origin:
- United States
- Approval:
- UL, CSA, CE
MSRP $3,218.11Surplus $603.76 -
Square D HOM2150 Miniature Circuit Breakers (MCBs) HOM 2P 150A 240V 50/60Hz 1Ph
MSRP $607.14Surplus $217.67Square D HOM2150 Miniature Circuit Breakers (MCBs) HOM 2P 150A 240V 50/60Hz 1Ph​ ARCA SKU: C15-4798 Brand: Square D MPN: HOM2150 UPC: 785901065838 Shipping Weight: 1.75 Shipping Height: 4...- SKU:
- C15-4798
- Type:
- Miniature
- Type:
- Thermal Magnetic
- Type:
- Common Trip
- Approval:
- UL
- Approval:
- CSA
- Volts:
- 120/240 VAC at 50/60 Hz (UL/CSA)
- Amps:
- 32 A
- Used On:
- Homeline Loadcenter
- Poles:
- 2
- Mounting:
- Plug-On
- Interrupting Rating:
- 10 kA
- Terminal Type:
- Screw ClA
- Wire Size:
- 4 AWG to 300 KCMIL (Aluminum/Copper)
- Short Description:
- 120/240 VAC, 150 A, 10 kA Interrupt, 4-Pole, 4 AWG to 300 KCMIL Aluminum/Copper, Plug-In Mount, Box Lug Terminal
- Catalog:
- SchneiderElectric_00257_1_35_CAT.pdf
- Data Sheet:
- SchneiderElectric-SquareD_13439_1_2_DATA.pdf
- Installation/Operator:
- SchneiderElectric-SquareD_00099_INST.pdf
- Voltage Rating:
- 120/240 VAC at 50/60 Hz (UL/CSA)
- Number of Poles:
- 2
- Current Rating:
- 150 A
- Country of Origin:
- Mexico
MSRP $607.14Surplus $217.67 -
Square D HOM2150BB Molded Case Breakers (MCCBs)
MSRP $734.53Surplus $488.46SKU: U00-8214 Brand: Square D MPN: HOM2150BB UPC: 78590129620 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- U00-8214
- Short Description:
- 120/240 VAC, 150 A, 10 kA Interrupt, 4-Pole, 4 AWG to 300 KCMIL Aluminum/Copper, Plug-On Mount, Box Lug Terminal, Standard
- Number of Poles:
- 2
- Voltage Rating:
- 120/240 VAC at 50/60 Hz (UL/CSA)
- Current Rating:
- 150 A
- Type:
- Miniature, Thermal Magnetic, Branch, Common Trip
- Terminal Type:
- Screw ClA
- Data Sheet:
- SchneiderElectric-SquareD_13440_1-3_DATA.pdf
- Used On:
- Homeline Loadcenter
- Mounting:
- Plug-On
- Installation/Operator:
- SchneiderElectric-SquareD_00773_INST.pdf
- Wire Size:
- 4 AWG to 300 KCMIL (Aluminum/Copper)
- Interrupting Rating:
- 10 kA
- Catalog:
- SchneiderElectric_00257_1_19_1_39_7_22_CAT.pdf
- Approval:
- UL, CSA
- Country of Origin:
- Mexico
MSRP $734.53Surplus $488.46 -
Square D HOM215GFI Miniature Circuit Breakers (MCBs)
MSRP $562.22Surplus $217.51SKU: C15-10766 Brand: Square D MPN: HOM215GFI UPC: 78590130319 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-10766
- TS PIK:
- 111087552
- Mounting:
- Plug-On
- Wire Size:
- 14 to 6 AWG (Copper), 12 to 4 AWG (Aluminum)
- Catalog:
- SchneiderElectric_00257_1_19_7_23_CAT.pdf
- Terminal Type:
- Screw ClA
- Installation/Operator:
- SchneiderElectric-SquareD_00207_INST.pdf
- Data Sheet:
- SchneiderElectric-SquareD_13442_1_2_DATA.pdf
- Interrupting Rating:
- 10 kA
- Voltage Rating:
- 120/240 VAC
- Short Description:
- 120/240 VAC, 15 A, 10 kA Interrupt, 2-Pole, 12 to 4 AWG Aluminum, 14 to 6 AWG Copper, Plug-On Mount, Screw ClA Terminal, Miniature Circuit Breaker
- Type:
- Common Trip, Miniature
- Number of Poles:
- 2
- Used On:
- Load Center
- Current Rating:
- 15 A
- Approval:
- UL
- Trip Sensitivity:
- 6 MilliA
- Country of Origin:
- Mexico
MSRP $562.22Surplus $217.51 -
Square D HOM2200 Miniature Circuit Breakers (MCBs)
MSRP $571.75Surplus $380.21SKU: C15-10767 Brand: Square D MPN: HOM2200 UPC: 78590106588 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-10767
- TS PIK:
- 111082021
- Interrupting Rating:
- 10 kA
- Approval:
- UL, CSA
- Current Rating:
- 200 A
- Short Description:
- 120/240 VAC, 200 A, 10 kA Interrupt, 2-Pole, 4 AWG to 300 KCMIL Aluminum/Copper, Plug-On Mount, Box Lug Terminal, Standard, Miniature Circuit Breaker
- Data Sheet:
- SchneiderElectric-SquareD_13445_1_2_DATA.pdf
- Mounting:
- Plug-On
- Type:
- Miniature, Thermal Magnetic, Common Trip
- Voltage Rating:
- 120/240 VAC at 50/60 Hz (UL/CSA)
- Wire Size:
- 4 AWG to 300 KCMIL (Aluminum/Copper)
- Number of Poles:
- 2
- Used On:
- Homeline Loadcenter
- Terminal Type:
- Screw ClA
- Catalog:
- SchneiderElectric_00257_1_35_CAT.pdf
- Country of Origin:
- Mexico
MSRP $571.75Surplus $380.21 -
Contact Us For Quote
Square D HOM2200BB Miniature Circuit Breakers (MCBs)
MSRP $582.64Surplus $504.55Square D HOM2200BB Miniature Circuit Breakers (MCBs)​ ARCA SKU: C15-6619 Brand: Square D MPN: HOM2200BB UPC: Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping...- SKU:
- C15-6619
- Voltage Rating:
- 120/240 VAC
- Type:
- Miniature, Thermal Magnetic, Branch, Common Trip
- Short Description:
- 120/240 VAC, 200 A, 10 kA Interrupt, 2-Pole, 4 AWG to 300 KCMIL Aluminum/Copper, Plug-On Mount, Box Lug Terminal, Standard, Miniature Circuit Breaker
- Terminal Type:
- Screw ClA
- Wire Size:
- 4 AWG to 300 KCMIL (Aluminum/Copper)
- Mounting:
- Plug-On
- Number of Poles:
- 2
- Current Rating:
- 200 A
- Catalog:
- SchneiderElectric_00257_1_19_1_39_7_22_CAT.pdf
- Interrupting Rating:
- 10 kA
- Data Sheet:
- SchneiderElectric-SquareD_13446_1-3_DATA.pdf
- Used On:
- Homeline Loadcenter
- Installation/Operator:
- SchneiderElectric-SquareD_00099_INST.pdf
MSRP $582.64Surplus $504.55 -
Square D HOM220EPD Miniature Circuit Breakers (MCBs)
MSRP $970.61Surplus $551.97SKU: C15-10768 Brand: Square D MPN: HOM220EPD UPC: 78590156430 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-10768
- TS PIK:
- 120233778
- Mounting:
- Plug-On
- Number of Poles:
- 2
- Current Rating:
- 20 A
- Terminal Type:
- Screw ClA
- Voltage Rating:
- 120/240 VAC
- Type:
- Common Trip, Equipment Protector
- Interrupting Rating:
- 10 kA
- Short Description:
- 120/240 VAC, 20 A, 10 kA Interrupt, 2-Pole, 14 to 8 AWG Aluminum/Copper, Plug-On Mount, Screw ClA Terminal, Miniature Circuit Breaker
- Wire Size:
- 14 to 8 AWG (Aluminum/Copper)
- Data Sheet:
- SchneiderElectric-SquareD_13447_1_2_DATA.pdf
- Used On:
- Load Center
- Installation/Operator:
- SchneiderElectric-SquareD_00206_INST.pdf
- Catalog:
- SchneiderElectric_00257_1_20_7_23_CAT.pdf
- Approval:
- UL
- Trip Sensitivity:
- 30 MilliA
- Country of Origin:
- Mexico
MSRP $970.61Surplus $551.97 -
Square D HOM220GFI Miniature Circuit Breakers (MCBs)
MSRP $562.22Surplus $209.57SKU: C15-6620 Brand: Square D MPN: HOM220GFI UPC: Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In. Product...- SKU:
- C15-6620
- TS PIK:
- 21355863
- Terminal Type:
- Screw ClA
- Mounting:
- Plug-On
- Voltage Rating:
- 120/240 VAC
- Current Rating:
- 20 A
- Short Description:
- 120/240 VAC, 20 A, 10 kA, 2-Pole, Screw ClA Terminal, Plug-On Mount, Ground Fault, Common Trip, Miniature Circuit Breaker
- Installation/Operator:
- SchneiderElectric-SquareD_00207_INST.pdf
- Wire Size:
- 12 to 4 AWG (Aluminum), 14 to 6 AWG (Copper)
- Used On:
- Load Center
- Interrupting Rating:
- 10 kA
- Number of Poles:
- 2
- Catalog:
- SchneiderElectric-SquareD_03264_1_19_CAT.pdf
- Size:
- 2 Inch Width x 2.98 Inch Depth x 3.13 Inch Height
- Type:
- Common Trip
- Approval:
- UL
- Trip Sensitivity:
- 6 MilliA
- Country of Origin:
- Mexico
MSRP $562.22Surplus $209.57 -
Square D HOM225GFI Miniature Circuit Breakers (MCBs)
MSRP $299.49Surplus $199.16SKU: C15-10769 Brand: Square D MPN: HOM225GFI UPC: 78590130322 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-10769
- TS PIK:
- 115346057
- Wire Size:
- 12 to 4 AWG (Aluminum), 14 to 6 AWG (Copper)
- Data Sheet:
- SchneiderElectric-SquareD_13449_1_2_DATA.pdf
- Current Rating:
- 25 A
- Type:
- Thermal Magnetic, Common Trip, Equipment Protector
- Interrupting Rating:
- 10 kA
- Size:
- 2 Inch W x 2.98 Inch D x 3.13 Inch H
- Short Description:
- 120/240 VAC, 25 A, 10 kA Interrupt, 2-Pole, 12 to 4 AWG Aluminum, 14 to 6 AWG Copper, Plug-On Mount, Screw ClA Terminal, Miniature Circuit Breaker
- Installation/Operator:
- SchneiderElectric-SquareD_00207_INST.pdf
- Terminal Type:
- Screw ClA
- Catalog:
- SchneiderElectric_00257_1_19_7_23_CAT.pdf
- Approval:
- UL, CSA
- Number of Poles:
- 2
- Mounting:
- Plug-On
- Trip Sensitivity:
- 6 MilliA
- Used On:
- Homeline Loadcenter
- Voltage Rating:
- 120/240 VAC at 50/60 Hz (UL/CSA)
- Country of Origin:
- Mexico
MSRP $299.49Surplus $199.16 -
Square D HOM230EPD Miniature Circuit Breakers (MCBs) EA
MSRP $970.61Surplus $542.94SKU: C15-10770 Brand: Square D MPN: HOM230EPD UPC: 78590168276 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-10770
- TS PIK:
- 122966425
- Type:
- Miniature, Thermal Magnetic, Equipment Protector, Common Trip
- Short Description:
- 120/240 VAC, 30 A, 2-Pole, 10 kA, Plug-On, Screw ClA Terminal, Thermal Magnetic, Equipment Protector, Common Trip, Miniature Circuit Breaker
- Size:
- 2 Inch Width x 2.98 Inch Depth x 3.13 Inch Height
- Series:
- HOM-EPD
- Catalog:
- SchneiderElectric-SquareD_03264_1_20_CAT.pdf
- Number of Poles:
- 2
- Current Rating:
- 30 A
- Interrupting Rating:
- 10 kA
- Mounting:
- Plug-On
- Voltage Rating:
- 120/240 VAC
- Terminal Type:
- Screw ClA
- Used On:
- Loadcenter
- Installation/Operator:
- SchneiderElectric-SquareD_00206_INST.pdf
- Wire Size:
- 14 to 8 AWG (Aluminum/Copper)
- Data Sheet:
- SchneiderElectric-SquareD_04708_1_2_DATA.pdf
- Approval:
- UL, CSA
- Trip Sensitivity:
- 30 MilliA
- Country of Origin:
- Mexico
MSRP $970.61Surplus $542.94 -
Square D HOM240GFI Miniature Circuit Breakers (MCBs)
MSRP $562.22Surplus $217.51SKU: C15-10771 Brand: Square D MPN: HOM240GFI UPC: 78590130346 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-10771
- TS PIK:
- 111087558
- Number of Poles:
- 2
- Interrupting Rating:
- 10 kA
- Mounting:
- Plug-On
- Current Rating:
- 40 A
- Voltage Rating:
- 120/240 VAC
- Short Description:
- 120/240 VAC, 40 A, 10 kA Interrupt, 2-Pole, 12 to 4 AWG Aluminum, 14 to 6 AWG Copper, Plug-On Mount, Ground Fault Protecting, Miniature Circuit Breaker
- Size:
- 2 Inch Width x 2.98 Inch Depth x 3.13 Inch Height
- Terminal Type:
- Screw ClA
- Type:
- Miniature, Ground Fault Protecting
- Catalog:
- SchneiderElectric_00257_1_19_7_23_CAT.pdf
- Used On:
- Homeline Loadcenter
- Wire Size:
- 12 to 4 AWG (Aluminum), 14 to 6 AWG (Copper)
- Installation/Operator:
- SchneiderElectric-SquareD_00207_INST.pdf
- Data Sheet:
- SchneiderElectric-SquareD_13452_1_2_DATA.pdf
- Approval:
- UL
- Country of Origin:
- Mexico
MSRP $562.22Surplus $217.51 -
Contact Us For Quote
Square D HOM250 Everything Else
MSRP $81.68Surplus $26.07SKU: C15-6621 Brand: Square D MPN: HOM250 UPC: Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In. Product...- SKU:
- C15-6621
- TS PIK:
- 115900433
- Current Rating:
- 50 A
- Mounting:
- Plug-On
- Size:
- 2 Inch Width x 2.98 Inch Depth x 3.13 Inch Height
- Voltage Rating:
- 120/240 VAC
- Terminal Type:
- Box Lug
- Catalog:
- SchneiderElectric-SquareD_03264_1_19_1_39_CAT.pdf
- Number of Poles:
- 2
- Used On:
- Load Center
- Interrupting Rating:
- 10 kA
- Wire Size:
- 8 to 2 AWG (Aluminum/Copper)
- Type:
- Standard
- Installation/Operator:
- SchneiderElectric-SquareD_00099_INST.pdf
- Short Description:
- 120/240 VAC, 50 A, 10 kA, 2-Pole, Box Lug Terminal, Plug-On Mount, Standard, Common Trip, Miniature Circuit Breaker
- Approval:
- UL
MSRP $81.68Surplus $26.07 -
Square D HOM250GFI Miniature Circuit Breakers (MCBs)
MSRP $562.22Surplus $236.84SKU: C15-10773 Brand: Square D MPN: HOM250GFI UPC: 78590178357 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-10773
- TS PIK:
- 113875669
- Short Description:
- 120/240 VAC, 50 A, 10 kA Interrupt, 2-Pole, 12 to 4 AWG Aluminum, 14 to 6 AWG Copper, Plug-On Mount, Screw ClA Terminal, Miniature Circuit Breaker
- Current Rating:
- 50 A
- Terminal Type:
- Screw ClA
- Interrupting Rating:
- 10 kA
- Number of Poles:
- 2
- Voltage Rating:
- 120/240 VAC
- Installation/Operator:
- SchneiderElectric-SquareD_00207_INST.pdf
- Used On:
- Load Center
- Type:
- Common Trip
- Data Sheet:
- SchneiderElectric-SquareD_13459_1_2_DATA.pdf
- Wire Size:
- 12 to 4 AWG (Aluminum), 14 to 6 AWG (Copper)
- Catalog:
- SchneiderElectric_00257_1_19_1_45_7_23_CAT.pdf
- Mounting:
- Plug-On
- Size:
- 2 Inch Width x 2.98 Inch Depth x 3.13 Inch Height
- Approval:
- UL
- Trip Sensitivity:
- 6 MilliA
- Country of Origin:
- Mexico
MSRP $562.22Surplus $236.84 -
Square D HOM280 Miniature Circuit Breakers (MCBs) 2P 80A 120V
MSRP $228.70Surplus $60.99Square D HOM280 Miniature Circuit Breakers (MCBs) 2P 80A 120V​ ARCA SKU: C15-6522 Brand: Square D MPN: HOM280 UPC: 78590106567 Shipping Weight: 0.75 lbs. Shipping Height: 2.00 In...- SKU:
- C15-6522
- TS PIK:
- 109595511
- Data Sheet:
- SchneiderElectric-SquareD_13463_1_2_DATA.pdf
- Wire Size:
- 4 to 2/0 AWG (Copper/Aluminum)
- Mounting:
- Plug-On
- Catalog:
- SchneiderElectric_00257_1_19_1_39_7_22_CAT.pdf
- Terminal Type:
- Box Lug
- Series:
- HOM
- Current Rating:
- 80 A
- Number of Poles:
- 2
- Short Description:
- 120/240 VAC, 80 A, 10 kA Interrupt, 2-Pole, 4 to 2/0 AWG Aluminum/Copper, Plug-In Mount, Box Lug Terminal, Standard, Miniature Circuit Breaker
- Voltage Rating:
- 120/240 VAC
- Used On:
- Homeline Load Center
- Type:
- Common Trip, Main
- Interrupting Rating:
- 10 kA
- Installation/Operator:
- SchneiderElectric-SquareD_00099_INST.pdf
- Country of Origin:
- United States
- Approval:
- UL
MSRP $228.70Surplus $60.99 -
Square D HOMT1515220 Molded Case Breakers (MCCBs)
MSRP $163.36Surplus $103.95SKU: C15-10775 Brand: Square D MPN: HOMT1515220 UPC: 78590110100 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00...- SKU:
- C15-10775
- TS PIK:
- 111082990
- Short Description:
- 120/240 VAC, 15 A, 10 kA Interrupt, 2-Pole, 14 to 8 AWG Aluminum/Copper, Plug-On Mount, Box Lug Terminal, Quad Tandem, Miniature Circuit Breaker
- Voltage Rating:
- 120/240 VAC
- Catalog:
- SchneiderElectric_00257_1_20_7_23_CAT.pdf
- Interrupting Rating:
- 10 kA
- Number of Poles:
- 2
- Terminal Type:
- Box Lug
- Data Sheet:
- SchneiderElectric-SquareD_13504_1_2_DATA.pdf
- Installation/Operator:
- SchneiderElectric-SquareD_00099_INST.pdf
- Current Rating:
- 15 A
- Type:
- Quad Tandem
- Size:
- 2 Inch Width x 2.98 Inch Depth x 3.13 Inch Height
- Country of Origin:
- Mexico
- Prop 65 Warning:
- Yes
- Used On:
- Load Center
- Wire Size:
- 14 to 8 AWG (Aluminum/Copper)
- Approval:
- UL
- Mounting:
- Plug-On
MSRP $163.36Surplus $103.95 -
Square D HOMT1515230 Molded Case Breakers (MCCBs)
MSRP $163.36Surplus $103.95SKU: C15-10777 Brand: Square D MPN: HOMT1515230 UPC: 78590110101 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00...- SKU:
- C15-10777
- TS PIK:
- 111082991
- Current Rating:
- 15 A
- Interrupting Rating:
- 10 kA
- Terminal Type:
- Box Lug
- Type:
- Quad Tandem
- Size:
- 2 Inch Width x 2.98 Inch Depth x 3.13 Inch Height
- Number of Poles:
- 2
- Installation/Operator:
- SchneiderElectric-SquareD_00099_INST.pdf
- Voltage Rating:
- 120/240 VAC
- Short Description:
- 120/240 VAC, 15 A, 10 kA Interrupt, 2-Pole, 14 to 8 AWG Aluminum/Copper, Plug-On Mount, Box Lug Terminal, Quad Tandem, Miniature Circuit Breaker
- Catalog:
- SchneiderElectric_00257_1_20_7_23_CAT.pdf
- Data Sheet:
- SchneiderElectric-SquareD_13506_1_2_DATA.pdf
- Country of Origin:
- Mexico
- Prop 65 Warning:
- Yes
- Wire Size:
- 14 to 8 AWG (Aluminum/Copper)
- Used On:
- Load Center
- Approval:
- UL
- Mounting:
- Plug-On
MSRP $163.36Surplus $103.95 -
Contact Us For Quote
Square D JDA262002 Molded Case Breakers (MCCBs)
MSRP $3,136.44Surplus $846.84SKU: C15-16638 Brand: Square D MPN: JDA262002 UPC: 78590191237 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16638
- Data Sheet:
- SchneiderElectric-SquareD_47274_1-3_DATA.pdf
- Type:
- Thermal Magnetic, Current Limiting
- Prop 65 Warning:
- Yes
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Approval:
- UL, CSA, CE
- Current Rating:
- 200 A
- Number of Poles:
- 2
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 200 A, 14 kA, 2-Pole, J-Frame, AC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Series:
- JD
- Interrupting Rating:
- 14 kA at 600 VAC, 20 kA at 250 VDC
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Trip Setting:
- 1000 to 2000 A
- Application:
- Distribution
- CAD Drawings:
- SchneiderElectric_29730_1_CAD.pdf
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
MSRP $3,136.44Surplus $846.84 -
Contact Us For Quote
Square D JDA262502 Molded Case Breakers (MCCBs)
MSRP $4,395.64Surplus $1,186.82SKU: C15-16639 Brand: Square D MPN: JDA262502 UPC: 78590191226 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16639
- Prop 65 Warning:
- Yes
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Trip Setting:
- 1250 to 2500 A
- Series:
- JD
- Current Rating:
- 250 A
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 250 A, 14 kA, 2-Pole, J-Frame, AC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Data Sheet:
- SchneiderElectric-SquareD_47280_1-3_DATA.pdf
- Type:
- Thermal Magnetic, Current Limiting
- Application:
- Distribution
- Approval:
- UL, CSA, CE
- Interrupting Rating:
- 14 kA at 600 VAC, 20 kA at 250 VDC
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- CAD Drawings:
- SchneiderElectric_29738_1_CAD.pdf
- Number of Poles:
- 2
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
MSRP $4,395.64Surplus $1,186.82 -
Contact Us For Quote
Square D JDL26150 Molded Case Breakers (MCCBs)
MSRP $4,597.11Surplus $1,241.22SKU: C15-18790 Brand: Square D MPN: JDL26150 UPC: 78590195577 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-18790
- Series:
- JD
- Interrupting Rating:
- 14 kA at 600 VAC, 20 kA at 250 VDC
- Frame Type:
- J
- Size:
- 4.09 Inch Width x 3.39 Inch Depth x 7.52 Inch Height
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Approval:
- UL, CSA, CE
- Current Rating:
- 150 A
- Number of Poles:
- 2
- Terminal Type:
- Line/Load Lug
- Data Sheet:
- SchneiderElectric-SquareD_47295_1-4_DATA.pdf
- Catalog:
- SchneiderElectric-SquareD_32357_7_6_7_31_7_33_7_34_CAT.pdf
- Maximum DC Voltage Rating:
- 250 V
- Maximum AC Voltage Rating:
- 600 V
- CAD Drawings:
- SchneiderElectric-SquareD_74678_1_CAD.pdf
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 150 A, 14 kA, 2-Pole, J-Frame, Unit Mount, Line/Load Lug Terminal, Thermal Magnetic, Current Limiting, Adjustable, Molded Case Circuit Breaker
- Type:
- Thermal Magnetic, Current Limiting, Adjustable
MSRP $4,597.11Surplus $1,241.22 -
Square D JDL26200 Molded Case Breakers (MCCBs)
MSRP $2,431.28Surplus $656.45SKU: C15-16651 Brand: Square D MPN: JDL26200 UPC: 78590195580 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16651
- Series:
- JD
- Maximum AC Voltage Rating:
- 600 V
- Interrupting Rating:
- 14 kA at 600 VAC, 20 kA at 250 VDC
- Number of Poles:
- 2
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 200 A, 14 kA, 2-Pole, J-Frame, Unit Mount, Line/Load Lug Terminal, Thermal Magnetic, Current Limiting, Adjustable, Molded Case Circuit Breaker
- Current Rating:
- 200 A
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Catalog:
- SchneiderElectric-SquareD_32357_7_6_7_31_7_33_7_34_CAT.pdf
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Type:
- Thermal Magnetic, Current Limiting, Adjustable
- Size:
- 4.09 Inch Width x 3.39 Inch Depth x 7.52 Inch Height
- Data Sheet:
- SchneiderElectric-SquareD_47297_1-4_DATA.pdf
- CAD Drawings:
- SchneiderElectric-SquareD_74678_1_CAD.pdf
- Approval:
- UL, CSA, CE
- Maximum DC Voltage Rating:
- 250 V
- Prop 65 Warning:
- Yes
- Frame Type:
- J
- Terminal Type:
- Line/Load Lug
- Country of Origin:
- Mexico
MSRP $2,431.28Surplus $656.45 -
Contact Us For Quote
Square D JDL26225 Molded Case Breakers (MCCBs)
MSRP $4,597.11Surplus $1,241.22SKU: C15-16652 Brand: Square D MPN: JDL26225 UPC: 78590162318 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16652
- Prop 65 Warning:
- Yes
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 225 A, 14 kA, 2-Pole, J-Frame, Unit Mount, Line/Load Lug Terminal, Thermal Magnetic, Current Limiting, Adjustable, Molded Case Circuit Breaker
- Type:
- Thermal Magnetic, Current Limiting, Adjustable
- Interrupting Rating:
- 14 kA at 600 VAC, 20 kA at 250 VDC
- Terminal Type:
- Line/Load Lug
- Size:
- 4.09 Inch Width x 3.39 Inch Depth x 7.52 Inch Height
- Number of Poles:
- 2
- Frame Type:
- J
- CAD Drawings:
- SchneiderElectric-SquareD_74678_1_CAD.pdf
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Maximum DC Voltage Rating:
- 250 V
- Data Sheet:
- SchneiderElectric-SquareD_47301_1-4_DATA.pdf
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Approval:
- UL, CSA, CE
- Maximum AC Voltage Rating:
- 600 V
- Current Rating:
- 225 A
- Catalog:
- SchneiderElectric-SquareD_32357_7_6_7_31_7_33_7_34_CAT.pdf
- Series:
- JD
MSRP $4,597.11Surplus $1,241.22 -
Contact Us For Quote
Square D JDL26250 Molded Case Breakers (MCCBs)
MSRP $6,312.35Surplus $1,704.33SKU: C15-16653 Brand: Square D MPN: JDL26250 UPC: 78590183988 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16653
- Series:
- JD
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Current Rating:
- 250 A
- Number of Poles:
- 2
- Frame Type:
- J
- Catalog:
- SchneiderElectric-SquareD_32357_7_6_7_31_7_33_7_34_CAT.pdf
- Data Sheet:
- SchneiderElectric-SquareD_47302_1-4_DATA.pdf
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 250 A, 14 kA, 2-Pole, J-Frame, Unit Mount, Line/Load Lug Terminal, Thermal Magnetic, Current Limiting, Adjustable, Molded Case Circuit Breaker
- Interrupting Rating:
- 14 kA at 600 VAC, 20 kA at 250 VDC
- Prop 65 Warning:
- Yes
- CAD Drawings:
- SchneiderElectric-SquareD_74678_1_CAD.pdf
- Approval:
- UL, CSA, CE
- Type:
- Thermal Magnetic, Current Limiting, Adjustable
- Maximum DC Voltage Rating:
- 250 V
- Size:
- 4.09 Inch Width x 3.39 Inch Depth x 7.52 Inch Height
- Maximum AC Voltage Rating:
- 600 V
- Terminal Type:
- Line/Load Lug
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
MSRP $6,312.35Surplus $1,704.33 -
Contact Us For Quote
Square D JGA262004 Molded Case Breakers (MCCBs)
MSRP $8,004.44Surplus $2,161.20SKU: C15-16664 Brand: Square D MPN: JGA262004 UPC: 78590161162 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16664
- Data Sheet:
- SchneiderElectric-SquareD_47338_1-3_DATA.pdf
- Number of Poles:
- 2
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 200 A, 18 kA, 2-Pole, J-Frame, BC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Series:
- JG
- Application:
- Distribution
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Trip Setting:
- 1000 to 2000 A
- CAD Drawings:
- SchneiderElectric_29760_1_CAD.pdf
- Current Rating:
- 200 A
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Type:
- Thermal Magnetic, Current Limiting
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Approval:
- UL, CSA, CE
MSRP $8,004.44Surplus $2,161.20 -
Contact Us For Quote
Square D JGL26175 Molded Case Breakers (MCCBs)
MSRP $3,267.12Surplus $882.12SKU: C15-16672 Brand: Square D MPN: JGL26175 UPC: 78590168326 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16672
- Type:
- Thermal Magnetic, Current Limiting, Adjustable
- Series:
- JG
- Number of Poles:
- 2
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 175 A, 18 kA, 2-Pole, J-Frame, Unit Mount, Line/Load Lug Terminal, Thermal Magnetic, Current Limiting, Adjustable, Molded Case Circuit Breaker
- Frame Type:
- J
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Current Rating:
- 175 A
- Approval:
- UL, CSA, CE
- Catalog:
- SchneiderElectric-SquareD_32357_7_6_7_31_7_33_7_34_CAT.pdf
- Maximum AC Voltage Rating:
- 600 V
- Size:
- 4.09 Inch Width x 3.39 Inch Depth x 7.52 Inch Height
- CAD Drawings:
- SchneiderElectric-SquareD_74678_1_CAD.pdf
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Terminal Type:
- Line/Load Lug
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Data Sheet:
- SchneiderElectric-SquareD_47359_1-4_DATA.pdf
- Maximum DC Voltage Rating:
- 250 V
MSRP $3,267.12Surplus $882.12 -
Contact Us For Quote
Square D JGL26200 Molded Case Breakers (MCCBs)
MSRP $6,136.74Surplus $1,656.92SKU: C15-16673 Brand: Square D MPN: JGL26200 UPC: 78590143374 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16673
- Number of Poles:
- 2
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 200 A, 18 kA, 2-Pole, J-Frame, Unit Mount, Line/Load Lug Terminal, Thermal Magnetic, Current Limiting, Adjustable, Molded Case Circuit Breaker
- Maximum DC Voltage Rating:
- 250 V
- Current Rating:
- 200 A
- Size:
- 4.09 Inch Width x 3.39 Inch Depth x 7.52 Inch Height
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Data Sheet:
- SchneiderElectric-SquareD_47360_1-4_DATA.pdf
- Approval:
- UL, CSA, CE
- Terminal Type:
- Line/Load Lug
- Maximum AC Voltage Rating:
- 600 V
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Frame Type:
- J
- Type:
- Thermal Magnetic, Current Limiting, Adjustable
- CAD Drawings:
- SchneiderElectric-SquareD_74678_1_CAD.pdf
- Series:
- JG
- Catalog:
- SchneiderElectric-SquareD_32357_7_6_7_31_7_33_7_34_CAT.pdf
MSRP $6,136.74Surplus $1,656.92 -
Contact Us For Quote
Square D JGL26225 Molded Case Breakers (MCCBs)
MSRP $4,334.38Surplus $1,170.28SKU: C15-16674 Brand: Square D MPN: JGL26225 UPC: 78590168316 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16674
- Series:
- JG
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 225 A, 18 kA, 2-Pole, J-Frame, Unit Mount, Line/Load Lug Terminal, Thermal Magnetic, Current Limiting, Adjustable, Molded Case Circuit Breaker
- Data Sheet:
- SchneiderElectric-SquareD_47361_1-4_DATA.pdf
- Type:
- Thermal Magnetic, Current Limiting, Adjustable
- Approval:
- UL, CSA, CE
- Size:
- 4.09 Inch Width x 3.39 Inch Depth x 7.52 Inch Height
- CAD Drawings:
- SchneiderElectric-SquareD_74678_1_CAD.pdf
- Terminal Type:
- Line/Load Lug
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Number of Poles:
- 2
- Maximum DC Voltage Rating:
- 250 V
- Frame Type:
- J
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Current Rating:
- 225 A
- Maximum AC Voltage Rating:
- 600 V
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Catalog:
- SchneiderElectric-SquareD_32357_7_6_7_31_7_33_7_34_CAT.pdf
MSRP $4,334.38Surplus $1,170.28 -
Contact Us For Quote
Square D JJA262002 Molded Case Breakers (MCCBs)
MSRP $6,737.07Surplus $1,819.01SKU: C15-16691 Brand: Square D MPN: JJA262002 UPC: 78590193916 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16691
- Application:
- Distribution
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 200 A, 25 kA, 2-Pole, J-Frame, AC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Series:
- JJ
- Type:
- Thermal Magnetic, Current Limiting
- Interrupting Rating:
- 25 kA at 600 VAC, 20 kA at 250 VDC
- Current Rating:
- 200 A
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Approval:
- UL, CSA, CE
- Data Sheet:
- SchneiderElectric-SquareD_47405_1-3_DATA.pdf
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Number of Poles:
- 2
- Trip Setting:
- 1000 to 2000 A
- CAD Drawings:
- SchneiderElectric_29787_1_CAD.pdf
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
MSRP $6,737.07Surplus $1,819.01 -
Square D KA26125AC Molded Case Breakers (MCCBs)
MSRP $3,672.79Surplus $584.69SKU: C15-7105 Brand: Square D MPN: KA26125AC UPC: Shipping Weight: 7.75 lbs. Shipping Height: 6.00 In. Shipping Length: 15.00 In. Shipping Width: 9.00 In. Product...- SKU:
- C15-7105
- Maximum AC Voltage Rating:
- 600 V
- Type:
- Molded Case, Thermal Magnetic
- Voltage Rating:
- 120/240/480/600 VAC at 50/60 Hz, 120/240 VAC at 50/60 Hz, 480 VAC Star/277 VAC at 50/60 Hz (UL/CSA/NOM), 240/415 VAC at 50/60 Hz (IEC) 125 VDC, 250 VDC
- Catalog:
- SchneiderElectric-SquareD_00935_11_12_11_13_CAT.pdf
- Interrupting Rating:
- 42 kA at 120 VAC, 42 kA at 120/240 VAC, 42 kA at 240 VAC, 25 kA at 480 VAC Star/277 VAC, 25 kA at 480 VAC, 22 kA at 600 VAC (UL/CSA/NOM), 10 kA at 240/415 VAC (IEC), 10 kA at 125 VDC, 10 kA at 250 VDC
- Frame Type:
- K
- Number of Poles:
- 2
- Size:
- 4.5 Inch W x 4.75 Inch D x 8 Inch H
- Terminal Type:
- Plug-On
- Short Description:
- 600 VAC, 250 VDC, 125 A, 22 kA, 2-Phase, 2-Pole, K-Frame, I-Line Mount, Thermal Magnetic, Molded Case Circuit Breaker
- Maximum DC Voltage Rating:
- 250 V
- Current Rating:
- 125 A
- Approval:
- UL, CSA, CE
- Country of Origin:
- Mexico
MSRP $3,672.79Surplus $584.69 -
Contact Us For Quote
Square D KA26200AC Molded Case Breakers (MCCBs)
MSRP $3,621.06Surplus $977.69SKU: C15-16712 Brand: Square D MPN: KA26200AC UPC: Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In. Product...- SKU:
- C15-16712
- Interrupting Rating:
- 42 kA at 240 VAC, 25 kA at 480 VAC, 22 kA at 600 VAC
- Installation:
- Plug-On
- Number of Poles:
- 2
- Application:
- Construction
- Voltage Rating:
- 600 VAC, 250 VDC
- Type:
- Molded Case, Thermal Magnetic, Main
- Series:
- 655/825/660, kA
- Short Description:
- 600 VAC, 250 VDC, 200 A, 22 kA, 2-Phase, 2-Pole, K-Frame, I-Line Mount, Thermal Magnetic, Molded Case Circuit Breaker
- Catalog:
- SchneiderElectric-SquareD_00935_11_12_11_13_CAT.pdf
- Approval:
- UL, CSA, IEC
- Used On:
- I-Line Panelboard and Switchboard
- Current Rating:
- 200 A
- Trip Setting:
- 1000 to 2000 A
MSRP $3,621.06Surplus $977.69 -
Contact Us For Quote
Square D KAL26100 Molded Case Breakers (MCCBs)
MSRP $4,764.55Surplus $1,286.43SKU: C15-16718 Brand: Square D MPN: KAL26100 UPC: Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In. Product...- SKU:
- C15-16718
- Short Description:
- 600 VAC, 250 VDC, 100 A, 22 kA, 2-Pole, K-Frame, Individually Mount, Thermal Magnetic, Molded Case Circuit Breaker
- Interrupting Rating:
- 42 kA at 240 VAC, 25 kA at 480 VAC, 22 kA at 600 VAC, 10 kA at 125/250 VDC
- Voltage Rating:
- 600 VAC, 250 VDC
- Catalog:
- SchneiderElectric-SquareD_00935_11_12_11_13_CAT.pdf
- Frame Type:
- K
- Series:
- 655/825/660, kAL
- Number of Poles:
- 2
- Terminal Type:
- Lug
- Approval:
- UL 489, CSA C22.2, IEC 60947-2, Federal Specification W-C-375B/GEN
- Size:
- 4.5 Inch Width x 4.75 Inch Depth x 8 Inch Height
- Current Rating:
- 100 A
- Type:
- Thermal Magnetic
MSRP $4,764.55Surplus $1,286.43 -
Contact Us For Quote
Square D KAL26125 Other Circuit Breakers
MSRP $2,722.60Surplus $455.08SKU: C15-7083 Brand: Square D MPN: KAL26125 UPC: Shipping Weight: 5.45 lbs. Shipping Height: 5.00 In. Shipping Length: 9.00 In. Shipping Width: 7.00 In. Product...- SKU:
- C15-7083
- Frame Type:
- K
- Current Rating:
- 125 A
- Voltage Rating:
- 600 VAC, 250 VDC
- Interrupting Rating:
- 42 kA at 240 VAC, 25 kA at 480 VAC, 22 kA at 600 VAC, 10 kA at 125/250 VDC
- Terminal Type:
- Lug
- Number of Poles:
- 2
- Type:
- Thermal Magnetic
- Short Description:
- 600 VAC, 250 VDC, 125 A, 22 kA, 2-Pole, K-Frame, Individually Mount, Thermal Magnetic, Molded Case Circuit Breaker
- Series:
- 655/825/660, kAL
- Size:
- 4.5 Inch Width x 4.75 Inch Depth x 8 Inch Height
- Catalog:
- SchneiderElectric-SquareD_00935_11_12_11_13_CAT.pdf
- Approval:
- UL 489, CSA C22.2, IEC 60947-2, Federal Specification W-C-375B/GEN
- Country of Origin:
- Mexico
MSRP $2,722.60Surplus $455.08 -
Contact Us For Quote
Square D KAL26150 Molded Case Breakers (MCCBs)
MSRP $3,675.51Surplus $992.39SKU: C15-16719 Brand: Square D MPN: KAL26150 UPC: Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In. Product...- SKU:
- C15-16719
- Maximum DC Voltage Rating:
- 250 V
- Short Description:
- 600 VAC, 250 VDC, 150 A, 22 kA, 2-Pole, K-Frame, Individually Mount, Thermal Magnetic, Molded Case Circuit Breaker
- Type:
- Molded Case, Thermal Magnetic
- Series:
- kAL
- Number of Poles:
- 2
- Interrupting Rating:
- 42 kA at 120 VAC, 42 kA at 120/240 VAC, 42 kA at 240 VAC, 25 kA at 480 VAC Star/277 VAC, 25 kA at 480 VAC, 22 kA at 600 VAC (UL/CSA/NOM), 10 kA at 240/415 VAC (IEC), 10 kA at 125 VDC, 10 kA at 250 VDC
- Terminal Type:
- Line Lug, Load Lug
- Current Rating:
- 150 A
- Approval:
- UL, CSA, CE
- Maximum AC Voltage Rating:
- 600 V
- Size:
- 4.5 Inch W x 4.75 Inch D x 8 Inch H
- Catalog:
- SchneiderElectric-SquareD_00935_11_12_11_13_CAT.pdf
- Voltage Rating:
- 120/240/480/600 VAC at 50/60 Hz, 120/240 VAC at 50/60 Hz, 480 VAC Star/277 VAC at 50/60 Hz, (UL/CSA/NOM), 240/415 VAC at 50/60 Hz (IEC), 125 VDC, 250 VDC
- Frame Type:
- K
MSRP $3,675.51Surplus $992.39 -
Contact Us For Quote
Square D KAL26200 Molded Case Breakers (MCCBs)
MSRP $2,586.24Surplus $698.29SKU: C15-16721 Brand: Square D MPN: KAL26200 UPC: Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In. Product...- SKU:
- C15-16721
- Type:
- Thermal Magnetic
- Approval:
- UL 489, CSA C22.2, IEC 60947-2, Federal Specification W-C-375B/GEN
- Short Description:
- 600 VAC, 250 VDC, 200 A, 22 kA, 2-Pole, K-Frame, Individually Mount, Thermal Magnetic, Molded Case Circuit Breaker
- Voltage Rating:
- 600 VAC, 250 VDC
- Terminal Type:
- Lug
- Current Rating:
- 200 A
- Number of Poles:
- 2
- Frame Type:
- K
- Interrupting Rating:
- 42 kA at 240 VAC, 25 kA at 480 VAC, 22 kA at 600 VAC, 10 kA at 125/250 VDC
- Series:
- kAL
- Size:
- 4.5 Inch Width x 4.75 Inch Depth x 8 Inch Height
- Catalog:
- SchneiderElectric-SquareD_00935_11_12_11_13_CAT.pdf
MSRP $2,586.24Surplus $698.29 -
Contact Us For Quote
Square D KAL26225 Molded Case Breakers (MCCBs)
MSRP $2,749.83Surplus $742.45SKU: C15-16722 Brand: Square D MPN: KAL26225 UPC: Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In. Product...- SKU:
- C15-16722
- Short Description:
- 600 VAC, 250 VDC, 225 A, 22 kA, 2-Pole, K-Frame, Individually Mount, Thermal Magnetic, Molded Case Circuit Breaker
- Series:
- kAL
- Number of Poles:
- 2
- Size:
- 4.5 Inch W x 4.75 Inch D x 8 Inch H
- Frame Type:
- K
- Terminal Type:
- Line Lug, Load Lug
- Maximum AC Voltage Rating:
- 600 V
- Current Rating:
- 225 A
- Approval:
- UL, CSA, CE
- Type:
- Molded Case, Thermal Magnetic
- Maximum DC Voltage Rating:
- 250 V
- Voltage Rating:
- 120/240/480/600 VAC at 50/60 Hz, 120/240 VAC at 50/60 Hz, 480 VAC Star/277 VAC at 50/60 Hz, (UL/CSA/NOM), 240/415 VAC at 50/60 Hz (IEC), 125 VDC, 250 VDC
- Interrupting Rating:
- 42 kA at 120 VAC, 42 kA at 120/240 VAC, 42 kA at 240 VAC, 25 kA at 480 VAC Star/277 VAC, 25 kA at 480 VAC, 22 kA at 600 VAC (UL/CSA/NOM), 10 kA at 240/415 VAC (IEC), 10 kA at 125 VDC, 10 kA at 250 VDC
- Catalog:
- SchneiderElectric-SquareD_00935_11_12_11_13_CAT.pdf
MSRP $2,749.83Surplus $742.45 -
Square D LA26300AC Molded Case Breakers (MCCBs)
MSRP $5,517.35Surplus $1,184.90SKU: C15-7783 Brand: Square D MPN: LA26300AC UPC: 78590100977 Shipping Weight: 15.95 lbs. Shipping Height: 10.00 In. Shipping Length: 18.00 In. Shipping Width: 7.00...- SKU:
- C15-7783
- TS PIK:
- 21332654
- Voltage Rating:
- 600 VAC, 250 VDC
- Current Rating:
- 300 A
- Number of Poles:
- 2
- Interrupting Rating:
- 22 kA at 600 VAC
- Short Description:
- 600 VAC, 250 VDC, 300 A, 22 kA, 2-Pole, L-Frame, AC Phase, Line Lug Load Terminal, Thermal Magnetic, Panelboard Molded Case Circuit Breaker
- Series:
- LA
- Type:
- Thermal Magnetic
- Data Sheet:
- SchneiderElectric-SquareD_47503_1_2_DATA.pdf
- Catalog:
- SchneiderElectric-SquareD_32357_9_61_CAT.pdf
- Prop 65 Warning:
- Yes
- Country of Origin:
- Mexico
- Approval:
- UL, CSA
- Used On:
- I-Line Panelboard and Switchboard
- Trip Setting:
- 1500 to 3000 A
- Application:
- Power Distribution
MSRP $5,517.35Surplus $1,184.90 -
Contact Us For Quote
Square D LA26400AC Molded Case Breakers (MCCBs)
MSRP $8,313.46Surplus $2,244.63SKU: C15-16784 Brand: Square D MPN: LA26400AC UPC: 78590100979 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16784
- Prop 65 Warning:
- Yes
- Short Description:
- 600 VAC, 250 VDC, 400 A, 22 kA, 2-Pole, L-Frame, AC Phase, Line Lug Load Terminal, Thermal Magnetic, Panelboard Molded Case Circuit Breaker
- Voltage Rating:
- 600 VAC, 250 VDC
- Interrupting Rating:
- 22 kA at 600 VAC
- Used On:
- I-Line Panelboard and Switchboard
- Number of Poles:
- 2
- Trip Setting:
- 2000 to 4000 A
- Application:
- Power Distribution
- Catalog:
- SchneiderElectric-SquareD_32357_9_61_CAT.pdf
- Data Sheet:
- SchneiderElectric-SquareD_47507_1_2_DATA.pdf
- Approval:
- UL, CSA
- Current Rating:
- 400 A
- Series:
- LA
- Type:
- Thermal Magnetic
MSRP $8,313.46Surplus $2,244.63 -
Contact Us For Quote
Square D LAL26400 Molded Case Breakers (MCCBs)
MSRP $5,182.47Surplus $1,660.17SKU: C15-7769 Brand: Square D MPN: LAL26400 UPC: Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In. Product...- SKU:
- C15-7769
- TS PIK:
- 108425492
- Prop 65 Warning:
- Yes
- Catalog:
- SchneiderElectric-SquareD_32357_7_37_CAT.pdf
- Approval:
- UL, CSA
- Size:
- 6 Inch Width x 5.84 Inch Depth x 11 Inch Height
- Maximum DC Voltage Rating:
- 250 V
- Maximum AC Voltage Rating:
- 600 V
- Series:
- LA
- Frame Type:
- L
- Number of Poles:
- 2
- Type:
- Thermal Magnetic, Adjustable
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 400 A, 22 kA, 2-Pole, L-Frame, Unit Mount, Line/Load Lug Terminal, Thermal Magnetic, Adjustable, Molded Case Circuit Breaker
- Data Sheet:
- SchneiderElectric_14536_1_2_DATA.pdf
- Terminal Type:
- Line/Load Lug
- Installation/Operator:
- SchneiderElectric-SquareD_01906_INST.pdf
- CAD Drawings:
- SchneiderElectric-SquareD_74682_1_CAD.pdf
- Current Rating:
- 400 A
- Interrupting Rating:
- 22 kA at 600 VAC, 10 kA at 250 VDC
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
MSRP $5,182.47Surplus $1,660.17 -
Contact Us For Quote
Square D M9F21250 Miniature Circuit Breakers (MCBs) M 2P 50A 120V 50/60Hz 1Ph EA
MSRP $326.71Surplus $63.82Square D M9F21250 Miniature Circuit Breakers (MCBs) M 2P 50A 120V 50/60Hz 1Ph EA​ ARCA SKU: C15-4893 Brand: Square D MPN: M9F21250 UPC: 606481167692 Shipping Weight: 0.55 lbs. Shipping...- SKU:
- C15-4893
- Type:
- Thermal Magnetic
- Type:
- Miniature
- Approval:
- UL 1077
- Approval:
- CSA C22.2
- Size:
- 1.42 Inch Width x 2.83 Inch Depth x 3.19 Inch Height
- Volts:
- 240/415/440 VAC 50/60 Hertz
- Amps:
- 32 A
- Poles:
- 2
- Mounting:
- DIN Rail
- Interrupting Rating:
- 5 kA at 480 Star/277 VAC
- Terminal Type:
- Tunnel (Top or Bottom)
- Wire Size:
- 0.55
- Short Description:
- 240/415/440 VAC 50/60 Hz, 50 A, 5 kA Interrupt, 2-Pole, B Curve, Gray, Toggle Control, Clip-On Mount, Tunnel Terminal, Thermal Magnetic
- Catalog:
- SchneiderElectric-SquareD_60281_16_CAT.pdf
- Data Sheet:
- SchneiderElectric-SquareD_60767_1-3_DATA.pdf
- CAD Drawing:
- SchneiderElectric_30029_1-7_CAD.pdf
- Manufacturer Warranty:
- SchneiderElectric-SquareD_00002_WARR.pdf
- Current Rating:
- 50 A
- Voltage Rating:
- 240/415/440 VAC 50/60 Hertz
- CAD Drawings:
- SchneiderElectric_30029_1-7_CAD.pdf
- Number of Poles:
- 2
MSRP $326.71Surplus $63.82
Disclaimer: ARCA Supply is not an authorized distributor, reseller or representative of any manufacturer, brand or product listed. All product names, trademarks, brands and logos are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder. All items sold by ARCA Supply are covered under ARCA Supply's warranty and not the manufacturer warranty.
