Circuit Breakers
Our selection of circuit breakers spans a wide range of applications, from heavy-duty air circuit breakers (ACBs) to compact miniature circuit breakers (MCBs). We offer leading brands like Eaton, Siemens, and Square D, known for their reliability and performance. Whatever your power management needs, you can find the perfect solution here at ARCA Supply.
-
Din Rail Mounted Circuit Breakers
-
Main Breakers
-
Miniature Circuit Breakers (MCBs)
-
Molded Case Breakers (MCCBs)
-
Motor Circuit Protector (MCPs)
-
Lug Terminal Kits
-
Auxiliary, Shunt, Trip Units and UVRs
-
Circuit Breaker Accessories
- Product
- Qty in Cart
- Price
-
Square D EGB14030 Miniature Circuit Breakers (MCBs)
MSRP $158.00Surplus $105.07SKU: C15-10693 Brand: Square D MPN: EGB14030 UPC: 78590131109 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-10693
- TS PIK:
- 115773400
- Current Rating:
- 30 A
- Interrupting Rating:
- 35 kA at 480 Star/277 VAC
- Data Sheet:
- SchneiderElectric-SquareD_45646_1_2_DATA.pdf
- Type:
- Thermal Magnetic, Branch, Miniature
- Approval:
- UL (Canada and US)
- Installation:
- Bolt-On
- Application:
- Lighting
- Installation/Operator:
- SchneiderElectric-SquareD_01117_INST.pdf
- Trip Setting:
- 270 A (Hold), 875 A (Trip)
- Catalog:
- SchneiderElectric-SquareD_32357_9_31-9_33_CAT.pdf
- Series:
- EGB
- Short Description:
- 277 VAC, 30 A, 35 kA, 1-Pole, E-Frame, Bolt-On Mount, Aluminum Lug Terminal, Thermal Magnetic, Branch, Miniature, Panelboard Circuit Breaker
- Voltage Rating:
- 277 VAC
- Used On:
- NF Merchandised Panelboard
- Number of Poles:
- 1
- Country of Origin:
- Mexico
MSRP $158.00Surplus $105.07 -
Square D EGB16020 Miniature Circuit Breakers (MCBs) 1P 20A
MSRP $206.55Surplus $74.36Square D EGB16020 Miniature Circuit Breakers (MCBs) 1P 20A​ ARCA SKU: C15-6686 Brand: Square D MPN: EGB16020 UPC: Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping...- SKU:
- C15-6686
- Number of Poles:
- 1
- Series:
- EGB
- Short Description:
- 600 Star/347 VAC, 20 A, 18 kA, 1-Pole, E-Frame, Bolt-On Mount, Aluminum Lug Terminal, Thermal Magnetic, Branch, Miniature, Panelboard Circuit Breaker
- Current Rating:
- 20 A
- Interrupting Rating:
- 18 kA at 600 Star/347 VAC
- Voltage Rating:
- 600 Star/347 VAC
- Used On:
- NF Merchandised Panelboard
- Trip Setting:
- 270 A (Hold), 875 A (Trip)
- Type:
- Thermal Magnetic, Branch, Miniature
- Catalog:
- SchneiderElectric-SquareD_32357_9_32_9_33_CAT.pdf
- Approval:
- UL (Canada and US)
- Data Sheet:
- SchneiderElectric_14179_1_2_DATA.pdf
- Application:
- Lighting
- Installation/Operator:
- SchneiderElectric-SquareD_01951_INST.pdf
- Installation:
- Bolt-On
- Country of Origin:
- Mexico
MSRP $206.55Surplus $74.36 -

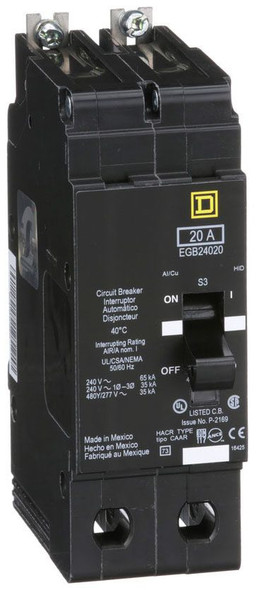

Square D EGB24020 Molded Case Breakers (MCCBs) EGB 2P 20A 600V 50/60Hz 2Ph EA
MSRP $1,038.00Surplus $251.55Square D EGB24020 Molded Case Breakers (MCCBs) EGB 2P 20A 600V 50/60Hz 2Ph EA​ ARCA SKU: C15-4869 Brand: Square D MPN: EGB24020 UPC: 785901311119 Shipping Weight: 2.55 lbs. Shipping...- SKU:
- C15-4869
- Series:
- EGB
- Type:
- Thermal Magnetic
- Type:
- Branch
- Type:
- Miniature
- Approval:
- UL (Canada and US)
- Volts:
- 480 Star/277 VAC
- Amps:
- 32 A
- Used On:
- NF Merchandised Panelboard
- Poles:
- 2
- Interrupting Rating:
- 35 kA at 480 Star/277 VAC
- Application:
- Lighting
- Installation:
- Bolt-On
- Trip Setting:
- 270 A (Hold)
- Trip Setting:
- 875 Amp (Trip)
- Short Description:
- 480 Star/277 VAC, 20 A, 35 kA, 2-Pole, E-Frame, Bolt-On Mount, Aluminum Lug Terminal, Thermal Magnetic, Branch, Miniature
- Catalog:
- SchneiderElectric-SquareD_32357_9_31-9_33_CAT.pdf
- Data Sheet:
- SchneiderElectric-SquareD_45657_1_2_DATA.pdf
- Installation/Operator:
- SchneiderElectric-SquareD_01117_INST.pdf
- Manufacturer Warranty:
- SchneiderElectric-SquareD_00002_WARR.pdf
- TS PIK:
- 115773402
- Voltage Rating:
- 480 Star/277 VAC
- Number of Poles:
- 2
- Current Rating:
- 20 A
- Country of Origin:
- Mexico
MSRP $1,038.00Surplus $251.55 -
Square D EGB24030 Molded Case Breakers (MCCBs) 2P 30A
MSRP $628.56Surplus $343.14Square D EGB24030 Molded Case Breakers (MCCBs) 2P 30A​ ARCA SKU: C15-6510 Brand: Square D MPN: EGB24030 UPC: Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping...- SKU:
- C15-6510
- TS PIK:
- 109595017
- Short Description:
- 480 Star/277 VAC, 30 A, 35 kA, 2-Pole, E-Frame, Bolt-On Mount, Aluminum Lug Terminal, Thermal Magnetic, Branch, Miniature, Panelboard Circuit Breaker
- Voltage Rating:
- 480 Star/277 VAC
- Series:
- EGB
- Interrupting Rating:
- 35 kA at 480 Star/277 VAC
- Current Rating:
- 30 A
- Type:
- Thermal Magnetic, Branch, Miniature
- Catalog:
- SchneiderElectric-SquareD_32357_9_31-9_33_CAT.pdf
- Data Sheet:
- SchneiderElectric-SquareD_45659_1_2_DATA.pdf
- Number of Poles:
- 2
- Installation/Operator:
- SchneiderElectric-SquareD_01117_INST.pdf
- Country of Origin:
- United States
- Trip Setting:
- 270 A (Hold), 875 A (Trip)
- Approval:
- UL (Canada and US)
- Application:
- Lighting
- Installation:
- Bolt-On
- Used On:
- NF Merchandised Panelboard
MSRP $628.56Surplus $343.14 -
Square D EGB34030 Everything Else
MSRP $916.11Surplus $301.00SKU: C15-6415 Brand: Square D MPN: EGB34030 UPC: 78590107301 Shipping Weight: 1.72 lbs. Shipping Height: 5.66 In. Shipping Length: 2.94 In. Shipping Width: 4.05 In...- SKU:
- C15-6415
- TS PIK:
- 115345453
- Short Description:
- 480 Star/277 VAC, 30 A, 35 kA, 3-Pole, E-Frame, Bolt-On Mount, Aluminum Lug Terminal, Thermal Magnetic, Branch, Miniature, Panelboard Circuit Breaker
- Type:
- Thermal Magnetic, Branch, Miniature
- Catalog:
- SchneiderElectric-SquareD_32357_9_31-9_33_CAT.pdf
- Number of Poles:
- 3
- Current Rating:
- 30 A
- Used On:
- NF Merchandised Panelboard
- Installation/Operator:
- SchneiderElectric-SquareD_01117_INST.pdf
- Voltage Rating:
- 480 Star/277 VAC
- Interrupting Rating:
- 35 kA at 480 Star/277 VAC
- Data Sheet:
- SchneiderElectric-SquareD_45676_1_2_DATA.pdf
- Series:
- EGB
- Mounting:
- Bolt-On
- Country of Origin:
- Mexico
- Application:
- Lighting
- Trip Setting:
- 270 A (Hold), 875 A (Trip)
- Approval:
- UL (Canada and US)
- Installation:
- Bolt-On
MSRP $916.11Surplus $301.00 -
Square D EGB34035 Miniature Circuit Breakers (MCBs)
MSRP $916.11Surplus $301.00SKU: C15-6571 Brand: Square D MPN: EGB34035 UPC: 78590131116 Shipping Weight: 3.15 lbs. Shipping Height: 4.00 In. Shipping Length: 6.00 In. Shipping Width: 3.00 In...- SKU:
- C15-6571
- TS PIK:
- 109595088
- Voltage Rating:
- 480 Star/277 VAC
- Type:
- Thermal Magnetic, Branch, Miniature
- Series:
- EGB
- Short Description:
- 480 Star/277 VAC, 35 A, 35 kA, 3-Pole, E-Frame, Bolt-On Mount, Aluminum Lug Terminal, Thermal Magnetic, Branch, Miniature, Panelboard Circuit Breaker
- Current Rating:
- 35 A
- Number of Poles:
- 3
- Catalog:
- SchneiderElectric-SquareD_32357_9_31-9_33_CAT.pdf
- Data Sheet:
- SchneiderElectric-SquareD_45678_1_2_DATA.pdf
- Interrupting Rating:
- 35 kA at 480 Star/277 VAC
- Used On:
- NF Merchandised Panelboard
- Installation/Operator:
- SchneiderElectric-SquareD_01117_INST.pdf
- Country of Origin:
- Mexico
- Trip Setting:
- 630 A (Hold), 1800 A (Trip)
- Approval:
- UL (Canada and US)
- Installation:
- Bolt-On
- Application:
- Lighting
MSRP $916.11Surplus $301.00 -
Square D EGB34045 Miniature Circuit Breakers (MCBs)
MSRP $609.00Surplus $274.37SKU: C15-7758 Brand: Square D MPN: EGB34045 UPC: Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In. Product...- SKU:
- C15-7758
- TS PIK:
- 21333992
- Voltage Rating:
- 480 Star/277 VAC
- Interrupting Rating:
- 35 kA at 480 Star/277 VAC
- Short Description:
- 480 Star/277 VAC, 45 A, 35 kA, 3-Pole, E-Frame, Bolt-On Mount, Aluminum Lug Terminal, Thermal Magnetic, Branch, Miniature, Panelboard Circuit Breaker
- Used On:
- NF Merchandised Panelboard
- Type:
- Thermal Magnetic, Branch, Miniature
- Series:
- EGB
- Number of Poles:
- 3
- Current Rating:
- 45 A
- Data Sheet:
- SchneiderElectric-SquareD_45681_1_2_DATA.pdf
- Catalog:
- SchneiderElectric-SquareD_32357_9_31-9_33_CAT.pdf
- Installation/Operator:
- SchneiderElectric-SquareD_01117_INST.pdf
- Approval:
- UL (Canada and US)
- Trip Setting:
- 630 A (Hold), 1800 A (Trip)
- Installation:
- Bolt-On
- Application:
- Lighting
- Country of Origin:
- Mexico
MSRP $609.00Surplus $274.37 -
Square D EGB34050 Miniature Circuit Breakers (MCBs) 480/277V
MSRP $916.11Surplus $382.70SKU: C15-6363 Brand: Square D MPN: EGB34050 UPC: Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In. Product...- SKU:
- C15-6363
- TS PIK:
- 120251318
- Number of Poles:
- 3
- Short Description:
- 480 Star/277 VAC, 50 A, 35 kA, 3-Pole, E-Frame, Bolt-On Mount, Aluminum Lug Terminal, Thermal Magnetic, Branch, Miniature, Panelboard Circuit Breaker
- Interrupting Rating:
- 35 kA at 480 Star/277 VAC
- Catalog:
- SchneiderElectric-SquareD_32357_9_31-9_33_CAT.pdf
- Installation/Operator:
- SchneiderElectric-SquareD_01117_INST.pdf
- Voltage Rating:
- 480 Star/277 VAC
- Data Sheet:
- SchneiderElectric-SquareD_45682_1_2_DATA.pdf
- Current Rating:
- 50 A
- Series:
- EGB
- Type:
- Thermal Magnetic, Branch, Miniature
- Used On:
- NF Merchandised Panelboard
- Mounting:
- Bolt-On
- Approval:
- UL (Canada and US)
- Application:
- Lighting
- Installation:
- Bolt-On
- Trip Setting:
- 630 A (Hold), 1800 A (Trip)
- Country of Origin:
- Mexico
MSRP $916.11Surplus $382.70 -
Square D EGB34050SA Molded Case Breakers (MCCBs)
MSRP $1,454.88Surplus $1,597.40SKU: C15-10698 Brand: Square D MPN: EGB34050SA UPC: 78590115909 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-10698
- TS PIK:
- 116559386
- Number of Poles:
- 3
- Interrupting Rating:
- 35 kA at 480 Star/277 VAC
- Used On:
- NF Merchandised Panelboard
- Series:
- EGB
- Installation:
- Bolt-On
- Voltage Rating:
- 480 Star/277 VAC
- Application:
- Lighting
- Installation/Operator:
- SchneiderElectric-SquareD_01117_INST.pdf
- Trip Setting:
- 630 A (Hold), 1800 A (Trip)
- Catalog:
- SchneiderElectric-SquareD_32357_9_31-9_33_CAT.pdf
- Data Sheet:
- SchneiderElectric-SquareD_45683_1_2_DATA.pdf
- Approval:
- UL (Canada and US)
- Current Rating:
- 50 A
- Short Description:
- 480 Star/277 VAC, 50 A, 35 kA, 3-Pole, E-Frame, Bolt-On Mount, Aluminum Lug Terminal, Thermal Magnetic, Branch, Miniature, Panelboard Circuit Breaker with Shunt Trip Package
- Type:
- Thermal Magnetic, Branch, Miniature
- Country of Origin:
- Mexico
MSRP $1,454.88Surplus $1,597.40 -
Square D EGB34070SA Molded Case Breakers (MCCBs)
MSRP $1,922.00Surplus $1,473.22SKU: U00-8009 Brand: Square D MPN: EGB34070SA UPC: 78590177708 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- U00-8009
- Interrupting Rating:
- 35 kA at 480 Star/277 VAC
- Current Rating:
- 70 A
- Type:
- Thermal Magnetic, Branch, Miniature
- Approval:
- UL (Canada and US)
- Installation/Operator:
- SchneiderElectric-SquareD_01117_INST.pdf
- Data Sheet:
- SchneiderElectric-SquareD_45687_1_2_DATA.pdf
- Voltage Rating:
- 480 Star/277 VAC
- Catalog:
- SchneiderElectric-SquareD_32357_9_31-9_33_CAT.pdf
- Series:
- EGB
- Short Description:
- 480 Star/277 VAC, 70 A, 35 kA, 3-Pole, E-Frame, Bolt-On Mount, Aluminum Lug Terminal, Thermal Magnetic, Branch, Miniature, Panelboard Circuit Breaker with Shunt Trip Package
- Application:
- Lighting
- Number of Poles:
- 3
- Installation:
- Bolt-On
- Used On:
- NF Merchandised Panelboard
- Trip Setting:
- 630 A (Hold), 1800 A (Trip)
- Country of Origin:
- Mexico
MSRP $1,922.00Surplus $1,473.22 -
Square D EGB34090 Miniature Circuit Breakers (MCBs)
MSRP $1,292.00Surplus $515.77SKU: C15-7759 Brand: Square D MPN: EGB34090 UPC: Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In. Product...- SKU:
- C15-7759
- Short Description:
- 480 Star/277 VAC, 90 A, 35 kA, 3-Pole, E-Frame, Bolt-On Mount, Aluminum Lug Terminal, Thermal Magnetic, Branch, Miniature, Panelboard Circuit Breaker
- Catalog:
- SchneiderElectric-SquareD_32357_9_31-9_33_CAT.pdf
- Series:
- EGB
- Data Sheet:
- SchneiderElectric-SquareD_45690_1_2_DATA.pdf
- Type:
- Thermal Magnetic, Branch, Miniature
- Used On:
- NF Merchandised Panelboard
- Interrupting Rating:
- 35 kA at 480 Star/277 VAC
- Voltage Rating:
- 480 Star/277 VAC
- Number of Poles:
- 3
- Current Rating:
- 90 A
- Installation/Operator:
- SchneiderElectric-SquareD_01117_INST.pdf
- TS PIK:
- 21333923
- Approval:
- UL (Canada and US)
- Application:
- Lighting
- Installation:
- Bolt-On
- Trip Setting:
- 1000 A (Hold), 2300 A (Trip)
- Country of Origin:
- Mexico
MSRP $1,292.00Surplus $515.77 -
Square D EGB34100 Miniature Circuit Breakers (MCBs)
MSRP $1,292.00Surplus $518.83SKU: C15-7760 Brand: Square D MPN: EGB34100 UPC: Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In. Product...- SKU:
- C15-7760
- TS PIK:
- 21333922
- Type:
- Thermal Magnetic, Branch, Miniature
- Series:
- EGB
- Used On:
- NF Merchandised Panelboard
- Number of Poles:
- 3
- Voltage Rating:
- 480 Star/277 VAC
- Installation/Operator:
- SchneiderElectric-SquareD_01117_INST.pdf
- Short Description:
- 480 Star/277 VAC, 100 A, 35 kA, 3-Pole, E-Frame, Bolt-On Mount, Aluminum Lug Terminal, Thermal Magnetic, Branch, Miniature, Panelboard Circuit Breaker
- Interrupting Rating:
- 35 kA at 480 Star/277 VAC
- Current Rating:
- 100 A
- Catalog:
- SchneiderElectric-SquareD_32357_9_31-9_33_CAT.pdf
- Data Sheet:
- SchneiderElectric-SquareD_45691_1_2_DATA.pdf
- Installation:
- Bolt-On
- Application:
- Lighting
- Trip Setting:
- 1000 A (Hold), 2300 A (Trip)
- Approval:
- UL (Canada and US)
- Country of Origin:
- Mexico
MSRP $1,292.00Surplus $518.83 -
Square D EGB34125 Miniature Circuit Breakers (MCBs)
MSRP $3,216.00Surplus $1,582.20SKU: C15-7761 Brand: Square D MPN: EGB34125 UPC: Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In. Product...- SKU:
- C15-7761
- Short Description:
- 480 Star/277 VAC, 125 A, 35 kA, 3-Pole, E-Frame, Bolt-On Mount, Aluminum Lug Terminal, Thermal Magnetic, Branch, Miniature, Panelboard Circuit Breaker
- Voltage Rating:
- 480 Star/277 VAC
- Current Rating:
- 125 A
- Series:
- EGB
- Catalog:
- SchneiderElectric-SquareD_32357_9_31-9_33_CAT.pdf
- Interrupting Rating:
- 35 kA at 480 Star/277 VAC
- Number of Poles:
- 3
- Used On:
- NF Merchandised Panelboard
- Installation/Operator:
- SchneiderElectric-SquareD_01117_INST.pdf
- Data Sheet:
- SchneiderElectric-SquareD_45694_1_2_DATA.pdf
- Type:
- Thermal Magnetic, Branch, Miniature
- TS PIK:
- 21333955
- Approval:
- UL (Canada and US)
- Application:
- Lighting
- Installation:
- Bolt-On
- Trip Setting:
- 1000 A (Hold), 2300 A (Trip)
- Country of Origin:
- Mexico
MSRP $3,216.00Surplus $1,582.20 -
Square D EHB14020AS Other Circuit Breakers
MSRP $480.00Surplus $31.07Square D EHB14020AS Other Circuit Breakers​ ARCA SKU: C15-7060 Brand: Square D MPN: EHB14020AS UPC: Shipping Weight: 0.80 lbs. Shipping Height: 1.00 In. Shipping...- SKU:
- C15-7060
MSRP $480.00Surplus $31.07 -
Square D EHB34020 Other Circuit Breakers
MSRP $2,000.00Surplus $1,596.00SKU: C15-7067 Brand: Square D MPN: EHB34020 UPC: Shipping Weight: 1.45 lbs. Shipping Height: 4.00 In. Shipping Length: 4.00 In. Shipping Width: 4.00 In. Product...- SKU:
- C15-7067
- Series:
- EHB
- Number of Poles:
- 3
- Frame Type:
- E
- Terminal Type:
- Bolt-On
- Short Description:
- 240/480 Star/277 VAC, 20 A, 65/14 kA, 3-Pole, E-Frame, Bolt-On Mount, Thermal Magnetic, Miniature Circuit Breaker
- Current Rating:
- 20 A
- Voltage Rating:
- 240 VAC at 50/60 Hz, 480 VAC Star/277 VAC at 50/60 Hz (UL/CSA)
- Size:
- 3 Inch W x 2.97 Inch D x 3.5 Inch H
- Data Sheet:
- SchneiderElectric-SquareD_04186_1_DATA.pdf
- Maximum AC Voltage Rating:
- 277 V
- Type:
- Molded Case, Thermal Magnetic
- Interrupting Rating:
- 65 kA at 240 VAC, 14 kA at 480 VAC Star/277 VAC (UL/CSA)
- Catalog:
- SchneiderElectric-SquareD_00935_11_26_CAT.pdf
MSRP $2,000.00Surplus $1,596.00 -
Square D EJB24020 Molded Case Breakers (MCCBs)
MSRP $1,241.00Surplus $396.34SKU: C15-8657 Brand: Square D MPN: EJB24020 UPC: 78590133521 Shipping Weight: 1.19 lbs. Shipping Height: 5.66 In. Shipping Length: 1.96 In. Shipping Width: 4.05 In...- SKU:
- C15-8657
- TS PIK:
- 115261561
- Series:
- EJB
- Catalog:
- SchneiderElectric-SquareD_32357_9_31-9_33_CAT.pdf
- Voltage Rating:
- 480 Star/277 VAC
- Interrupting Rating:
- 65 kA at 480 Star/277 VAC
- Current Rating:
- 20 A
- Installation/Operator:
- SchneiderElectric-SquareD_01117_INST.pdf
- Data Sheet:
- SchneiderElectric-SquareD_45711_1_2_DATA.pdf
- Number of Poles:
- 2
- Type:
- Thermal Magnetic, Branch, Miniature
- Short Description:
- 480 Star/277 VAC, 20 A, 65 kA, 2-Pole, E-Frame, Bolt-On Mount, Aluminum Lug Terminal, Thermal Magnetic, Branch, Miniature, Panelboard Circuit Breaker
- Country of Origin:
- United States
- Prop 65 Warning:
- Yes
- Trip Setting:
- 270 A (Hold), 875 A (Trip)
- Used On:
- NF Merchandised Panelboard
- Approval:
- UL (Canada and US)
- Installation:
- Bolt-On
- Application:
- Lighting
MSRP $1,241.00Surplus $396.34 -
Square D EJB24030 Miniature Circuit Breakers (MCBs)
MSRP $1,241.00Surplus $451.15SKU: C15-10702 Brand: Square D MPN: EJB24030 UPC: 78590112876 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-10702
- TS PIK:
- 116558661
- Used On:
- NF Merchandised Panelboard
- Type:
- Thermal Magnetic, Branch, Miniature
- Voltage Rating:
- 480 Star/277 VAC
- Current Rating:
- 30 A
- Number of Poles:
- 2
- Catalog:
- SchneiderElectric-SquareD_32357_9_31-9_33_CAT.pdf
- Short Description:
- 480 Star/277 VAC, 30 A, 65 kA, 2-Pole, E-Frame, Bolt-On Mount, Aluminum Lug Terminal, Thermal Magnetic, Branch, Miniature, Panelboard Circuit Breaker
- Series:
- EJB
- Interrupting Rating:
- 65 kA at 480 Star/277 VAC
- Data Sheet:
- SchneiderElectric-SquareD_45713_1_2_DATA.pdf
- Installation/Operator:
- SchneiderElectric-SquareD_01117_INST.pdf
- Trip Setting:
- 270 A (Hold), 875 A (Trip)
- Application:
- Lighting
- Approval:
- UL (Canada and US)
- Installation:
- Bolt-On
- Country of Origin:
- Mexico
MSRP $1,241.00Surplus $451.15 -
Square D EJB24040 Miniature Circuit Breakers (MCBs)
MSRP $1,241.00Surplus $365.95SKU: C15-7762 Brand: Square D MPN: EJB24040 UPC: Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In. Product...- SKU:
- C15-7762
- TS PIK:
- 21333962
- Voltage Rating:
- 480 Star/277 VAC
- Approval:
- UL (Canada and US)
- Number of Poles:
- 2
- Type:
- Thermal Magnetic, Branch, Miniature
- Trip Setting:
- 630 A (Hold), 1800 A (Trip)
- Data Sheet:
- SchneiderElectric-SquareD_45715_1_2_DATA.pdf
- Used On:
- NF Merchandised Panelboard
- Installation:
- Bolt-On
- Short Description:
- 480 Star/277 VAC, 40 A, 65 kA, 2-Pole, E-Frame, Bolt-On Mount, Aluminum Lug Terminal, Thermal Magnetic, Branch, Miniature, Panelboard Circuit Breaker
- Catalog:
- SchneiderElectric-SquareD_32357_9_31-9_33_CAT.pdf
- Interrupting Rating:
- 65 kA at 480 Star/277 VAC
- Application:
- Lighting
- Series:
- EJB
- Current Rating:
- 40 A
- Installation/Operator:
- SchneiderElectric-SquareD_01117_INST.pdf
- Country of Origin:
- Mexico
MSRP $1,241.00Surplus $365.95 -
Square D EJB24050 Miniature Circuit Breakers (MCBs)
MSRP $1,241.00Surplus $451.15SKU: C15-10703 Brand: Square D MPN: EJB24050 UPC: 78590112880 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-10703
- TS PIK:
- 116558664
- Used On:
- NF Merchandised Panelboard
- Data Sheet:
- SchneiderElectric-SquareD_45717_1_2_DATA.pdf
- Installation/Operator:
- SchneiderElectric-SquareD_01117_INST.pdf
- Catalog:
- SchneiderElectric-SquareD_32357_9_31-9_33_CAT.pdf
- Number of Poles:
- 2
- Interrupting Rating:
- 65 kA at 480 Star/277 VAC
- Current Rating:
- 50 A
- Voltage Rating:
- 480 Star/277 VAC
- Series:
- EJB
- Type:
- Thermal Magnetic, Branch, Miniature
- Short Description:
- 480 Star/277 VAC, 50 A, 65 kA, 2-Pole, E-Frame, Bolt-On Mount, Aluminum Lug Terminal, Thermal Magnetic, Branch, Miniature, Panelboard Circuit Breaker
- Trip Setting:
- 630 A (Hold), 1800 A (Trip)
- Application:
- Lighting
- Approval:
- UL (Canada and US)
- Installation:
- Bolt-On
- Country of Origin:
- Mexico
MSRP $1,241.00Surplus $451.15 -
Square D EJB34025 Molded Case Breakers (MCCBs) EJB 3P 25A 480V 50/60Hz 3Ph
MSRP $1,400.00Surplus $406.00SKU: C15-2753 Brand: Square D MPN: EJB34025 UPC: 785901128830 Shipping Weight: 3.70 lbs. Shipping Height: 5.00 In. Shipping Length: 10.00 In. Shipping Width: 6.00 In...- SKU:
- C15-2753
- Series:
- EJB
- Type:
- Full Vage
- Type:
- Non-Reversing
- Approval:
- UL (Canada and US)
- Volts:
- 480 Star/277 VAC
- Amps:
- 32 A
- Used On:
- NF Merchandised Panelboard
- Poles:
- 3
- Interrupting Rating:
- 65 kA at 480 Star/277 VAC
- Enclosure:
- IP00
- Application:
- Lighting
- Installation:
- Bolt-On
- Trip Setting:
- 270 A (Hold)
- Trip Setting:
- 875 Amp (Trip)
- Short Description:
- 480 Star/277 VAC, 25 A, 65 kA, 3-Pole, E-Frame, Bolt-On Mount, Aluminum Lug Terminal, Thermal Magnetic, Branch, Miniature
- Catalog:
- SchneiderElectric-SquareD_32357_9_31-9_33_CAT.pdf
- Data Sheet:
- Eaton_56112_1-12_DATA.pdf
- Installation/Operator:
- Eaton_00654_INST.pdf
- CAD Drawing:
- Eaton_21607_1_CAD.pdf
- Current Rating:
- 25 A
- Number of Poles:
- 3
- Voltage Rating:
- 480 Star/277 VAC
MSRP $1,400.00Surplus $406.00 -
Square D EJB34030 Everything Else 3P 30A 480Y/277V
MSRP $1,358.00Surplus $549.99SKU: C15-7763 Brand: Square D MPN: EJB34030 UPC: 78590143532 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-7763
- TS PIK:
- 116963756
- Number of Poles:
- 3
- Short Description:
- 480 Star/277 VAC, 30 A, 65 kA, 3-Pole, E-Frame, Bolt-On Mount, Aluminum Lug Terminal, Thermal Magnetic, Branch, Miniature, Panelboard Circuit Breaker
- Series:
- EJB
- Installation/Operator:
- SchneiderElectric-SquareD_01117_INST.pdf
- Installation:
- Bolt-On
- Trip Setting:
- 270 A (Hold), 875 A (Trip)
- Application:
- Lighting
- Voltage Rating:
- 480 Star/277 VAC
- Approval:
- UL (Canada and US)
- Used On:
- NF Merchandised Panelboard
- Interrupting Rating:
- 65 kA at 480 Star/277 VAC
- Catalog:
- SchneiderElectric-SquareD_32357_9_31-9_33_CAT.pdf
- Current Rating:
- 30 A
- Data Sheet:
- SchneiderElectric-SquareD_45729_1_2_DATA.pdf
- Type:
- Thermal Magnetic, Branch, Miniature
- Country of Origin:
- Mexico
MSRP $1,358.00Surplus $549.99 -
Square D EJB34040 Molded Case Breakers (MCCBs) EA
MSRP $1,358.00Surplus $420.00SKU: C15-9306 Brand: Square D MPN: EJB34040 UPC: 78590139770 Shipping Weight: 3.55 lbs. Shipping Height: 4.50 In. Shipping Length: 10.00 In. Shipping Width: 6.00 In...- SKU:
- C15-9306
- Data Sheet:
- SchneiderElectric-SquareD_45732_1_2_DATA.pdf
- Type:
- Thermal Magnetic, Branch, Miniature
- Catalog:
- SchneiderElectric-SquareD_32357_9_31-9_33_CAT.pdf
- Current Rating:
- 40 A
- Interrupting Rating:
- 65 kA at 480 Star/277 VAC
- Number of Poles:
- 3
- Voltage Rating:
- 480 Star/277 VAC
- Series:
- EJB
- Short Description:
- 480 Star/277 VAC, 40 A, 65 kA, 3-Pole, E-Frame, Bolt-On Mount, Aluminum Lug Terminal, Thermal Magnetic, Branch, Miniature, Panelboard Circuit Breaker
- Installation/Operator:
- SchneiderElectric-SquareD_01117_INST.pdf
- Country of Origin:
- Mexico
- Approval:
- UL (Canada and US)
- Application:
- Lighting
- Trip Setting:
- 630 A (Hold), 1800 A (Trip)
- Installation:
- Bolt-On
- Used On:
- NF Merchandised Panelboard
MSRP $1,358.00Surplus $420.00 -
Square D EJB34045 Miniature Circuit Breakers (MCBs)
MSRP $1,358.00Surplus $617.96SKU: C15-10704 Brand: Square D MPN: EJB34045 UPC: 78590113062 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-10704
- TS PIK:
- 116558698
- Type:
- Thermal Magnetic, Branch, Miniature
- Voltage Rating:
- 480 Star/277 VAC
- Short Description:
- 480 Star/277 VAC, 45 A, 65 kA, 3-Pole, E-Frame, Bolt-On Mount, Aluminum Lug Terminal, Thermal Magnetic, Branch, Miniature, Panelboard Circuit Breaker
- Used On:
- NF Merchandised Panelboard
- Installation/Operator:
- SchneiderElectric-SquareD_01117_INST.pdf
- Series:
- EJB
- Interrupting Rating:
- 65 kA at 480 Star/277 VAC
- Data Sheet:
- SchneiderElectric-SquareD_45734_1_2_DATA.pdf
- Catalog:
- SchneiderElectric-SquareD_32357_9_31-9_33_CAT.pdf
- Current Rating:
- 45 A
- Number of Poles:
- 3
- Trip Setting:
- 630 A (Hold), 1800 A (Trip)
- Installation:
- Bolt-On
- Application:
- Lighting
- Approval:
- UL (Canada and US)
- Country of Origin:
- Mexico
MSRP $1,358.00Surplus $617.96 -
Square D EJB34090 Miniature Circuit Breakers (MCBs)
MSRP $2,075.22Surplus $908.61SKU: C15-7707 Brand: Square D MPN: EJB34090 UPC: Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In. Product...- SKU:
- C15-7707
- Series:
- EJB
- Current Rating:
- 90 A
- Interrupting Rating:
- 65 kA at 480 Star/277 VAC
- Type:
- Thermal Magnetic, Branch, Miniature
- Voltage Rating:
- 480 Star/277 VAC
- Data Sheet:
- SchneiderElectric-SquareD_45744_1_2_DATA.pdf
- Installation/Operator:
- SchneiderElectric-SquareD_01117_INST.pdf
- Catalog:
- SchneiderElectric-SquareD_32357_9_31-9_33_CAT.pdf
- Used On:
- NF Merchandised Panelboard
- Short Description:
- 480 Star/277 VAC, 90 A, 65 kA, 3-Pole, E-Frame, Bolt-On Mount, Aluminum Lug Terminal, Thermal Magnetic, Branch, Miniature, Panelboard Circuit Breaker
- Number of Poles:
- 3
- Country of Origin:
- Mexico
- TS PIK:
- 21331844
- Application:
- Lighting
- Approval:
- UL (Canada and US)
- Installation:
- Bolt-On
- Trip Setting:
- 1000 A (Hold), 2300 A (Trip)
MSRP $2,075.22Surplus $908.61 -
Square D EJB34125 Miniature Circuit Breakers (MCBs)
MSRP $4,500.00Surplus $2,125.01SKU: C15-10705 Brand: Square D MPN: EJB34125 UPC: 78590116124 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-10705
- TS PIK:
- 116559442
- Short Description:
- 480 Star/277 VAC, 125 A, 65 kA, 3-Pole, E-Frame, Bolt-On Mount, Aluminum Lug Terminal, Thermal Magnetic, Branch, Miniature, Panelboard Circuit Breaker
- Voltage Rating:
- 480 Star/277 VAC
- Data Sheet:
- SchneiderElectric-SquareD_45748_1_2_DATA.pdf
- Series:
- EJB
- Interrupting Rating:
- 65 kA at 480 Star/277 VAC
- Number of Poles:
- 3
- Current Rating:
- 125 A
- Used On:
- NF Merchandised Panelboard
- Catalog:
- SchneiderElectric-SquareD_32357_9_31-9_33_CAT.pdf
- Type:
- Thermal Magnetic, Branch, Miniature
- Installation/Operator:
- SchneiderElectric-SquareD_01117_INST.pdf
- Approval:
- UL (Canada and US)
- Installation:
- Bolt-On
- Application:
- Lighting
- Trip Setting:
- 1000 A (Hold), 2300 A (Trip)
- Country of Origin:
- Mexico
MSRP $4,500.00Surplus $2,125.01 -
Square D FA12040A Miniature Circuit Breakers (MCBs) EA
MSRP $540.00Surplus $38.09Square D FA12040A Miniature Circuit Breakers (MCBs) EA​ ARCA SKU: C15-10956 Brand: Square D MPN: FA12040A UPC: 785901184423 Shipping Weight: 2.55 lbs. Shipping Height: 3.00 In...- SKU:
- C15-10956
- Number of Poles:
- 1
MSRP $540.00Surplus $38.09 -
Square D FA14060B Molded Case Breakers (MCCBs)
MSRP $540.00Surplus $173.55Square D FA14060B Molded Case Breakers (MCCBs)​ ARCA SKU: C15-7058 Brand: Square D MPN: FA14060B UPC: Shipping Weight: 1.95 lbs. Shipping Height: 5.00 In. Shipping...- SKU:
- C15-7058
MSRP $540.00Surplus $173.55 -
Square D FA24015AB Molded Case Breakers (MCCBs)
MSRP $876.84Surplus $557.70Square D FA24015AB Molded Case Breakers (MCCBs)​ ARCA SKU: E30-10192 Brand: Square D MPN: FA24015AB UPC: Shipping Weight: 3.60 lbs. Shipping Height: 6.00 In. Shipping...- SKU:
- E30-10192
- Current Rating:
- 15 A
- Series:
- FA
- Number of Poles:
- 2
- Short Description:
- 480 VAC, 250 VDC, 15 A, 10/18/25 kA, 1-Phase, 2-Pole, F-Frame, I-Line Mount, Thermal Magnetic, Molded Case Circuit Breaker
- Voltage Rating:
- 240/480 VAC at 50/60 Hz, 480 VAC Star/277 VAC at 50/60 Hz (UL/CSA/NOM), 240/415 VAC at 50/60 Hz (IEC), 250 VDC
- Type:
- Molded Case, Thermal Magnetic
- Installation/Operator:
- SchneiderElectric-SquareD_00076_INST.pdf
- Data Sheet:
- SchneiderElectric-SquareD_04262_1_2_DATA.pdf
- Catalog:
- SchneiderElectric-SquareD_00096_25_28_CAT.pdf
- Interrupting Rating:
- 25 kA at 240 VAC, 18 kA at 480 VAC Star/277 VAC or 480 VAC (UL/CSA/NOM), 10 kA at 415 VAC (IEC), 10 kA at 250 VDC
- Approval:
- UL, CSA
- Trip Setting:
- 275 to 600 A
- Application:
- Power Distribution
- Used On:
- Class 650/651 I-Line Panelboard/Switchboard
- Country of Origin:
- Mexico
MSRP $876.84Surplus $557.70 -
Square D FA24015AC Molded Case Breakers (MCCBs) EA
MSRP $927.00Surplus $557.70Square D FA24015AC Molded Case Breakers (MCCBs) EA​ ARCA SKU: C15-9307 Brand: Square D MPN: FA24015AC UPC: Shipping Weight: 4.30 lbs. Shipping Height: 4.50 In. Shipping...- SKU:
- C15-9307
- Catalog:
- SchneiderElectric-SquareD_00096_25_28_CAT.pdf
- Type:
- Molded Case, Thermal Magnetic
- Data Sheet:
- SchneiderElectric-SquareD_04263_1_2_DATA.pdf
- Current Rating:
- 15 A
- Short Description:
- 480 VAC, 250 VDC, 15 A, 10/18/25 kA, 2-Phase, 2-Pole, F-Frame, I-Line Mount, Thermal Magnetic, Molded Case Circuit Breaker
- Number of Poles:
- 2
- Voltage Rating:
- 240/480 VAC at 50/60 Hz, 480 VAC Star/277 VAC at 50/60 Hz (UL/CSA/NOM), 240/415 VAC at 50/60 Hz (IEC), 250 VDC
- Installation/Operator:
- SchneiderElectric-SquareD_00076_INST.pdf
- Series:
- FA
- Interrupting Rating:
- 25 kA at 240 VAC, 18 kA at 480 VAC Star/277 VAC or 480 VAC (UL/CSA/NOM), 10 kA at 415 VAC (IEC), 10 kA at 250 VDC
- Approval:
- UL, CSA
- Application:
- Power Distribution
- Trip Setting:
- 275 to 600 A
- Used On:
- Class 650/651 I-Line Panelboard/Switchboard
- Country of Origin:
- Mexico
MSRP $927.00Surplus $557.70 -
Square D FA24020AC Molded Case Breakers (MCCBs)
MSRP $522.73Surplus $557.70SKU: E30-10177 Brand: Square D MPN: FA24020AC UPC: Shipping Weight: 3.50 lbs. Shipping Height: 6.00 In. Shipping Length: 9.00 In. Shipping Width: 3.00 In. Product...- SKU:
- E30-10177
- Number of Poles:
- 2
- Catalog:
- SchneiderElectric-SquareD_00096_25_28_CAT.pdf
- Current Rating:
- 20 A
- Installation/Operator:
- SchneiderElectric-SquareD_00076_INST.pdf
- Short Description:
- 480 VAC, 250 VDC, 20 A, 10/18/25 kA, 2-Phase, 2-Pole, F-Frame, I-Line Mount, Thermal Magnetic, Molded Case Circuit Breaker
- Type:
- Molded Case, Thermal Magnetic, Main
- Interrupting Rating:
- 18 kA at 480/600 VAC
- Voltage Rating:
- 480 VAC, 250 VDC
- Series:
- 650, FA
- Data Sheet:
- SchneiderElectric-SquareD_04266_1_2_DATA.pdf
- Used On:
- I-Line Panelboard and Switchboard
- Application:
- Construction, Commercial Building, Control Equipment Panel, Industrial Building, OEM Commercial
- Approval:
- UL 489, CSA, IEC, Federal Specification W-C-375B/GEN
- Trip Setting:
- 275 A Hold, 600 A Trip
- Installation:
- Plug-On
- Country of Origin:
- Mexico
MSRP $522.73Surplus $557.70 -
Square D FA24035AB Molded Case Breakers (MCCBs) EA
MSRP $702.00Surplus $760.76SKU: C15-10965 Brand: Square D MPN: FA24035AB UPC: 785901073949 Shipping Weight: 4.10 lbs. Shipping Height: 5.00 In. Shipping Length: 8.00 In. Shipping Width: 12.00...- SKU:
- C15-10965
MSRP $702.00Surplus $760.76 -
Square D FA24050AB Molded Case Breakers (MCCBs)
MSRP $919.00Surplus $244.56SKU: E30-12533 Brand: Square D MPN: FA24050AB UPC: Shipping Weight: 4.40 lbs. Shipping Height: 5.00 In. Shipping Length: 12.00 In. Shipping Width: 8.00 In. Product...- SKU:
- E30-12533
- Current Rating:
- 50 A
- Series:
- FA
- Approval:
- UL, CSA
- Installation/Operator:
- SchneiderElectric-SquareD_00076_INST.pdf
- Catalog:
- SchneiderElectric-SquareD_00096_25_28_CAT.pdf
- Trip Setting:
- 400 to 850 A
- Data Sheet:
- SchneiderElectric-SquareD_04278_1_2_DATA.pdf
- Type:
- Molded Case, Thermal Magnetic
- Interrupting Rating:
- 25 kA at 240 VAC, 18 kA at 480 VAC Star/277 VAC or 480 VAC (UL/CSA/NOM), 10 kA at 415 VAC (IEC), 10 kA at 250 VDC
- Voltage Rating:
- 240/480 VAC at 50/60 Hz, 480 VAC Star/277 VAC at 50/60 Hz (UL/CSA/NOM), 240/415 VAC at 50/60 Hz (IEC), 250 VDC
- Number of Poles:
- 2
- Used On:
- Class 650/651 I-Line Panelboard/Switchboard
- Short Description:
- 480 VAC, 250 VDC, 50 A, 10/18/25 kA, 1-Phase, 2-Pole, F-Frame, I-Line Mount, Thermal Magnetic, Molded Case Circuit Breaker
- Application:
- Power Distribution
- Country of Origin:
- Mexico
MSRP $919.00Surplus $244.56 -
Square D FA24050BC Molded Case Breakers (MCCBs)
MSRP $1,235.00Surplus $557.70SKU: C15-7054 Brand: Square D MPN: FA24050BC UPC: Shipping Weight: 4.40 lbs. Shipping Height: 5.00 In. Shipping Length: 13.00 In. Shipping Width: 8.00 In. Product...- SKU:
- C15-7054
- Short Description:
- 480 VAC, 250 VDC, 50 A, 10/18/25 kA, 4-Phase, 2-Pole, F-Frame, I-Line Mount, Thermal Magnetic, Molded Case Circuit Breaker
- Series:
- 650, FA
- Number of Poles:
- 2
- Voltage Rating:
- 480 VAC, 250 VDC
- Type:
- Molded Case, Thermal Magnetic, Main
- Installation/Operator:
- SchneiderElectric-SquareD_00076_INST.pdf
- Data Sheet:
- SchneiderElectric-SquareD_04280_1_2_DATA.pdf
- Current Rating:
- 50 A
- Catalog:
- SchneiderElectric-SquareD_00096_25_28_CAT.pdf
- Interrupting Rating:
- 18 kA at 480/600 VAC
- Used On:
- I-Line Panelboard and Switchboard
- Approval:
- UL 489, CSA, IEC, Federal Specification W-C-375B/GEN
- Trip Setting:
- 400 A Hold, 850 A Trip
- Application:
- Construction, Commercial Building, Control Equipment Panel, Industrial Building, OEM Commercial
- Installation:
- Plug-On
- Country of Origin:
- Mexico
MSRP $1,235.00Surplus $557.70 -
Square D FA24060AC Molded Case Breakers (MCCBs)
MSRP $1,044.00Surplus $557.70Square D FA24060AC Molded Case Breakers (MCCBs)​ ARCA SKU: C15-7055 Brand: Square D MPN: FA24060AC UPC: Shipping Weight: 4.20 lbs. Shipping Height: 7.00 In. Shipping...- SKU:
- C15-7055
- Data Sheet:
- SchneiderElectric-SquareD_04282_1_2_DATA.pdf
- Installation/Operator:
- SchneiderElectric-SquareD_00076_INST.pdf
- Current Rating:
- 60 A
- Catalog:
- SchneiderElectric-SquareD_00096_25_28_CAT.pdf
- Series:
- FA
- Interrupting Rating:
- 25 kA at 240 VAC, 18 kA at 480 VAC Star/277 VAC or 480 VAC (UL/CSA/NOM), 10 kA at 415 VAC (IEC), 10 kA at 250 VDC
- Short Description:
- 480 VAC, 250 VDC, 60 A, 10/18/25 kA, 2-Phase, 2-Pole, F-Frame, I-Line Mount, Thermal Magnetic, Molded Case Circuit Breaker
- Voltage Rating:
- 240/480 VAC at 50/60 Hz, 480 VAC Star/277 VAC at 50/60 Hz (UL/CSA/NOM), 240/415 VAC at 50/60 Hz (IEC), 250 VDC
- Number of Poles:
- 2
- Type:
- Molded Case, Thermal Magnetic
- Prop 65 Warning:
- Yes
- Approval:
- UL, CSA
- Used On:
- Class 650/651 I-Line Panelboard/Switchboard
- Trip Setting:
- 800 to 1450 A
- Application:
- Power Distribution
- Country of Origin:
- Mexico
MSRP $1,044.00Surplus $557.70 -
Square D FA26035AB Molded Case Breakers (MCCBs)
MSRP $1,252.00Surplus $164.63Square D FA26035AB Molded Case Breakers (MCCBs)​ ARCA SKU: C15-7053 Brand: Square D MPN: FA26035AB UPC: Shipping Weight: 3.55 lbs. Shipping Height: 5.00 In. Shipping...- SKU:
- C15-7053
- Number of Poles:
- 2
MSRP $1,252.00Surplus $164.63 -
Square D FA26050AB Miniature Circuit Breakers (MCBs) EA
MSRP $1,200.00Surplus $136.47SKU: C15-10980 Brand: Square D MPN: FA26050AB UPC: Shipping Weight: 3.55 lbs. Shipping Height: 3.00 In. Shipping Length: 9.00 In. Shipping Width: 5.00 In. Product...- SKU:
- C15-10980
- Interrupting Rating:
- 10/25 kA at 240 VAC, 18 kA at 480 VAC Star/277 VAC or 480 VAC, 14 kA at 600 VAC Star/347 VAC or 600 VAC (UL/CSA/NOM); 10 kA at 415 VAC (IEC); 10 kA at 250 VDC
- Short Description:
- 600 VAC, 250 VDC, 50 A, 10/14/18/25 kA, 1-Phase, 2-Pole, F-Frame, I-Line Mount, Thermal Magnetic, Molded Case Circuit Breaker
- Voltage Rating:
- 240/480/600 VAC at 50/60 Hz, 480 VAC Star/277 VAC at 50/60 Hz, 600 VAC Star/347 VAC at 50/60 Hz (UL/CSA/NOM), 415 VAC at 50/60 Hz (IEC), 250 VDC
- Catalog:
- SchneiderElectric-SquareD_00096_25_28_CAT.pdf
- Type:
- Molded Case
- Series:
- FA
- Data Sheet:
- SchneiderElectric-SquareD_04304_1_2_DATA.pdf
- Number of Poles:
- 2
- Installation/Operator:
- SchneiderElectric-SquareD_00076_INST.pdf
- Used On:
- Class 650/651 I-Line Panelboard/Switchboard
- Current Rating:
- 50 A
- Approval:
- UL, CSA
- Application:
- Power Distribution
- Trip Setting:
- 400 to 850 A
- Country of Origin:
- Mexico
MSRP $1,200.00Surplus $136.47 -
Square D FA26060BC Everything Else
MSRP $1,200.00Surplus $486.00SKU: C15-7050 Brand: Square D MPN: FA26060BC UPC: Shipping Weight: 3.55 lbs. Shipping Height: 6.00 In. Shipping Length: 8.00 In. Shipping Width: 3.00 In. Product...- SKU:
- C15-7050
- Series:
- FA
- Short Description:
- 600 VAC, 250 VDC, 60 A, 10/14/18/25 kA, 4-Phase, 2-Pole, F-Frame, I-Line Mount, Thermal Magnetic, Molded Case Circuit Breaker
- Number of Poles:
- 2
- Approval:
- UL, CSA
- Catalog:
- SchneiderElectric-SquareD_00096_25_28_CAT.pdf
- Current Rating:
- 60 A
- Data Sheet:
- SchneiderElectric-SquareD_04309_1_2_DATA.pdf
- Type:
- Molded Case
- Application:
- Power Distribution
- Voltage Rating:
- 240/480/600 VAC at 50/60 Hz, 480 VAC Star/277 VAC at 50/60 Hz, 600 VAC Star/347 VAC at 50/60 Hz (UL/CSA/NOM), 415 VAC at 50/60 Hz (IEC), 250 VDC
- Interrupting Rating:
- 10/25 kA at 240 VAC, 18 kA at 480 VAC Star/277 VAC or 480 VAC, 14 kA at 600 VAC Star/347 VAC or 600 VAC (UL/CSA/NOM); 10 kA at 415 VAC (IEC); 10 kA at 250 VDC
- Installation/Operator:
- SchneiderElectric-SquareD_00076_INST.pdf
- Used On:
- Class 650/651 I-Line Panelboard/Switchboard
- Trip Setting:
- 800 to 1450 A
- Country of Origin:
- Mexico
MSRP $1,200.00Surplus $486.00 -
Square D FA32020 Molded Case Breakers (MCCBs)
MSRP $708.22Surplus $585.00Square D FA32020 Molded Case Breakers (MCCBs)​ ARCA SKU: E30-10194 Brand: Square D MPN: FA32020 UPC: Shipping Weight: 6.15 lbs. Shipping Height: 6.00 In. Shipping...- SKU:
- E30-10194
- Interrupting Rating:
- 10 kA at 240 VAC, 25 kA at 480 VAC, 25 kA at 600 VAC
- Current Rating:
- 20 A
- Type:
- Molded Case, Thermal Magnetic, Main
- Number of Poles:
- 3
- Data Sheet:
- SchneiderElectric-SquareD_04322_1_2_DATA.pdf
- Voltage Rating:
- 240 VAC
- Installation/Operator:
- SchneiderElectric-SquareD_00076_INST.pdf
- Series:
- 650, FA
- Short Description:
- 240 VAC, 250 VDC, 20 A, 5/10 kA, 3-Pole, F-Frame, I-Line Mount, Thermal Magnetic, Molded Case Circuit Breaker
- Application:
- Construction, Commercial Building, Control Equipment Panel, Industrial Building, OEM Commercial
- Used On:
- I-Line Panelboard and Switchboard
- Approval:
- UL 489, CSA, IEC, Federal Specification W-C-375B/GEN
- Installation:
- Plug-On
- Trip Setting:
- 275 A Hold, 600 A Trip
- Country of Origin:
- Mexico
MSRP $708.22Surplus $585.00 -
Square D FA32030 Molded Case Breakers (MCCBs)
MSRP $843.12Surplus $468.00Square D FA32030 Molded Case Breakers (MCCBs)​ ARCA SKU: E30-10195 Brand: Square D MPN: FA32030 UPC: Shipping Weight: 6.35 lbs. Shipping Height: 6.00 In. Shipping...- SKU:
- E30-10195
- Number of Poles:
- 3
- Data Sheet:
- SchneiderElectric-SquareD_04324_1_2_DATA.pdf
- Interrupting Rating:
- 10 kA at 240 VAC, 25 kA at 480 VAC, 25 kA at 600 VAC
- Voltage Rating:
- 240 VAC
- Short Description:
- 240 VAC, 250 VDC, 30 A, 5/10 kA, 3-Pole, F-Frame, I-Line Mount, Thermal Magnetic, Molded Case Circuit Breaker
- Current Rating:
- 30 A
- Catalog:
- SchneiderElectric-SquareD_00096_25_28_CAT.pdf
- Series:
- 650, FA
- Installation/Operator:
- SchneiderElectric-SquareD_00076_INST.pdf
- Type:
- Molded Case, Thermal Magnetic, Main
- Installation:
- Plug-On
- Approval:
- UL 489, CSA, IEC, Federal Specification W-C-375B/GEN
- Trip Setting:
- 275 A Hold, 600 A Trip
- Application:
- Construction, Commercial Building, Control Equipment Panel, Industrial Building, OEM Commercial
- Used On:
- I-Line Panelboard and Switchboard
- Country of Origin:
- United States
MSRP $843.12Surplus $468.00 -
Square D FA34015 Miniature Circuit Breakers (MCBs)
MSRP $1,060.48Surplus $731.25SKU: C15-1430 Brand: Square D MPN: FA34015 UPC: Shipping Weight: 6.17 lbs. Shipping Height: 6.50 In. Shipping Length: 10.80 In. Shipping Width: 5.10 In. Product...- SKU:
- C15-1430
- Application:
- Power Distribution
- Approval:
- UL
- Approval:
- CSA
- Amps:
- 15 A
- Interrupting Rating:
- 18 kA at 480 VAC
- Interrupting Rating:
- 10 Kiloamp at 250 Volt DC
- Poles:
- 3
- Trip Setting:
- 275 to 600 A
- Type:
- Thermal Magnetic
- Type:
- Molded Case
- Used On:
- Class 650/651 I-Line Panelboard/Switchboard
- Volts:
- 480 VAC at 50/60 Hertz
- Volts:
- 250 VDC
- Short Description:
- 480 VAC, 250 VDC, 15 A, 10/18/25 kA, 3-Pole, F-Frame, I-Line Mount, Thermal Magnetic, Molded Case Circuit Breaker
- Series:
- FA
- Data Sheet:
- image ...
- Voltage Rating:
- 480 VAC, 250 VDC
- Current Rating:
- 15 A
- Number of Poles:
- 3
- Catalog:
- SchneiderElectric-SquareD_00096_25_28_CAT.pdf
- Installation/Operator:
- SchneiderElectric-SquareD_00076_INST.pdf
- Country of Origin:
- United States
MSRP $1,060.48Surplus $731.25 -
Square D FA36070 Everything Else
MSRP $3,050.00Surplus $280.15SKU: E30-10197 Brand: Square D MPN: FA36070 UPC: Shipping Weight: 6.45 lbs. Shipping Height: 6.00 In. Shipping Length: 13.00 In. Shipping Width: 8.00 In. Product...- SKU:
- E30-10197
- Number of Poles:
- 3
- Series:
- FA
- Short Description:
- 600 VAC, 250 VDC, 70 A, 10/14/18/25 kA, 3-Pole, F-Frame, I-Line Mount, Thermal Magnetic, Molded Case Circuit Breaker
- Voltage Rating:
- 600 VAC, 250 VDC
- Type:
- Molded Case, Thermal Magnetic, Main
- Data Sheet:
- SchneiderElectric-SquareD_04366_1_2_DATA.pdf
- Interrupting Rating:
- 14 kA at 600 VAC
- Installation/Operator:
- SchneiderElectric-SquareD_00076_INST.pdf
- Catalog:
- SchneiderElectric-SquareD_00096_25_28_CAT.pdf
- Current Rating:
- 70 A
- Application:
- Construction, Commercial Building, Control Equipment Panel, Industrial Building, OEM Commercial
- Approval:
- UL 489, CSA, IEC, Federal Specification W-C-375B/GEN
- Trip Setting:
- 800 A Hold, 1450 A Trip
- Installation:
- Plug-On
- Used On:
- I-Line Panelboard and Switchboard
- Country of Origin:
- Mexico
MSRP $3,050.00Surplus $280.15 -
Square D FAB14040B Molded Case Breakers (MCCBs)
MSRP $350.00Surplus $71.19Square D FAB14040B Molded Case Breakers (MCCBs)​ ARCA SKU: C15-7044 Brand: Square D MPN: FAB14040B UPC: Shipping Weight: 2.20 lbs. Shipping Height: 2.00 In. Shipping...- SKU:
- C15-7044
- Number of Poles:
- 1
MSRP $350.00Surplus $71.19 -
Square D FAB36015 Molded Case Breakers (MCCBs)
MSRP $1,500.00Surplus $156.68SKU: C15-7047 Brand: Square D MPN: FAB36015 UPC: Shipping Weight: 5.20 lbs. Shipping Height: 5.00 In. Shipping Length: 10.00 In. Shipping Width: 5.00 In. Product...- SKU:
- C15-7047
- Short Description:
- 600 VAC, 250 VDC, 15 A, 10/14/18/25 kA, 3-Pole, F-Frame, I-Line Mount, Thermal Magnetic, Molded Case Circuit Breaker
- Data Sheet:
- SchneiderElectric-SquareD_04378_1_2_DATA.pdf
- Number of Poles:
- 3
- Voltage Rating:
- 600 VAC, 250 VDC
- Interrupting Rating:
- 14 kA at 600 VAC
- Type:
- Molded Case, Thermal Magnetic, Main
- Installation/Operator:
- SchneiderElectric-SquareD_00076_INST.pdf
- Series:
- 600, FAB
- Current Rating:
- 15 A
- Prop 65 Warning:
- Yes
- Trip Setting:
- 275 A Hold, 600 A Trip
- Used On:
- I-Line Panelboard and Switchboard
- Approval:
- UL 489, CSA, IEC, Federal Specification W-C-375B/GEN
- Application:
- Construction, Commercial Building, Control Equipment Panel, Industrial Building, OEM Commercial
- Installation:
- Bolt-On
- Country of Origin:
- Mexico
MSRP $1,500.00Surplus $156.68 -
Square D FAL14015 Molded Case Breakers (MCCBs)
MSRP $820.00Surplus $140.40Square D FAL14015 Molded Case Breakers (MCCBs)​ ARCA SKU: C15-7048 Brand: Square D MPN: FAL14015 UPC: Shipping Weight: 1.50 lbs. Shipping Height: 2.00 In. Shipping...- SKU:
- C15-7048
- Size:
- 1.5 Inch Width x 4.13 Inch Depth x 6 Inch Height
- Series:
- FA
- Terminal Type:
- Lug
- Short Description:
- 120/480 Star/277 VAC, 125 VDC, 15 A, 25/18/10 kA, 1-Pole, F-Frame, Unit Mount, Thermal Magnetic, Molded Case Circuit Breaker
- Number of Poles:
- 1
- Interrupting Rating:
- 18 kA at 277 VAC
- Current Rating:
- 15 A
- Data Sheet:
- SchneiderElectric-SquareD_04390_1_2_DATA.pdf
- Frame Type:
- F
- Catalog:
- SchneiderElectric-SquareD_00096_25_26_CAT.pdf
- Voltage Rating:
- 277 VAC, 125 VDC
- Installation/Operator:
- SchneiderElectric-SquareD_00076_INST.pdf
- Type:
- Thermal Magnetic
- Prop 65 Warning:
- Yes
- Approval:
- UL, CSA, IEC, Federal Specification W-C-375B/GEN
- Country of Origin:
- Mexico
MSRP $820.00Surplus $140.40 -
Square D FAL14020 Other Circuit Breakers
MSRP $820.00Surplus $56.40SKU: C15-11426 Brand: Square D MPN: FAL14020 UPC: Shipping Weight: 2.00 lbs. Shipping Height: 6.00 In. Shipping Length: 11.00 In. Shipping Width: 3.00 In. Product...- SKU:
- C15-11426
- Short Description:
- 120/480 Star/277 VAC, 125 VDC, 20 A, 25/18/10 kA, 1-Pole, F-Frame, Unit Mount, Thermal Magnetic, Molded Case Circuit Breaker
- Number of Poles:
- 1
- Type:
- Thermal Magnetic
- Voltage Rating:
- 277 VAC, 125 VDC
- Interrupting Rating:
- 18 kA at 277 VAC
- Prop 65 Warning:
- Yes
- Catalog:
- SchneiderElectric-SquareD_00096_25_26_CAT.pdf
- Installation/Operator:
- SchneiderElectric-SquareD_00076_INST.pdf
- Terminal Type:
- Lug
- Current Rating:
- 20 A
- Data Sheet:
- SchneiderElectric-SquareD_04391_1_2_DATA.pdf
- Size:
- 1.5 Inch Width x 4.13 Inch Depth x 6 Inch Height
- Series:
- FA
- Approval:
- UL, CSA, IEC, Federal Specification W-C-375B/GEN
- Frame Type:
- F
- Country of Origin:
- United States
MSRP $820.00Surplus $56.40 -
Square D FAL14030 Everything Else
MSRP $540.00Surplus $84.28Square D FAL14030 Everything Else​ ARCA SKU: E30-10230 Brand: Square D MPN: FAL14030 UPC: Shipping Weight: 1.45 lbs. Shipping Height: 2.00 In. Shipping Length: 6.00 In...- SKU:
- E30-10230
- Voltage Rating:
- 277 VAC, 125 VDC
- Frame Type:
- F
- Short Description:
- 120/480 Star/277 VAC, 125 VDC, 30 A, 25/18/10 kA, 1-Pole, F-Frame, Unit Mount, Thermal Magnetic, Molded Case Circuit Breaker
- Catalog:
- SchneiderElectric-SquareD_00096_25_26_CAT.pdf
- Data Sheet:
- SchneiderElectric-SquareD_04392_1_2_DATA.pdf
- Current Rating:
- 30 A
- Type:
- Molded Case, Thermal Magnetic
- Interrupting Rating:
- 18 kA
- Size:
- 1.5 Inch L x 4.13 Inch W x 6 Inch H
- Installation/Operator:
- SchneiderElectric-SquareD_00076_INST.pdf
- Terminal Type:
- Lug
- Number of Poles:
- 1
- Maximum AC Voltage Rating (V):
- 277
- Maximum DC Voltage Rating (V):
- 125
- Approval:
- UL, CSA, IEC
- Country of Origin:
- Mexico
MSRP $540.00Surplus $84.28 -
Square D FAL32040 Molded Case Breakers (MCCBs) 3P 40A 50/60Hz 3Ph EA
MSRP $980.00Surplus $351.00Square D FAL32040 Molded Case Breakers (MCCBs) 3P 40A 50/60Hz 3Ph EA​ ARCA SKU: C15-7049 Brand: Square D MPN: FAL32040 UPC: Shipping Weight: 2.50 lbs. Shipping Height: 5.00 In...- SKU:
- C15-7049
- Frame Type:
- F
- Series:
- FA
- Short Description:
- 240 VAC, 250 VDC, 40 A, 10/5 kA, 3-Pole, F-Frame, Unit Mount, Thermal Magnetic, Molded Case Circuit Breaker
- Data Sheet:
- SchneiderElectric-SquareD_04439_1_2_DATA.pdf
- Number of Poles:
- 3
- Catalog:
- SchneiderElectric-SquareD_00096_25_26_CAT.pdf
- Installation/Operator:
- SchneiderElectric-SquareD_00076_INST.pdf
- Voltage Rating:
- 240 VAC at 50/60 Hz (UL/CSA/NOM)
- Interrupting Rating:
- 10 kA at 240 VAC (UL/CSA/NOM)
- Maximum AC Voltage Rating:
- 240 V
- Type:
- Molded Case, Thermal Magnetic
- Size:
- 4.5 Inch W x 4.13 Inch D x 6 Inch H
- Terminal Type:
- Line Lug, Load Lug
- Current Rating:
- 40 A
- Prop 65 Warning:
- Yes
- Approval:
- UL, CSA
- Country of Origin:
- United States
MSRP $980.00Surplus $351.00 -
Square D FAL32070 Other Circuit Breakers
MSRP $1,500.00Surplus $614.25SKU: C15-7051 Brand: Square D MPN: FAL32070 UPC: Shipping Weight: 3.75 lbs. Shipping Height: 4.00 In. Shipping Length: 6.00 In. Shipping Width: 5.00 In. Product...- SKU:
- C15-7051
- Maximum AC Voltage Rating:
- 240 V
- Series:
- FA
- Short Description:
- 240 VAC, 250 VDC, 70 A, 10/5 kA, 3-Pole, F-Frame, Unit Mount, Thermal Magnetic, Molded Case Circuit Breaker
- Current Rating:
- 70 A
- Frame Type:
- F
- Catalog:
- SchneiderElectric-SquareD_00096_25_26_CAT.pdf
- Voltage Rating:
- 240 VAC at 50/60 Hz (UL/CSA/NOM)
- Installation/Operator:
- SchneiderElectric-SquareD_00076_INST.pdf
- Type:
- Molded Case, Thermal Magnetic
- Size:
- 4.5 Inch W x 4.13 Inch D x 6 Inch H
- Interrupting Rating:
- 10 kA at 240 VAC (UL/CSA/NOM)
- Number of Poles:
- 3
- Terminal Type:
- Line Lug, Load Lug
- Data Sheet:
- SchneiderElectric-SquareD_04446_1_2_DATA.pdf
- Prop 65 Warning:
- Yes
- Approval:
- UL, CSA
- Country of Origin:
- Mexico
MSRP $1,500.00Surplus $614.25 -
Square D FAL34020 Molded Case Breakers (MCCBs)
MSRP $1,140.16Surplus $540.66SKU: C15-8565 Brand: Square D MPN: FAL34020 UPC: 78590142324 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-8565
- TS PIK:
- 128397896
- Frame Type:
- F
- Type:
- Thermal Magnetic
- Current Rating:
- 20 A
- Interrupting Rating:
- 18 kA at 480/600 VAC
- Series:
- FA
- Catalog:
- SchneiderElectric-SquareD_00096_21-23_CAT.pdf
- Size:
- 4.5 Inch Width x 4.13 Inch Depth x 6 Inch Height
- Voltage Rating:
- 480 VAC, 250 VDC
- Data Sheet:
- SchneiderElectric_05208_1_2_DATA.pdf
- Number of Poles:
- 3
- Short Description:
- 480 V, 20 A, 18 kA Interrupt, 3-Pole, Line/Load Lug Terminal, Unit Mount, Thermal Magnetic, Molded Case Circuit Breaker
- Prop 65 Warning:
- Yes
- Terminal Type:
- Lug
- Approval:
- UL, CSA, IEC, Federal Specification W-C-375B/GEN
- Country of Origin:
- Mexico
MSRP $1,140.16Surplus $540.66 -
Square D FAL36090 Molded Case Breakers (MCCBs)
MSRP $2,700.00Surplus $957.60SKU: C15-7043 Brand: Square D MPN: FAL36090 UPC: Shipping Weight: 4.88 lbs. Shipping Height: 5.00 In. Shipping Length: 8.00 In. Shipping Width: 6.00 In. Product...- SKU:
- C15-7043
- Number of Poles:
- 3
- Type:
- Molded Case, Thermal Magnetic
- Maximum DC Voltage Rating:
- 250 V
- Installation/Operator:
- SchneiderElectric-SquareD_00076_INST.pdf
- Terminal Type:
- Line Lug, Load Lug
- Size:
- 4.5 Inch W x 4.13 Inch D x 6 Inch H
- Interrupting Rating:
- 25 kA at 240 VAC, 18 kA at 480 VAC Star/277 VAC, 18 kA at 480 VAC, 14 kA at 600 VAC Star/347 VAC, 14 kA at 600 VAC (UL/CSA/NOM), 10/2.5 kA at 415 VAC (IEC), 10 kA at 250 VDC
- Current Rating:
- 90 A
- Series:
- FA
- Data Sheet:
- SchneiderElectric-SquareD_04498_1_2_DATA.pdf
- Catalog:
- SchneiderElectric-SquareD_00096_25_26_CAT.pdf
- Maximum AC Voltage Rating:
- 600 V
- Voltage Rating:
- 240/480/600 VAC at 50/60 Hz, 480 VAC Star/277 VAC at 50/60 Hz, 600 VAC Star/347 VAC at 50/60 Hz (UL/CSA/NOM), 415 VAC at 50/60 Hz (IEC), 250 VDC
- Short Description:
- 600 AC, 250 VDC, 90 A, 14/10 kA, 3-Pole, F-Frame, Unit Mount, Thermal Magnetic, Molded Case Circuit Breaker
- Frame Type:
- F
- Prop 65 Warning:
- Yes
- Approval:
- UL, CSA
- Country of Origin:
- Mexico
MSRP $2,700.00Surplus $957.60 -
Square D FAP34020 Molded Case Breakers (MCCBs)
MSRP $1,000.00Surplus $155.16SKU: C15-7040 Brand: Square D MPN: FAP34020 UPC: Shipping Weight: 4.55 lbs. Shipping Height: 5.00 In. Shipping Length: 8.00 In. Shipping Width: 5.00 In. Product...- SKU:
- C15-7040
- Number of Poles:
- 3
MSRP $1,000.00Surplus $155.16 -
Square D FAP36001513M Molded Case Breakers (MCCBs)
MSRP $5,795.00Surplus $1,178.66SKU: C15-7045 Brand: Square D MPN: FAP36001513M UPC: Shipping Weight: 4.70 lbs. Shipping Height: 5.00 In. Shipping Length: 8.00 In. Shipping Width: 6.00 In. Product...- SKU:
- C15-7045
- Number of Poles:
- 3
MSRP $5,795.00Surplus $1,178.66 -
Square D FC34015 Molded Case Breakers (MCCBs)
MSRP $4,650.00Surplus $1,170.00SKU: C15-7020 Brand: Square D MPN: FC34015 UPC: Shipping Weight: 4.15 lbs. Shipping Height: 5.00 In. Shipping Length: 9.00 In. Shipping Width: 5.00 In. Product...- SKU:
- C15-7020
- Short Description:
- 480 VAC, 250 VDC, 15 A, 10/18/25 kA, 3-Pole, F-Frame, I-Line Mount, Thermal Magnetic, Molded Case Circuit Breaker
- Interrupting Rating:
- 100 kA at 240 VAC, 65 kA at 480 VAC
- Current Rating:
- 15 A
- Number of Poles:
- 3
- Series:
- FC
- Voltage Rating:
- 480 VAC, 250 VDC
- Catalog:
- SchneiderElectric-SquareD_00096_25_28_29_CAT.pdf
- Type:
- Molded Case, Thermal Magnetic, Main
- Installation/Operator:
- SchneiderElectric-SquareD_00076_INST.pdf
- Trip Setting:
- 275 A Hold, 600 A Trip
- Used On:
- I-Line Panelboard and Switchboard
- Approval:
- UL, CSA, IEC, Federal Specification W-C-375B/GEN
- Installation:
- Plug-On
- Application:
- Construction
- Country of Origin:
- Mexico
MSRP $4,650.00Surplus $1,170.00 -
Square D FC340451021 Trip Units
MSRP $1,200.00Surplus $93.24Square D FC340451021 Trip Units​ ARCA SKU: A13-1417 Brand: Square D MPN: FC340451021 UPC: Shipping Weight: 4.95 lbs. Shipping Height: 7.00 In. Shipping Length: 11.00 In...- SKU:
- A13-1417
MSRP $1,200.00Surplus $93.24 -
Square D FCB34070 Molded Case Breakers (MCCBs)
MSRP $4,203.00Surplus $500.27SKU: C15-7042 Brand: Square D MPN: FCB34070 UPC: Shipping Weight: 4.95 lbs. Shipping Height: 7.00 In. Shipping Length: 11.00 In. Shipping Width: 5.00 In. Product...- SKU:
- C15-7042
- Number of Poles:
- 3
MSRP $4,203.00Surplus $500.27 -
Square D FCL34100 Molded Case Breakers (MCCBs)
MSRP $3,650.00Surplus $1,560.00SKU: C15-7035 Brand: Square D MPN: FCL34100 UPC: Shipping Weight: 3.30 lbs. Shipping Height: 5.00 In. Shipping Length: 7.00 In. Shipping Width: 5.00 In. Product...- SKU:
- C15-7035
- Terminal Type:
- Line Lug, Load Lug
- Short Description:
- 480 VAC, 250 VDC, 100 A, 65 kA, 3-Pole, F-Frame, Individually Mount, Thermal Magnetic, Molded Case Circuit Breaker
- Installation/Operator:
- SchneiderElectric-SquareD_00076_INST.pdf
- Interrupting Rating:
- 100 kA at 240 VAC, 65 kA at 480 VAC Star/277 VAC or 480 VAC (UL/CSA/NOM), 10 kA at 240/415 VAC (IEC)
- Voltage Rating:
- 240 VAC at 50/60 Hz, 480 VAC Star/277 VAC at 50/60 Hz, 480 VAC at 50/60 Hz (UL/CSA/NOM), 240/415 VAC at 50/60 Hz (IEC)
- Catalog:
- SchneiderElectric-SquareD_00935_11_11_11_23_CAT.pdf
- Type:
- Molded Case, Thermal Magnetic
- Frame Type:
- F
- Maximum AC Voltage Rating:
- 480 V
- Number of Poles:
- 3
- Current Rating:
- 100 A
- Size:
- 4.5 Inch W x 4.13 Inch D x 6 Inch H
- Approval:
- UL, CSA, CE
- Country of Origin:
- United States
MSRP $3,650.00Surplus $1,560.00 -
Square D FCL341001027 Molded Case Breakers (MCCBs)
MSRP $5,795.00Surplus $1,178.66SKU: C15-7046 Brand: Square D MPN: FCL341001027 UPC: Shipping Weight: 3.80 lbs. Shipping Height: 5.00 In. Shipping Length: 8.00 In. Shipping Width: 6.00 In. Product...- SKU:
- C15-7046
- Number of Poles:
- 3
MSRP $5,795.00Surplus $1,178.66 -
Square D FH16020B Molded Case Breakers (MCCBs)
MSRP $674.49Surplus $234.00Square D FH16020B Molded Case Breakers (MCCBs)​ ARCA SKU: C15-6365 Brand: Square D MPN: FH16020B UPC: Shipping Weight: 2.20 lbs. Shipping Height: 5.00 In. Shipping...- SKU:
- C15-6365
- Type:
- Molded Case
- Data Sheet:
- SchneiderElectric-SquareD_04525_1_2_DATA.pdf
- Voltage Rating:
- 240 VAC at 50/60 Hz, 480 VAC Star/277 VAC at 50/60 Hz (UL/CSA/NOM), 240/415 VAC at 50/60 Hz (IEC), 250 VDC
- Catalog:
- SchneiderElectric_00256_11_9_CAT.pdf
- Interrupting Rating:
- 65 kA at 240 VAC or 480 VAC Star/277 VAC (UL/CSA/NOM); 18 kA at 240 VAC, 10 kA at 415 VAC (IEC); 10 kA at 250 VDC
- Installation/Operator:
- SchneiderElectric-SquareD_00076_INST.pdf
- Number of Poles:
- 1
- Series:
- FH
- Short Description:
- 277 VAC, 125 VDC, 20 A, 65/10 kA, 1-Pole, F-Frame, I-Line Mount, Thermal Magnetic, Molded Case Circuit Breaker
- Current Rating:
- 20 A
- Application:
- Power Distribution
- Used On:
- Class 650/734/820 I-Line Panelboard/Switchboard
- Approval:
- UL, CSA
- Trip Setting:
- 275 to 600 A
- Country of Origin:
- Mexico
MSRP $674.49Surplus $234.00 -
Square D FH26020AB Molded Case Breakers (MCCBs)
MSRP $1,600.00Surplus $661.05SKU: C15-7183 Brand: Square D MPN: FH26020AB UPC: Shipping Weight: 4.36 lbs. Shipping Height: 9.00 In. Shipping Length: 13.00 In. Shipping Width: 6.00 In. Product...- SKU:
- C15-7183
- Interrupting Rating:
- 18 kA at 600 VAC
- Short Description:
- 240/480/600 VAC, 250 VDC, 20 A, 65/25/18/10 kA, 1-Phase, 2-Pole, F-Frame, I-Line Mount, Thermal Magnetic, Molded Case Circuit Breaker
- Series:
- 650, FH
- Voltage Rating:
- 600 VAC, 250 VDC
- Data Sheet:
- SchneiderElectric-SquareD_04531_1_2_DATA.pdf
- Current Rating:
- 20 A
- Catalog:
- SchneiderElectric_00256_11_9_CAT.pdf
- Number of Poles:
- 2
- Type:
- Molded Case, Thermal Magnetic, Main
- Installation/Operator:
- SchneiderElectric-SquareD_00076_INST.pdf
- Prop 65 Warning:
- Yes
- Trip Setting:
- 275 A Hold, 600 A Trip
- Application:
- Construction
- Used On:
- I-Line Panelboard and Switchboard
- Installation:
- Plug-On
- Approval:
- UL 489, CSA, IEC, Federal Specification W-C-375B/GEN
- Country of Origin:
- Mexico
MSRP $1,600.00Surplus $661.05 -
Square D FH26050AB Molded Case Breakers (MCCBs)
MSRP $1,059.00Surplus $661.05Square D FH26050AB Molded Case Breakers (MCCBs)​ ARCA SKU: C15-7184 Brand: Square D MPN: FH26050AB UPC: Shipping Weight: 3.75 lbs. Shipping Height: 7.00 In. Shipping...- SKU:
- C15-7184
- Short Description:
- 240/480/600 VAC, 250 VDC, 50 A, 65/25/18/10 kA, 1-Phase, 2-Pole, F-Frame, I-Line Mount, Thermal Magnetic, Molded Case Circuit Breaker
- Interrupting Rating:
- 18 kA at 600 VAC
- Catalog:
- SchneiderElectric_00256_11_9_CAT.pdf
- Series:
- 650, FH
- Type:
- Molded Case, Thermal Magnetic, Main
- Current Rating:
- 50 A
- Voltage Rating:
- 600 VAC, 250 VDC
- Data Sheet:
- SchneiderElectric-SquareD_04540_1_2_DATA.pdf
- Installation/Operator:
- SchneiderElectric-SquareD_00076_INST.pdf
- Number of Poles:
- 2
- Number of Phases:
- 1
- Prop 65 Warning:
- Yes
- Application:
- Construction
- Trip Setting:
- 400 A Hold, 850 A Trip
- Approval:
- UL 489, CSA, IEC, Federal Specification W-C-375B/GEN
- Installation:
- Plug-On
- Used On:
- I-Line Panelboard and Switchboard
- Country of Origin:
- Mexico
MSRP $1,059.00Surplus $661.05 -
Square D FH26050BC Molded Case Breakers (MCCBs)
MSRP $959.00Surplus $661.05Square D FH26050BC Molded Case Breakers (MCCBs)​ ARCA SKU: C15-7186 Brand: Square D MPN: FH26050BC UPC: Shipping Weight: 4.03 lbs. Shipping Height: 7.00 In. Shipping...- SKU:
- C15-7186
- Short Description:
- 240/480/600 VAC, 250 VDC, 50 A, 65/25/18/10 kA, 4-Phase, 2-Pole, F-Frame, I-Line Mount, Thermal Magnetic, Molded Case Circuit Breaker
- Current Rating:
- 50 A
- Interrupting Rating:
- 65 kA at 120/240 VAC, 25 kA at 480 VAC Star/277 VAC/480 VAC, 18 kA at 600 VAC (UL), 50 kA at 125/250 VDC
- Series:
- 650, FH
- Voltage Rating:
- 120/240/480/600 VAC, 480 VAC Star/277 VAC (UL), 125/250 VDC
- Number of Poles:
- 2
- Installation/Operator:
- SchneiderElectric-SquareD_00076_INST.pdf
- Data Sheet:
- SchneiderElectric-SquareD_04542_1_2_DATA.pdf
- Type:
- Molded Case, Thermal Magnetic
- Catalog:
- SchneiderElectric_00256_11_9_CAT.pdf
- Prop 65 Warning:
- Yes
- Trip Setting:
- 400 to 850 A
- Approval:
- UL, CSA
- Used On:
- Industrial Enclosure, Panelboard, Switchboard, Busway Plug-On Unit, Combination Starter or Motor Control Center
- Application:
- Power Distribution
- Installation:
- Lug Load, I-Line
- Country of Origin:
- Mexico
MSRP $959.00Surplus $661.05 -
Square D FH36015G Molded Case Breakers (MCCBs)
MSRP $2,369.00Surplus $252.81SKU: C15-7188 Brand: Square D MPN: FH36015G UPC: Shipping Weight: 5.95 lbs. Shipping Height: 7.00 In. Shipping Length: 10.00 In. Shipping Width: 5.00 In. Product...- SKU:
- C15-7188
MSRP $2,369.00Surplus $252.81 -
Square D FH36045 Molded Case Breakers (MCCBs)
MSRP $1,900.00Surplus $1,287.00SKU: C15-7198 Brand: Square D MPN: FH36045 UPC: Shipping Weight: 6.35 lbs. Shipping Height: 6.00 In. Shipping Length: 13.00 In. Shipping Width: 8.00 In. Product...- SKU:
- C15-7198
- Series:
- FH
- Number of Poles:
- 3
- Short Description:
- 240/480/600 VAC, 250 VDC, 45 A, 65/25/18/10 kA, 3-Pole, F-Frame, I-Line Mount, Thermal Magnetic, Molded Case Circuit Breaker
- Data Sheet:
- SchneiderElectric-SquareD_04556_1_2_DATA.pdf
- Installation/Operator:
- SchneiderElectric-SquareD_00076_INST.pdf
- Current Rating:
- 45 A
- Catalog:
- SchneiderElectric_00256_11_9_CAT.pdf
- Interrupting Rating:
- 10/65 kA at 240 VAC, 25 kA at 480 VAC Star/277 VAC or 480 VAC, 18 kA at 600 VAC Star/347 VAC or 600 VAC (UL/CSA/NOM); 10 kA at 415 VAC (IEC); 50 kA at 250 VDC
- Voltage Rating:
- 240/480/600 VAC at 50/60 Hz, 480 VAC Star/277 VAC at 50/60 Hz, 600 VAC Star/347 VAC at 50/60 Hz (UL/CSA/NOM), 415 VAC at 50/60 Hz (IEC), 250 VDC
- Type:
- Molded Case
- Prop 65 Warning:
- Yes
- Approval:
- UL, CSA
- Used On:
- Class 650/734/820 I-Line Panelboard/Switchboard
- Application:
- Power Distribution
- Trip Setting:
- 400 to 850 A
MSRP $1,900.00Surplus $1,287.00 -
Square D FH36080G Molded Case Breakers (MCCBs)
MSRP $2,280.00Surplus $568.00SKU: C15-7197 Brand: Square D MPN: FH36080G UPC: Shipping Weight: 6.25 lbs. Shipping Height: 7.00 In. Shipping Length: 11.00 In. Shipping Width: 5.00 In. Product...- SKU:
- C15-7197
MSRP $2,280.00Surplus $568.00 -
Square D FHL26040 Molded Case Breakers (MCCBs)
MSRP $800.00Surplus $232.44Square D FHL26040 Molded Case Breakers (MCCBs)​ ARCA SKU: C15-7173 Brand: Square D MPN: FHL26040 UPC: Shipping Weight: 3.05 lbs. Shipping Height: 5.00 In. Shipping...- SKU:
- C15-7173
- Short Description:
- 600 VAC, 250 VDC, 40 A, 18/50 kA, 2-Pole, F-Frame, Unit Mount, Thermal Magnetic, Molded Case Circuit Breaker
- Number of Poles:
- 2
- Current Rating:
- 40 A
- Catalog:
- SchneiderElectric_00256_11_8_CAT.pdf
- Installation/Operator:
- SchneiderElectric-SquareD_00076_INST.pdf
- Interrupting Rating:
- 18 kA at 600 VAC
- Size:
- 3 Inch Width x 4.13 Inch Depth x 6 Inch Height
- Series:
- 650, FHL
- Type:
- Thermal Magnetic
- Frame Type:
- F
- Data Sheet:
- SchneiderElectric-SquareD_04570_1_2_DATA.pdf
- Voltage Rating:
- 600 VAC, 250 VDC
- Terminal Type:
- Lug
- Prop 65 Warning:
- Yes
- Approval:
- UL, CSA, IEC, Federal Specification W-C-375B/GEN
- Country of Origin:
- Mexico
MSRP $800.00Surplus $232.44 -
Square D FHL36020 Molded Case Breakers (MCCBs)
MSRP $927.43Surplus $585.00SKU: E30-10208 Brand: Square D MPN: FHL36020 UPC: Shipping Weight: 4.60 lbs. Shipping Height: 5.00 In. Shipping Length: 8.00 In. Shipping Width: 6.00 In. Product...- SKU:
- E30-10208
- Current Rating:
- 20 A
- Series:
- FH
- Voltage Rating:
- 240/480/600 VAC at 50/60 Hz, 480 VAC Star/277 VAC at 50/60 Hz, 600 VAC Star/347 VAC at 50/60 Hz (UL/CSA/NOM), 415 VAC at 50/60 Hz (IEC), 250 VDC
- Short Description:
- 600 VAC, 250 VDC, 20 A, 18/10 kA, 3-Pole, F-Frame, Unit Mount, Thermal Magnetic, Molded Case Circuit Breaker
- Maximum AC Voltage Rating:
- 600 V
- Size:
- 4.5 Inch W x 4.13 Inch D x 6 Inch H
- Terminal Type:
- Line Lug, Load Lug
- Maximum DC Voltage Rating:
- 250 V
- Catalog:
- SchneiderElectric_00256_11_8_CAT.pdf
- Installation/Operator:
- SchneiderElectric-SquareD_00076_INST.pdf
- Data Sheet:
- SchneiderElectric-SquareD_04574_1_2_DATA.pdf
- Frame Type:
- F
- Number of Poles:
- 3
- Type:
- Molded Case, Thermal Magnetic
- Interrupting Rating:
- 65 kA at 240 VAC, 25 kA at 480 VAC Star/277 VAC, 25 kA at 480 VAC, 18 kA at 600 VAC Star/347 VAC, 18 kA at 600 VAC (UL/CSA/NOM), 10/2.5 kA at 415 VAC (IEC), 50 kA at 250 VDC
- Prop 65 Warning:
- Yes
- Approval:
- UL, CSA
- Country of Origin:
- Mexico
MSRP $927.43Surplus $585.00 -
Square D FHL36040 Molded Case Breakers (MCCBs) EA
MSRP $814.00Surplus $196.99SKU: C15-10982 Brand: Square D MPN: FHL36040 UPC: Shipping Weight: 4.40 lbs. Shipping Height: 7.00 In. Shipping Length: 5.00 In. Shipping Width: 5.00 In. Product...- SKU:
- C15-10982
MSRP $814.00Surplus $196.99 -
Square D FHL36050 Molded Case Breakers (MCCBs)
MSRP $826.26Surplus $515.60SKU: C15-6427 Brand: Square D MPN: FHL36050 UPC: Shipping Weight: 4.60 lbs. Shipping Height: 5.00 In. Shipping Length: 7.00 In. Shipping Width: 6.00 In. Product...- SKU:
- C15-6427
- Type:
- Thermal Magnetic
- Number of Poles:
- 3
- Frame Type:
- F
- Interrupting Rating:
- 18 kA at 600 VAC
- Catalog:
- SchneiderElectric_00256_11_8_CAT.pdf
- Current Rating:
- 50 A
- Voltage Rating:
- 600 VAC, 250 VDC
- Data Sheet:
- SchneiderElectric-SquareD_04576_1_2_DATA.pdf
- Size:
- 4.5 Inch Width x 4.13 Inch Depth x 6 Inch Height
- Short Description:
- 600 VAC, 250 VDC, 50 A, 18/10 kA, 3-Pole, F-Frame, Unit Mount, Thermal Magnetic, Molded Case Circuit Breaker
- Terminal Type:
- Lug
- Installation/Operator:
- SchneiderElectric-SquareD_00076_INST.pdf
- Series:
- FH
- Prop 65 Warning:
- Yes
- Approval:
- UL, CSA, IEC, Federal Specification W-C-375B/GEN
- Country of Origin:
- Mexico
MSRP $826.26Surplus $515.60 -
Square D FJA34050 Molded Case Breakers (MCCBs)
MSRP $5,448.00Surplus $924.35SKU: C15-7180 Brand: Square D MPN: FJA34050 UPC: Shipping Weight: 5.20 lbs. Shipping Height: 5.00 In. Shipping Length: 14.00 In. Shipping Width: 7.00 In. Product...- SKU:
- C15-7180
MSRP $5,448.00Surplus $924.35 -
Square D FY-14015-A Other Circuit Breakers
MSRP $170.00Surplus $33.86Square D FY-14015-A Other Circuit Breakers​ ARCA SKU: C15-7181 Brand: Square D MPN: FY-14015-A UPC: Shipping Weight: 1.55 lbs. Shipping Height: 2.00 In. Shipping...- SKU:
- C15-7181
MSRP $170.00Surplus $33.86 -
Square D FY-14015-B Other Circuit Breakers 1P 15A 50/60HZ 1Ph EA
MSRP $350.00Surplus $42.88Square D FY-14015-B Other Circuit Breakers 1P 15A 50/60HZ 1Ph EA​ ARCA SKU: U00-3262 Brand: Square D MPN: FY-14015-B UPC: Shipping Weight: 1.50 lbs. Shipping Height: 2.00 In...- SKU:
- U00-3262
MSRP $350.00Surplus $42.88 -
Square D FY-14030-C Other Circuit Breakers
MSRP $350.00Surplus $30.98Square D FY-14030-C Other Circuit Breakers​ ARCA SKU: C15-7194 Brand: Square D MPN: FY-14030-C UPC: Shipping Weight: 2.15 lbs. Shipping Height: 2.00 In. Shipping...- SKU:
- C15-7194
MSRP $350.00Surplus $30.98 -
Square D HDA260151 Molded Case Breakers (MCCBs) EA
MSRP $899.00Surplus $240.43SKU: C15-10983 Brand: Square D MPN: HDA260151 UPC: 78590141897 Shipping Weight: 3.20 lbs. Shipping Height: 10.00 In. Shipping Length: 3.00 In. Shipping Width: 5.00 In...- SKU:
- C15-10983
- TS PIK:
- 120729855
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Data Sheet:
- SchneiderElectric-SquareD_46340_1-3_DATA.pdf
- Interrupting Rating:
- 14 kA at 600 VAC, 20 kA at 250 VDC
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 15 A, 14 kA, 2-Pole, H-Frame, AB Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- CAD Drawings:
- SchneiderElectric_29516_1_CAD.pdf
- Series:
- HD
- Type:
- Thermal Magnetic, Current Limiting
- Current Rating:
- 15 A
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Number of Poles:
- 2
- Country of Origin:
- United States
- Approval:
- UL, CSA, CE
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Application:
- Distribution
- Trip Setting:
- 350 A (Hold), 750 A (Trip)
MSRP $899.00Surplus $240.43 -
Square D HDA260302 Molded Case Breakers (MCCBs)
MSRP $1,170.00Surplus $778.05SKU: C15-10706 Brand: Square D MPN: HDA260302 UPC: 78590141645 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-10706
- TS PIK:
- 120729819
- Series:
- HD
- Prop 65 Warning:
- Yes
- Approval:
- UL, CSA, CE
- Current Rating:
- 30 A
- Number of Poles:
- 2
- CAD Drawings:
- SchneiderElectric_29528_1_CAD.pdf
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 30 A, 14 kA, 2-Pole, H-Frame, AC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Type:
- Thermal Magnetic, Current Limiting
- Data Sheet:
- SchneiderElectric-SquareD_46351_1-3_DATA.pdf
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Application:
- Distribution
- Trip Setting:
- 350 A (Hold), 750 A (Trip)
- Interrupting Rating:
- 14 kA at 600 VAC, 20 kA at 250 VDC
- Country of Origin:
- Mexico
MSRP $1,170.00Surplus $778.05 -
Square D HDA260502 Molded Case Breakers (MCCBs)
MSRP $700.00Surplus $695.25SKU: U00-8162 Brand: Square D MPN: HDA260502 UPC: 78590163254 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- U00-8162
- Current Rating:
- 50 A
- Series:
- HD
- Data Sheet:
- SchneiderElectric-SquareD_46362_1-3_DATA.pdf
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Approval:
- UL, CSA, CE
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 50 A, 14 kA, 2-Pole, H-Frame, AC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Type:
- Thermal Magnetic, Current Limiting
- Number of Poles:
- 2
- Trip Setting:
- 400 A (Hold), 850 A (Trip)
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- CAD Drawings:
- SchneiderElectric_29540_1_CAD.pdf
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Interrupting Rating:
- 14 kA at 600 VAC, 20 kA at 250 VDC
- Application:
- Distribution
- Prop 65 Warning:
- Yes
- Country of Origin:
- Mexico
MSRP $700.00Surplus $695.25 -
Square D HDA36015 Molded Case Breakers (MCCBs)
MSRP $1,124.00Surplus $904.40Square D HDA36015 Molded Case Breakers (MCCBs)​ ARCA SKU: C15-6432 Brand: Square D MPN: HDA36015 UPC: 78590141910 Shipping Weight: 5.95 lbs. Shipping Height: 7.00 In. Shipping...- SKU:
- C15-6432
- TS PIK:
- 21032767
- Number of Poles:
- 3
- Interrupting Rating:
- 14 kA at 600 VAC, 20 kA at 250 VDC
- Series:
- HD
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 15 A, 14 kA, 3-Pole, H-Frame, ABC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Data Sheet:
- SchneiderElectric-SquareD_46390_1-3_DATA.pdf
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Type:
- Thermal Magnetic, Current Limiting
- Current Rating:
- 15 A
- CAD Drawings:
- SchneiderElectric_29570_1_CAD.pdf
- Prop 65 Warning:
- Yes
- Country of Origin:
- Mexico
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Approval:
- UL, CSA, CE
- Trip Setting:
- 350 A (Hold), 750 A (Trip)
- Application:
- Distribution
MSRP $1,124.00Surplus $904.40 -
Square D HDA36020 Molded Case Breakers (MCCBs)
MSRP $1,124.00Surplus $663.00Square D HDA36020 Molded Case Breakers (MCCBs)​ ARCA SKU: C15-6433 Brand: Square D MPN: HDA36020 UPC: 78590140524 Shipping Weight: 5.50 lbs. Shipping Height: 6.00 In. Shipping...- SKU:
- C15-6433
- TS PIK:
- 21032769
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Current Rating:
- 20 A
- Series:
- HD
- Data Sheet:
- SchneiderElectric-SquareD_46391_1-3_DATA.pdf
- Number of Poles:
- 3
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 20 A, 14 kA, 3-Pole, H-Frame, ABC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- CAD Drawings:
- SchneiderElectric_29571_1_CAD.pdf
- Type:
- Thermal Magnetic, Current Limiting
- Interrupting Rating:
- 14 kA at 600 VAC, 20 kA at 250 VDC
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Prop 65 Warning:
- Yes
- Country of Origin:
- Mexico
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Application:
- Distribution
- Approval:
- UL, CSA, CE
- Trip Setting:
- 350 A (Hold), 750 A (Trip)
MSRP $1,124.00Surplus $663.00 -
Square D HDA36040 Molded Case Breakers (MCCBs) HDA 3P 40A 600V 50/60Hz 3Ph H Frame
MSRP $1,124.00Surplus $952.00SKU: C15-2160 Brand: Square D MPN: HDA36040 UPC: 78590141994 Shipping Weight: 5.46 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-2160
- Series:
- HD
- Type:
- Vibrating Horn with Grille
- Approval:
- UL
- Approval:
- CSA
- Approval:
- CE
- Volts:
- 600 VAC 50/60 Hertz
- Volts:
- 250 VDC
- Amps:
- 32 A
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Poles:
- 3
- Interrupting Rating:
- 14 kA at 600 VAC
- Interrupting Rating:
- 20 Kiloamp at 250 Volt DC
- Enclosure:
- Class I Div 1 Group C D
- Enclosure:
- Class II Div 1 Group E F G
- Enclosure:
- Class III
- Application:
- Distribution
- Trip Setting:
- 400 A (Hold)
- Trip Setting:
- 850 Amp (Trip)
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 40 A, 14 kA, 3-Pole, H-Frame, ABC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Data Sheet:
- FederalSignal_00104_1_2_DATA.pdf
- Installation/Operator:
- FederalSignal_00041_INST.pdf
- Current Rating:
- 40 A
- CAD Drawings:
- SchneiderElectric_29575_1_CAD.pdf
- Voltage Rating:
- 600 VAC
- Number of Poles:
- 3
- Frame Type:
- H
- Prop 65 Warning:
- Yes
- Country of Origin:
- Canada
MSRP $1,124.00Surplus $952.00 -
Square D HDA36110 Molded Case Breakers (MCCBs)
MSRP $2,481.30Surplus $669.95SKU: C15-16420 Brand: Square D MPN: HDA36110 UPC: 78590142227 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-16420
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 110 A, 14 kA, 3-Pole, H-Frame, ABC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Approval:
- UL, CSA, CE
- Interrupting Rating:
- 14 kA at 600 VAC, 20 kA at 250 VDC
- Trip Setting:
- 900 A (Hold), 1700 A (Trip)
- Type:
- Thermal Magnetic, Current Limiting
- Data Sheet:
- SchneiderElectric-SquareD_46410_1-3_DATA.pdf
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Application:
- Distribution
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Series:
- HD
- Prop 65 Warning:
- Yes
- Current Rating:
- 110 A
- CAD Drawings:
- SchneiderElectric_29585_1_CAD.pdf
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Number of Poles:
- 3
- Country of Origin:
- Mexico
MSRP $2,481.30Surplus $669.95 -
Square D HDA36125 Molded Case Breakers (MCCBs)
MSRP $2,730.00Surplus $1,307.39SKU: C15-7149 Brand: Square D MPN: HDA36125 UPC: 78590141999 Shipping Weight: 5.95 lbs. Shipping Height: 6.00 In. Shipping Length: 15.00 In. Shipping Width: 9.00 In...- SKU:
- C15-7149
- TS PIK:
- 127231032
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 125 A, 14 kA, 3-Pole, H-Frame, ABC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Number of Poles:
- 3
- Current Rating:
- 125 A
- Series:
- HD
- Data Sheet:
- SchneiderElectric-SquareD_46411_1-3_DATA.pdf
- Interrupting Rating:
- 14 kA at 600 VAC, 20 kA at 250 VDC
- Type:
- Thermal Magnetic, Current Limiting
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- CAD Drawings:
- SchneiderElectric_29586_1_CAD.pdf
- Prop 65 Warning:
- Yes
- Country of Origin:
- Canada
- Approval:
- UL, CSA, CE
- Application:
- Distribution
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Trip Setting:
- 900 A (Hold), 1700 A (Trip)
MSRP $2,730.00Surplus $1,307.39 -
Square D HDL36015 Molded Case Breakers (MCCBs)
MSRP $1,088.00Surplus $574.39SKU: C15-10713 Brand: Square D MPN: HDL36015 UPC: 78590157786 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-10713
- TS PIK:
- 120730798
- Frame Type:
- H
- Prop 65 Warning:
- Yes
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 15 A, 14 kA, 3-Pole, H-Frame, Unit Mount, Line/Load Lug Terminal, 80% Continuous Current, Thermal Magnetic, Current Limiting, Molded Case Circuit Breaker
- Catalog:
- SchneiderElectric-SquareD_32357_7_6_7_31_7_33_7_34_CAT.pdf
- Maximum DC Voltage Rating:
- 250 V
- Data Sheet:
- SchneiderElectric-SquareD_46443_1-3_DATA.pdf
- Current Rating:
- 15 A
- Number of Poles:
- 3
- Type:
- Thermal Magnetic, Current Limiting
- CAD Drawings:
- SchneiderElectric-SquareD_74672_1_CAD.pdf
- Size:
- 4.09 Inch Width x 3.39 Inch Depth x 6.42 Inch Height
- Maximum AC Voltage Rating:
- 600 V
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Interrupting Rating:
- 14 kA at 600 VAC, 20 kA at 250 VDC
- Terminal Type:
- Line/Load Lug
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Series:
- HD
- Country of Origin:
- Mexico
- Approval:
- UL, CSA, CE
MSRP $1,088.00Surplus $574.39 -
Square D HDL36030 Molded Case Breakers (MCCBs)
MSRP $1,088.00Surplus $574.39SKU: C15-10716 Brand: Square D MPN: HDL36030 UPC: 78590170663 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-10716
- TS PIK:
- 120736900
- Current Rating:
- 30 A
- Frame Type:
- H
- Series:
- HD
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 30 A, 14 kA, 3-Pole, H-Frame, Unit Mount, Line/Load Lug Terminal, 80% Continuous Current, Thermal Magnetic, Current Limiting, Molded Case Circuit Breaker
- Type:
- Thermal Magnetic, Current Limiting
- Interrupting Rating:
- 14 kA at 600 VAC, 20 kA at 250 VDC
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Number of Poles:
- 3
- Data Sheet:
- SchneiderElectric-SquareD_46450_1-3_DATA.pdf
- Size:
- 4.09 Inch Width x 3.39 Inch Depth x 6.42 Inch Height
- Terminal Type:
- Line/Load Lug
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Maximum AC Voltage Rating:
- 600 V
- Maximum DC Voltage Rating:
- 250 V
- CAD Drawings:
- SchneiderElectric-SquareD_74672_1_CAD.pdf
- Prop 65 Warning:
- Yes
- Catalog:
- SchneiderElectric-SquareD_32357_7_6_7_31_7_33_7_34_CAT.pdf
- Country of Origin:
- Mexico
- Approval:
- UL, CSA, CE
MSRP $1,088.00Surplus $574.39 -
Square D HDL36035 Molded Case Breakers (MCCBs) HDL 3P 35A 600V 50/60Hz 3Ph H Frame
MSRP $1,088.00Surplus $826.00SKU: C15-2200 Brand: Square D MPN: HDL36035 UPC: 785901577911 Shipping Weight: 4.12 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-2200
- Series:
- HD
- Type:
- Positive Polarized
- Approval:
- UL
- Approval:
- CSA
- Approval:
- CE
- Size:
- 4.09 Inch Width x 3.39 Inch Depth x 6.42 Inch Height
- Volts:
- 600 VAC 50/60 Hertz
- Volts:
- 250 VDC
- Amps:
- 32 A
- Poles:
- 3
- Interrupting Rating:
- 14 kA at 600 VAC
- Interrupting Rating:
- 20 Kiloamp at 250 Volt DC
- Terminal Type:
- Line/Load Lug
- Frame Type:
- H
- Maximum AC Voltage Rating:
- 600 V
- Maximum DC Voltage Rating:
- 250 V
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 35 A, 14 kA, 3-Pole, H-Frame, Unit Mount, Line/Load Lug Terminal, 80% Continuous Current, Thermal Magnetic, Current Limiting
- Catalog:
- SchneiderElectric-SquareD_32357_7_6_7_31_7_33_7_34_CAT.pdf
- Data Sheet:
- EmersonElectric-Appleton_00126_3_4_DATA.pdf
- Installation/Operator:
- EmersonElectric-Appleton_00031_INST.pdf
- Manufacturer Warranty:
- EmersonElectric-Appleton_00002_WARR.pdf
- Voltage Rating:
- 600 VAC
- Number of Poles:
- 3
- Current Rating:
- 35 A
- CAD Drawings:
- SchneiderElectric-SquareD_74672_1_CAD.pdf
- Prop 65 Warning:
- Yes
- Country of Origin:
- United States
MSRP $1,088.00Surplus $826.00 -
Square D HDL36040 Molded Case Breakers (MCCBs)
MSRP $1,088.00Surplus $516.44SKU: C15-10717 Brand: Square D MPN: HDL36040 UPC: 78590157792 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-10717
- TS PIK:
- 120730803
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 40 A, 14 kA, 3-Pole, H-Frame, Unit Mount, Line/Load Lug Terminal, 80% Continuous Current, Thermal Magnetic, Current Limiting, Molded Case Circuit Breaker
- Series:
- HD
- Data Sheet:
- SchneiderElectric-SquareD_46455_1-3_DATA.pdf
- Interrupting Rating:
- 14 kA at 600 VAC, 20 kA at 250 VDC
- Current Rating:
- 40 A
- Maximum DC Voltage Rating:
- 250 V
- Number of Poles:
- 3
- Catalog:
- SchneiderElectric-SquareD_32357_7_6_7_31_7_33_7_34_CAT.pdf
- Type:
- Thermal Magnetic, Current Limiting
- CAD Drawings:
- SchneiderElectric-SquareD_74672_1_CAD.pdf
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Size:
- 4.09 Inch Width x 3.39 Inch Depth x 6.42 Inch Height
- Maximum AC Voltage Rating:
- 600 V
- Terminal Type:
- Line/Load Lug
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Frame Type:
- H
- Prop 65 Warning:
- Yes
- Country of Origin:
- Mexico
- Approval:
- UL, CSA, CE
MSRP $1,088.00Surplus $516.44 -
Square D HDL36060 Molded Case Breakers (MCCBs)
MSRP $1,088.00Surplus $546.00SKU: C15-6435 Brand: Square D MPN: HDL36060 UPC: 78590157795 Shipping Weight: 4.10 lbs. Shipping Height: 6.00 In. Shipping Length: 9.00 In. Shipping Width: 8.00 In...- SKU:
- C15-6435
- TS PIK:
- 21033018
- Maximum DC Voltage Rating:
- 250 V
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Type:
- Thermal Magnetic, Current Limiting
- Maximum AC Voltage Rating:
- 600 V
- CAD Drawings:
- SchneiderElectric-SquareD_74672_1_CAD.pdf
- Data Sheet:
- SchneiderElectric-SquareD_46464_1-3_DATA.pdf
- Terminal Type:
- Line/Load Lug
- Catalog:
- SchneiderElectric-SquareD_32357_7_6_7_31_7_33_7_34_CAT.pdf
- Interrupting Rating:
- 14 kA at 600 VAC, 20 kA at 250 VDC
- Size:
- 4.09 Inch Width x 3.39 Inch Depth x 6.42 Inch Height
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 60 A, 14 kA, 3-Pole, H-Frame, Unit Mount, Line/Load Lug Terminal, 80% Continuous Current, Thermal Magnetic, Current Limiting, Molded Case Circuit Breaker
- Frame Type:
- H
- Current Rating:
- 60 A
- Series:
- HD
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Number of Poles:
- 3
- Prop 65 Warning:
- Yes
- Approval:
- UL, CSA, CE
- Country of Origin:
- Mexico
MSRP $1,088.00Surplus $546.00 -
Square D HDL36060U44X Molded Case Breakers (MCCBs)
MSRP $2,751.00Surplus $1,032.86SKU: C15-7154 Brand: Square D MPN: HDL36060U44X UPC: 78590145880 Shipping Weight: 4.55 lbs. Shipping Height: 6.00 In. Shipping Length: 9.00 In. Shipping Width: 8.00...- SKU:
- C15-7154
- TS PIK:
- 21108317
MSRP $2,751.00Surplus $1,032.86 -
Square D HDL36070 Molded Case Breakers (MCCBs)
MSRP $1,328.00Surplus $706.34SKU: C15-10718 Brand: Square D MPN: HDL36070 UPC: 78590183985 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-10718
- TS PIK:
- 120732133
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 70 A, 14 kA, 3-Pole, H-Frame, Unit Mount, Line/Load Lug Terminal, 80% Continuous Current, Thermal Magnetic, Current Limiting, Molded Case Circuit Breaker
- Current Rating:
- 70 A
- Number of Poles:
- 3
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Data Sheet:
- SchneiderElectric-SquareD_46476_1-3_DATA.pdf
- CAD Drawings:
- SchneiderElectric-SquareD_74672_1_CAD.pdf
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Maximum AC Voltage Rating:
- 600 V
- Terminal Type:
- Line/Load Lug
- Maximum DC Voltage Rating:
- 250 V
- Interrupting Rating:
- 14 kA at 600 VAC, 20 kA at 250 VDC
- Type:
- Thermal Magnetic, Current Limiting
- Series:
- HD
- Prop 65 Warning:
- Yes
- Size:
- 4.09 Inch Width x 3.39 Inch Depth x 6.42 Inch Height
- Catalog:
- SchneiderElectric-SquareD_32357_7_6_7_31_7_33_7_34_CAT.pdf
- Frame Type:
- H
- Country of Origin:
- Mexico
- Approval:
- UL, CSA, CE
MSRP $1,328.00Surplus $706.34 -
Square D HDL36080 Molded Case Breakers (MCCBs)
MSRP $1,328.00Surplus $706.34SKU: C15-10719 Brand: Square D MPN: HDL36080 UPC: 78590162316 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-10719
- TS PIK:
- 120731003
- Size:
- 4.09 Inch Width x 3.39 Inch Depth x 6.42 Inch Height
- Frame Type:
- H
- Prop 65 Warning:
- Yes
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Current Rating:
- 80 A
- Interrupting Rating:
- 14 kA at 600 VAC, 20 kA at 250 VDC
- Type:
- Thermal Magnetic, Current Limiting
- Terminal Type:
- Line/Load Lug
- Catalog:
- SchneiderElectric-SquareD_32357_7_6_7_31_7_33_7_34_CAT.pdf
- Maximum AC Voltage Rating:
- 600 V
- CAD Drawings:
- SchneiderElectric-SquareD_74672_1_CAD.pdf
- Data Sheet:
- SchneiderElectric-SquareD_46480_1-3_DATA.pdf
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Maximum DC Voltage Rating:
- 250 V
- Series:
- HD
- Number of Poles:
- 3
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 80 A, 14 kA, 3-Pole, H-Frame, Unit Mount, Line/Load Lug Terminal, 80% Continuous Current, Thermal Magnetic, Current Limiting, Molded Case Circuit Breaker
- Country of Origin:
- Mexico
- Approval:
- UL, CSA, CE
MSRP $1,328.00Surplus $706.34 -
Square D HDL36090 Molded Case Breakers (MCCBs)
MSRP $1,328.00Surplus $656.33SKU: C15-10720 Brand: Square D MPN: HDL36090 UPC: 78590195591 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-10720
- TS PIK:
- 120732531
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Series:
- HD
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Type:
- Thermal Magnetic, Current Limiting
- Prop 65 Warning:
- Yes
- Interrupting Rating:
- 14 kA at 600 VAC, 20 kA at 250 VDC
- Frame Type:
- H
- Data Sheet:
- SchneiderElectric-SquareD_46483_1-3_DATA.pdf
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 90 A, 14 kA, 3-Pole, H-Frame, Unit Mount, Line/Load Lug Terminal, 80% Continuous Current, Thermal Magnetic, Current Limiting, Molded Case Circuit Breaker
- Current Rating:
- 90 A
- Maximum AC Voltage Rating:
- 600 V
- Maximum DC Voltage Rating:
- 250 V
- Terminal Type:
- Line/Load Lug
- CAD Drawings:
- SchneiderElectric-SquareD_74672_1_CAD.pdf
- Size:
- 4.09 Inch Width x 3.39 Inch Depth x 6.42 Inch Height
- Catalog:
- SchneiderElectric-SquareD_32357_7_6_7_31_7_33_7_34_CAT.pdf
- Number of Poles:
- 3
- Country of Origin:
- Mexico
- Approval:
- UL, CSA, CE
MSRP $1,328.00Surplus $656.33 -
Square D HDL36100U31X Molded Case Breakers (MCCBs)
MSRP $1,236.88Surplus $333.95SKU: C15-16434 Brand: Square D MPN: HDL36100U31X UPC: 78590154832 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00...- SKU:
- C15-16434
- Current Rating:
- 100 A
- Prop 65 Warning:
- Yes
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Type:
- Electronic, Standard, Micrologic 3.2, LI, Current Limiting
- Interrupting Rating:
- 14 kA at 600 VAC, 20 kA at 250 VDC
- Terminal Type:
- Line/Load Lug
- Frame Type:
- H
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Maximum AC Voltage Rating:
- 600 V
- Maximum DC Voltage Rating:
- 250 V
- Catalog:
- SchneiderElectric-SquareD_32357_7_6_7_31_7_33-7_35_CAT.pdf
- Approval:
- UL, CSA, CE
- CAD Drawings:
- SchneiderElectric-SquareD_74672_1_CAD.pdf
- Data Sheet:
- SchneiderElectric-SquareD_46492_1-3_DATA.pdf
- Series:
- HD
- Number of Poles:
- 3
- Size:
- 4.09 Inch Width x 3.39 Inch Depth x 6.42 Inch Height
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 100 A, 14 kA, 3-Pole, H-Frame, Unit Mount, Line/Load Lug, Electronic, Standard, Micrologic 3.2, LI, Current Limiting, Molded Case Circuit Breaker
- Country of Origin:
- Mexico
MSRP $1,236.88Surplus $333.95 -
Square D HDL36110 Molded Case Breakers (MCCBs)
MSRP $1,482.00Surplus $985.53SKU: C15-10721 Brand: Square D MPN: HDL36110 UPC: 78590162319 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-10721
- TS PIK:
- 120736809
- Size:
- 4.09 Inch Width x 3.39 Inch Depth x 6.42 Inch Height
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Type:
- Thermal Magnetic, Current Limiting
- Prop 65 Warning:
- Yes
- Current Rating:
- 110 A
- Terminal Type:
- Line/Load Lug
- Frame Type:
- H
- Data Sheet:
- SchneiderElectric-SquareD_46495_1-3_DATA.pdf
- Number of Poles:
- 3
- Maximum AC Voltage Rating:
- 600 V
- CAD Drawings:
- SchneiderElectric-SquareD_74672_1_CAD.pdf
- Catalog:
- SchneiderElectric-SquareD_32357_7_6_7_31_7_33_7_34_CAT.pdf
- Maximum DC Voltage Rating:
- 250 V
- Approval:
- UL, CSA, CE
- Interrupting Rating:
- 14 kA at 600 VAC, 20 kA at 250 VDC
- Series:
- HD
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 110 A, 14 kA, 3-Pole, H-Frame, Unit Mount, Line/Load Lug Terminal, Thermal Magnetic, Current Limiting, Molded Case Circuit Breaker
- Country of Origin:
- Mexico
MSRP $1,482.00Surplus $985.53 -
Square D HDL36125 Molded Case Breakers (MCCBs)
MSRP $2,600.00Surplus $1,164.49SKU: C15-10722 Brand: Square D MPN: HDL36125 UPC: 78590195584 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-10722
- TS PIK:
- 120737055
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 125 A, 14 kA, 3-Pole, H-Frame, Unit Mount, Line/Load Lug Terminal, Thermal Magnetic, Current Limiting, Molded Case Circuit Breaker
- Frame Type:
- H
- Catalog:
- SchneiderElectric-SquareD_32357_7_6_7_31_7_33_7_34_CAT.pdf
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Type:
- Thermal Magnetic, Current Limiting
- Number of Poles:
- 3
- Current Rating:
- 125 A
- Interrupting Rating:
- 14 kA at 600 VAC, 20 kA at 250 VDC
- Series:
- HD
- Terminal Type:
- Line/Load Lug
- Maximum DC Voltage Rating:
- 250 V
- Maximum AC Voltage Rating:
- 600 V
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Data Sheet:
- SchneiderElectric-SquareD_46498_1-3_DATA.pdf
- CAD Drawings:
- SchneiderElectric-SquareD_74672_1_CAD.pdf
- Prop 65 Warning:
- Yes
- Size:
- 4.09 Inch Width x 3.39 Inch Depth x 6.42 Inch Height
- Country of Origin:
- Mexico
- Approval:
- UL, CSA, CE
MSRP $2,600.00Surplus $1,164.49 -
Square D HDL36125SAYP Miniature Circuit Breakers (MCBs)
MSRP $2,600.00Surplus $482.56SKU: U00-10531 Brand: Square D MPN: HDL36125SAYP UPC: Shipping Weight: 4.65 lbs. Shipping Height: 6.00 In. Shipping Length: 9.00 In. Shipping Width: 8.00 In...- SKU:
- U00-10531
MSRP $2,600.00Surplus $482.56 -
Square D HDM36050 Molded Case Breakers (MCCBs)
MSRP $950.00Surplus $416.55Square D HDM36050 Molded Case Breakers (MCCBs)​ ARCA SKU: C15-7152 Brand: Square D MPN: HDM36050 UPC: Shipping Weight: 4.20 lbs. Shipping Height: 6.00 In. Shipping...- SKU:
- C15-7152
- Country of Origin:
- United States
MSRP $950.00Surplus $416.55 -
Square D HDM36150 Other Circuit Breakers
MSRP $2,606.00Surplus $770.93SKU: C15-12001 Brand: Square D MPN: HDM36150 UPC: Shipping Weight: 4.25 lbs. Shipping Height: 6.00 In. Shipping Length: 9.00 In. Shipping Width: 8.00 In. Product...- SKU:
- C15-12001
- Number of Poles:
- 3
- Short Description:
- CIRCUIT BREAKER, POWERPACT H, 150A, 3 POLE, 600VAC, 14kA, LUGS, THERMAL MAGNETIC, 80%
- Voltage Rating:
- 600 VAC
- Voltage Rating:
- 600 V
MSRP $2,606.00Surplus $770.93 -
Square D HDP36150 Molded Case Breakers (MCCBs)
MSRP $2,600.00Surplus $936.00SKU: C15-10981 Brand: Square D MPN: HDP36150 UPC: 78590185425 Shipping Weight: 2.50 lbs. Shipping Height: 5.00 In. Shipping Length: 6.00 In. Shipping Width: 8.00 In...- SKU:
- C15-10981
MSRP $2,600.00Surplus $936.00 -
Square D HGA36020 Molded Case Breakers (MCCBs)
MSRP $1,575.00Surplus $623.16SKU: C15-7160 Brand: Square D MPN: HGA36020 UPC: 78590160133 Shipping Weight: 5.45 lbs. Shipping Height: 6.00 In. Shipping Length: 15.00 In. Shipping Width: 9.00 In...- SKU:
- C15-7160
- TS PIK:
- 116992224
- Series:
- HG
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Current Rating:
- 20 A
- Data Sheet:
- SchneiderElectric-SquareD_46576_1-3_DATA.pdf
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Number of Poles:
- 3
- CAD Drawings:
- SchneiderElectric-SquareD_73203_1_CAD.pdf
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 20 A, 18 kA, 3-Pole, H-Frame, ABC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Type:
- Thermal Magnetic, Current Limiting
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Prop 65 Warning:
- Yes
- Country of Origin:
- Mexico
- Trip Setting:
- 350 A (Hold), 750 A (Trip)
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Application:
- Distribution
- Approval:
- UL, CSA, CE
MSRP $1,575.00Surplus $623.16 -
Square D HGA36020YP Molded Case Breakers (MCCBs)
MSRP $1,652.00Surplus $424.75SKU: C15-7159 Brand: Square D MPN: HGA36020YP UPC: 60648628243 Shipping Weight: 6.00 lbs. Shipping Height: 6.00 In. Shipping Length: 15.00 In. Shipping Width: 9.00 In...- SKU:
- C15-7159
- TS PIK:
- 116992221
- Country of Origin:
- United States
MSRP $1,652.00Surplus $424.75 -
Square D HGA36025 Molded Case Breakers (MCCBs)
MSRP $1,536.15Surplus $912.63SKU: C15-10723 Brand: Square D MPN: HGA36025 UPC: 78590170056 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-10723
- TS PIK:
- 120731485
- Number of Poles:
- 3
- Prop 65 Warning:
- Yes
- Type:
- Thermal Magnetic, Current Limiting
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Current Rating:
- 25 A
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Data Sheet:
- SchneiderElectric-SquareD_46577_1-3_DATA.pdf
- Trip Setting:
- 350 A (Hold), 750 A (Trip)
- Series:
- HG
- Approval:
- UL, CSA, CE
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 25 A, 18 kA, 3-Pole, H-Frame, ABC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- CAD Drawings:
- SchneiderElectric-SquareD_73204_1_CAD.pdf
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Application:
- Distribution
- Country of Origin:
- Mexico
MSRP $1,536.15Surplus $912.63 -
Square D HGA36040 Molded Case Breakers (MCCBs)
MSRP $1,575.00Surplus $801.71SKU: C15-10725 Brand: Square D MPN: HGA36040 UPC: 78590160137 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-10725
- TS PIK:
- 120730564
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Type:
- Thermal Magnetic, Current Limiting
- Prop 65 Warning:
- Yes
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Data Sheet:
- SchneiderElectric-SquareD_46582_1-3_DATA.pdf
- CAD Drawings:
- SchneiderElectric-SquareD_73207_1_CAD.pdf
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 40 A, 18 kA, 3-Pole, H-Frame, ABC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Series:
- HG
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Current Rating:
- 40 A
- Number of Poles:
- 3
- Country of Origin:
- Mexico
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Trip Setting:
- 400 A (Hold), 850 A (Trip)
- Approval:
- UL, CSA, CE
- Application:
- Distribution
MSRP $1,575.00Surplus $801.71
Disclaimer: ARCA Supply is not an authorized distributor, reseller or representative of any manufacturer, brand or product listed. All product names, trademarks, brands and logos are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder. All items sold by ARCA Supply are covered under ARCA Supply's warranty and not the manufacturer warranty.
