Molded Case Breakers (MCCBs)
A molded case circuit breaker (MCCB) is a type of electrical breaker that is used to protect electrical systems from damage due to overloading, short-circuiting, or other electrical faults. MCCBs are commonly used in industrial and commercial electrical systems, and are designed to handle higher currents and voltage levels than residential miniature circuit breakers.
- Product
- Qty in Cart
- Price
-
Eaton HFD1020 Other Circuit Breakers 1P 20A EA
MSRP $736.23Surplus $284.70SKU: C15-1832 Brand: Eaton MPN: HFD1020 UPC: 78667917526 Shipping Weight: 1.50 lbs. Shipping Height: 2.00 In. Shipping Length: 7.00 In. Shipping Width: 5.00 In...- SKU:
- C15-1832
- Series:
- C
- Type:
- Molded Case
- Type:
- Thermal Magnetic
- Approval:
- UL
- Size:
- 1.38 Inch W x 3.38 Inch D x 6 Inch H
- Volts:
- 277 VAC at 50/60 Hz
- Volts:
- 125 VDC
- Amps:
- 32 A
- Poles:
- 1
- Interrupting Rating:
- 65 kA at 277 VAC
- Interrupting Rating:
- 10 kA at 125 VDC
- Terminal Type:
- Standard Pressure Load Terminal
- Frame Type:
- FD
- Maximum AC Voltage Rating:
- 277
- Maximum DC Voltage Rating:
- 125
- Short Description:
- 277 VAC 50/60 Hz, 125 VDC, 20 A, 65/10 kA, 1-Pole, Standard Pressure Load Terminal, FD Frame, Thermal Magnetic, Molded Case
- Catalog:
- Eaton_27487_V4T2_254_V4T2_255_V4T2_273_V4T2_274_CAT.pdf
- Installation/Operator:
- Eaton_00091_INST.pdf
- CAD Drawing:
- Eaton_41228_1_CAD.pdf
- TS PIK:
- 21506243
- Voltage Rating:
- 277 VAC at 50/60 Hz, 125 VDC
- Number of Poles:
- 1
- CAD Drawings:
- Eaton_41228_1_CAD.pdf
- Current Rating:
- 20 A
- Country of Origin:
- United States
MSRP $736.23Surplus $284.70 -

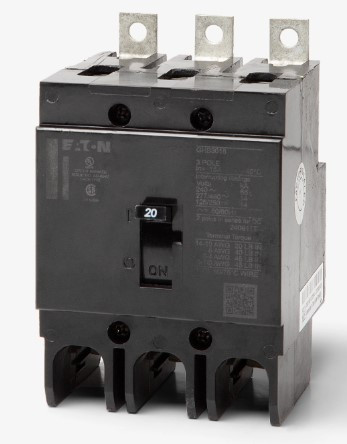

Eaton GHB3020 Molded Case Breakers (MCCBs) 3P 20A EA
MSRP $802.62Surplus $351.88SKU: C15-2562 Brand: Eaton MPN: GHB3020 UPC: 78667991126 Shipping Weight: 1.75 lbs. Shipping Height: 3.00 In. Shipping Length: 5.00 In. Shipping Width: 4.00 In...- SKU:
- C15-2562
- Series:
- C
- Type:
- Molded Case
- Type:
- Thermal Magnetic
- Approval:
- UL 489
- Approval:
- CSA C22.2
- Size:
- 3.8 Inch Width x 6.6 Inch Depth x 4 Inch Height
- Volts:
- 277/480 VAC at 50/60 Hertz
- Volts:
- 125/250 VDC
- Amps:
- 32 A
- Poles:
- 3
- Interrupting Rating:
- 14 kA at 480 VAC Star/277 VAC/125/250 VDC
- Terminal Type:
- Screw Type ClA Line and Load
- Frame Type:
- GHB
- Maximum AC Voltage Rating:
- 480 V
- Maximum DC Voltage Rating:
- 250 V
- Short Description:
- 277/480 VAC 50/60 Hz, 125 VDC, 20 A, 14 kA, 3-Pole, Steel Pressure Screw Line and Load Terminal, GHB Frame, Thermal Magnetic, Molded Case
- Catalog:
- Eaton_27487_V4T2_254_V4T2_255_V4T2_259_V4T2_260_CAT.pdf
- CAD Drawing:
- Eaton_41230_1_CAD.pdf
- TS PIK:
- 21517403
- Current Rating:
- 20 A
- Voltage Rating:
- 277/480 VAC
- Number of Poles:
- 3
- Installation/Operator:
- Eaton_00166_INST.pdf
- Country of Origin:
- United States
MSRP $802.62Surplus $351.88 -
Eaton GHB1020 Molded Case Breakers (MCCBs)
MSRP $190.38Surplus $105.30Eaton GHB1020 Molded Case Breakers (MCCBs)​ ARCA SKU: C15-1700 Brand: Eaton MPN: GHB1020 UPC: 78667902362 Shipping Weight: 0.60 lbs. Shipping Height: 4.00 In. Shipping...- SKU:
- C15-1700
- Series:
- C
- Type:
- Molded Case
- Type:
- Fixed Thermal Magnetic
- Approval:
- UL 489
- Approval:
- CSA C22.2
- Size:
- 1 Inch Width x 2.63 Inch Depth x 4 Inch Height
- Volts:
- 277/480 VAC 50/60 Hertz
- Volts:
- 125 VDC
- Amps:
- 32 A
- Poles:
- 1
- Interrupting Rating:
- 14 kA at 277 VAC
- Terminal Type:
- Screw Type ClA
- Frame Type:
- GHB
- Maximum AC Voltage Rating:
- 480 V
- Maximum DC Voltage Rating:
- 125 V
- TS PIK:
- 113894499
- Current Rating:
- 20 A
- Number of Poles:
- 1
- Voltage Rating:
- 277/480 VAC 50/60 Hertz, 125 VDC
- Short Description:
- 277/480 VAC 50/60 Hz, 125 VDC, 20 A, 14 kA, 1-Pole, Steel Pressure Screw Line and Load Terminal, GHB Frame, Thermal Magnetic, Molded Case, Non-Interchangeable Trip Circuit Breaker
- Installation/Operator:
- Eaton_00166_INST.pdf
- Catalog:
- Eaton_27487_V4T2_254_V4T2_255_V4T2_259_V4T2_260_CAT.pdf
- Country of Origin:
- United States
MSRP $190.38Surplus $105.30 -
Square D FH16020C Molded Case Breakers (MCCBs)
MSRP $392.12Surplus $234.00Square D FH16020C Molded Case Breakers (MCCBs)​ ARCA SKU: C15-6366 Brand: Square D MPN: FH16020C UPC: Shipping Weight: 2.30 lbs. Shipping Height: 5.00 In. Shipping...- SKU:
- C15-6366
- Voltage Rating:
- 240 VAC at 50/60 Hz, 480 VAC Star/277 VAC at 50/60 Hz (UL/CSA/NOM), 240/415 VAC at 50/60 Hz (IEC), 250 VDC
- Interrupting Rating:
- 65 kA at 240 VAC or 480 VAC Star/277 VAC (UL/CSA/NOM); 18 kA at 240 VAC, 10 kA at 415 VAC (IEC); 10 kA at 250 VDC
- Type:
- Molded Case
- Catalog:
- SchneiderElectric_00256_11_9_CAT.pdf
- Short Description:
- 277 VAC, 125 VDC, 20 A, 65/10 kA, 1-Pole, F-Frame, I-Line Mount, Thermal Magnetic, Molded Case Circuit Breaker
- Number of Poles:
- 1
- Current Rating:
- 20 A
- Series:
- FH
- Installation/Operator:
- SchneiderElectric-SquareD_00076_INST.pdf
- Data Sheet:
- SchneiderElectric-SquareD_04526_1_2_DATA.pdf
- Application:
- Power Distribution
- Trip Setting:
- 275 to 600 A
- Approval:
- UL, CSA
- Used On:
- Class 650/734/820 I-Line Panelboard/Switchboard
- Country of Origin:
- Mexico
MSRP $392.12Surplus $234.00 -
Square D EDB24020 Molded Case Breakers (MCCBs) EA
MSRP $536.00Surplus $183.30Square D EDB24020 Molded Case Breakers (MCCBs) EA​ ARCA SKU: C15-6358 Brand: Square D MPN: EDB24020 UPC: 785901879015 Shipping Weight: 2.20 lbs. Shipping Height: 3.00 In. Shipping...- SKU:
- C15-6358
- TS PIK:
- 113878697
- Short Description:
- 480 Star/277 VAC, 20 A, 18 kA, 2-Pole, E-Frame, Bolt-On Mount, Aluminum Lug Terminal, Thermal Magnetic, Branch, Miniature, Panelboard Circuit Breaker
- Series:
- EDB
- Number of Poles:
- 2
- Catalog:
- SchneiderElectric-SquareD_32357_9_31-9_33_CAT.pdf
- Current Rating:
- 20 A
- Data Sheet:
- SchneiderElectric-SquareD_45570_1_2_DATA.pdf
- Installation/Operator:
- SchneiderElectric-SquareD_01117_INST.pdf
- Interrupting Rating:
- 18 kA at 480 Star/277 VAC
- Voltage Rating:
- 480 Star/277 VAC
- Type:
- Thermal Magnetic, Branch, Miniature
- Country of Origin:
- Mexico
- Trip Setting:
- 270 A (Hold), 875 A (Trip)
- Approval:
- UL (Canada and US)
- Used On:
- NF Merchandised Panelboard
- Application:
- Lighting
- Installation:
- Bolt-On
MSRP $536.00Surplus $183.30 -
Eaton GHB2020 Molded Case Breakers (MCCBs) EA
MSRP $455.39Surplus $288.60Eaton GHB2020 Molded Case Breakers (MCCBs) EA​ ARCA SKU: C15-1698 Brand: Eaton MPN: GHB2020 UPC: 786679911204 Shipping Weight: 1.20 lbs. Shipping Height: 3.00 In. Shipping...- SKU:
- C15-1698
- Frame Type:
- GHB
- Voltage Rating:
- 480 VAC
- Current Rating:
- 20 A
- Number of Poles:
- 2
- Interrupting Rating:
- 65 kA at 240 VAC, 14 kA at 480Y/277 VAC
- Type:
- Thermal Magnetic, Non-Interchangeable Trip
- Size:
- 2.63 Inch Length x 2 Inch Width x 4 Inch Height
- Short Description:
- 277/480 VAC, 125/250 VDC, 20 A, 2-Pole, Bolt-On Mount, Thermal Magnetic, Non-Interchangeable Trip, Molded Case Circuit Breaker
- Catalog:
- EatonCorp_00600_V4T2_3_V4T2_267_V4T2_271_V4T2_272_CAT.pdf
- Installation/Operator:
- EatonCorp_00037_INST.pdf
- Specification/Technical:
- EatonCorp_00614_1-3_SPEC.pdf
- TS PIK:
- 21517397
- Series:
- GHB
- Approval:
- UL, CSA
- Mounting:
- Bolt-On
- Country of Origin:
- United States
MSRP $455.39Surplus $288.60 -
GENERAL ELECTRIC TEYD1020B Molded Case Breakers (MCCBs) 1P 20A
MSRP $396.98Surplus $138.45GENERAL ELECTRIC TEYD1020B Molded Case Breakers (MCCBs) 1P 20A​ ARCA SKU: C15-5880 Brand: GENERAL ELECTRIC MPN: TEYD1020B UPC: 78316446147 Shipping Weight: 0.85 lbs. Shipping...- SKU:
- C15-5880
- Voltage Rating:
- 120/240/277 VAC
- Catalog:
- ABBElectrificationProducts-ABBGEIndustrialSolutions_00542_6_9_6_65_CAT.pdf
- Current Rating:
- 20 A
- CAD Drawings:
- ABBElectrificationProducts-ABBGEIndustrialSolutions_01765_1_CAD.pdf
- Type:
- Thermal Magnetic, Compact
- Interrupting Rating:
- 25 kA at 277 VAC, 65 kA at 120/240 VAC
- Number of Poles:
- 1
- Short Description:
- 480 VAC Star/277 VAC, 20 A, 65 kA Interrupt, 1-Pole, 14 to 10 AWG Aluminum/Copper Load Lug Terminal, 1" Bolt-On Mount, Non-Interchangeable Trip, Compact, Thermal Magnetic, Industrial Molded Case Circuit Breaker
- Approval:
- UL
- Country of Origin:
- United States
MSRP $396.98Surplus $138.45 -
Schneider Electric HOMT2020220 Miniature Circuit Breakers (MCBs) HOMT 2P 20A/20A 120V 50/60Hz 2Ph EA
MSRP $120.00Surplus $84.00Schneider Electric HOMT2020220 Miniature Circuit Breakers (MCBs) HOMT 2P 20A/20A 120V 50/60Hz 2Ph EA​ ARCA SKU: C15-2183 Brand: Schneider Electric MPN: HOMT2020220 UPC: 785901101024 Shipping...- SKU:
- C15-2183
- Type:
- Standard
- Type:
- Common Trip
- Approval:
- UL
- Size:
- 2 Inch Width x 2.98 Inch Depth x 3.13 Inch Height
- Volts:
- 120/240 VAC
- Amps:
- 32 A
- Used On:
- Load Center
- Poles:
- 2
- Mounting:
- Plug-On
- Interrupting Rating:
- 10 kA
- Terminal Type:
- Box Lug
- Wire Size:
- 14 to 8 AWG (Aluminum/Copper)
- Short Description:
- 120/240 VAC, 20 A, 10 kA Interrupt, 2-Pole, 14 to 8 AWG Aluminum/Copper, Plug-In Mount, Box Lug Terminal, Quad Tandem
- Catalog:
- SchneiderElectric_00257_1_20_7_23_CAT.pdf
- Installation/Operator:
- SchneiderElectric-SquareD_00099_INST.pdf
- TS PIK:
- 111082992
- Current Rating:
- 20 A
- Data Sheet:
- SchneiderElectric-SquareD_13510_1_2_DATA.pdf
- Voltage Rating:
- 120/240 VAC
- Number of Poles:
- 2
- Series:
- HOMT
- Country of Origin:
- United States
MSRP $120.00Surplus $84.00 -
Square D HLA36020 Molded Case Breakers (MCCBs) EA
MSRP $2,993.00Surplus $1,393.84SKU: C15-10751 Brand: Square D MPN: HLA36020 UPC: 78590150728 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-10751
- TS PIK:
- 120736720
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Type:
- Thermal Magnetic, Current Limiting
- Number of Poles:
- 3
- Current Rating:
- 20 A
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- CAD Drawings:
- SchneiderElectric_29697_1_CAD.pdf
- Data Sheet:
- SchneiderElectric-SquareD_46860_1-3_DATA.pdf
- Interrupting Rating:
- 50 kA at 600 VAC, 20 kA at 250 VDC
- Prop 65 Warning:
- Yes
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 20 A, 50 kA, 3-Pole, H-Frame, ABC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Series:
- HL
- Country of Origin:
- Mexico
- Application:
- Distribution
- Trip Setting:
- 350 A (Hold), 750 A (Trip)
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Approval:
- UL, CSA, CE
MSRP $2,993.00Surplus $1,393.84 -
Crouse-Hinds HFD1020L Molded Case Breakers (MCCBs) 1P 20A
MSRP $736.23Surplus $189.67Crouse-Hinds HFD1020L Molded Case Breakers (MCCBs) 1P 20A​ ARCA SKU: C15-5409 Brand: Crouse-Hinds MPN: HFD1020L UPC: 78667939824 Shipping Weight: 1.55 lbs. Shipping Height: 4.00 In...- SKU:
- C15-5409
- Voltage Rating:
- 277 VAC 50/60 Hertz, 125 VDC
- Terminal Type:
- Line and Load
- Interrupting Rating:
- 65 kA at 277 VAC, 10 kA at 125 VDC (UL), 65 kA at 220/240 VAC, 10 kA at 125 VDC (IEC)
- Maximum DC Voltage Rating:
- 125 V
- Type:
- Fixed Thermal Magnetic, Molded Case
- Size:
- 1.38 Inch Width x 3.88 Inch Depth x 6 Inch Height
- Number of Poles:
- 1
- Installation/Operator:
- Eaton_00091_INST.pdf
- Data Sheet:
- Eaton_07831_1-12_DATA.pdf
- Catalog:
- EatonCorp-CutlerHammer_00123_V4T2_254-V4T2_290_CAT.pdf
- Short Description:
- EATON SERIES C COMPLETE MOLDED CASE CIRCUIT BREAKER, F-FRAME, HFD, COMPLETE BREA
- CAD Drawings:
- Eaton_41228_1_CAD.pdf
- Current Rating:
- 20 A
- Maximum AC Voltage Rating:
- 277 V
- Frame Type:
- FD
- Approval:
- UL 489, CSA C22.2
- Country of Origin:
- Dominican Republic
MSRP $736.23Surplus $189.67 -
GENERAL ELECTRIC THED113020 Molded Case Breakers (MCCBs) EA
MSRP $1,069.25Surplus $195.00GENERAL ELECTRIC THED113020 Molded Case Breakers (MCCBs) EA​ ARCA SKU: C15-3082 Brand: GENERAL ELECTRIC MPN: THED113020 UPC: 78316413867 Shipping Weight: 1.45 lbs. Shipping Height: 4...- SKU:
- C15-3082
- TS PIK:
- 112128663
- Installation/Operator:
- ABBElectrificationProducts-ABBGEIndustrialSolutions_00116_INST.pdf
- CAD Drawings:
- ABBElectrificationProducts-ABBGEIndustrialSolutions_04182_1_CAD.pdf
- Short Description:
- 277 VAC, 20 A, 65 kA, 1-Pole, Copper/Aluminum Load Lug Terminal, Thermal Magnetic, Non-Interchangeable, Molded Case Circuit Breaker
- Catalog:
- ABBElectrificationProducts-ABBGEIndustrialSolutions_01912_6_67_CAT.pdf
- Terminal Type:
- Copper/Aluminum Load Lug
- Current Rating:
- 20 A
- Number of Poles:
- 1
- Type:
- Thermal Magnetic
- Country of Origin:
- United States
MSRP $1,069.25Surplus $195.00 -
GE THHQB2120 Molded Case Breakers (MCCBs)
MSRP $238.88Surplus $55.57SKU: C15-5814 Brand: GE MPN: THHQB2120 UPC: 78316411834 Shipping Weight: 0.65 lbs. Shipping Height: 3.25 In. Shipping Length: 3.50 In. Shipping Width: 2.00 In...- SKU:
- C15-5814
- Terminal Type:
- Bolt-On
- CAD Drawings:
- ABBElectrificationProducts-ABBGEIndustrialSolutions_00490_1_CAD.pdf
- Frame Type:
- Q-Line
- Catalog:
- ABBElectrificationProducts-ABBGEIndustrialSolutions_00015_6_8_6_38_CAT.pdf
- Installation/Operator:
- ABBElectrificationProducts-ABBGEIndustrialSolutions_00004_INST.pdf
- Short Description:
- 120/240 VAC, 20 A, 22 kA, 2-Pole, 14 to 8 AWG Copper/12 to 8 AWG Aluminum, Bolt-On, Fixed Thermal Magnetic, Internal Common Trip, Circuit Breaker
- Interrupting Rating:
- 22 kA at 120/240 VAC
- Number of Poles:
- 2
- Current Rating:
- 20 A
- Maximum AC Voltage Rating:
- 240 V
- Voltage Rating:
- 120/240 VAC
- Type:
- Thermal Magnetic, Compact
- Approval:
- UL
- Country of Origin:
- United States
MSRP $238.88Surplus $55.57 -
Eaton FD3020 Molded Case Breakers (MCCBs)
MSRP $1,761.89Surplus $565.50Eaton FD3020 Molded Case Breakers (MCCBs)​ ARCA SKU: C15-2142 Brand: Eaton MPN: FD3020 UPC: 786679305621 Shipping Weight: 5.00 lbs. Shipping Height: 6.00 In. Shipping...- SKU:
- C15-2142
- Series:
- C
- Type:
- Molded Case
- Type:
- Thermal Magnetic
- Approval:
- UL 489
- Approval:
- CSA C22.2
- Size:
- 4.13 Inch Width x 3.38 Inch Depth x 6 Inch Height
- Volts:
- 600 VAC at 50/60 Hertz
- Volts:
- 250 VDC
- Amps:
- 32 A
- Poles:
- 3
- Interrupting Rating:
- 65 kA at 240 VAC
- Interrupting Rating:
- 35 kA at 480 Volt AC at 50/60 Hertz
- Interrupting Rating:
- 18 kA at 600 Volt AC at 50/60 Hertz
- Interrupting Rating:
- 10 kA at 250 Volt DC
- Terminal Type:
- Standard Pressure Load
- Frame Type:
- FD
- Maximum AC Voltage Rating:
- 600 V
- Maximum DC Voltage Rating:
- 250 V
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 20 A, 35/10 kA, 3-Pole, Standard Pressure Load Terminal, FD Frame, Thermal Magnetic, Molded Case
- Catalog:
- Eaton_27487_V4T2_254_V4T2_255_V4T2_273_V4T2_274_CAT.pdf
- Data Sheet:
- Eaton_07831_1-3_8_9_DATA.pdf
- Installation/Operator:
- Eaton_00091_INST.pdf
- CAD Drawing:
- Eaton_21586_1_CAD.pdf
- TS PIK:
- 21508830
- Current Rating:
- 20 A
- CAD Drawings:
- Eaton_21586_1_CAD.pdf
- Voltage Rating:
- 600 VAC
- Number of Poles:
- 3
- Country of Origin:
- Dominican Republic
MSRP $1,761.89Surplus $565.50 -
GENERAL ELECTRIC THED136020WL Molded Case Breakers (MCCBs)
MSRP $2,161.25Surplus $702.00SKU: C15-6984 Brand: GENERAL ELECTRIC MPN: THED136020WL UPC: 78316406276 Shipping Weight: 4.25 lbs. Shipping Height: 5.00 In. Shipping Length: 9.00 In. Shipping...- SKU:
- C15-6984
- TS PIK:
- 112126262
- Voltage Rating:
- 120/240/277/480 VAC, 125/250 VDC
- Terminal Type:
- Copper/Aluminum Line and Load Lug
- Current Rating:
- 20 A
- CAD Drawings:
- ABBElectrificationProducts-ABBGEIndustrialSolutions_01785_1_CAD.pdf
- Number of Poles:
- 3
- Maximum DC Voltage Rating:
- 250 V
- Maximum AC Voltage Rating:
- 480 V
- Frame Type:
- E150
- Type:
- Thermal Magnetic
- Short Description:
- 600 VAC, 20 A, 65 kA Interrupt, 3-Pole, Aluminum/Copper Line/Load Lug Terminal, E150-Frame, Non-Interchangeable Trip, Core E/High Tier, Thermal Magnetic, Industrial Molded Case Circuit Breaker
- Interrupting Rating:
- 25 kA at 277/480 VAC, 65 kA at 120/240 VAC, 10 kA at 125/250 VDC
- Approval:
- UL
- Country of Origin:
- United States
MSRP $2,161.25Surplus $702.00 -
GENERAL ELECTRIC THQC1120GF Molded Case Breakers (MCCBs)
MSRP $366.02Surplus $97.50GENERAL ELECTRIC THQC1120GF Molded Case Breakers (MCCBs)​ ARCA SKU: C15-6973 Brand: GENERAL ELECTRIC MPN: THQC1120GF UPC: Shipping Weight: 0.60 lbs. Shipping Height: 2.00 In...- SKU:
- C15-6973
- Interrupting Rating:
- 10 kA
- Current Rating:
- 20 A
- CAD Drawings:
- ABBElectrificationProducts-ABBGEIndustrialSolutions_04205_1_CAD.pdf
- Number of Poles:
- 1
- Catalog:
- ABBElectrificationProducts-ABBGEIndustrialSolutions_01912_6_41_CAT.pdf
- Terminal Type:
- Lug
- Voltage Rating:
- 120/240 VAC
- Series:
- THQC
- Short Description:
- 120/240 VAC, 20 A, 1-Pole, 10 kA, 14 to 8 AWG Copper, 12 to 8 AWG Aluminum, Cable-In/Out Mount, Molded Case, Thermal Magnetic, Self-Test, Ground Fault Circuit Breaker
- Type:
- Molded Case, Fixed Thermal Magnetic, Non-Interchangeable Trip
- Mounting:
- DIN Rail Mount
- Country of Origin:
- United States
MSRP $366.02Surplus $97.50 -
Square D EGB34020 Molded Case Breakers (MCCBs) EA
MSRP $1,131.00Surplus $351.00SKU: C15-4888 Brand: Square D MPN: EGB34020 UPC: 78590107298 Shipping Weight: 3.70 lbs. Shipping Height: 5.00 In. Shipping Length: 10.00 In. Shipping Width: 6.00 In...- SKU:
- C15-4888
- Type:
- Thermal Magnetic, Branch, Miniature
- Voltage Rating:
- 480 Star/277 VAC
- Current Rating:
- 20 A
- Number of Poles:
- 3
- Interrupting Rating:
- 35 kA at 480 Star/277 VAC
- Used On:
- NF Merchandised Panelboard
- Short Description:
- 480 Star/277 VAC, 20 A, 35 kA, 3-Pole, E-Frame, Bolt-On Mount, Aluminum Lug Terminal, Thermal Magnetic, Branch, Miniature, Panelboard Circuit Breaker
- Catalog:
- SchneiderElectric-SquareD_32357_9_31-9_33_CAT.pdf
- Data Sheet:
- SchneiderElectric-SquareD_45673_1_2_DATA.pdf
- Installation/Operator:
- SchneiderElectric-SquareD_01117_INST.pdf
- TS PIK:
- 115345452
- Series:
- EGB
- Country of Origin:
- Mexico
- Approval:
- UL (Canada and US)
- Application:
- Lighting
- Trip Setting:
- 270 A (Hold), 875 A (Trip)
- Installation:
- Bolt-On
MSRP $1,131.00Surplus $351.00 -
Eaton EHD1020 Molded Case Breakers (MCCBs) EHD 1P 20A 480V 50/60Hz 1Ph F Frame
MSRP $251.40Surplus $179.40Eaton EHD1020 Molded Case Breakers (MCCBs) EHD 1P 20A 480V 50/60Hz 1Ph F Frame​ ARCA SKU: C15-1855 Brand: Eaton MPN: EHD1020 UPC: 786679317327 Shipping Weight: 1.40 Shipping Height: 2.00...- SKU:
- C15-1855
- Series:
- C
- Type:
- Molded Case
- Type:
- Thermal Magnetic
- Approval:
- UL 489
- Approval:
- CSA C22.2
- Size:
- 1.38 Inch Width x 3.38 Inch Depth x 6 Inch Height
- Volts:
- 277 VAC at 50/60 Hertz
- Volts:
- 125 VDC
- Amps:
- 32 A
- Poles:
- 1
- Interrupting Rating:
- 14 kA at 277 VAC
- Interrupting Rating:
- 10 kA at 125 Volt DC
- Terminal Type:
- Standard Pressure Load
- Frame Type:
- FD
- Maximum AC Voltage Rating:
- 277 V
- Maximum DC Voltage Rating:
- 125 V
- Short Description:
- 277 VAC 50/60 Hz, 125 VDC, 20 A, 14/10 kA, 1-Pole, Standard Pressure Load Terminal, EHD Frame, Thermal Magnetic, Molded Case
- Catalog:
- Eaton_27487_V4T2_254_V4T2_255_V4T2_273_V4T2_274_CAT.pdf
- Data Sheet:
- Eaton_40755_1-4_DATA.pdf
- Installation/Operator:
- Eaton_00091_INST.pdf
- Voltage Rating:
- 277 VAC, 125 VDC
- Number of Poles:
- 1
- Current Rating:
- 20 A
- Country of Origin:
- Dominican Republic
- Libra Liquidity Lot:
- Libra Auction Lot
MSRP $251.40Surplus $179.40 -
GENERAL ELECTRIC TED134020WL Molded Case Breakers (MCCBs) EA
MSRP $1,428.38Surplus $456.30SKU: C15-6928 Brand: GENERAL ELECTRIC MPN: TED134020WL UPC: 78316406302 Shipping Weight: 4.15 lbs. Shipping Height: 3.40 In. Shipping Length: 6.55 In. Shipping...- SKU:
- C15-6928
- TS PIK:
- 115927795
- Maximum AC Voltage Rating:
- 600 V
- Terminal Type:
- Copper/Aluminum Line and Load Lug
- Frame Type:
- E150
- Catalog:
- ABBElectrificationProducts-ABBGEIndustrialSolutions_00017_6_34_6_35_CAT.pdf
- Voltage Rating:
- 120/240/277/480/600 VAC, 125/250/500 VDC
- Interrupting Rating:
- 14 kA at 600 VAC, 18 kA at 120/240/277/480 VAC, 10 kA at 125/250/500 VDC
- Current Rating:
- 20 A
- Short Description:
- 600 VAC, 20 A, 5 kA, 3-Pole, Copper/Aluminum Line and Load Lug, TED Frame, Molded Case, Thermal Magnetic, Molded Case Circuit Breaker
- Maximum DC Voltage Rating:
- 500 V
- Type:
- Thermal Magnetic
- Number of Poles:
- 3
- Approval:
- UL
- Country of Origin:
- United States
MSRP $1,428.38Surplus $456.30 -
Eaton FD1020 Molded Case Breakers (MCCBs) EA
MSRP $609.49Surplus $218.40SKU: C15-6775 Brand: Eaton MPN: FD1020 UPC: 78667931211 Shipping Weight: 1.55 lbs. Shipping Height: 2.00 In. Shipping Length: 5.00 In. Shipping Width: 7.00 In...- SKU:
- C15-6775
- TS PIK:
- 21509019
- Maximum DC Voltage Rating:
- 125
- Short Description:
- 277 VAC 50/60 Hz, 125 VDC, 20 A, 35/10 kA, 1-Pole, Standard Pressure Load Terminal, FD Frame, Thermal Magnetic, Molded Case, Non-Interchangeable Trip Circuit Breaker
- Frame Type:
- FD
- Size:
- 1.38 Inch W x 3.38 Inch D x 6 Inch H
- Catalog:
- Eaton_27487_V4T2_254_V4T2_255_V4T2_273_V4T2_274_CAT.pdf
- Series:
- C, FD
- Type:
- Molded Case, Thermal Magnetic
- CAD Drawings:
- Eaton_41226_1_CAD.pdf
- Terminal Type:
- Standard Pressure Load Terminal
- Maximum AC Voltage Rating:
- 277
- Current Rating:
- 20 A
- Number of Poles:
- 1
- Voltage Rating:
- 277 VAC at 50/60 Hz, 125 VDC
- Interrupting Rating:
- 35 kA at 277 VAC, 10 kA at 125 VDC
- Data Sheet:
- Eaton_07831_1-5_DATA.pdf
- Installation/Operator:
- Eaton_00091_INST.pdf
- Approval:
- UL
- Country of Origin:
- Dominican Republic
MSRP $609.49Surplus $218.40 -
Siemens ED41B020 Molded Case Breakers (MCCBs) 20A 277V
MSRP $543.00Surplus $141.38Siemens ED41B020 Molded Case Breakers (MCCBs) 20A 277V​ ARCA SKU: C15-6092 Brand: Siemens MPN: ED41B020 UPC: 78364320909 Shipping Weight: 3.90 lbs. Shipping Height: 4.00 In...- SKU:
- C15-6092
- TS PIK:
- 115270815
- Terminal Type:
- Load Lug
- Series:
- ED4
- Catalog:
- SiemensAG_01698_17_78-17_80_CAT.pdf
- Installation/Operator:
- SiemensAG_00313_INST.pdf
- Maximum AC Voltage Rating:
- 277 V
- Short Description:
- 120/277 VAC 50/60 Hz, 125 VDC, 20 A at 40 Deg C, 22 kA, 1-Pole, 14 to 10 AWG Copper/12 to 10 AWG Aluminum, Load Lug Terminal, ED Frame, Thermal Magnetic Trip Unit, Molded Case Circuit Breaker
- Voltage Rating:
- 120/277 VAC, 125 VDC
- Type:
- Molded Case, Thermal Magnetic
- Maximum DC Voltage Rating:
- 125 V
- Current Rating:
- 20 A
- Size:
- 1 Inch Width x 4.56 Inch Depth x 6.35 Inch Height
- Frame Type:
- ED
- Number of Poles:
- 1
- Interrupting Rating:
- 65 kA at 120 VAC, 22 kA at 277 VAC, 30 kA at 125 VDC (UL 489)
- Country of Origin:
- Mexico
- Approval:
- UL 489, CSA
MSRP $543.00Surplus $141.38 -
Eaton NZMH2-A20-BT-NA Molded Case Breakers (MCCBs) EA
MSRP $2,512.08Surplus $460.09SKU: C15-9394 Brand: Eaton MPN: NZMH2-A20-BT-NA UPC: 1508107444 Shipping Weight: 6.15 lbs. Shipping Height: 7.00 In. Shipping Length: 9.00 In. Shipping Width: 5.00 In...- SKU:
- C15-9394
- TS PIK:
- 124501788
- Series:
- NZMH2
- Short Description:
- 600 VAC Star/347 VAC, 480 V, 750 VDC, 20 A, 85 to 150 kA, 3-Pole, Front Frame ClA/Box Terminal, NZM2 Frame, Thermal Magnetic, Molded Case Circuit Breaker
- Current Rating:
- 20 A
- Interrupting Rating:
- 85 to 150 kA
- Maximum DC Voltage Rating:
- 750
- Data Sheet:
- Eaton-Moeller_01178_1-10_DATA.pdf
- Terminal Type:
- Front Frame ClA, Box
- Maximum AC Voltage Rating:
- 600
- Type:
- Thermal Magnetic, Adjustable Thermal
- Frame Type:
- NZM2
- Size:
- 105 Millimeter Width x 149 Millimeter Depth x 184 Millimeter Height
- Voltage Rating:
- 600 VAC Star/347 V, 480 V, 750 VDC
- Catalog:
- Eaton-Moeller_00013_151_CAT.pdf
- Installation/Operator:
- Eaton_00324_INST.pdf
- Number of Poles:
- 3
- Country of Origin:
- Romania
- Approval:
- UL489, CSA C22.2, CE
MSRP $2,512.08Surplus $460.09 -
Crouse-Hinds EHD3020 Molded Case Breakers (MCCBs)
MSRP $967.56Surplus $409.50SKU: C15-5494 Brand: Crouse-Hinds MPN: EHD3020 UPC: Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In. Product...- SKU:
- C15-5494
- TS PIK:
- 21509134
- Maximum DC Voltage Rating:
- 250 V
- Size:
- 4.13 Inch Width x 3.38 Inch Depth x 6 Inch Height
- Type:
- Molded Case, Fixed Thermal Magnetic
- Maximum AC Voltage Rating:
- 480 V
- Catalog:
- Eaton_27487_V4T2_254_V4T2_255_V4T2_273_V4T2_274_CAT.pdf
- Data Sheet:
- Eaton_40755_1-4_DATA.pdf
- Interrupting Rating:
- 18 kA at 240 VAC, 14 kA at 480 VAC
- Current Rating:
- 20 A
- Series:
- C, EHD
- Number of Poles:
- 3
- Short Description:
- 480 VAC 50/60 Hz, 250 VDC, 20 A, 14/10 kA, 3-Pole, Standard Pressure Load Terminal, EHD Frame, Thermal Magnetic, Molded Case, Non-Interchangeable Trip Circuit Breaker
- Installation/Operator:
- Eaton_00091_INST.pdf
- Frame Type:
- F
- Voltage Rating:
- 480 VAC 50/60 Hertz, 250 VDC
- Country of Origin:
- Dominican Republic
- Approval:
- CSA C22.2, UL 489
MSRP $967.56Surplus $409.50 -
Crouse-Hinds FDB3020 Molded Case Breakers (MCCBs)
MSRP $1,133.39Surplus $692.16SKU: C15-7250 Brand: Crouse-Hinds MPN: FDB3020 UPC: 78667930584 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-7250
- TS PIK:
- 21508852
- Maximum DC Voltage Rating:
- 250 V
- Catalog:
- EatonCorp-CutlerHammer_00123_V4T2_254-V4T2_290_CAT.pdf
- Size:
- 4.13 Inch Width x 3.88 Inch Depth x 6 Inch Height
- Short Description:
- EATON SERIES C COMPLETE MOLDED CASE CIRCUIT BREAKER, F-FRAME, FDB, COMPLETE BREA
- Data Sheet:
- Eaton_07831_1-12_DATA.pdf
- Current Rating:
- 20 A
- Frame Type:
- FD
- Type:
- Fixed Thermal Magnetic, Molded Case
- Terminal Type:
- Load
- Interrupting Rating:
- 18 kA at 240 VAC, 14 kA at 480/600 VAC, 10 kA at 250 VDC (UL), 18 kA at 220/240 VAC, 14 kA at 380/415/440/500 VAC, 10 kA at 250 VDC (IEC)
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Number of Poles:
- 3
- Installation/Operator:
- Eaton_00091_INST.pdf
- Maximum AC Voltage Rating:
- 600 V
- Approval:
- UL 489, CSA C22.2
- Country of Origin:
- Dominican Republic
MSRP $1,133.39Surplus $692.16 -
Eaton EGH3020FFG Molded Case Breakers (MCCBs) EGH 3P 20A 480V 50/60Hz 3Ph EG Frame EA
MSRP $1,352.48Surplus $272.00SKU: C15-3356 Brand: Eaton MPN: EGH3020FFG UPC: 782116131228 Shipping Weight: 2.70 lbs. Shipping Height: 4.00 In. Shipping Length: 7.00 In. Shipping Width: 4.00 In...- SKU:
- C15-3356
- Series:
- G
- Type:
- Molded Case
- Type:
- Fixed Thermal Magnetic
- Approval:
- UL
- Approval:
- CSA
- Approval:
- CE
- Size:
- 3 Inch Width x 2.99 Inch Depth x 5.5 Inch Height
- Volts:
- 415/480 VAC at 50/60 Hertz
- Amps:
- 32 A
- Poles:
- 3
- Interrupting Rating:
- 70 kA at 415 VAC
- Interrupting Rating:
- 65 kA at 480 Volt AC
- Interrupting Rating:
- 10 kA at 250 Volt DC
- Terminal Type:
- Standard Line and Load
- Frame Type:
- EG
- Maximum AC Voltage Rating:
- 480 V
- Maximum DC Voltage Rating:
- 250 V
- Short Description:
- 415/480 VAC 50/60 Hz, 20 A, 70/65 kA, 3-Pole, Standard Line and Load Terminal, EG Frame, Fixed Thermal, Fixed Magnetic, Molded Case
- Catalog:
- Eaton_27487_V4T2_142-V4T2_144_V4T2_153_V4T2_154_V4T2_158_CAT.pdf
- TS PIK:
- 120097574
- Number of Poles:
- 3
- Voltage Rating:
- 415/480 VAC
- Current Rating:
- 20 A
- Country of Origin:
- Dominican Republic
MSRP $1,352.48Surplus $272.00 -
Eaton EHD1020V Molded Case Breakers (MCCBs) EA
MSRP $340.00Surplus $24.51Eaton EHD1020V Molded Case Breakers (MCCBs) EA​ ARCA SKU: C15-9707 Brand: Eaton MPN: EHD1020V UPC: 78667907781 Shipping Weight: 1.65 lbs. Shipping Height: 7.00 In. Shipping...- SKU:
- C15-9707
- TS PIK:
- 115512937
- Terminal Type:
- Steel Standard Pressure Load
- Size:
- 1.38 Inch Width x 3.88 Inch Depth x 6 Inch Height
- Frame Type:
- FD
- Current Rating:
- 20 A
- Interrupting Rating:
- 4 kA at 277 VAC, 10 kA at 125 VDC (UL), 14 kA at 380/415 VAC, 10 kA at 125 VDC (IEC)
- Data Sheet:
- Eaton_07831_1-12_DATA.pdf
- Voltage Rating:
- 277 VAC 50/60 Hertz, 125 VDC
- Type:
- Fixed Thermal Magnetic, Molded Case
- Number of Poles:
- 1
- Maximum DC Voltage Rating:
- 125 V
- CAD Drawings:
- Eaton_57534_1_CAD.pdf
- Maximum AC Voltage Rating:
- 277 V
- Installation/Operator:
- Eaton_00091_INST.pdf
- Catalog:
- EatonCorp-CutlerHammer_00123_V4T2_254-V4T2_290_CAT.pdf
- Country of Origin:
- Dominican Republic
- Approval:
- CSA C22.2
MSRP $340.00Surplus $24.51 -
Eaton EHD2020L Molded Case Breakers (MCCBs) EA
MSRP $1,020.60Surplus $267.98SKU: C15-11035 Brand: Eaton MPN: EHD2020L UPC: Shipping Weight: 2.65 lbs. Shipping Height: 3.00 In. Shipping Length: 7.00 In. Shipping Width: 5.00 In. Product...- SKU:
- C15-11035
- TS PIK:
- 21510801
- Frame Type:
- FD
- Voltage Rating:
- 480 VAC, 250 VDC (UL, IEC)
- Current Rating:
- 20 A
- Number of Poles:
- 2
- CAD Drawings:
- Eaton_21583_1_CAD.pdf
- Terminal Type:
- Standard Pressure Line and Load Terminal
- Installation/Operator:
- Eaton_00091_INST.pdf
- Series:
- C, EHD
- Maximum DC Voltage Rating:
- 250 V
- Type:
- Molded Case, Thermal Magnetic, Non-Interchangeable
- Catalog:
- Eaton_46579_V4T2_254-V4T2_290_CAT.pdf
- Short Description:
- 480 VAC 50/60 Hz, 250 VDC, 20 A, 14 kA, 2-Pole, Line/Load Terminal, EHD Frame, Non-Interchangeable Trip Thermal Magnetic, Molded Case Circuit Breaker
- Maximum AC Voltage Rating:
- 480 V
- Interrupting Rating:
- 14 kA at 480 VAC, 10 kA at 250 VDC (UL, IEC)
- Size:
- 2.75 Inch Width x 3.38 Inch Depth x 6 Inch Height
- Approval:
- UL 489, CSA C22.2
- Country of Origin:
- Dominican Republic
MSRP $1,020.60Surplus $267.98 -
Eaton FD2020L Molded Case Breakers (MCCBs) 2P
MSRP $1,509.43Surplus $302.21SKU: C15-6777 Brand: Eaton MPN: FD2020L UPC: 78667985063 Shipping Weight: 3.15 lbs. Shipping Height: 4.00 In. Shipping Length: 8.00 In. Shipping Width: 6.00 In...- SKU:
- C15-6777
- TS PIK:
- 21011302
- Maximum DC Voltage Rating:
- 250 V
- Installation/Operator:
- Eaton_00091_INST.pdf
- Data Sheet:
- Eaton_07831_1-12_DATA.pdf
- Type:
- Fixed Thermal Magnetic, Molded Case
- Current Rating:
- 20 A
- Maximum AC Voltage Rating:
- 600 V
- CAD Drawings:
- Eaton_21585_1_CAD.pdf
- Number of Poles:
- 2
- Catalog:
- EatonCorp-CutlerHammer_00123_V4T2_254-V4T2_290_CAT.pdf
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Size:
- 2.75 Inch Width x 3.38 Inch Depth x 6 Inch Height
- Terminal Type:
- Line and Load
- Frame Type:
- FD
- Interrupting Rating:
- 65 kA at 240 VAC, 35 kA at 480 VDC, 18 kA at 600 VAC, 10 kA at 250 VDC (UL), 65 kA at 220/240 VAC, 35 kA at 380/415/440 VDC, 18 kA at 500 VAC, 10 kA at 250 VDC (IEC)
- Country of Origin:
- Dominican Republic
- Approval:
- UL 489, CSA C22.2
MSRP $1,509.43Surplus $302.21 -
Eaton FDB2020 Molded Case Breakers (MCCBs) FDB 2P 20A 600V 50/60Hz 2Ph F Frame
MSRP $774.00Surplus $585.20SKU: C15-3988 Brand: Eaton MPN: FDB2020 UPC: 786679312377 Shipping Weight: 2.75 lbs. Shipping Height: 4.00 In. Shipping Length: 6.00 In. Shipping Width: 3.00 In...- SKU:
- C15-3988
- Approval:
- UL 489
- Approval:
- CSA C22.2
- Amps:
- 20 A
- Frame:
- FD
- Interrupting Rating:
- 18 kA at 240 VAC
- Interrupting Rating:
- 14 Kiloamp at 480/600 Volt AC
- Interrupting Rating:
- 10 Kiloamp at 250 Volt DC (UL)
- Interrupting Rating:
- 18 Kiloamp at 220/240 Volt AC
- Interrupting Rating:
- 14 Kiloamp at 380/415/440/500 Volt AC
- Interrupting Rating:
- 10 Kiloamp at 250 Volt DC (IEC)
- Maximum AC Voltage:
- 600 V
- Maximum DC Voltage:
- 250 V
- Poles:
- 2
- Size:
- 2.75 Inch Width x 3.88 Inch Depth x 6 Inch Height
- Terminal Type:
- Load
- Type:
- Fixed Thermal Magnetic
- Type:
- Molded Case
- Volts:
- 600 VAC 50/60 Hertz
- Volts:
- 250 VDC
- TS PIK:
- 21509804
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Current Rating:
- 20 A
- Number of Poles:
- 2
- Data Sheet:
- Eaton_07831_1-12_DATA.pdf
- Catalog:
- EatonCorp-CutlerHammer_00123_V4T2_254-V4T2_290_CAT.pdf
- Installation/Operator:
- Eaton_00091_INST.pdf
- Maximum AC Voltage Rating:
- 600 V
- Maximum DC Voltage Rating:
- 250 V
- CAD Drawings:
- Eaton_21587_1_CAD.pdf
- Short Description:
- EATON SERIES C COMPLETE MOLDED CASE CIRCUIT BREAKER, F-FRAME, FDB, COMPLETE BREA
- Frame Type:
- FD
- Country of Origin:
- United States
MSRP $774.00Surplus $585.20 -
Eaton FDB3020L Molded Case Breakers (MCCBs) 3P 20A
MSRP $1,155.58Surplus $207.98SKU: C15-6783 Brand: Eaton MPN: FDB3020L UPC: 78667930585 Shipping Weight: 4.60 lbs. Shipping Height: 5.00 In. Shipping Length: 8.00 In. Shipping Width: 5.00 In...- SKU:
- C15-6783
- TS PIK:
- 120033803
- Maximum AC Voltage Rating:
- 600 V
- Data Sheet:
- Eaton_07831_1-3_DATA.pdf
- Installation/Operator:
- Eaton_00091_INST.pdf
- Frame Type:
- FD
- Number of Poles:
- 3
- Catalog:
- Eaton_27487_V4T2_254_V4T2_255_V4T2_273_V4T2_274_CAT.pdf
- Interrupting Rating:
- 18 kA at 240 VAC, 14 kA at 480/600 VAC, 10 kA at 250 VDC
- Series:
- C, FDB
- Voltage Rating:
- 600 VAC, 250 VDC
- Type:
- Molded Case, Thermal Magnetic
- Maximum DC Voltage Rating:
- 250 V
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 20 A, 14/10 kA, 3-Pole, Line and Load Terminal, FD Frame, Thermal Magnetic, Molded Case, Non-Interchangeable Trip Circuit Breaker
- Terminal Type:
- Standard Pressure Line and Load
- Size:
- 4.13 Inch Width x 3.38 Inch Depth x 6 Inch Height
- Current Rating:
- 20 A
- Country of Origin:
- Dominican Republic
- Approval:
- UL 489, CSA C22.2
MSRP $1,155.58Surplus $207.98 -
Eaton FDC2020L Molded Case Breakers (MCCBs) FDC 2P 200A 600V 50/60Hz 3Ph F Frame EA Series C
MSRP $2,972.00Surplus $292.44SKU: C15-1940 Brand: Eaton MPN: FDC2020L UPC: 782116152759 Shipping Weight: 4.05 lbs. Shipping Height: 5.00 In. Shipping Length: 6.00 In. Shipping Width: 5.00 In...- SKU:
- C15-1940
- Approval:
- UL 489
- Approval:
- CSA C22.2
- Amps:
- 20 A
- Frame:
- FD
- Interrupting Rating:
- 200 kA at 240 VAC
- Interrupting Rating:
- 100 Kiloamp at 480 Volt AC
- Interrupting Rating:
- 35 Kiloamp at 600 Volt AC
- Interrupting Rating:
- 22 Kiloamp at 250 Volt DC (UL)
- Interrupting Rating:
- 200 Kiloamp at 220/240 Volt AC
- Interrupting Rating:
- 100 Kiloamp at 315/415/440 Volt AC
- Interrupting Rating:
- 35 Kiloamp at 500 Volt AC
- Interrupting Rating:
- 22 Kiloamp at 250 Volt DC (IEC)
- Maximum AC Voltage:
- 600 V
- Maximum DC Voltage:
- 250 V
- Poles:
- 2
- Size:
- 2.75 Inch Width x 3.38 Inch Depth x 6 Inch Height
- Terminal Type:
- Standard Pressure Line and Load Terminal
- Type:
- Molded Case
- Type:
- Thermal Magnetic
- Type:
- Non-Interchangeable
- Volts:
- 600 VAC at 50/60 Hertz
- Volts:
- 250 VDC (UL
- Volts:
- IEC)
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 20 A, 100 kA, 2-Pole, Line/Load Terminal, FDC Frame, Non-Interchangeable Trip Thermal Magnetic, Molded Case Circuit Breaker
- Series:
- C, FDC
- Catalog:
- Eaton_46579_V4T2_254-V4T2_290_CAT.pdf
- Voltage Rating:
- 600 VAC
- Number of Poles:
- 2
- Current Rating:
- 20 A
- Maximum DC Voltage Rating:
- 250 V
- Installation/Operator:
- Eaton_00091_INST.pdf
- Maximum AC Voltage Rating:
- 600 V
- Frame Type:
- FD
- Country of Origin:
- Dominican Republic
MSRP $2,972.00Surplus $292.44 -
Eaton GDB3020D Molded Case Breakers (MCCBs) EA
MSRP $1,325.00Surplus $151.18SKU: C15-9694 Brand: Eaton MPN: GDB3020D UPC: 00786679048344 Shipping Weight: 1.75 lbs. Shipping Height: 5.00 In. Shipping Length: 7.00 In. Shipping Width: 4.00 In...- SKU:
- C15-9694
- TS PIK:
- 115226610
- Catalog:
- EatonCorp-CutlerHammer_00123_V4T2_254-V4T2_270_CAT.pdf
- Type:
- Fixed Thermal Magnetic, Molded Case
- Voltage Rating:
- 480 VAC 50/60 Hertz, 250 VDC
- Terminal Type:
- Ring Line and Load
- Interrupting Rating:
- 14 kA at 480 VAC, 10 kA at 250 VDC (UL)
- Frame Type:
- G
- Number of Poles:
- 3
- Size:
- 3 Inch Width x 2.63 Inch Depth x 4.88 Inch Height
- Maximum AC Voltage Rating:
- 480 V
- Installation/Operator:
- Eaton_00166_INST.pdf
- Current Rating:
- 20 A
- Maximum DC Voltage Rating:
- 250 V
- Country of Origin:
- Dominican Republic
- Approval:
- UL 489, CSA C22.2
MSRP $1,325.00Surplus $151.18 -
Eaton HFD2020 Molded Case Breakers (MCCBs) HFD 2P 20A 600V 50/60Hz 2Ph F Frame EA
MSRP $1,792.52Surplus $447.15SKU: C15-1437 Brand: Eaton MPN: HFD2020 UPC: 786679175378 Shipping Weight: 3.00 lbs. Shipping Height: 4.00 In. Shipping Length: 8.00 In. Shipping Width: 6.00 In...- SKU:
- C15-1437
- Series:
- C
- Type:
- Molded Case
- Type:
- Thermal Magnetic
- Approval:
- UL 489
- Approval:
- CSA C22.2
- Size:
- 2.75 Inch Width x 3.38 Inch Depth x 6 Inch Height
- Volts:
- 600 VAC at 50/60 Hertz
- Volts:
- 250 VDC
- Amps:
- 32 A
- Poles:
- 2
- Interrupting Rating:
- 100 kA at 240 VAC
- Interrupting Rating:
- 65 kA at 480 Volt AC at 50/60 Hertz
- Interrupting Rating:
- 25 kA at 600 Volt DC
- Interrupting Rating:
- 22 kA at 250 Volt DC
- Terminal Type:
- Standard Pressure Load
- Frame Type:
- FD
- Maximum AC Voltage Rating:
- 600 V
- Maximum DC Voltage Rating:
- 250 V
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 20 A, 65/22 kA, 2-Pole, Standard Pressure Load Terminal, FD Frame, Thermal Magnetic, Molded Case
- Catalog:
- Eaton_27487_V4T2_254_V4T2_255_V4T2_273_V4T2_274_CAT.pdf
- Installation/Operator:
- Eaton_00091_INST.pdf
- CAD Drawing:
- Eaton_41229_1_CAD.pdf
- TS PIK:
- 106999155
- Current Rating:
- 20 A
- CAD Drawings:
- Eaton_41229_1_CAD.pdf
- Voltage Rating:
- 600 VAC
- Number of Poles:
- 2
- Country of Origin:
- Dominican Republic
MSRP $1,792.52Surplus $447.15 -
Eaton HFD3020 Molded Case Breakers (MCCBs)
MSRP $2,286.86Surplus $750.00SKU: C15-2323 Brand: Eaton MPN: HFD3020 UPC: 786679175811 Shipping Weight: 4.35 lbs. Shipping Height: 4.00 In. Shipping Length: 7.00 In. Shipping Width: 5.00 In...- SKU:
- C15-2323
- Frame Type:
- FD
- Voltage Rating:
- 600 VAC, 250 VDC
- Current Rating:
- 20 A
- Number of Poles:
- 3
- Interrupting Rating:
- 100 kA at 240 VAC, 65 kA at 480 VAC, 25 kA at 600 VDC, 22 kA at 250 VDC
- Type:
- Molded Case, Thermal Magnetic
- Maximum AC Voltage Rating:
- 600 V
- Maximum DC Voltage Rating:
- 250 V
- Terminal Type:
- Standard Pressure Load
- Size:
- 4.13 Inch Width x 3.38 Inch Depth x 6 Inch Height
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 20 A, 65/22 kA, 3-Pole, Standard Pressure Load Terminal, FD Frame, Thermal Magnetic, Molded Case, Non-Interchangeable Trip Circuit Breaker
- Catalog:
- Eaton_27487_V4T2_254_V4T2_255_V4T2_273_V4T2_274_CAT.pdf
- Installation/Operator:
- Eaton_00091_INST.pdf
- Specification/Technical:
- Eaton_13078_1_2_SPEC.pdf
- TS PIK:
- 21506277
- CAD Drawings:
- Eaton_21588_1_CAD.pdf
- Series:
- C
- Country of Origin:
- Dominican Republic
- Approval:
- UL 489, CSA C22.2
MSRP $2,286.86Surplus $750.00 -
Eaton HFD4020L Molded Case Breakers (MCCBs) 4P 20A EA
MSRP $3,891.36Surplus $264.52SKU: U00-3411 Brand: Eaton MPN: HFD4020L UPC: 78667927131 Shipping Weight: 6.10 lbs. Shipping Height: 7.00 In. Shipping Length: 7.00 In. Shipping Width: 8.00 In...- SKU:
- U00-3411
- Frame Type:
- F
- Voltage Rating:
- 600 VAC
- Current Rating:
- 20 A
- Number of Poles:
- 4
- Interrupting Rating:
- 100 kA at 240 VAC, 65 kA at 480 VAC
- Short Description:
- Series C complete molded case circuit breaker, F-frame, HFD, Complete breaker, Fixed thermal, fixed magnetic trip type, Four-pole, 20A, 600 Vac, 250 Vdc, 100 kAIC at 240 Vac, 65 kAIC at 480 Vac, Line and load, 50/60 Hz
- Series:
- C
- Country of Origin:
- Dominican Republic
MSRP $3,891.36Surplus $264.52 -
Eaton NZMB2-A20-BT-NA Molded Case Breakers (MCCBs) NZMB2 3P 20A 690V 50/60Hz 3Ph
MSRP $1,900.00Surplus $319.87SKU: C15-2690 Brand: Eaton MPN: NZMB2-A20-BT-NA UPC: 015081074208 Shipping Weight: 6.20 lbs. Shipping Height: 7.00 In. Shipping Length: 9.00 In. Shipping Width: 5.00...- SKU:
- C15-2690
- Series:
- NZMB2
- Type:
- Thermal Magnetic
- Type:
- Current Limiting
- Type:
- Adjustable
- Approval:
- UL 489
- Approval:
- CSA C22.2
- Approval:
- CE
- Size:
- 105 Millimeter Width x 149 Millimeter Depth x 184 Millimeter Height
- Volts:
- 600 VAC Star/347 V
- Volts:
- 480 V
- Amps:
- 32 A
- Poles:
- 3
- Interrupting Rating:
- 25 kA
- Terminal Type:
- Front Frame ClA
- Terminal Type:
- Box
- Frame Type:
- NZM2
- Maximum AC Voltage Rating:
- 600
- Short Description:
- 600 VAC Star/347 VAC, 480 V, 20 A, 25 kA, 3-Pole, Front Frame ClA/Box Terminal, NZM2 Frame, Thermal Magnetic
- Catalog:
- Eaton-Moeller_00013_149_CAT.pdf
- Data Sheet:
- SchneiderElectric-SquareD_47322_1-4_DATA.pdf
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- CAD Drawing:
- SchneiderElectric-SquareD_74678_1_CAD.pdf
- Manufacturer Warranty:
- SchneiderElectric-SquareD_00002_WARR.pdf
- Number of Poles:
- 3
- Voltage Rating:
- 600 VAC Star/347 V, 480 V
- Current Rating:
- 20 A
- Country of Origin:
- Romania
MSRP $1,900.00Surplus $319.87 -
Eaton PDG23F0020TFFJ Molded Case Breakers (MCCBs) EA
MSRP $532.00Surplus $513.00SKU: C15-9810 Brand: Eaton MPN: PDG23F0020TFFJ UPC: 78667928248 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-9810
- TS PIK:
- 127779560
- Size:
- 104.6 Millimeter Width x 88.9 Millimeter Depth x 152.4 Millimeter Height
- Maximum AC Voltage Rating:
- 600 V
- Terminal Type:
- Standard Line and Load
- Installation/Operator:
- Eaton_00610_INST.pdf
- Catalog:
- Eaton_46579_V4T2_29_V4T2_33_CAT.pdf
- Current Rating:
- 20 A
- Type:
- Power Defense Fixed Thermal Magnetic Trip, Globally Rated
- Interrupting Rating:
- 25 kA at 480 VAC
- Voltage Rating:
- 600 VAC
- Number of Poles:
- 3
- Frame Type:
- PD2
- Short Description:
- 600 VAC, 20 A, 25 kA, 3-Pole, Line/Load Terminal, PD2 Frame, Power Defense Fixed Thermal/Fixed Magnetic, Globally Rated, Molded Case Circuit Breaker
- Country of Origin:
- Dominican Republic
- Approval:
- UL, CSA, IEC, CCC
MSRP $532.00Surplus $513.00 -
GE FBN16TE020RV Molded Case Breakers (MCCBs)
MSRP $199.80Surplus $132.87SKU: C15-10074 Brand: GE MPN: FBN16TE020RV UPC: 78316439409 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-10074
- TS PIK:
- 120720499
- Voltage Rating:
- 240/277 VAC
- Frame Type:
- FB100
- Type:
- Thermal Magnetic
- Terminal Type:
- Line and Load Lug
- Current Rating:
- 20 A
- Maximum AC Voltage Rating:
- 277 V
- Number of Poles:
- 1
- Short Description:
- 600 VAC Star/347 VAC, 20 A, 65 kA Interrupt, 1-Pole, 14 to 10 AWG Aluminum/Copper Load Lug Terminal, FB100-Frame, Fixed Thermal Magnetic, Molded Case Circuit Breaker with A-Series AD Plus Lighting Panel
- CAD Drawings:
- ABBElectrificationProducts-ABBGEIndustrialSolutions_01744_1_CAD.pdf
- Approval:
- UL
- Interrupting Rating:
- 65 kA at 240/277 VAC
- Installation/Operator:
- ABBElectrificationProducts-ABBGEIndustrialSolutions_00018_INST.pdf
- Country of Origin:
- United States
MSRP $199.80Surplus $132.87 -
GE FBN36TE020RV Molded Case Breakers (MCCBs)
MSRP $3,674.00Surplus $741.00SKU: U00-8069 Brand: GE MPN: FBN36TE020RV UPC: 78316439513 Shipping Weight: 3.25 lbs. Shipping Height: 5.00 In. Shipping Length: 9.00 In. Shipping Width: 5.00 In...- SKU:
- U00-8069
- TS PIK:
- 120720603
- Short Description:
- 600 VAC Star/347 VAC, 20 A, 65 kA Interrupt, 3-Pole, 14 to 10 AWG Aluminum/Copper Load Lug Terminal, FB100-Frame, Fixed Thermal Magnetic, Molded Case Circuit Breaker with A-Series AD Plus Lighting Panel
- Number of Poles:
- 3
- Interrupting Rating:
- 65 kA at 480 VAC, 150 kA at 240 VAC
- Current Rating:
- 20 A
- Terminal Type:
- Line and Load Lug
- Frame Type:
- FB100
- Type:
- Thermal Magnetic
- Approval:
- UL
- Installation/Operator:
- ABBElectrificationProducts-ABBGEIndustrialSolutions_00018_INST.pdf
- Maximum AC Voltage Rating:
- 480 V
- Voltage Rating:
- 240/480 VAC
- CAD Drawings:
- ABBElectrificationProducts-ABBGEIndustrialSolutions_01746_1_CAD.pdf
- Country of Origin:
- United States
MSRP $3,674.00Surplus $741.00 -
GE TEB111020 Molded Case Breakers (MCCBs)
MSRP $560.63Surplus $239.40GE TEB111020 Molded Case Breakers (MCCBs)​ ARCA SKU: C15-5998 Brand: GE MPN: TEB111020 UPC: Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In...- SKU:
- C15-5998
- Voltage Rating:
- 120 VAC, 125 VDC
- Short Description:
- 120 VAC, 125 VDC, 20 A, 10 kA Interrupt, 1-Pole, Aluminum/Copper Load Lug Terminal, E150-Frame, Non-Interchangeable Trip, Core E/Low Tier, Thermal Magnetic, Industrial Molded Case Circuit Breaker
- Frame Type:
- E150
- Type:
- Thermal Magnetic
- Maximum AC Voltage Rating:
- 120 V
- Number of Poles:
- 1
- Catalog:
- ABBElectrificationProducts-ABBGEIndustrialSolutions_00542_6_4_6_5_6_9_6_67_CAT.pdf
- Interrupting Rating:
- 10 kA at 120 VAC, 5 kA at 125 VDC
- Current Rating:
- 20 A
- Maximum DC Voltage Rating:
- 125 V
- Approval:
- UL
- Country of Origin:
- Mexico
MSRP $560.63Surplus $239.40 -
GE TEB122020 Molded Case Breakers (MCCBs)
MSRP $476.00Surplus $316.54SKU: C15-10112 Brand: GE MPN: TEB122020 UPC: 78316406852 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-10112
- TS PIK:
- 112126510
- Interrupting Rating:
- 10 kA at 120/240 VAC, 5 kA at 125/250 VDC
- Short Description:
- 240 VAC, 250 VDC, 20 A, 10 kA Interrupt, 2-Pole, Aluminum/Copper Load Lug Terminal, E150-Frame, Non-Interchangeable Trip, Core E/Low Tier, Thermal Magnetic, Industrial Molded Case Circuit Breaker
- Number of Poles:
- 2
- Voltage Rating:
- 120/240 VAC, 125/250 VDC
- Current Rating:
- 20 A
- Type:
- Thermal Magnetic
- Catalog:
- ABBElectrificationProducts-ABBGEIndustrialSolutions_00542_6_4_6_5_6_9_6_67_CAT.pdf
- Terminal Type:
- Copper/Aluminum Line and Load Lug
- Country of Origin:
- United States
MSRP $476.00Surplus $316.54 -
GE TED113020WL Molded Case Breakers (MCCBs)
MSRP $1,217.00Surplus $163.84SKU: C15-4863 Brand: GE MPN: TED113020WL UPC: 783164082432 Shipping Weight: 1.65 lbs. Shipping Height: 2.00 In. Shipping Length: 7.00 In. Shipping Width: 4.00 In...- SKU:
- C15-4863
- Voltage Rating:
- 120/240/277/480 VAC, 125 VDC
- Maximum DC Voltage Rating:
- 125 V
- Interrupting Rating:
- 10 kA at 480 VAC, 14 kA at 120/240/277 VAC, 10 kA at 125 VDC
- Short Description:
- 277 VAC, 125 VDC, 20 A, 14 kA Interrupt, 1-Pole, Aluminum/Copper Line/Load Lug Terminal, E150-Frame, Non-Interchangeable Trip, Core E/Mid Tier, Thermal Magnetic, Industrial Molded Case Circuit Breaker
- Number of Poles:
- 1
- Approval:
- UL
- Frame Type:
- E150
- Current Rating:
- 20 A
- Catalog:
- ABBElectrificationProducts-ABBGEIndustrialSolutions_00542_6_4_6_5_6_9_6_67_CAT.pdf
- Type:
- Thermal Magnetic
- Terminal Type:
- Copper/Aluminum Line and Load Lug
- Maximum AC Voltage Rating:
- 480 V
- Country of Origin:
- United States
MSRP $1,217.00Surplus $163.84 -
GE TED124020WL Molded Case Breakers (MCCBs)
MSRP $1,566.00Surplus $269.03SKU: C15-8386 Brand: GE MPN: TED124020WL UPC: 783164067996 Shipping Weight: 2.85 lbs. Shipping Height: 3.00 In. Shipping Length: 9.00 In. Shipping Width: 5.00 In...- SKU:
- C15-8386
- TS PIK:
- 21264361
- Current Rating:
- 20 A
- Voltage Rating:
- 120/240/277/480 VAC, 125/250 VDC
- Frame Type:
- E150
- Catalog:
- ABBElectrificationProducts-ABBGEIndustrialSolutions_00542_6_4_6_5_6_9_6_67_CAT.pdf
- Maximum DC Voltage Rating:
- 250 V
- Terminal Type:
- Copper/Aluminum Line and Load Lug
- Number of Poles:
- 2
- Interrupting Rating:
- 18 kA at 120/240/277/480 VAC, 10 kA at 125/250 VDC
- Type:
- Thermal Magnetic
- Maximum AC Voltage Rating:
- 480 V
- Short Description:
- 480 VAC, 250 VDC, 20 A, 18 kA Interrupt, 2-Pole, Aluminum/Copper Line/Load Lug Terminal, E150-Frame, Non-Interchangeable Trip, Core E/Mid Tier, Thermal Magnetic, Industrial Molded Case Circuit Breaker
- Approval:
- UL
- Country of Origin:
- United States
MSRP $1,566.00Surplus $269.03 -
GE TED136020 Molded Case Breakers (MCCBs) EA
MSRP $1,681.88Surplus $639.34GE TED136020 Molded Case Breakers (MCCBs) EA​ ARCA SKU: C15-6929 Brand: GE MPN: TED136020 UPC: 78316406343 Shipping Weight: 4.10 lbs. Shipping Height: 5.00 In. Shipping...- SKU:
- C15-6929
- Interrupting Rating:
- 14 kA at 600 VAC, 18 kA at 120/240/277/480 VAC, 10 kA at 125/250/500 VDC
- Voltage Rating:
- 120/240/277/480/600 VAC, 125/250/500 VDC
- Terminal Type:
- Copper/Aluminum Line and Load Lug
- Current Rating:
- 20 A
- Short Description:
- 600 VAC, 20 A, 18 kA Interrupt, 3-Pole, Aluminum/Copper Load Lug Terminal, E150-Frame, Non-Interchangeable Trip, Core E/Mid Tier, Thermal Magnetic, Industrial Molded Case Circuit Breaker
- Type:
- Thermal Magnetic
- Number of Poles:
- 3
- Country of Origin:
- Mexico
MSRP $1,681.88Surplus $639.34 -
GE TEYD2020B Molded Case Breakers (MCCBs)
MSRP $1,000.00Surplus $421.88SKU: C15-10146 Brand: GE MPN: TEYD2020B UPC: 78316446157 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-10146
- TS PIK:
- 124775355
- Voltage Rating:
- 120/240 VAC, 480 Star/277 VAC
- Number of Poles:
- 2
- Short Description:
- 120/240 VAC, 480 Star/277 VAC, 20 A, 65 kA, 2-Pole, 14 to 10 AWG, Q-Line Frame, Thermal Magnetic, Compact, Lighting Panel Molded Case Circuit Breaker
- Type:
- Thermal Magnetic, Compact
- Current Rating:
- 20 A
- Interrupting Rating:
- 25 kA at 480 Star/277 VAC, 65 kA at 120/240 VAC
- Approval:
- UL
- Country of Origin:
- United States
MSRP $1,000.00Surplus $421.88 -
GE TEYH3020B Molded Case Breakers (MCCBs)
MSRP $1,331.19Surplus $785.05SKU: C15-7359 Brand: GE MPN: TEYH3020B UPC: Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In. Product...- SKU:
- C15-7359
- Short Description:
- 480 VAC Star/277 VAC, 20 A, 35 kA, 3-Pole, TEYH Frame, 14 to 10 AWG Copper/Aluminum, Load Lug Terminal, Bolt-On Mount, Thermal Magnetic, Non-Interchangeable, Molded Case Circuit Breaker
- Voltage Rating:
- 120/240 VAC, 480 Star/277 VAC
- Number of Poles:
- 3
- Installation/Operator:
- ABBElectrificationProducts-ABBGEIndustrialSolutions_00118_INST.pdf
- Catalog:
- ABBElectrificationProducts-ABBGEIndustrialSolutions_01912_6_65_CAT.pdf
- Current Rating:
- 20 A
- Interrupting Rating:
- 35 kA at 480 Star/277 VAC, 65 kA at 120/240 VAC
- Type:
- Thermal Magnetic, Compact
- CAD Drawings:
- ABBElectrificationProducts-ABBGEIndustrialSolutions_04186_1_CAD.pdf
- Approval:
- UL
- TS PIK:
- 106248789
- Country of Origin:
- Dominican Republic
MSRP $1,331.19Surplus $785.05 -
GE TEYL3020B Molded Case Breakers (MCCBs)
MSRP $872.00Surplus $505.05SKU: C15-10181 Brand: GE MPN: TEYL3020B UPC: 78316446252 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-10181
- TS PIK:
- 124775450
- Number of Poles:
- 3
- Catalog:
- ABBElectrificationProducts-ABBGEIndustrialSolutions_00542_6_9_6_65_CAT.pdf
- Approval:
- UL
- Short Description:
- 480 VAC Star/277 VAC, 20 A, 100 kA Interrupt, 3-Pole, 14 to 10 AWG Aluminum/Copper Load Lug Terminal, 1" Bolt-On Mount, Non-Interchangeable Trip, Compact, Thermal Magnetic, Industrial Molded Case Circuit Breaker
- Voltage Rating:
- 120/240 VAC, 480 Star/277 VAC, 125/250 VDC
- Interrupting Rating:
- 65 kA at 480 Star/277 VAC, 100 kA at 120/240 VAC, 42 kA at 125 VDC, 35 kA at 250 VDC
- Type:
- Thermal Magnetic, Compact
- Current Rating:
- 20 A
- CAD Drawings:
- ABBElectrificationProducts-ABBGEIndustrialSolutions_01765_1_CAD.pdf
- Country of Origin:
- United States
MSRP $872.00Surplus $505.05 -
GE THED124020WL Molded Case Breakers (MCCBs) EA
MSRP $1,305.00Surplus $157.82SKU: U00-1753 Brand: GE MPN: THED124020WL UPC: 78316420198 Shipping Weight: 3.55 lbs. Shipping Height: 5.00 In. Shipping Length: 10.00 In. Shipping Width: 5.00 In...- SKU:
- U00-1753
- TS PIK:
- 112130491
- Number of Poles:
- 2
- CAD Drawings:
- ABBElectrificationProducts-ABBGEIndustrialSolutions_01784_1_CAD.pdf
- Maximum AC Voltage Rating:
- 480 V
- Short Description:
- 480 VAC, 250 VDC, 20 A, 65 kA Interrupt, 2-Pole, Aluminum/Copper Line/Load Lug Terminal, E150-Frame, Non-Interchangeable Trip, Core E/High Tier, Thermal Magnetic, Industrial Molded Case Circuit Breaker
- Catalog:
- ABBElectrificationProducts-ABBGEIndustrialSolutions_00542_6_4_6_5_6_9_6_67_CAT.pdf
- Voltage Rating:
- 120/240/277/480 VAC, 125/250 VDC
- Frame Type:
- E150
- Current Rating:
- 20 A
- Type:
- Thermal Magnetic
- Terminal Type:
- Copper/Aluminum Line and Load Lug
- Maximum DC Voltage Rating:
- 250 V
- Interrupting Rating:
- 25 kA at 277/480 VAC, 65 kA at 120/240 VAC, 20 kA at 125/250 VDC
- Approval:
- UL
- Country of Origin:
- United States
MSRP $1,305.00Surplus $157.82 -
GE THQB2120 Molded Case Breakers (MCCBs) EA
MSRP $126.75Surplus $31.93GE THQB2120 Molded Case Breakers (MCCBs) EA​ ARCA SKU: C15-9336 Brand: GE MPN: THQB2120 UPC: 78316401224 Shipping Weight: 0.65 lbs. Shipping Height: 3.50 In. Shipping...- SKU:
- C15-9336
- Installation/Operator:
- ABBElectrificationProducts-ABBGEIndustrialSolutions_00005_INST.pdf
- Short Description:
- 120/240 VAC, 20 A, 10 kA Interrupt Rating, 2-Pole, 14 to 8 AWG Copper/12 to 8 AWG Aluminum, 1" Bolt-On Mount, Q-Line Frame, LI Trip Function, Fixed Thermal Magnetic, Non-Interchangeable/Common Trip, Compact, Molded Case, Miniature Circuit Breaker
- Voltage Rating:
- 120/240 VAC
- Series:
- THQB
- Interrupting Rating:
- 10 kA
- Current Rating:
- 20 A
- Number of Poles:
- 2
- CAD Drawings:
- ABBElectrificationProducts-ABBGEIndustrialSolutions_10470_1_CAD.pdf
- Catalog:
- ABBElectrificationProducts-ABBGEIndustrialSolutions_06341_11_16_11_17_CAT.pdf
- Type:
- Molded Case, Fixed Thermal Magnetic, Non-Interchangeable/Common Trip, Compact
- Approval:
- UL
- Mounting:
- Bolt-On
- Wire Size:
- 14 to 8 AWG (Copper), 12 to 8 AWG (Aluminum)
- Used On:
- Load Center, Lighting Panelboard
- Country of Origin:
- Mexico
MSRP $126.75Surplus $31.93 -
GENERAL ELECTRIC FBV36TE020RV Molded Case Breakers (MCCBs) 20A
MSRP $2,024.52Surplus $585.00SKU: C15-6890 Brand: GENERAL ELECTRIC MPN: FBV36TE020RV UPC: 78316439500 Shipping Weight: 3.25 lbs. Shipping Height: 9.00 In. Shipping Length: 5.00 In. Shipping...- SKU:
- C15-6890
- TS PIK:
- 125879360
- Voltage Rating:
- 240/480 VAC
- Installation/Operator:
- ABBElectrificationProducts-ABBGEIndustrialSolutions_00018_INST.pdf
- Type:
- Thermal Magnetic
- CAD Drawings:
- ABBElectrificationProducts-ABBGEIndustrialSolutions_01745_1_CAD.pdf
- Number of Poles:
- 3
- Interrupting Rating:
- 35 kA at 480 VAC, 65 kA at 240 VAC
- Maximum AC Voltage Rating:
- 480 V
- Terminal Type:
- Line and Load Lug
- Frame Type:
- FB100
- Current Rating:
- 20 A
- Short Description:
- 600 VAC Star/347 VAC, 20 A, 35 kA Interrupt, 3-Pole, 14 to 10 AWG Aluminum/Copper Load Lug Terminal, FB100-Frame, Fixed Thermal Magnetic, Molded Case Circuit Breaker with A-Series AD Plus Lighting Panel
- Approval:
- UL
- Country of Origin:
- United States
MSRP $2,024.52Surplus $585.00 -
GENERAL ELECTRIC TEB111020WL Molded Case Breakers (MCCBs)
MSRP $538.08Surplus $104.37GENERAL ELECTRIC TEB111020WL Molded Case Breakers (MCCBs)​ ARCA SKU: C15-5971 Brand: GENERAL ELECTRIC MPN: TEB111020WL UPC: 78316412143 Shipping Weight: 1.45 lbs. Shipping Height: 2...- SKU:
- C15-5971
- Voltage Rating:
- 120 VAC, 125 VDC
- Current Rating:
- 20 A
- Number of Poles:
- 1
- Short Description:
- 120 VAC, 125 VDC, 20 A, 10 kA Interrupt, 1-Pole, Aluminum/Copper Line/Load Lug Terminal, E150-Frame, Non-Interchangeable Trip, Core E/Low Tier, Thermal Magnetic, Industrial Molded Case Circuit Breaker
- Frame Type:
- E150
- Terminal Type:
- Copper/Aluminum Line and Load Lug
- Interrupting Rating:
- 10 kA at 120 VAC, 5 kA at 125 VDC
- Type:
- Thermal Magnetic
- Maximum DC Voltage Rating:
- 125 V
- Catalog:
- ABBElectrificationProducts-ABBGEIndustrialSolutions_00542_6_4_6_5_6_9_6_67_CAT.pdf
- Maximum AC Voltage Rating:
- 120 V
- Approval:
- UL
- Country of Origin:
- United States
MSRP $538.08Surplus $104.37 -
GENERAL ELECTRIC TEB132020 Molded Case Breakers (MCCBs)
MSRP $1,262.63Surplus $410.00SKU: C15-6914 Brand: GENERAL ELECTRIC MPN: TEB132020 UPC: 78316406880 Shipping Weight: 4.10 lbs. Shipping Height: 5.00 In. Shipping Length: 9.00 In. Shipping Width: 5...- SKU:
- C15-6914
- TS PIK:
- 115927811
- Voltage Rating:
- 120/240 VAC
- Short Description:
- 240 VAC, 20 A, 10 kA Interrupt, 3-Pole, Aluminum/Copper Load Lug Terminal, E150-Frame, Non-Interchangeable Trip, Core E/Low Tier, Thermal Magnetic, Industrial Molded Case Circuit Breaker
- Type:
- Thermal Magnetic
- Current Rating:
- 20 A
- Terminal Type:
- Copper/Aluminum Line and Load Lug
- Interrupting Rating:
- 10 kA at 120/240 VAC
- Number of Poles:
- 3
- Country of Origin:
- United States
MSRP $1,262.63Surplus $410.00 -
GENERAL ELECTRIC TEB132020WL Molded Case Breakers (MCCBs)
MSRP $1,287.00Surplus $429.00SKU: C15-6913 Brand: GENERAL ELECTRIC MPN: TEB132020WL UPC: 78316406881 Shipping Weight: 4.10 lbs. Shipping Height: 5.00 In. Shipping Length: 9.00 In. Shipping...- SKU:
- C15-6913
- TS PIK:
- 115927784
- Current Rating:
- 20 A
- Voltage Rating:
- 120/240 VAC
- Interrupting Rating:
- 10 kA at 120/240 VAC
- Type:
- Thermal Magnetic
- Terminal Type:
- Copper/Aluminum Line and Load Lug
- Maximum AC Voltage Rating:
- 240 V
- Number of Poles:
- 3
- Short Description:
- 240 VAC, 20 A, 10 kA Interrupt, 3-Pole, Aluminum/Copper Line/Load Lug Terminal, E150-Frame, Non-Interchangeable Trip, Core E/Low Tier, Thermal Magnetic, Industrial Molded Case Circuit Breaker
- Frame Type:
- E150
- Approval:
- UL
- Country of Origin:
- United States
MSRP $1,287.00Surplus $429.00 -
GENERAL ELECTRIC TED134020 Molded Case Breakers (MCCBs)
MSRP $843.12Surplus $466.83SKU: E30-8042 Brand: GENERAL ELECTRIC MPN: TED134020 UPC: 78316406381 Shipping Weight: 3.70 lbs. Shipping Height: 5.00 In. Shipping Length: 8.00 In. Shipping Width: 6...- SKU:
- E30-8042
- Number of Poles:
- 3
- Current Rating:
- 20 A
- Short Description:
- 480 VAC, 20 A, 18 kA Interrupt, 3-Pole, Aluminum/Copper Load Lug Terminal, E150-Frame, Non-Interchangeable Trip, Core E/Mid Tier, Thermal Magnetic, Industrial Molded Case Circuit Breaker
- Voltage Rating:
- 120/240/277/480/600 VAC, 125/250/500 VDC
- Interrupting Rating:
- 14 kA at 600 VAC, 18 kA at 120/240/277/480 VAC, 10 kA at 125/250/500 VDC
- Type:
- Thermal Magnetic
- Terminal Type:
- Copper/Aluminum Line and Load Lug
- Country of Origin:
- Mexico
MSRP $843.12Surplus $466.83 -
GENERAL ELECTRIC TED136020WL Molded Case Breakers (MCCBs)
MSRP $1,707.88Surplus $438.75SKU: C15-6950 Brand: GENERAL ELECTRIC MPN: TED136020WL UPC: 78316406315 Shipping Weight: 4.10 lbs. Shipping Height: 50.00 In. Shipping Length: 9.00 In. Shipping...- SKU:
- C15-6950
- TS PIK:
- 116991955
- Voltage Rating:
- 120/240/277/480/600 VAC, 125/250/500 VDC
- Frame Type:
- E150
- Current Rating:
- 20 A
- Number of Poles:
- 3
- Short Description:
- 600 VAC, 20 A, 18 kA Interrupt, 3-Pole, Aluminum/Copper Line/Load Lug Terminal, E150-Frame, Non-Interchangeable Trip, Core E/Mid Tier, Thermal Magnetic, Industrial Molded Case Circuit Breaker
- Interrupting Rating:
- 14 kA at 600 VAC, 18 kA at 120/240/277/480 VAC, 10 kA at 125/250/500 VDC
- Maximum DC Voltage Rating:
- 500 V
- Terminal Type:
- Copper/Aluminum Line and Load Lug
- Type:
- Thermal Magnetic
- Maximum AC Voltage Rating:
- 600 V
- Approval:
- UL
- Country of Origin:
- United States
MSRP $1,707.88Surplus $438.75 -
GENERAL ELECTRIC TEYL1020B Molded Case Breakers (MCCBs) 1P 20A
MSRP $499.90Surplus $163.80GENERAL ELECTRIC TEYL1020B Molded Case Breakers (MCCBs) 1P 20A​ ARCA SKU: C15-5881 Brand: GENERAL ELECTRIC MPN: TEYL1020B UPC: 78316446227 Shipping Weight: 0.85 lbs. Shipping...- SKU:
- C15-5881
- Short Description:
- 480 VAC Star/277 VAC, 20 A, 65 kA, 1-Pole, TEYL Frame, 14 to 10 AWG Copper/Aluminum, Load Lug Terminal, Bolt-On Mount, Thermal Magnetic, Non-Interchangeable, Molded Case Circuit Breaker
- Voltage Rating:
- 120/240/277 VAC, 125 VDC
- Current Rating:
- 20 A
- Installation/Operator:
- ABBElectrificationProducts-ABBGEIndustrialSolutions_00118_INST.pdf
- CAD Drawings:
- ABBElectrificationProducts-ABBGEIndustrialSolutions_04186_1_CAD.pdf
- Type:
- Thermal Magnetic, Compact
- Number of Poles:
- 1
- Interrupting Rating:
- 65 kA at 277 VAC, 100 kA at 120/240 VAC, 15 kA at 125 VDC
- Catalog:
- ABBElectrificationProducts-ABBGEIndustrialSolutions_01912_6_65_CAT.pdf
- Approval:
- UL
- Country of Origin:
- United States
MSRP $499.90Surplus $163.80 -
Schneider Electric FJA140203 Molded Case Breakers (MCCBs) FJA 1P 20A 480V 50/60Hz 1Ph
MSRP $960.00Surplus $56.57Schneider Electric FJA140203 Molded Case Breakers (MCCBs) FJA 1P 20A 480V 50/60Hz 1Ph​ ARCA SKU: C15-3587 Brand: Schneider Electric MPN: FJA140203 UPC: 785901565871 Shipping Weight: 2.55 Shipping...- SKU:
- C15-3587
- Frame Type:
- F
- Voltage Rating:
- 480 V
- Current Rating:
- 20 A
- Number of Poles:
- 1
- Short Description:
- Square D, Powerpact, type FJA, 1P, 1PH, 20A, 277V, 65kA@480V, B phase circuit configuration, extra high interrupting capacity, 40°C, I-Line Style Plug-In, Thermal Magnetic, molded case circuit breakers
- Country of Origin:
- Mexico
MSRP $960.00Surplus $56.57 -
Siemens 3VA4120-4ED14-0AA0 Molded Case Breakers (MCCBs)
MSRP $232.00Surplus $175.56SKU: C15-10277 Brand: Siemens MPN: 3VA4120-4ED14-0AA0 UPC: 80476694176 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping...- SKU:
- C15-10277
- TS PIK:
- 128131363
- Short Description:
- 120/277/347 VAC 50/60 Hz, 125 VDC, 20 A, 14/65/25 kA Interrupt, 1-Pole, 125A Frame, Load Lug Terminal, Low Vage, Thermal Magnetic, Standard Breaking Capacity, Molded Case, Non-Interchangeable Trip Circuit Breaker
- Terminal Type:
- Load Lug
- Country of Origin:
- MEX
- Type:
- Molded Case, Low Vage, Thermal Magnetic, Standard Breaking Capacity
- Interrupting Rating:
- 65 kA at 120 VAC, 25 kA at 277 VAC, 14 kA at 347 VAC/125 VDC
- Maximum DC Voltage Rating:
- 125 V
- Installation/Operator:
- SiemensAG_01030_INST.pdf
- Approval:
- UL 489
- Number of Poles:
- 1
- Maximum AC Voltage Rating:
- 347 V
- Voltage Rating:
- 120/277/347 VAC 50/60 Hertz, 125 VDC
- Catalog:
- SiemensAG_57191_7_46-7_48_CAT.pdf
- Current Rating:
- 20 A
- Size:
- 1 Inch Width x 3.6 Inch Depth x 5.1 Inch Height
MSRP $232.00Surplus $175.56 -
Siemens CED63B020 Molded Case Breakers (MCCBs)
MSRP $9,455.00Surplus $1,812.80SKU: C15-8754 Brand: Siemens MPN: CED63B020 UPC: 78364321067 Shipping Weight: 5.55 lbs. Shipping Height: 4.00 In. Shipping Length: 10.00 In. Shipping Width: 6.00 In...- SKU:
- C15-8754
- TS PIK:
- 106248923
- Short Description:
- 600 VAC, 500 VDC, 20 A at 40 Deg C, 200 kA at 480 VAC, 3-Pole, 14 to 10 AWG Copper/12 to 10 AWG Aluminum, Load Lug Terminal, ED Frame, Fuseless, Current Limiting, Thermal Magnetic Trip Unit, Molded Case Circuit Breaker
- Type:
- Thermal Magnetic, Fuseless Current Limiting
- Number of Poles:
- 3
- Installation/Operator:
- SiemensAG_00223_INST.pdf
- Current Rating:
- 20 A
- Catalog:
- SiemensAG_01698_17_78-17_80_CAT.pdf
- Interrupting Rating:
- 200 kA at 240/480 VAC (UL/CSA), 100 kA at 600 VAC (UL/CSA), 50 kA at 500 VDC (UL/CSA)
- Series:
- CED6
- Frame Type:
- ED
- Voltage Rating:
- 600 VAC, 500 VDC
- Size:
- 3 Inch Width x 4.56 Inch Depth x 9.58 Inch Height
- Terminal Type:
- Load Lug
- Country of Origin:
- Mexico
- Approval:
- UL 489, CSA C22.2, IEC 947
MSRP $9,455.00Surplus $1,812.80 -
Siemens HED41B020L Molded Case Breakers (MCCBs)
MSRP $1,244.00Surplus $199.23SKU: C15-7449 Brand: Siemens MPN: HED41B020L UPC: 78364309001 Shipping Weight: 3.95 lbs. Shipping Height: 6.00 In. Shipping Length: 8.00 In. Shipping Width: 4.00 In...- SKU:
- C15-7449
- TS PIK:
- 115558195
- Short Description:
- BRKR HED4 1P 480V 20A LUG
- Interrupting Rating:
- 65 kA at 277 VAC, 30 kA at 125 VDC
- Frame Type:
- ED
- Catalog:
- SiemensAG_09175_17_1_17_4_17_81-17_84_17_112_17_113_17_123_17_133_CAT.pdf
- Voltage Rating:
- 277 VAC 50/60 Hertz, 125 VDC
- Size:
- 1 Inch Width x 3.92 Inch Depth x 6.35 Inch Height
- Type:
- Molded Case, Low Vage, Thermal Magnetic, High IC Rating
- Installation/Operator:
- SiemensAG_00593_INST.pdf
- Maximum AC Voltage Rating:
- 277 V
- Terminal Type:
- Line and Load Lug
- Maximum DC Voltage Rating:
- 125 V
- Current Rating:
- 20 A
- Number of Poles:
- 1
- Country of Origin:
- Mexico
- Approval:
- UL 489
MSRP $1,244.00Surplus $199.23 -
Siemens HED43B020 Molded Case Breakers (MCCBs)
MSRP $3,546.00Surplus $583.05SKU: C15-7452 Brand: Siemens MPN: HED43B020 UPC: 78364321010 Shipping Weight: 3.60 lbs. Shipping Height: 4.00 In. Shipping Length: 8.00 In. Shipping Width: 6.00 In...- SKU:
- C15-7452
- TS PIK:
- 126674914
- Interrupting Rating:
- 100 kA at 240 VAC, 42 kA at 480 VAC (UL)
- Terminal Type:
- Load Lug
- Catalog:
- SiemensAG_01698_17_78-17_80_CAT.pdf
- Type:
- Molded Case, Thermal and Fixed Magnetic
- Size:
- 3 Inch W x 4.56 Inch D x 6.35 Inch H
- Short Description:
- 480 VAC, 20 A at 40 Deg C, 42 kA, 3-Pole, 14 to 10 AWG Copper/12 to 10 AWG Aluminum, Load Lug Terminal, ED Frame, Thermal Magnetic Trip Unit, Molded Case Circuit Breaker
- Series:
- HED4
- Voltage Rating:
- 480 VAC at 50/60 Hz (UL)
- Number of Poles:
- 3
- Installation/Operator:
- SiemensAG_00313_INST.pdf
- Current Rating:
- 20 A
- Country of Origin:
- Mexico
- Approval:
- UL 489, CSA C22.2
- Mounting:
- Plug-On
- Used On:
- P1/P2/P3/P4/P5 Panelboard
- Wire Size:
- 14 to 10 AWG (Copper), 12 to 10 AWG (Aluminum)
MSRP $3,546.00Surplus $583.05 -
Siemens HGB2B020B Molded Case Breakers (MCCBs)
MSRP $2,100.00Surplus $579.56SKU: C15-10415 Brand: Siemens MPN: HGB2B020B UPC: 88762121962 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-10415
- TS PIK:
- 125309199
- Country of Origin:
- Mexico
- Current Rating:
- 20 A
- Voltage Rating:
- 600 Star/347 VAC 50/60 Hertz, 125/250 VDC
- Number of Poles:
- 2
- Interrupting Rating:
- 14 kA at 600 Star/347 VAC/125/250 VDC
- Catalog:
- SiemensAG_01796_7_7_7_33_CAT.pdf
- Type:
- Molded Case, Low Vage, Thermal and Fixed Magnetic, High Breaking Capacity
- Used On:
- P1/P2/P3/P4/P5 Panelboard
- Approval:
- UL 489
- Application:
- Lighting, Distribution
- Short Description:
- BRKR HGB 20A 2P 480Y 35K LD LUG
MSRP $2,100.00Surplus $579.56 -
Siemens HGB3K020B Molded Case Breakers (MCCBs)
MSRP $269.37Surplus $321.70SKU: C15-12101 Brand: Siemens MPN: HGB3K020B UPC: 804766339882 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-12101
- Short Description:
- BRKR HGB 20A 3P 480V 35K LD LUG
- Country of Origin:
- MEX
- Current Rating:
- 20 A
- Approval:
- UL 489
- Application:
- Lighting, Distribution
- Voltage Rating:
- 600 Star/347 VAC 50/60 Hertz
- Type:
- Molded Case, Low Vage, Thermal and Fixed Magnetic, High Breaking Capacity
- Interrupting Rating:
- 22 kA at 600 Star/347 VAC
- Number of Poles:
- 3
- Catalog:
- SiemensAG_01796_7_7_7_34_CAT.pdf
- Used On:
- P1/P2/P3/P4/P5 Panelboard
MSRP $269.37Surplus $321.70 -
Siemens LGB1B020B Molded Case Breakers (MCCBs)
MSRP $961.00Surplus $156.00SKU: C15-8800 Brand: Siemens MPN: LGB1B020B UPC: 88762121992 Shipping Weight: 0.85 lbs. Shipping Height: 4.49 In. Shipping Length: 2.71 In. Shipping Width: 1.00 In...- SKU:
- C15-8800
- TS PIK:
- 110613211
- Current Rating:
- 20 A
- Voltage Rating:
- 347 VAC 50/60 Hertz
- Short Description:
- 120/277/347 VAC 50/60 Hz, 125 VDC, 20 A, 100 kA Interrupt, 1-Pole, Molded Case, Low Vage, Thermal and Fixed Magnetic, Very High Breaking Capacity, Panelboard Circuit Breaker
- Number of Poles:
- 1
- Catalog:
- SiemensAG_10807_1-5_CAT.pdf
- Interrupting Rating:
- 14 kA at 347 VAC
- Type:
- Molded Case, Low Vage, Thermal and Fixed Magnetic, Very High Breaking Capacity
- Country of Origin:
- Mexico
- Approval:
- UL 489
- Application:
- Lighting, Distribution
- Used On:
- P1/P2/P3/P4/P5 Panelboard
MSRP $961.00Surplus $156.00 -
Siemens NEB1B020B Molded Case Breakers (MCCBs)
MSRP $3,153.00Surplus $128.70SKU: E30-11706 Brand: Siemens MPN: NEB1B020B UPC: 78364355815 Shipping Weight: 1.05 lbs. Shipping Height: 5.00 In. Shipping Length: 7.00 In. Shipping Width: 5.00 In...- SKU:
- E30-11706
- TS PIK:
- 115459763
- Current Rating:
- 20 A
- Interrupting Rating:
- 100 kA at 120 VAC (UL 489), 85 kA at 240 VAC (UL 489), 35 kA at 277 VAC/125/250 VDC (UL 489), 22 kA at 347 VAC (UL 489), 85 kA at 240 VAC (IEC), 35 kA at 250 VDC (IEC)
- Number of Poles:
- 1
- Voltage Rating:
- 277 V
- Series:
- NEB
- Short Description:
- 240/277/347 VAC 50/60 Hz, 125/250 VDC, 20 A, 85 kA, 1-Pole, Thermal Magnetic Trip Unit, Panelboard Circuit Breaker
- Type:
- Thermal Magnetic, Molded Case
- Country of Origin:
- Dominican Republic
- Used On:
- P1/P2/P3/P4/P5 Panelboard
- Approval:
- UL 489, CSA, IEC 60947-2
MSRP $3,153.00Surplus $128.70 -
Siemens Q12000S01 Molded Case Breakers (MCCBs)
MSRP $307.00Surplus $106.40SKU: A13-1401 Brand: Siemens MPN: Q12000S01 UPC: Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In. Product...- SKU:
- A13-1401
- TS PIK:
- 21367397
- Terminal Type:
- Load Lug
- Type:
- Thermal and Fixed Magnetic
- Voltage Rating:
- 120 VAC at 50/60 Hz
- Short Description:
- 120/240 VAC, 20 A, 10 kA, 1-Pole, 14 to 6 AWG Copper/Aluminum, Load Lug Terminal, Plug-On Mount, QP Frame, 120 VAC Shunt Trip, Thermal Magnetic Trip Unit, Miniature Circuit Breaker for Load Center
- Current Rating:
- 20 A
- Catalog:
- SiemensAG_00562_1_41_1_46_1_47_CAT.pdf
- Number of Poles:
- 1
- Used On:
- Loadcenter
- Data Sheet:
- SiemensAG_06966_1_DATA.pdf
- Mounting:
- Plug-On
- Size:
- 1 Inch W x 3 Inch D x 3-1/8 Inch H
- Interrupting Rating:
- 10 kA
- Wire Size:
- 14 to 6 AWG (Copper/Aluminum)
- Installation/Operator:
- SiemensAG_00215_INST.pdf
- Country of Origin:
- Mexico
- Approval:
- UL 489, CSA C22.2
MSRP $307.00Surplus $106.40 -
Siemens QF120A Everything Else
MSRP $198.00Surplus $80.19SKU: C15-6223 Brand: Siemens MPN: QF120A UPC: Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In. Product...- SKU:
- C15-6223
- TS PIK:
- 21367501
- Voltage Rating:
- 120 VAC
- Current Rating:
- 20 A
- Country of Origin:
- Philippines
- Interrupting Rating:
- 10 kA
- Mounting:
- Plug-On
- Data Sheet:
- SiemensAG_01653_1_DATA.pdf
- Size:
- 3 Inch Width x 4 Inch Depth x 1 Inch Height
- Used On:
- Load Center
- Short Description:
- 120 V, 20 A, 5 mA Trip Sensitivity, 10 kA Interrupt, 1-Pole, Thermal Magnetic, Molded Case Ground Fault Circuit Breaker
- Catalog:
- SiemensAG_00876_1_14_CAT.pdf
- Number of Poles:
- 1
- Approval:
- UL 943
MSRP $198.00Surplus $80.19 -
Siemens QSA2020SPD Molded Case Breakers (MCCBs)
MSRP $346.00Surplus $104.27SKU: U00-8608 Brand: Siemens MPN: QSA2020SPD UPC: 04089227875 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- U00-8608
- Country of Origin:
- MEX
- Short Description:
- 120/240 VAC, 20 A, 10 kA, (2) 1-Pole, 360 Joule Line to Neutral/720 Joule Line to Line, Plug-On Mount, QP Frame, Thermal Magnetic, Miniature Circuit Breaker and Surge Protective Device
- Terminal Type:
- Line, Load Lug
- Type:
- Thermal and Fixed Magnetic Trip
- Current Rating:
- 20 A
- Interrupting Rating:
- 10 kA
- Data Sheet:
- SiemensAG_07136_1_DATA.pdf
- Wire Size:
- 14 to 6 AWG (Copper/Aluminum) Load
- Used On:
- Loadcenter, Panelboard
- Size:
- 2 Inch W x 3 Inch D x 3-1/8 Inch H
- Application:
- Household, Facility Circuit
- Approval:
- UL 1449, CSA
- Mounting:
- Plug-On
- Voltage Rating:
- 120/240 VAC at 50/60 Hz
- Poles:
- 1
- Catalog:
- SiemensAG_00564_7_28_CAT.pdf
MSRP $346.00Surplus $104.27 -
Square D BDA260201 Molded Case Breakers (MCCBs)
MSRP $800.00Surplus $526.10SKU: C15-10621 Brand: Square D MPN: BDA260201 UPC: 60648115202 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-10621
- TS PIK:
- 127013659
- Voltage Rating:
- 600 Star/347 VAC 50/60 Hertz, 250 VDC
- Series:
- BD
- Number of Poles:
- 2
- Current Rating:
- 20 A
- Prop 65 Warning:
- Yes
- Frame Type:
- B
- Maximum DC Voltage Rating:
- 250 V
- Interrupting Rating:
- 14 kA at 600 Star/347 VAC, 10 kA at 250 VDC
- Terminal Type:
- I-Line Connection Line Lug Load
- Size:
- 2.13 Inch Width x 3.5 Inch Depth x 5.39 Inch Height
- Short Description:
- 600 Star/347 VAC 50/60 Hz, 250 VDC, 20 A, 14 kA, 2-Pole, B-Frame, AB Phase, I-Line Connection Line Lug Load Terminal, Thermal Magnetic, Molded Case Circuit Breaker
- CAD Drawings:
- SchneiderElectric-SquareD_73420_1_CAD.pdf
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_7_32_CAT.pdf
- Type:
- Thermal Magnetic
- Data Sheet:
- SchneiderElectric-SquareD_34798_1-4_DATA.pdf
- Installation/Operator:
- SchneiderElectric-SquareD_01071_INST.pdf
- Maximum AC Voltage Rating:
- 347 V
- Country of Origin:
- United States
- Approval:
- UL, CSA, CE
MSRP $800.00Surplus $526.10 -
Square D BDA36020 Molded Case Breakers (MCCBs)
MSRP $1,012.00Surplus $904.40SKU: C15-6499 Brand: Square D MPN: BDA36020 UPC: 60648115251 Shipping Weight: 4.25 lbs. Shipping Height: 5.00 In. Shipping Length: 13.00 In. Shipping Width: 8.00 In...- SKU:
- C15-6499
- TS PIK:
- 109595297
- Voltage Rating:
- 600 Star/347 VAC 50/60 Hertz, 250 VDC
- Interrupting Rating:
- 14 kA at 600 Star/347 VAC, 10 kA at 250 VDC
- Frame Type:
- B
- Type:
- Thermal Magnetic
- Data Sheet:
- SchneiderElectric-SquareD_34838_1-3_DATA.pdf
- Current Rating:
- 20 A
- CAD Drawings:
- SchneiderElectric-SquareD_73466_1_CAD.pdf
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_7_32_CAT.pdf
- Installation/Operator:
- SchneiderElectric-SquareD_00008_INST.pdf
- Maximum DC Voltage Rating:
- 250 V
- Maximum AC Voltage Rating:
- 347 V
- Terminal Type:
- I-Line Connection Line Lug Load
- Size:
- 3.19 Inch Width x 3.5 Inch Depth x 5.39 Inch Height
- Prop 65 Warning:
- Yes
- Number of Poles:
- 3
- Series:
- BD
- Short Description:
- 600 Star/347 VAC 50/60 Hz, 250 VDC, 20 A, 14 kA, 3-Pole, B-Frame, ABC Phase, I-Line Connection Line Lug Load Terminal, Thermal Magnetic, Molded Case Circuit Breaker
- Country of Origin:
- United States
- Approval:
- UL, CSA, CE
MSRP $1,012.00Surplus $904.40 -
Square D BDL36020 Molded Case Breakers (MCCBs)
MSRP $979.00Surplus $854.53SKU: U00-7862 Brand: Square D MPN: BDL36020 UPC: 60648115297 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- U00-7862
- Frame Type:
- B
- CAD Drawings:
- SchneiderElectric-SquareD_73503_1_CAD.pdf
- Short Description:
- 600 Star/347 VAC 50/60 Hz, 250 VDC, 20 A, 14 kA, 3-Pole, B-Frame, Clip-On Mount, Line/Load Lug Terminal, 80% Continuous Current, Thermal Magnetic, Molded Case Circuit Breaker
- Prop 65 Warning:
- Yes
- Series:
- BD
- Number of Poles:
- 3
- Approval:
- UL, CSA, CE
- Voltage Rating:
- 600 Star/347 VAC 50/60 Hertz, 250 VDC
- Size:
- 3.19 Inch Width x 3.15 Inch Depth x 5.39 Inch Height
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_7_32_CAT.pdf
- Interrupting Rating:
- 14 kA at 600 Star/347 VAC, 10 kA at 250 VDC
- Maximum DC Voltage Rating:
- 250 V
- Type:
- Thermal Magnetic
- Data Sheet:
- SchneiderElectric-SquareD_34947_1-4_DATA.pdf
- Maximum AC Voltage Rating:
- 347 V
- Current Rating:
- 20 A
- Terminal Type:
- Line/Load Lug
- Country of Origin:
- Mexico
MSRP $979.00Surplus $854.53 -
Square D EGB24020 Molded Case Breakers (MCCBs) EGB 2P 20A 600V 50/60Hz 2Ph EA
MSRP $1,038.00Surplus $251.55Square D EGB24020 Molded Case Breakers (MCCBs) EGB 2P 20A 600V 50/60Hz 2Ph EA​ ARCA SKU: C15-4869 Brand: Square D MPN: EGB24020 UPC: 785901311119 Shipping Weight: 2.55 lbs. Shipping...- SKU:
- C15-4869
- Series:
- EGB
- Type:
- Thermal Magnetic
- Type:
- Branch
- Type:
- Miniature
- Approval:
- UL (Canada and US)
- Volts:
- 480 Star/277 VAC
- Amps:
- 32 A
- Used On:
- NF Merchandised Panelboard
- Poles:
- 2
- Interrupting Rating:
- 35 kA at 480 Star/277 VAC
- Application:
- Lighting
- Installation:
- Bolt-On
- Trip Setting:
- 270 A (Hold)
- Trip Setting:
- 875 Amp (Trip)
- Short Description:
- 480 Star/277 VAC, 20 A, 35 kA, 2-Pole, E-Frame, Bolt-On Mount, Aluminum Lug Terminal, Thermal Magnetic, Branch, Miniature
- Catalog:
- SchneiderElectric-SquareD_32357_9_31-9_33_CAT.pdf
- Data Sheet:
- SchneiderElectric-SquareD_45657_1_2_DATA.pdf
- Installation/Operator:
- SchneiderElectric-SquareD_01117_INST.pdf
- Manufacturer Warranty:
- SchneiderElectric-SquareD_00002_WARR.pdf
- TS PIK:
- 115773402
- Voltage Rating:
- 480 Star/277 VAC
- Number of Poles:
- 2
- Current Rating:
- 20 A
- Country of Origin:
- Mexico
MSRP $1,038.00Surplus $251.55 -
Square D EHB34020 Other Circuit Breakers
MSRP $2,000.00Surplus $1,596.00SKU: C15-7067 Brand: Square D MPN: EHB34020 UPC: Shipping Weight: 1.45 lbs. Shipping Height: 4.00 In. Shipping Length: 4.00 In. Shipping Width: 4.00 In. Product...- SKU:
- C15-7067
- Series:
- EHB
- Number of Poles:
- 3
- Frame Type:
- E
- Terminal Type:
- Bolt-On
- Short Description:
- 240/480 Star/277 VAC, 20 A, 65/14 kA, 3-Pole, E-Frame, Bolt-On Mount, Thermal Magnetic, Miniature Circuit Breaker
- Current Rating:
- 20 A
- Voltage Rating:
- 240 VAC at 50/60 Hz, 480 VAC Star/277 VAC at 50/60 Hz (UL/CSA)
- Size:
- 3 Inch W x 2.97 Inch D x 3.5 Inch H
- Data Sheet:
- SchneiderElectric-SquareD_04186_1_DATA.pdf
- Maximum AC Voltage Rating:
- 277 V
- Type:
- Molded Case, Thermal Magnetic
- Interrupting Rating:
- 65 kA at 240 VAC, 14 kA at 480 VAC Star/277 VAC (UL/CSA)
- Catalog:
- SchneiderElectric-SquareD_00935_11_26_CAT.pdf
- Country of Origin:
- Dominican Republic
MSRP $2,000.00Surplus $1,596.00 -
Square D EJB24020 Molded Case Breakers (MCCBs)
MSRP $1,241.00Surplus $396.34SKU: C15-8657 Brand: Square D MPN: EJB24020 UPC: 78590133521 Shipping Weight: 1.19 lbs. Shipping Height: 5.66 In. Shipping Length: 1.96 In. Shipping Width: 4.05 In...- SKU:
- C15-8657
- TS PIK:
- 115261561
- Series:
- EJB
- Catalog:
- SchneiderElectric-SquareD_32357_9_31-9_33_CAT.pdf
- Voltage Rating:
- 480 Star/277 VAC
- Interrupting Rating:
- 65 kA at 480 Star/277 VAC
- Current Rating:
- 20 A
- Installation/Operator:
- SchneiderElectric-SquareD_01117_INST.pdf
- Data Sheet:
- SchneiderElectric-SquareD_45711_1_2_DATA.pdf
- Number of Poles:
- 2
- Type:
- Thermal Magnetic, Branch, Miniature
- Short Description:
- 480 Star/277 VAC, 20 A, 65 kA, 2-Pole, E-Frame, Bolt-On Mount, Aluminum Lug Terminal, Thermal Magnetic, Branch, Miniature, Panelboard Circuit Breaker
- Country of Origin:
- United States
- Prop 65 Warning:
- Yes
- Trip Setting:
- 270 A (Hold), 875 A (Trip)
- Used On:
- NF Merchandised Panelboard
- Approval:
- UL (Canada and US)
- Installation:
- Bolt-On
- Application:
- Lighting
MSRP $1,241.00Surplus $396.34 -
Square D FA24020AC Molded Case Breakers (MCCBs)
MSRP $522.73Surplus $557.70SKU: E30-10177 Brand: Square D MPN: FA24020AC UPC: Shipping Weight: 3.50 lbs. Shipping Height: 6.00 In. Shipping Length: 9.00 In. Shipping Width: 3.00 In. Product...- SKU:
- E30-10177
- Number of Poles:
- 2
- Catalog:
- SchneiderElectric-SquareD_00096_25_28_CAT.pdf
- Current Rating:
- 20 A
- Installation/Operator:
- SchneiderElectric-SquareD_00076_INST.pdf
- Short Description:
- 480 VAC, 250 VDC, 20 A, 10/18/25 kA, 2-Phase, 2-Pole, F-Frame, I-Line Mount, Thermal Magnetic, Molded Case Circuit Breaker
- Type:
- Molded Case, Thermal Magnetic, Main
- Interrupting Rating:
- 18 kA at 480/600 VAC
- Voltage Rating:
- 480 VAC, 250 VDC
- Series:
- 650, FA
- Data Sheet:
- SchneiderElectric-SquareD_04266_1_2_DATA.pdf
- Used On:
- I-Line Panelboard and Switchboard
- Application:
- Construction, Commercial Building, Control Equipment Panel, Industrial Building, OEM Commercial
- Approval:
- UL 489, CSA, IEC, Federal Specification W-C-375B/GEN
- Trip Setting:
- 275 A Hold, 600 A Trip
- Installation:
- Plug-On
- Country of Origin:
- Mexico
MSRP $522.73Surplus $557.70 -
Square D FA32020 Molded Case Breakers (MCCBs)
MSRP $708.22Surplus $585.00Square D FA32020 Molded Case Breakers (MCCBs)​ ARCA SKU: E30-10194 Brand: Square D MPN: FA32020 UPC: Shipping Weight: 6.15 lbs. Shipping Height: 6.00 In. Shipping...- SKU:
- E30-10194
- Interrupting Rating:
- 10 kA at 240 VAC, 25 kA at 480 VAC, 25 kA at 600 VAC
- Current Rating:
- 20 A
- Type:
- Molded Case, Thermal Magnetic, Main
- Number of Poles:
- 3
- Data Sheet:
- SchneiderElectric-SquareD_04322_1_2_DATA.pdf
- Voltage Rating:
- 240 VAC
- Installation/Operator:
- SchneiderElectric-SquareD_00076_INST.pdf
- Series:
- 650, FA
- Short Description:
- 240 VAC, 250 VDC, 20 A, 5/10 kA, 3-Pole, F-Frame, I-Line Mount, Thermal Magnetic, Molded Case Circuit Breaker
- Application:
- Construction, Commercial Building, Control Equipment Panel, Industrial Building, OEM Commercial
- Used On:
- I-Line Panelboard and Switchboard
- Approval:
- UL 489, CSA, IEC, Federal Specification W-C-375B/GEN
- Installation:
- Plug-On
- Trip Setting:
- 275 A Hold, 600 A Trip
- Country of Origin:
- Mexico
MSRP $708.22Surplus $585.00 -
Square D FAL34020 Molded Case Breakers (MCCBs)
MSRP $1,140.16Surplus $540.66SKU: C15-8565 Brand: Square D MPN: FAL34020 UPC: 78590142324 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-8565
- TS PIK:
- 128397896
- Frame Type:
- F
- Type:
- Thermal Magnetic
- Current Rating:
- 20 A
- Interrupting Rating:
- 18 kA at 480/600 VAC
- Series:
- FA
- Catalog:
- SchneiderElectric-SquareD_00096_21-23_CAT.pdf
- Size:
- 4.5 Inch Width x 4.13 Inch Depth x 6 Inch Height
- Voltage Rating:
- 480 VAC, 250 VDC
- Data Sheet:
- SchneiderElectric_05208_1_2_DATA.pdf
- Number of Poles:
- 3
- Short Description:
- 480 V, 20 A, 18 kA Interrupt, 3-Pole, Line/Load Lug Terminal, Unit Mount, Thermal Magnetic, Molded Case Circuit Breaker
- Prop 65 Warning:
- Yes
- Terminal Type:
- Lug
- Approval:
- UL, CSA, IEC, Federal Specification W-C-375B/GEN
- Country of Origin:
- Mexico
MSRP $1,140.16Surplus $540.66 -
Square D FH16020B Molded Case Breakers (MCCBs)
MSRP $674.49Surplus $234.00Square D FH16020B Molded Case Breakers (MCCBs)​ ARCA SKU: C15-6365 Brand: Square D MPN: FH16020B UPC: Shipping Weight: 2.20 lbs. Shipping Height: 5.00 In. Shipping...- SKU:
- C15-6365
- Type:
- Molded Case
- Data Sheet:
- SchneiderElectric-SquareD_04525_1_2_DATA.pdf
- Voltage Rating:
- 240 VAC at 50/60 Hz, 480 VAC Star/277 VAC at 50/60 Hz (UL/CSA/NOM), 240/415 VAC at 50/60 Hz (IEC), 250 VDC
- Catalog:
- SchneiderElectric_00256_11_9_CAT.pdf
- Interrupting Rating:
- 65 kA at 240 VAC or 480 VAC Star/277 VAC (UL/CSA/NOM); 18 kA at 240 VAC, 10 kA at 415 VAC (IEC); 10 kA at 250 VDC
- Installation/Operator:
- SchneiderElectric-SquareD_00076_INST.pdf
- Number of Poles:
- 1
- Series:
- FH
- Short Description:
- 277 VAC, 125 VDC, 20 A, 65/10 kA, 1-Pole, F-Frame, I-Line Mount, Thermal Magnetic, Molded Case Circuit Breaker
- Current Rating:
- 20 A
- Application:
- Power Distribution
- Used On:
- Class 650/734/820 I-Line Panelboard/Switchboard
- Approval:
- UL, CSA
- Trip Setting:
- 275 to 600 A
- Country of Origin:
- Mexico
MSRP $674.49Surplus $234.00 -
Square D FH26020AB Molded Case Breakers (MCCBs)
MSRP $1,600.00Surplus $661.05SKU: C15-7183 Brand: Square D MPN: FH26020AB UPC: Shipping Weight: 4.36 lbs. Shipping Height: 9.00 In. Shipping Length: 13.00 In. Shipping Width: 6.00 In. Product...- SKU:
- C15-7183
- Interrupting Rating:
- 18 kA at 600 VAC
- Short Description:
- 240/480/600 VAC, 250 VDC, 20 A, 65/25/18/10 kA, 1-Phase, 2-Pole, F-Frame, I-Line Mount, Thermal Magnetic, Molded Case Circuit Breaker
- Series:
- 650, FH
- Voltage Rating:
- 600 VAC, 250 VDC
- Data Sheet:
- SchneiderElectric-SquareD_04531_1_2_DATA.pdf
- Current Rating:
- 20 A
- Catalog:
- SchneiderElectric_00256_11_9_CAT.pdf
- Number of Poles:
- 2
- Type:
- Molded Case, Thermal Magnetic, Main
- Installation/Operator:
- SchneiderElectric-SquareD_00076_INST.pdf
- Prop 65 Warning:
- Yes
- Trip Setting:
- 275 A Hold, 600 A Trip
- Application:
- Construction
- Used On:
- I-Line Panelboard and Switchboard
- Installation:
- Plug-On
- Approval:
- UL 489, CSA, IEC, Federal Specification W-C-375B/GEN
- Country of Origin:
- Mexico
MSRP $1,600.00Surplus $661.05 -
Square D FHL36020 Molded Case Breakers (MCCBs)
MSRP $927.43Surplus $585.00SKU: E30-10208 Brand: Square D MPN: FHL36020 UPC: Shipping Weight: 4.60 lbs. Shipping Height: 5.00 In. Shipping Length: 8.00 In. Shipping Width: 6.00 In. Product...- SKU:
- E30-10208
- Current Rating:
- 20 A
- Series:
- FH
- Voltage Rating:
- 240/480/600 VAC at 50/60 Hz, 480 VAC Star/277 VAC at 50/60 Hz, 600 VAC Star/347 VAC at 50/60 Hz (UL/CSA/NOM), 415 VAC at 50/60 Hz (IEC), 250 VDC
- Short Description:
- 600 VAC, 250 VDC, 20 A, 18/10 kA, 3-Pole, F-Frame, Unit Mount, Thermal Magnetic, Molded Case Circuit Breaker
- Maximum AC Voltage Rating:
- 600 V
- Size:
- 4.5 Inch W x 4.13 Inch D x 6 Inch H
- Terminal Type:
- Line Lug, Load Lug
- Maximum DC Voltage Rating:
- 250 V
- Catalog:
- SchneiderElectric_00256_11_8_CAT.pdf
- Installation/Operator:
- SchneiderElectric-SquareD_00076_INST.pdf
- Data Sheet:
- SchneiderElectric-SquareD_04574_1_2_DATA.pdf
- Frame Type:
- F
- Number of Poles:
- 3
- Type:
- Molded Case, Thermal Magnetic
- Interrupting Rating:
- 65 kA at 240 VAC, 25 kA at 480 VAC Star/277 VAC, 25 kA at 480 VAC, 18 kA at 600 VAC Star/347 VAC, 18 kA at 600 VAC (UL/CSA/NOM), 10/2.5 kA at 415 VAC (IEC), 50 kA at 250 VDC
- Prop 65 Warning:
- Yes
- Approval:
- UL, CSA
- Country of Origin:
- Mexico
MSRP $927.43Surplus $585.00 -
Square D HDA36020 Molded Case Breakers (MCCBs)
MSRP $1,124.00Surplus $663.00Square D HDA36020 Molded Case Breakers (MCCBs)​ ARCA SKU: C15-6433 Brand: Square D MPN: HDA36020 UPC: 78590140524 Shipping Weight: 5.50 lbs. Shipping Height: 6.00 In. Shipping...- SKU:
- C15-6433
- TS PIK:
- 21032769
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Current Rating:
- 20 A
- Series:
- HD
- Data Sheet:
- SchneiderElectric-SquareD_46391_1-3_DATA.pdf
- Number of Poles:
- 3
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 20 A, 14 kA, 3-Pole, H-Frame, ABC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- CAD Drawings:
- SchneiderElectric_29571_1_CAD.pdf
- Type:
- Thermal Magnetic, Current Limiting
- Interrupting Rating:
- 14 kA at 600 VAC, 20 kA at 250 VDC
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Prop 65 Warning:
- Yes
- Country of Origin:
- Mexico
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Application:
- Distribution
- Approval:
- UL, CSA, CE
- Trip Setting:
- 350 A (Hold), 750 A (Trip)
MSRP $1,124.00Surplus $663.00 -
Square D HGA36020 Molded Case Breakers (MCCBs)
MSRP $1,575.00Surplus $623.16SKU: C15-7160 Brand: Square D MPN: HGA36020 UPC: 78590160133 Shipping Weight: 5.45 lbs. Shipping Height: 6.00 In. Shipping Length: 15.00 In. Shipping Width: 9.00 In...- SKU:
- C15-7160
- TS PIK:
- 116992224
- Series:
- HG
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Current Rating:
- 20 A
- Data Sheet:
- SchneiderElectric-SquareD_46576_1-3_DATA.pdf
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Number of Poles:
- 3
- CAD Drawings:
- SchneiderElectric-SquareD_73203_1_CAD.pdf
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 20 A, 18 kA, 3-Pole, H-Frame, ABC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Type:
- Thermal Magnetic, Current Limiting
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Prop 65 Warning:
- Yes
- Country of Origin:
- Mexico
- Trip Setting:
- 350 A (Hold), 750 A (Trip)
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Application:
- Distribution
- Approval:
- UL, CSA, CE
MSRP $1,575.00Surplus $623.16 -
Square D HGL36020 Molded Case Breakers (MCCBs)
MSRP $1,493.00Surplus $641.17SKU: C15-10730 Brand: Square D MPN: HGL36020 UPC: 78590159870 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-10730
- TS PIK:
- 120730882
- Series:
- HG
- Prop 65 Warning:
- Yes
- Current Rating:
- 20 A
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 20 A, 18 kA, 3-Pole, H-Frame, Unit Mount, Line/Load Lug Terminal, 80% Continuous Current, Thermal Magnetic, Current Limiting, Molded Case Circuit Breaker
- Data Sheet:
- SchneiderElectric-SquareD_46627_1-3_DATA.pdf
- Number of Poles:
- 3
- Frame Type:
- H
- Catalog:
- SchneiderElectric-SquareD_32357_7_6_7_31_7_33_7_34_CAT.pdf
- Installation/Operator:
- SchneiderElectric-SquareD_00142_INST.pdf
- Maximum AC Voltage Rating:
- 600 V
- CAD Drawings:
- SchneiderElectric-SquareD_74672_1_CAD.pdf
- Terminal Type:
- Line/Load Lug
- Maximum DC Voltage Rating:
- 250 V
- Size:
- 4.09 Inch Width x 3.39 Inch Depth x 6.42 Inch Height
- Type:
- Thermal Magnetic, Current Limiting
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Country of Origin:
- Mexico
- Approval:
- UL, CSA, CE
MSRP $1,493.00Surplus $641.17 -
Square D HGL36020T Molded Case Breakers (MCCBs)
MSRP $1,493.00Surplus $350.50SKU: C15-7137 Brand: Square D MPN: HGL36020T UPC: 78590126762 Shipping Weight: 4.15 lbs. Shipping Height: 6.00 In. Shipping Length: 9.00 In. Shipping Width: 8.00 In...- SKU:
- C15-7137
- TS PIK:
- 120072299
- Installation/Operator:
- SchneiderElectric-SquareD_00142_INST.pdf
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 20 A, 18 kA, 3-Pole, H-Frame, Unit Mount, Line/Load Lug Terminal, Thermal Magnetic, Current Limiting, Interchangeable, Molded Case Circuit Breaker
- Maximum AC Voltage Rating:
- 600 V
- Number of Poles:
- 3
- Current Rating:
- 20 A
- Catalog:
- SchneiderElectric-SquareD_32357_7_6_7_31_7_33_7_34_CAT.pdf
- Maximum DC Voltage Rating:
- 250 V
- Data Sheet:
- SchneiderElectric-SquareD_46628_1-3_DATA.pdf
- Size:
- 4.09 Inch Width x 3.39 Inch Depth x 6.42 Inch Height
- Interrupting Rating:
- 18 kA at 600 VAC, 20 kA at 250 VDC
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Series:
- HG
- Frame Type:
- H
- Type:
- Thermal Magnetic, Current Limiting, Interchangeable
- CAD Drawings:
- SchneiderElectric-SquareD_74672_1_CAD.pdf
- Terminal Type:
- Line/Load Lug
- Country of Origin:
- United States
- Approval:
- UL, CSA, CE
MSRP $1,493.00Surplus $350.50 -
Square D HJA36020 Molded Case Breakers (MCCBs)
MSRP $1,988.00Surplus $897.00SKU: C15-7129 Brand: Square D MPN: HJA36020 UPC: 78590160094 Shipping Weight: 5.10 lbs. Shipping Height: 7.00 In. Shipping Length: 11.00 In. Shipping Width: 7.00 In...- SKU:
- C15-7129
- TS PIK:
- 119796230
- Series:
- HJ
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 20 A, 25 kA, 3-Pole, H-Frame, ABC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
- Number of Poles:
- 3
- Current Rating:
- 20 A
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- CAD Drawings:
- SchneiderElectric_29661_1_CAD.pdf
- Data Sheet:
- SchneiderElectric-SquareD_46732_1-3_DATA.pdf
- Catalog:
- SchneiderElectric-SquareD_32357_7_31_9_58_CAT.pdf
- Installation/Operator:
- SchneiderElectric-Telemecanique_00047_INST.pdf
- Interrupting Rating:
- 25 kA at 600 VAC, 20 kA at 250 VDC
- Type:
- Thermal Magnetic, Current Limiting
- Prop 65 Warning:
- Yes
- Country of Origin:
- Mexico
- Approval:
- UL, CSA, CE
- Application:
- Distribution
- Used On:
- Class 611/612 I-Line Panelboard and Switchboard
- Trip Setting:
- 350 A (Hold), 750 A (Trip)
MSRP $1,988.00Surplus $897.00 -
Square D HLL36020 Molded Case Breakers (MCCBs)
MSRP $1,794.00Surplus $1,193.01SKU: C15-10758 Brand: Square D MPN: HLL36020 UPC: 78590168309 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-10758
- TS PIK:
- 120736839
- Number of Poles:
- 3
- Current Rating:
- 20 A
- Voltage Rating:
- 600 VAC 50/60 Hertz, 250 VDC
- Maximum AC Voltage Rating:
- 600 V
- Data Sheet:
- SchneiderElectric-SquareD_46883_1-3_DATA.pdf
- Installation/Operator:
- SchneiderElectric-SquareD_00142_INST.pdf
- Series:
- HL
- Catalog:
- SchneiderElectric-SquareD_32357_7_6_7_31_7_33_7_34_CAT.pdf
- Maximum DC Voltage Rating:
- 250 V
- Approval:
- UL, CSA, CE
- Terminal Type:
- Line/Load Lug
- CAD Drawings:
- SchneiderElectric-SquareD_74672_1_CAD.pdf
- Frame Type:
- H
- Type:
- Thermal Magnetic, Current Limiting
- Interrupting Rating:
- 50 kA at 600 VAC, 20 kA at 250 VDC
- Size:
- 4.09 Inch Width x 3.39 Inch Depth x 6.42 Inch Height
- Short Description:
- 600 VAC 50/60 Hz, 250 VDC, 20 A, 50 kA, 3-Pole, H-Frame, Unit Mount, Line/Load Lug Terminal, 80% Continuous Current, Thermal Magnetic, Current Limiting, Molded Case Circuit Breaker
- Country of Origin:
- Mexico
MSRP $1,794.00Surplus $1,193.01 -
Square D HOM120GFI Molded Case Breakers (MCCBs)
MSRP $212.00Surplus $83.70SKU: C15-6616 Brand: Square D MPN: HOM120GFI UPC: Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In. Product...- SKU:
- C15-6616
- TS PIK:
- 21356164
- Size:
- 1 Inch Width x 2.98 Inch Depth x 3.13 Inch Height
- Short Description:
- 120 VAC, 20 A, 10 kA, 1-Pole, Screw ClA Terminal, Plug-On Mount, Ground Fault, Miniature Circuit Breaker
- Number of Poles:
- 1
- Interrupting Rating:
- 10 kA
- Series:
- HOM-GFI
- Type:
- Miniature, Thermal Magnetic
- Installation/Operator:
- SchneiderElectric-SquareD_00202_INST.pdf
- Catalog:
- SchneiderElectric-SquareD_03264_1_19_CAT.pdf
- Current Rating:
- 20 A
- Voltage Rating:
- 120 VAC
- Terminal Type:
- Screw ClA
- Country of Origin:
- Mexico
- Used On:
- Loadcenter
- Mounting:
- Plug-On
- Wire Size:
- 14 to 10 AWG (Aluminum/Copper)
- Approval:
- UL, CSA
MSRP $212.00Surplus $83.70 -
Square D QO2020 Everything Else
MSRP $73.00Surplus $63.00SKU: C15-6635 Brand: Square D MPN: QO2020 UPC: 78590140094 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- C15-6635
- TS PIK:
- 111088405
- Number of Poles:
- 1
- Approval:
- UL, CSA
- Type:
- Tandem, Miniature
- Mounting:
- Plug-On
- Current Rating:
- 20 A
- Catalog:
- SchneiderElectric-SquareD_32357_1_2_1_4_CAT.pdf
- Used On:
- QO Load Center
- Interrupting Rating:
- 10 kA
- Wire Size:
- 14 to 8 AWG (Copper/Aluminum)
- Terminal Type:
- Box Lug
- Series:
- QO
- Size:
- 0.75 Inch Width x 2.91 Inch Depth x 3.23 Inch Height
- Voltage Rating:
- 120/240 VAC 50/60 Hertz
- Short Description:
- 120/240 VAC 50/60 Hz, 20 A, 10 kA Interrupt, 1-Pole, 14 to 8 AWG Copper/Aluminum, Plug-On Mount, Box Lug Terminal, Tandem, Miniature Circuit Breaker
- Data Sheet:
- SchneiderElectric-SquareD_53465_1_2_DATA.pdf
- Country of Origin:
- Mexico
MSRP $73.00Surplus $63.00 -
Square D QO320GFI Molded Case Breakers (MCCBs)
MSRP $918.00Surplus $610.47SKU: U00-8577 Brand: Square D MPN: QO320GFI UPC: 78590129858 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- U00-8577
- Series:
- QO
- Prop 65 Warning:
- Yes
- Short Description:
- 208/120 VAC 50/60 Hz, 20 A, 10 kA Interrupt, 3-Pole, 12 to 8 AWG Aluminum, 14 to 8 AWG Copper, Plug-On Mount, Pressure Plate Terminal, Pigtail, Miniature Circuit Breaker
- Terminal Type:
- Pressure Plate
- Approval:
- UL, CSA
- CAD Drawings:
- SchneiderElectric_30264_1_CAD.pdf
- Number of Poles:
- 3
- Data Sheet:
- SchneiderElectric-SquareD_53570_1_2_DATA.pdf
- Voltage Rating:
- 208/120 VAC 50/60 Hertz
- Catalog:
- SchneiderElectric-SquareD_32357_1_2_1_5_CAT.pdf
- Interrupting Rating:
- 10 kA
- Wire Size:
- 12 to 8 AWG (Aluminum), 14 to 8 AWG (Copper)
- Size:
- 2.24 Inch Width x 2.91 Inch Depth x 4.13 Inch Height
- Mounting:
- Plug-On
- Installation/Operator:
- SchneiderElectric-SquareD_01265_INST.pdf
- Current Rating:
- 20 A
- Type:
- Miniature, Pigtail, Ground Fault Protecting Class A
- Used On:
- Load Center
- Country of Origin:
- Mexico
MSRP $918.00Surplus $610.47
Disclaimer: ARCA Supply is not an authorized distributor, reseller or representative of any manufacturer, brand or product listed. All product names, trademarks, brands and logos are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder. All items sold by ARCA Supply are covered under ARCA Supply's warranty and not the manufacturer warranty.
