Fuses
A fuse is a safety device that is used to protect electrical circuits from overloading and short-circuits. It works by breaking the flow of electrical current in the event of an overload or short-circuit. This helps to prevent damage to electrical equipment, minimize the risk of electrical fires, and protect people from electric shock.
- Product
- Qty in Cart
- Price
-
Ferraz Shawmut A50P150-4 Fuse Accessories 500V
MSRP $251.88Surplus $37.85Ferraz Shawmut A50P150-4 Fuse Accessories 500V​ ARCA SKU: F16-3476 Brand: Ferraz Shawmut MPN: A50P150-4 UPC: Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping...- SKU:
- F16-3476
- Current Rating:
- 150 A
- Terminal Type:
- Blade
- CAD Drawings:
- Mersen_00202_1_CAD.pdf
- Short Description:
- 1.22" x 3.63", 500 VAC, 450 VDC, 150 A, 50 kA AC Interrupt, GMG Body, Tin Plated Brass Blade Terminal, Bolted Mount, Round, Current Limiting, High Speed, Very Fast Acting, Semiconductor Protection Fuse
- Type:
- Round, Semiconductor
- Series:
- A50P
- Data Sheet:
- Mersen_00057_HS8_HS9_DATA.pdf
- Characteristics:
- Very Fast Acting, High Speed
- Length:
- 3.63
- Interrupting Rating:
- 50 kA (AC)
- Voltage Rating:
- 500 VAC, 450 VDC
- Approval:
- UL
- Diameter:
- 1.22
- Country of Origin:
- Mexico
MSRP $251.88Surplus $37.85 -
Ferraz Shawmut A6T150 Fuse Accessories
MSRP $140.95Surplus $52.84SKU: F16-3972 Brand: Ferraz Shawmut MPN: A6T150 UPC: 78200189146 Shipping Weight: 0.50 lbs. Shipping Height: 2.00 In. Shipping Length: 4.00 In. Shipping Width: 2.00...- SKU:
- F16-3972
- TS PIK:
- 110477067
- Short Description:
- 1.07" x 3.26", 600 VAC/300 VDC, 150 A, 200 kA AC/100 kA DC Interrupt, GMG Body, Copper Blade Terminal, Bolted Mount, Class T, Current Limiting, Fast Acting, Low Vage UL Power Fuse (1 per Pack)
- Type:
- Class T
- Series:
- A6T
- Current Rating:
- 150 A
- Diameter:
- 1.07
- Terminal Type:
- Blade
- Characteristics:
- Fast Acting
- Voltage Rating:
- 600 VAC, 300 VDC
- Interrupting Rating:
- 200 kA (AC), 100 kA (DC)
- CAD Drawings:
- Mersen_00130_1_CAD.pdf
- Catalog:
- Mersen_00086_195_CAT.pdf
- Data Sheet:
- Mersen_00052_PF32_PF33_DATA.pdf
- Length:
- 3.26
- Approval:
- UL 248/248-15, CSA C22.2
- Country of Origin:
- Mexico
MSRP $140.95Surplus $52.84 -
Ferraz Shawmut A3T150 Fuses
MSRP $109.64Surplus $67.04SKU: F16-3719 Brand: Ferraz Shawmut MPN: A3T150 UPC: 78200189021 Shipping Weight: 0.50 lbs. Shipping Height: 2.00 In. Shipping Length: 2.00 In. Shipping Width: 1.00...- SKU:
- F16-3719
- Series:
- A3T
- Current Rating:
- 150 A
- Type:
- Class T
- Short Description:
- 1.06" x 2.44", 300 VAC/160 VDC, 150 A, 200 kA AC/50 kA DC Interrupt, GMG Body, Copper Blade Terminal, Bolted Mount, Class T, Current Limiting, Fast Acting, Low Vage UL Power Fuse (1 per Pack)
- Catalog:
- Mersen_00086_195_CAT.pdf
- Data Sheet:
- Mersen_00052_PF32_PF33_DATA.pdf
- CAD Drawings:
- Mersen_00339_1_CAD.pdf
- Characteristics:
- Fast Acting
- Terminal Type:
- Blade
- Interrupting Rating:
- 200 kA (AC), 50 kA (DC)
- TS PIK:
- 110477034
- Diameter:
- 1.06
- Voltage Rating:
- 300 VAC, 160 VDC
- Length:
- 2.44
- Approval:
- UL 248/248-15, CSA C22.2
- Country of Origin:
- Mexico
MSRP $109.64Surplus $67.04 -
Ferraz Shawmut OT150 Fuses
MSRP $122.63Surplus $41.79SKU: F16-3885 Brand: Ferraz Shawmut MPN: OT150 UPC: 78200170033 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00 In...- SKU:
- F16-3885
- Data Sheet:
- Mersen_00082_PF30_PF31_DATA.pdf
- Current Rating:
- 150 A
- Characteristics:
- Fast Acting, One Time
- CAD Drawings:
- Mersen_00414_1_CAD.pdf
- Terminal Type:
- Blade
- Catalog:
- Mersen_00086_195_CAT.pdf
- Type:
- Class K5
- Interrupting Rating:
- 50 kA (AC), 20 kA (DC)
- Series:
- OT
- Short Description:
- 1.56" x 7.13", 250 VAC/VDC, 150 A, 50 kA AC/20 kA DC Interrupt, PolyTube Body, Tin Plated Copper Blade Terminal, Clip Mount, Class K5, Fast Acting, Low Vage UL Power Fuse (1 per Pack)
- Voltage Rating:
- 250 VAC/DC
- Interrupt Rating:
- 50/20 kA
- TS PIK:
- 528089
- Length:
- 7-1/8
- Approval:
- UL 248-9, CSA C22.2
- Diameter:
- 1.585 (without Pin), 1.654 (with Pin)
- Country of Origin:
- Mexico
MSRP $122.63Surplus $41.79 -
Contact Us For Quote
Ferraz Shawmut A15QS150-4 Fuse Accessories 130V
MSRP $126.86Surplus $71.60Ferraz Shawmut A15QS150-4 Fuse Accessories 130V​ ARCA SKU: F16-3672 Brand: Ferraz Shawmut MPN: A15QS150-4 UPC: Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping...- SKU:
- F16-3672
- Terminal Type:
- Blade
- Data Sheet:
- Mersen_00011_HS2_HS3_DATA.pdf
- Type:
- Round, Semiconductor
- Short Description:
- 1.13" x 2.66", 150 VAC/VDC, 150 A, 100 kA AC/50 kA DC Interrupt Rating, GMG Body, Tin Plated Brass Blade Terminal, Bolted Mount, Fast Acting, High Speed, Current Limiting, Round, Form 101, Semiconductor Protection Fuse
- Current Rating:
- 150 A
- Catalog:
- Mersen_00697_19_20_CAT.pdf
- Series:
- A15QS
- Characteristics:
- Fast Acting, High Speed
- Voltage Rating:
- 150 VAC/DC
- Interrupting Rating:
- 200 kA (AC)
- Approval:
- UL E60314
- Length:
- 2.66
- Diameter:
- 1.13
MSRP $126.86Surplus $71.60 -
Ferraz Shawmut A25X150-4 Fuse Accessories
MSRP $218.63Surplus $62.41SKU: E30-7886 Brand: Ferraz Shawmut MPN: A25X150-4 UPC: 78200194254 Shipping Weight: 0.35 lbs. Shipping Height: 1.25 In. Shipping Length: 3.00 In. Shipping Width: 1...- SKU:
- E30-7886
- TS PIK:
- 121526573
- Type:
- Semiconductor
- Short Description:
- 1.5" x 3.84", 250 VAC, 150 A, 10.6 kA, Blade Terminal, High Speed Fuse
- Series:
- A25X
- Current Rating:
- 150 A
- Catalog:
- Mersen_00697_21_22_CAT.pdf
- Terminal Type:
- Blade
- Voltage Rating:
- 250 V
- Country of Origin:
- Mexico
MSRP $218.63Surplus $62.41 -
Contact Us For Quote
Ferraz Shawmut A2K150R Fuse Accessories EA
MSRP $605.68Surplus $258.98Ferraz Shawmut A2K150R Fuse Accessories EA​ ARCA SKU: E30-7900 Brand: Ferraz Shawmut MPN: A2K150R UPC: 78200191527 Shipping Weight: 1.95 lbs. Shipping Height: 7.00 In. Shipping...- SKU:
- E30-7900
- Type:
- Class RK1
- Approval:
- UL 248/248-12, CSA C22.2
- Terminal Type:
- Blade
- Short Description:
- 1.56" x 7.13", 250 VAC/VDC, 150 A, 200 kA AC/20 kA DC Interrupt, PolyTube Body, Tin Plated Copper Blade Terminal, Clip Mount, Class RK1, Rejection, Highly Current Limiting, Fast Acting, Low Vage UL Power Fuse (1 per Pack)
- Length:
- 7-1/8
- Data Sheet:
- Mersen_00051_PF10_PF11_DATA.pdf
- CAD Drawings:
- Mersen_00129_1_CAD.pdf
- Catalog:
- Mersen_00086_190_CAT.pdf
- Series:
- A2K-R
- Interrupting Rating:
- 200 kA (AC), 20 kA (DC)
- Voltage Rating:
- 250 VAC/VDC
- Current Rating:
- 150 A
- Characteristics:
- Fast Acting
MSRP $605.68Surplus $258.98 -
Contact Us For Quote
Ferraz Shawmut A30QS150-4 Fuse Accessories 250V
MSRP $161.30Surplus $91.04Ferraz Shawmut A30QS150-4 Fuse Accessories 250V​ ARCA SKU: F16-3712 Brand: Ferraz Shawmut MPN: A30QS150-4 UPC: Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping...- SKU:
- F16-3712
- CAD Drawings:
- Mersen_00335_1_CAD.pdf
- Data Sheet:
- Mersen_00012_1_2_DATA.pdf
- Current Rating:
- 150 A
- Voltage Rating:
- 300 VAC/DC
- Series:
- A30QS
- Interrupting Rating:
- 63 kA (AC)
- Diameter:
- 1.22
- Type:
- Round, Semiconductor
- Length:
- 3.13
- Terminal Type:
- Blade
- Approval:
- UL
- Characteristics:
- Fast Acting, High Speed
- Short Description:
- 1.22" x 3.13", 300 VAC/VDC, 150 A, 63 kA AC Interrupt, GMG Body, Tin Plated Brass Blade Terminal, Bolted Mount, Round, High Speed, Semiconductor Protection Fuse
- Catalog:
- Mersen_00302_24_CAT.pdf
MSRP $161.30Surplus $91.04 -
Ferraz Shawmut A4J150 Fuses EA
MSRP $373.68Surplus $198.05SKU: F16-3462 Brand: Ferraz Shawmut MPN: A4J150 UPC: 78200196035 Shipping Weight: 0.80 lbs. Shipping Height: 1.75 In. Shipping Length: 6.00 In. Shipping Width: 1.75...- SKU:
- F16-3462
- Type:
- Class J
- Terminal Type:
- Blade
- Short Description:
- 1.62" x 5.75", 600 VAC/300 VDC, 150 A, 200 kA AC/100 kA DC Interrupt, GMG Body, Brass Alloy Blade Terminal, Clip Mount, Class J, Current Limiting, Fast Acting, Low Vage UL Power Fuse (1 per Pack)
- Series:
- A4J
- Interrupting Rating:
- 200 kA (AC), 100 kA (DC)
- CAD Drawings:
- Mersen_00352_1_CAD.pdf
- Catalog:
- Mersen_00086_193_CAT.pdf
- Characteristics:
- Fast Acting
- Current Rating:
- 150 A
- Data Sheet:
- Mersen_00056_PF22_PF23_DATA.pdf
- TS PIK:
- 530034
- Diameter:
- 1-5/8
- Length:
- 5-3/4
- Approval:
- UL 248/248-8, CSA C22.2
- Voltage Rating:
- 600 VAC, 300 VDC
- Country of Origin:
- United States
MSRP $373.68Surplus $198.05 -
Contact Us For Quote

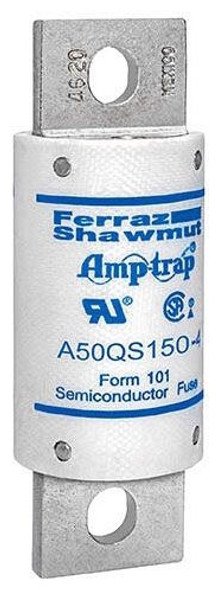

Ferraz Shawmut A50QS150-4 Distribution Fuses
MSRP $221.48Surplus $96.46SKU: F16-4042 Brand: Ferraz Shawmut MPN: A50QS150-4 UPC: 78200194767 Shipping Weight: 0.40 lbs. Shipping Height: 2.00 In. Shipping Length: 4.00 In. Shipping Width: 2...- SKU:
- F16-4042
- TS PIK:
- 116082610
- Short Description:
- 1.22" x 3.63", 500 VAC/VDC, 150 A, 50 kVAC Interrupt, GMG Body, Tin Plated Brass Blade Terminal, Bolted Mount, Round, High Speed, Semiconductor Protection Fuse
- Current Rating:
- 150 A
- Interrupting Rating:
- 50 kA (AC)
- Voltage Rating:
- 500 VAC/DC
- Type:
- Round, Semiconductor
- Data Sheet:
- Mersen_00013_HS6_HS7_DATA.pdf
- Terminal Type:
- Blade
- Characteristics:
- High Speed
- CAD Drawings:
- Mersen_00208_1_CAD.pdf
- Series:
- A50QS
- Catalog:
- Mersen_00302_27_28_CAT.pdf
- Approval:
- UL 60314, CSA LR12636
- Length:
- 3.63
- Diameter:
- 1.22
MSRP $221.48Surplus $96.46 -
Ferraz Shawmut A60X150-4 Fuses
MSRP $317.62Surplus $95.45SKU: E30-7905 Brand: Ferraz Shawmut MPN: A60X150-4 UPC: 78200194329 Shipping Weight: 0.45 lbs. Shipping Height: 1.25 In. Shipping Length: 4.25 In. Shipping Width: 1...- SKU:
- E30-7905
- TS PIK:
- 529901
- Short Description:
- 1.22" x 4.41", 600 VAC, 150 A, 200 kA Interrupt Rating, GMG Body, Tin Plated Brass Blade Terminal, Bolted Mount, High Speed, Round, Form 101, Semiconductor Protection Fuse
- Series:
- A60X
- Current Rating:
- 150 A
- CAD Drawings:
- Mersen_00211_1_CAD.pdf
- Interrupting Rating:
- 100 kA (AC)
- Type:
- Round, Semiconductor
- Catalog:
- Mersen_00697_32_33_CAT.pdf
- Characteristics:
- Fast Acting
- Data Sheet:
- Mersen_00059_HS11_HS12_DATA.pdf
- Voltage Rating:
- 600 VAC
- Approval:
- UL
- Diameter:
- 1.22
- Length:
- 4.41
- Terminal Type:
- Blades, Bolt-In
- Indication Type:
- Blown-Fuse
- Country of Origin:
- Mexico
MSRP $317.62Surplus $95.45 -
Ferraz Shawmut A6D150R Fuses
MSRP $315.65Surplus $167.29SKU: F16-3766 Brand: Ferraz Shawmut MPN: A6D150R UPC: 78200199216 Shipping Weight: 1.25 lbs. Shipping Height: 1.81 In. Shipping Length: 9.63 In. Shipping Width: 1.81...- SKU:
- F16-3766
- TS PIK:
- 110477899
- Series:
- A6D-R
- Current Rating:
- 150 A
- Short Description:
- 1-13/16" x 9-5/8", 600 VAC/VDC, 150 A, 200 kA AC/100 kA DC Interrupt Rating, PolyTube Body, Tin Plated Copper Blade Terminal, Clip Mount, Time Delay, Class RK1, Low Vage Power Fuse with Smartspot Indicator
- Interrupting Rating:
- 200 kA (AC), 100 kA (DC)
- Type:
- Class RK1 Rejection
- Catalog:
- Mersen_00086_189_CAT.pdf
- Data Sheet:
- Mersen_00050_PF8_PF9_DATA.pdf
- Characteristics:
- Time Delay, Current Limiting
- CAD Drawings:
- Mersen_00798_1_CAD.pdf
- Approval:
- UL 248/248-12, CSA C22.2
- Terminal Type:
- Blade
- Diameter:
- 1.81
- Length:
- 9.63
- Voltage Rating:
- 600 VAC 50/60 Hertz, 600 VDC
- Country of Origin:
- Mexico
MSRP $315.65Surplus $167.29 -
Contact Us For Quote
Ferraz Shawmut A6K150R Fuses
MSRP $659.70Surplus $282.07SKU: F16-3957 Brand: Ferraz Shawmut MPN: A6K150R UPC: 78200191578 Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0.00 In. Shipping Width: 0.00...- SKU:
- F16-3957
- Short Description:
- 1.81" x 9.63", 600 VAC/300 VDC, 150 A, 200 kA AC/20 kA DC Interrupt, PolyTube Body, Tin Plated Copper Blade Terminal, Clip Mount, Class RK1, Rejection, Highly Current Limiting, Fast Acting, Low Vage UL Power Fuse (1 per Pack)
- Series:
- A6K-R
- Interrupting Rating:
- 200 kA (AC), 20 kA (DC)
- Type:
- Class RK1
- Catalog:
- Mersen_00086_190_CAT.pdf
- Data Sheet:
- Mersen_00051_PF10_PF11_DATA.pdf
- Current Rating:
- 150 A
- CAD Drawings:
- Mersen_00129_1_CAD.pdf
- Terminal Type:
- Blade
- Characteristics:
- Fast Acting
- Voltage Rating:
- 600 VAC, 300 VDC
- Interrupt Rating:
- 200/20 kA
- TS PIK:
- 110477415
- Length:
- 9.63
- Approval:
- UL 248/248-12, CSA C22.2
- Diameter:
- 1.81
MSRP $659.70Surplus $282.07 -
Contact Us For Quote
Ferraz Shawmut A6Y150-3 Fuse Accessories 600V
MSRP $611.72Surplus $523.11Ferraz Shawmut A6Y150-3 Fuse Accessories 600V​ ARCA SKU: F16-3803 Brand: Ferraz Shawmut MPN: A6Y150-3 UPC: Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping...- SKU:
- F16-3803
- Catalog:
- Mersen_00086_211_CAT.pdf
- Data Sheet:
- Mersen_00029_SP37_SP38_DATA.pdf
- Short Description:
- 1-1/2" x 9-5/8", 600 VAC, 500 VDC, 150 A, 200 kA AC/100 kA DC Interrupt, GMG Body, Silver Plated Copper Blade Terminal, Clip Mount, Type 3, Welder Protector Fuse
- Type:
- Type 3
- Interrupting Rating:
- 200 kA (AC), 100 kA (DC)
- Series:
- A6Y
- Current Rating:
- 150 A
- Voltage Rating:
- 600 VAC, 500 VDC
- Diameter:
- 1-1/2
- Approval:
- UL
- Length:
- 9-5/8
- CAD Drawings:
- Mersen_00363_1_CAD.pdf
MSRP $611.72Surplus $523.11 -
Contact Us For Quote
Ferraz Shawmut A70P150-4 Fuse Accessories 700V
MSRP $278.07Surplus $156.95Ferraz Shawmut A70P150-4 Fuse Accessories 700V​ ARCA SKU: F16-3807 Brand: Ferraz Shawmut MPN: A70P150-4 UPC: Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping...- SKU:
- F16-3807
- Short Description:
- 1.5" x 5.09", 700 VAC, 650 VDC, 150 A, 50 kA AC Interrupt, GMG Body, Tin Plated Brass Bolted Terminal, Round, Form 101, High Speed, Very Fast Acting, Semiconductor Protection Fuse
- Type:
- Round, Semiconductor
- Current Rating:
- 150 A
- Terminal Type:
- Blade
- Series:
- A70P
- Data Sheet:
- Mersen_00014_HS18_HS19_DATA.pdf
- CAD Drawings:
- Mersen_00132_1_CAD.pdf
- Interrupting Rating:
- 100 kA (AC/DC)
- Approval:
- UL
- Diameter:
- 1.5
- Length:
- 5.09
- Voltage Rating:
- 700 VAC, 650 VDC
- Characteristics:
- Very Fast Acting, High Speed
MSRP $278.07Surplus $156.95 -
Ferraz Shawmut OTS150 Fuse Accessories
MSRP $226.58Surplus $120.09Ferraz Shawmut OTS150 Fuse Accessories​ ARCA SKU: F16-3585 Brand: Ferraz Shawmut MPN: OTS150 UPC: Shipping Weight: 0.00 lbs. Shipping Height: 0.00 In. Shipping Length: 0...- SKU:
- F16-3585
- Series:
- OTS
- Terminal Type:
- Blade
- Catalog:
- Mersen_00086_195_CAT.pdf
- Short Description:
- 1.81" x 9.63", 600 VAC/300 VDC, 150 A, 50 kA AC/20 kA DC Interrupt, PolyTube Body, Tin Plated Copper Blade Terminal, Clip Mount, Class K5, Fast Acting, Low Vage UL Power Fuse (1 per Pack)
- CAD Drawings:
- Mersen_00253_1_CAD.pdf
- Data Sheet:
- Mersen_00082_PF30_PF31_DATA.pdf
- Current Rating:
- 150 A
- Type:
- Class K5
- Interrupting Rating:
- 50 kA (AC), 20 kA (DC)
- Approval:
- UL 248-9, CSA C22.2
- Characteristics:
- Fast Acting, One Time
- Length:
- 9-5/8
- Voltage Rating:
- 600 VAC, 300 VDC
- Diameter:
- 1.83 (without Pin), 1.968 (with Pin)
- Country of Origin:
- Mexico
MSRP $226.58Surplus $120.09 -
Ferraz Shawmut TRS150RID Fuses EA
MSRP $240.64Surplus $127.54SKU: F16-3624 Brand: Ferraz Shawmut MPN: TRS150RID UPC: 78200141520 Shipping Weight: 1.30 lbs. Shipping Height: 2.00 In. Shipping Length: 10.00 In. Shipping Width: 2...- SKU:
- F16-3624
- Characteristics:
- Time Delay
- Terminal Type:
- Blade
- Current Rating:
- 150 A
- Series:
- TRS-R
- Interrupting Rating:
- 200 kA (AC), 100 kA (DC)
- Type:
- Class RK5
- CAD Drawings:
- Mersen_00292_1_CAD.pdf
- Catalog:
- Mersen_00086_191_CAT.pdf
- Data Sheet:
- Mersen_00090_PF12_PF13_DATA.pdf
- Voltage Rating:
- 600 VAC/DC
- Interrupt Rating:
- 200 kA
- TS PIK:
- 123452051
- Diameter:
- 1-13/16
- Length:
- 9-5/8
- Approval:
- UL 248-12, CSA C22.2
- Country of Origin:
- Mexico
MSRP $240.64Surplus $127.54
Disclaimer: ARCA Supply is not an authorized distributor, reseller or representative of any manufacturer, brand or product listed. All product names, trademarks, brands and logos are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder. All items sold by ARCA Supply are covered under ARCA Supply's warranty and not the manufacturer warranty.
