Eaton

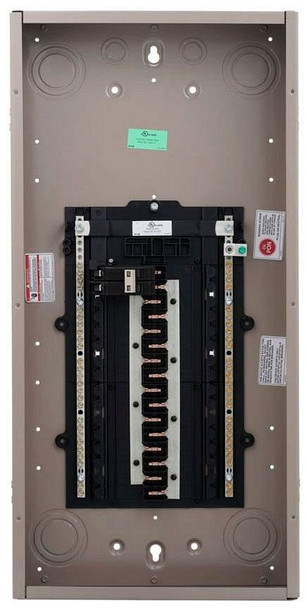

Eaton CHP30B100X5 Loadcenters and Panelboards CH 100A 240V 50/60Hz 1Ph 3Wire 60Cir 30Sp NEMA 1
- MPN:
- CHP30B100X5
- UPC:
- 78667918959
- SKU:
- L19-2134
Product Conditions
Surplus
Parts from another distributor or wholesaler that were only removed from the original packaging for inspection and pictures. These parts have never been energized, installed, or modified in any way.
Used
Parts that show any sign of being energized, installed, assembled with other parts, or functional wear or corrosion. These parts are sold as-is and returns may not be accepted.
Repackaged
Parts from another distributor or wholesaler that are missing the original packaging. These parts have never been energized, installed, or modified in any way and will ship in an ARCA box.
Description
SKU: L19-2134
Brand: Eaton
MPN: CHP30B100X5
UPC: 786679189597
Shipping Weight: 17.20 lbs.
Shipping Height: 5.00 In.
Shipping Length: 31.00 In.
Shipping Width: 16.00 In.
Product Notes:
Long Description: Eaton CHP30B100X5 Loadcenters and Panelboards CH 100A 240V 50/60Hz 1Ph 3Wire 60Cir 30Sp NEMA 1
Specifications
Type: |
Main Breaker |
Approval: |
UL 50/67 |
Size: |
14.3 Inch Width x 3.88 Inch Depth x 29.13 Inch Height |
Volts: |
120/240 VAC |
Amps: |
100 A |
Interrupting Rating: |
10 kA |
Enclosure: |
NEMA 1 |
Enclosure: |
Indoor |
Neutral Type: |
Insulated/Bondable Split |
Circuit Configuration: |
1-Phase 3-Wire |
Bus Material: |
Silver Flash Plated Copper |
Maximum Number of Circuits: |
60 |
Enclosure Size Designation: |
X5 |
Maximum Number of Spaces: |
(30) 3/4 |
Feed Location: |
Top/Bottom |
Main Wire Size: |
6 to 1/0 AWG Copper/Aluminum |
Main Breaker Type: |
CH |
Breaker Mounting: |
Plug-On |
Catalog: |
|
Installation/Operator: |
|
Enclosure Type: |
NEMA 1, Indoor |
Voltage Rating: |
120/240 VAC |
Current Rating: |
100 A |
Country of Origin: |
United States |
