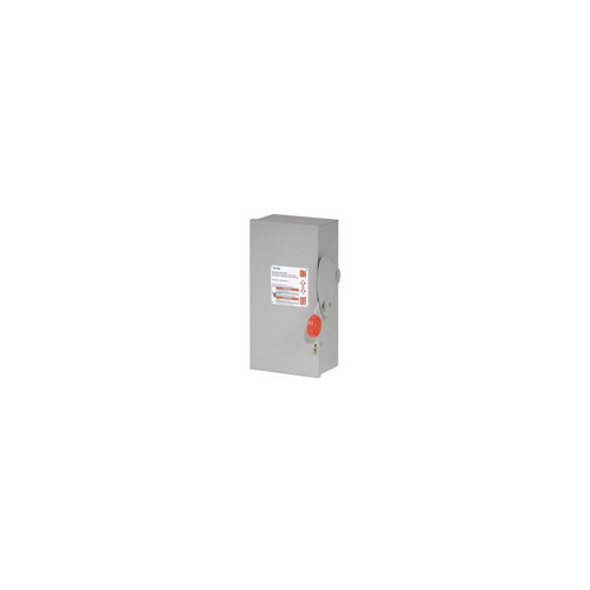

Eaton DG221NGB General Duty Safety Switches DG 2P 30A 240V 50/60Hz 1Ph Fusible w/ Neutral 3Wire EA NEMA 1

SKU:

S21-1041

Type:

General Duty

AC Voltage Rating:

240 V

DC Voltage Rating:

250 V

Current Rating:

30 A

Number of Poles:

2

Number of Wires:

3

Fuse Provision:

Fusible

Fuse Type:

Class H

Enclosure:

NEMA 1

Power Rating:

1-1/2 to 3 HP at 240 VAC 1-Phase, 3 to 7-1/2 HP at 240 VAC 3-Phase (Dual Element Time Delay Fuse)

Size:

6.1 Inch Width x 6.89 Inch Depth x 10.23 Inch Height

Enclosure Material:

Painted Steel

Short Description:

120/240 VAC, 30 A, 3 to 7-1/2 HP, 2-Pole, 3-Wire, NEMA 1, Painted Steel, Solid Neutral, Cartridge/Class H Fusible, General Duty, Single Throw Safety Switch

Catalog:

Eaton_00003_V2T1_2_V2T1_3_V2T1_11_V2T1_25-V2T1_27_CAT.pdf

Specification/Technical:

Eaton_21368_1_2_SPEC.pdf

TS PIK:

531444

Series:

DG

Country of Origin:

United States

Approval:

UL

Finish:

Painted

Eaton DG221NGBLORED Safety Switches DG 2P 30A 240V 50/60Hz 1Ph Fusible w/ Neutral 3Wire NEMA 1

SKU:

S21-1352

Short Description:

EATON GENERAL DUTY CARTRIDGE FUSE SAFETY SWITCH, 30 A, NEMA 1, PAINTED STEEL, CL

Type:

General Duty

AC Voltage Rating:

240 V

Current Rating:

30 A

Number of Poles:

2

Number of Wires:

3

Fuse Provision:

Fusible

Fuse Type:

Class H

Enclosure:

NEMA 1

Series:

DG

Country of Origin:

United States

Eaton DG221NRB General Duty Safety Switches

SKU:

S21-2722

TS PIK:

531448

Short Description:

EATON GENERAL DUTY CARTRIDGE FUSE SAFETY SWITCH, 30 A, NEMA 3R, RED PAINTED GALV

Series:

DG

Enclosure:

NEMA 3R

Type:

General Duty

Fuse Provision:

Fusible

Current Rating:

30 A

Power Rating:

1-1/2 to 3 HP at 240 VAC 1-Phase, 3 to 7-1/2 HP at 240 VAC 3-Phase (Dual Element Time Delay Fuse)

Size:

6.1 Inch Width x 5.73 Inch Depth x 10.79 Inch Height

Finish:

Painted Galvanized

Approval:

UL 98

Enclosure Material:

Painted Steel

Neutral Type:

Solid

AC Voltage Rating:

120/240 V

Fuse Type:

Cartridge, Class H

Catalog:

Eaton_00003_V2T1_2_V2T1_3_V2T1_11_V2T1_25-V2T1_27_CAT.pdf

Number of Wires:

3

Number of Poles:

2

Eaton DG221UGB General Duty Safety Switches

SKU:

S21-2651

TS PIK:

531442

Short Description:

EATON GENERAL DUTY NON-FUSIBLE SAFETY SWITCH, SINGLE-THROW, 30 A, NEMA 1, INDOOR

Type:

General Duty

Current Rating:

30 A

Number of Poles:

2

AC Voltage Rating:

240 V

Neutral Type:

None

Power Rating:

2 HP at 120 VAC 1-Phase, 3 HP at 240 VAC 1-Phase

Enclosure:

NEMA 1

Catalog:

Eaton_00003_V2T1_2_V2T1_3_V2T1_11_V2T1_25_V2T1_26_V2T1_28_CAT.pdf

Enclosure Material:

Painted Steel

Finish:

Painted

Series:

DG

Number of Wires:

2

Approval:

UL 98

Size:

6.1 Inch Width x 5.73 Inch Depth x 10.23 Inch Height

Fuse Provision:

Non-Fusible

Eaton DG221URB General Duty Safety Switches

SKU:

S21-1054

Short Description:

240 VAC, 30 A, 3 HP, 2-Pole, 2-Wire, NEMA 3R, Painted Galvanized Steel, Non-Fusible, General Duty, Single Throw Safety Switch

Number of Wires:

2

Fuse Provision:

Non-Fusible

Enclosure:

NEMA 3R

Type:

General Duty

AC Voltage Rating:

240 V

Current Rating:

30 A

Number of Poles:

2

Series:

DG

Neutral Type:

None

Catalog:

Eaton_00003_V2T1_2_V2T1_3_V2T1_11_V2T1_25_V2T1_26_V2T1_28_CAT.pdf

Enclosure Material:

Painted Steel

Power Rating:

2 HP at 120 VAC 1-Phase, 3 HP at 240 VAC 1-Phase

Size:

6.1 Inch Width x 5.73 Inch Depth x 10.79 Inch Height

TS PIK:

531446

Country of Origin:

United States

Approval:

UL 98

Finish:

Painted Galvanized

Eaton DG222NGB General Duty Safety Switches

SKU:

S21-2652

TS PIK:

111010589

Short Description:

EATON GENERAL DUTY CARTRIDGE FUSE SAFETY SWITCH, 60 A, NEMA 1, PAINTED STEEL, CL

Series:

DG

Number of Poles:

2

Fuse Provision:

Fusible

Enclosure Material:

Painted Steel

Number of Wires:

3

Power Rating:

3 to 10 HP at 240 VAC 1-Phase, 7-1/2 to 15 HP at 240 VAC 3-Phase (Dual Element Time Delay Fuse)

Approval:

UL 98

Enclosure:

NEMA 1

Fuse Type:

Cartridge, Class H

Neutral Type:

Solid

Size:

8.4 Inch Width x 6.41 Inch Depth x 13.93 Inch Height

Finish:

Painted

Current Rating:

60 A

Type:

General Duty

AC Voltage Rating:

120/240 V

Catalog:

Eaton_00003_V2T1_2_V2T1_3_V2T1_11_V2T1_25-V2T1_27_CAT.pdf

Eaton DG222NRB Safety Switches 60A 240V EA

SKU:

U00-3433

Short Description:

120/240 VAC, 60 A, 7-1/2 to 15 HP, 2-Pole, 3-Wire, NEMA 3R, Painted Galvanized Steel, Solid Neutral, Cartridge/Class H Fusible, General Duty, Single Throw Safety Switch

Number of Wires:

3

Fuse Provision:

Fusible

Fuse Type:

Class H

Enclosure:

NEMA 3R

Type:

General Duty

AC Voltage Rating:

240 V

Current Rating:

60 A

Number of Poles:

2

Series:

DG

Catalog:

Eaton_00003_V2T1_2_V2T1_3_V2T1_11_V2T1_25-V2T1_27_CAT.pdf

Size:

8.4 Inch Width x 6.41 Inch Depth x 14.37 Inch Height

Neutral Type:

Solid

Enclosure Material:

Painted Steel

Power Rating:

3 to 10 HP at 240 VAC 1-Phase, 7-1/2 to 15 HP at 240 VAC 3-Phase (Dual Element Time Delay Fuse)

Country of Origin:

United States

Approval:

UL 98

Finish:

Painted Galvanized

Eaton DG222NRB-00PV Safety Switches DG 2P 60A 240V 50/60Hz 1Ph Fusible 3Wire Nema 3R RAINPROOF

SKU:

S21-1748

Short Description:

EATON GENERAL DUTY CARTRIDGE FUSE SAFETY SWITCH, 60 A, NEMA 3R, PAINTED GALVANIZ

Type:

General Duty

AC Voltage Rating:

240 V

Current Rating:

60 A

Number of Poles:

2

Number of Wires:

3

Fuse Provision:

Fusible

Fuse Type:

Class H

Enclosure:

NEMA 3R

Series:

DG

Eaton DG222UGB General Duty Safety Switches

SKU:

S21-2655

TS PIK:

116174331

Short Description:

EATON GENERAL DUTY NON-FUSIBLE SAFETY SWITCH, SINGLE-THROW, 60 A, NEMA 1, INDOOR

Current Rating:

60 A

Series:

DG

DC Voltage Rating:

250 V

Fuse Provision:

Non-Fusible

AC Voltage Rating:

240 V

Enclosure Material:

Painted Steel

Catalog:

Eaton_00003_V2T1_2_V2T1_3_V2T1_11_V2T1_25_V2T1_26_V2T1_28_CAT.pdf

Enclosure:

NEMA 1

Finish:

Painted

Number of Wires:

2

Type:

General Duty

Number of Poles:

2

Fuse Type:

Cartridge, Plug

Approval:

UL 98/50

Power Rating:

3 HP at 120 VAC, 10 HP at 240 VAC 1-Phase

Size:

6.41 Inch Length x 8.4 Inch Width x 7 Inch Height

Eaton DG224FGK Safety Switches

SKU:

S21-2070

Short Description:

General duty cartridge fuse safety switch, 200 A, NEMA 1, Painted steel, Class H fuses, Fusible without neutral, Two-pole, Two-wire, Category: general duty safety switch, 240 V

Type:

General Duty

Series:

DG

Current Rating:

200 A

Number of Poles:

2

Enclosure:

NEMA 1

AC Voltage Rating:

240 V

Number of Wires:

2

Eaton DG224NGK General Duty Safety Switches

SKU:

S21-1332

Short Description:

120/240 VAC, 200 A, 25 to 60 HP, 2-Pole, 3-Wire, NEMA 1, Painted Steel, Solid Neutral, Cartridge/Class H Fusible, General Duty

Type:

General Duty

AC Voltage Rating:

120/240 V

DC Voltage Rating:

250 V

Current Rating:

200 A

Number of Poles:

2

Number of Wires:

3

Fuse Provision:

Fusible

Fuse Type:

Class H

Enclosure:

NEMA 1

Catalog:

Eaton_00003_V2T1_2_V2T1_3_V2T1_11_V2T1_25-V2T1_27_CAT.pdf,Eaton_00003_V2T1_2_V2T1_3_V2T1_11_V2T1_25-V2T1_27_CAT.

Technical Specifications:

Eaton_38386_1_2_SPEC.pdf

Series:

DG

Size:

10 Inch Length x 15.52 Inch Width x 25.23 Inch Height

Power Rating:

15 HP at 240 VAC 1-Phase, 25 to 60 HP 240 VAC 3-Phase

Enclosure Material:

Painted Steel

TS PIK:

111011919

Country of Origin:

United States

Approval:

UL 98/50

Finish:

Painted

Eaton DG224NRK General Duty Safety Switches

SKU:

S21-1557

Short Description:

120/240 VAC, 200 A, 25 to 60 HP, 2-Pole, 3-Wire, NEMA 3R, Painted Galvanized Steel, Solid Neutral, Cartridge/Class H Fusible, General Duty

Number of Wires:

3

Fuse Provision:

Fusible

Fuse Type:

Cartridge

Enclosure:

NEMA 3R

Type:

General Duty

AC Voltage Rating:

240 V

Current Rating:

200 A

Number of Poles:

2

Series:

DG

Catalog:

Eaton_00003_V2T1_2_V2T1_3_V2T1_11_V2T1_25-V2T1_27_CAT.pdf

Enclosure Material:

Painted Steel

Power Rating:

15 HP at 240 VAC 1-Phase, 25 to 60 HP at 240 VAC 3-Phase (Dual Element Time Delay Fuse)

Size:

15.52 Inch W x 10 Inch D x 25.23 Inch H

Neutral Type:

Solid

TS PIK:

111011920

Country of Origin:

United States

Approval:

UL 98

Finish:

Painted Galvanized

Eaton DG225FRK Safety Switches DG 2P 400A 240V 50/60Hz 1Ph Fusible 2Wire NEMA 3R

SKU:

S21-1311

Short Description:

EATON GENERAL DUTY CARTRIDGE FUSE SAFETY SWITCH, 400 A, NEMA 3R, PAINTED GALVANI

Type:

General Duty

AC Voltage Rating:

240 V

Current Rating:

400 A

Number of Poles:

2

Number of Wires:

2

Fuse Provision:

Fusible

Fuse Type:

Class H

Enclosure:

NEMA 3R

Series:

DG

Country of Origin:

United States

Eaton DG225NGK General Duty Safety Switches

SKU:

S21-2740

TS PIK:

111021284

Short Description:

EATON GENERAL DUTY CARTRIDGE FUSE SAFETY SWITCH, 400 A, NEMA 1, PAINTED STEEL, C

AC Voltage Rating:

240 V

Current Rating:

400

Fuse Provision:

Fusible

Enclosure:

NEMA 1

Number of Wires:

3

Number of Poles:

2

Type:

General Duty

Series:

DG

Power Rating:

50 to 125 HP at 240 VAC 3-Phase, 50 HP at 250 VDC (Dual Element Time Delay Fuse)

Approval:

UL 98

Size:

22.66 Inch W x 11.16 Inch D x 44.31 Inch H

Fuse Type:

Cartridge, Class H

Neutral Type:

Solid

DC Voltage Rating:

250 V

Catalog:

Eaton_00003_V2T1_2_V2T1_3_V2T1_11_V2T1_25-V2T1_27_CAT.pdf

Enclosure Material:

Painted Steel

Finish:

Painted

Eaton DG226NGK Safety Switches DG 2P 600A 240V 50/60Hz 1Ph Fusible w/ Neutral 3Wire EA NEMA 1

SKU:

S21-1403

Short Description:

120/240 VAC, 600 A, 75 to 200 HP, 2-Pole, 3-Wire, NEMA 1, Painted Steel, Solid Neutral, Cartridge/Class H Fusible, General Duty

Type:

General Duty

AC Voltage Rating:

240 V

Current Rating:

600 A

Number of Poles:

2

Number of Wires:

3

Fuse Provision:

Fusible

Fuse Type:

Class H

Enclosure:

NEMA 1

Catalog:

Eaton_00003_V2T1_2_V2T1_3_V2T1_11_V2T1_25-V2T1_27_CAT.pdf,Eaton_00003_V2T1_2_V2T1_3_V2T1_11_V2T1_25-V2T1_27_CAT.

Technical Specifications:

Eaton_38392_1_2_SPEC.pdf

Neutral Type:

Solid

Power Rating:

75 to 200 HP at 240 VAC 3-Phase (Dual Element Time Delay Fuse)

Series:

DG

Size:

23.66 Inch W x 12.84 Inch D x 51.82 Inch H

Enclosure Material:

Painted Steel

Country of Origin:

United States

Approval:

UL 98

Finish:

Painted

Eaton DG226NRK Safety Switches EA

SKU:

S21-1455

Short Description:

120/240 VAC, 600 A, 75 to 200 HP, 2-Pole, 3-Wire, NEMA 3R, Painted Galvanized Steel, Solid Neutral, Cartridge/Class H Fusible, General Duty

Type:

General Duty

AC Voltage Rating:

240 V

Current Rating:

600 A

Number of Poles:

2

Number of Wires:

3

Fuse Provision:

Fusible

Fuse Type:

Class H

Enclosure:

NEMA 3R

Catalog:

Eaton_00003_V2T1_2_V2T1_3_V2T1_11_V2T1_25-V2T1_27_CAT.pdf,Eaton_00003_V2T1_2_V2T1_3_V2T1_11_V2T1_25-V2T1_27_CAT.

Technical Specifications:

Eaton_38393_1_2_SPEC.pdf

Series:

DG

Neutral Type:

Solid

Power Rating:

75 to 200 HP at 240 VAC 3-Phase (Dual Element Time Delay Fuse)

Size:

23.66 Inch W x 12.84 Inch D x 51.82 Inch H

Enclosure Material:

Painted Steel

Country of Origin:

United States

Approval:

UL 98

Finish:

Painted Galvanized

Eaton DG321FGB General Duty Safety Switches

SKU:

S21-2850

Fuse Provision:

Fusible

Number of Poles:

3

Number of Wires:

3

Enclosure:

NEMA 1

AC Voltage Rating:

240 V

Current Rating:

30 A

Type:

General Duty

Eaton DG321FRB General Duty Safety Switches

SKU:

S21-2853

Current Rating:

30 A

Number of Poles:

3

AC Voltage Rating:

240 V

Type:

General Duty

Fuse Provision:

Fusible

Number of Wires:

3

Enclosure:

NEMA 3R

Eaton DG321NGBL0RED Safety Switches DG 3P 30A 240V 50/60Hz 3Ph Fusible w/ Neutral Red 4Wire NEMA 1

SKU:

S21-1262

Short Description:

Safety switch, 30A, 240V AC, 2 poles, 3 wires, non-fusible, NEMA 1.

Type:

General Duty

AC Voltage Rating:

240 V

Current Rating:

30 A

Number of Poles:

3

Number of Wires:

4

Fuse Provision:

Non-Fusible

Enclosure:

NEMA 1

Series:

DG

Eaton DG321NGBLORED Safety Switches DG 3P 30A 240V 50/60Hz 3Ph Fusible w/ Neutral Red 1Wire NEMA 1

SKU:

S21-1117

Short Description:

EATON GENERAL DUTY CARTRIDGE FUSE SAFETY SWITCH, 30 A, NEMA 1, PAINTED STEEL, CL

Type:

General Duty

AC Voltage Rating:

240 V

Current Rating:

30 A

Number of Poles:

3

Number of Wires:

1

Fuse Provision:

Fusible

Fuse Type:

Class H

Enclosure:

NEMA 1

Series:

DG

Eaton DG321NRBME Safety Switches

SKU:

U00-11388

Short Description:

Eaton General duty cartridge fuse safety switch, NEMA 3R, Painted galvanized steel, Class H fuses, 30 A, Fusible with neutral, Three-pole, Four-wire, Category: general duty safety switch, 240 V

Current Rating:

30 A

Enclosure:

NEMA 3R

Number of Poles:

3

DC Voltage Rating:

240 V

Number of Wires:

4

AC Voltage Rating:

240 V

Fuse Provision:

Fusible

Type:

General Duty

Country of Origin:

United States

Eaton DG322FGB General Duty Safety Switches

SKU:

S21-2851

Number of Wires:

3

Enclosure:

NEMA 1

AC Voltage Rating:

240 V

Type:

General Duty

Current Rating:

60 A

Number of Poles:

3

Fuse Provision:

Fusible

Eaton DG322FRB General Duty Safety Switches

SKU:

S21-2854

Number of Wires:

3

AC Voltage Rating:

240 V

Fuse Provision:

Fusible

Current Rating:

60 A

Enclosure:

NEMA 3R

Number of Poles:

3

Type:

General Duty

Eaton DG322NGB General Duty Safety Switches

SKU:

S21-2653

TS PIK:

111010594

Short Description:

EATON GENERAL DUTY CARTRIDGE FUSE SAFETY SWITCH, 60 A, NEMA 1, PAINTED STEEL, CL

AC Voltage Rating:

120/240 V

Number of Wires:

4

Fuse Provision:

Fusible

Type:

General Duty

Enclosure Material:

Painted Steel

Enclosure:

NEMA 1

Number of Poles:

3

Size:

8.4 Inch Width x 7 Inch Depth x 6.41 Inch Height

Fuse Type:

Cartridge, Class H

Catalog:

Eaton_00003_V2T1_2_V2T1_3_V2T1_11_V2T1_25_V2T1_26_V2T1_28_CAT.pdf

Approval:

UL 98, NEMA KS-1

Current Rating:

60 A

Power Rating:

3 to 10 HP at 240 VAC 1-Phase, 7-1/2 to 15 HP at 240 VAC 3-Phase (Dual Element Time Delay Fuse)

Neutral Type:

Solid

Finish:

Painted

Series:

DG

Eaton DG322NGB General Duty Safety Switches 60A 240V EA

SKU:

S21-1047

Short Description:

120/240 VAC, 60 A, 7-1/2 to 15 HP, 3-Pole, 4-Wire, NEMA 1, Painted Steel, Solid Neutral, Cartridge/Class H Fusible, General Duty

Number of Wires:

4

Fuse Provision:

Fusible

Fuse Type:

Cartridge

Enclosure:

NEMA 1

Type:

General Duty

AC Voltage Rating:

240 V

Current Rating:

60 A

Number of Poles:

3

Enclosure Material:

Painted Steel

Size:

8.4 Inch Width x 7 Inch Depth x 6.41 Inch Height

Catalog:

Eaton_00003_V2T1_2_V2T1_3_V2T1_11_V2T1_25_V2T1_26_V2T1_28_CAT.pdf

Power Rating:

3 to 10 HP at 240 VAC 1-Phase, 7-1/2 to 15 HP at 240 VAC 3-Phase (Dual Element Time Delay Fuse)

Neutral Type:

Solid

Series:

DG

Country of Origin:

United States

Approval:

UL 98, NEMA KS-1

Finish:

Painted

Eaton DG322UGB General Duty Safety Switches 3P 60A 240V EA

SKU:

S21-1123

Short Description:

240 VAC, 60 A, 15 HP, 3-Pole, 3-Wire, NEMA 1, Painted Steel, Non-Fusible, General Duty

Number of Wires:

3

Fuse Provision:

Non-Fusible

Enclosure:

NEMA 1

Type:

General Duty

AC Voltage Rating:

240 V

Current Rating:

60 A

Number of Poles:

3

Neutral Type:

None

Power Rating:

3 HP at 120 VAC 1-Phase, 10 HP at 240 VAC 1-Phase, 15 HP at 240 VAC 3-Phase

Enclosure Material:

Painted Steel

Series:

DG

Size:

8.69 Inch Width x 7.38 Inch Depth x 14.19 Inch Height

Catalog:

Eaton_00003_V2T1_2_V2T1_3_V2T1_11_V2T1_25_V2T1_26_V2T1_28_CAT.pdf

TS PIK:

111010596

Country of Origin:

United States

Approval:

UL 98

Finish:

Painted

Eaton DG322URB General Duty Safety Switches

SKU:

S21-2672

TS PIK:

111010597

Short Description:

EATON GENERAL DUTY NON-FUSIBLE SAFETY SWITCH, SINGLE-THROW, 60 A, NEMA 3R, RAINP

Current Rating:

60 A

Type:

General Duty

Size:

8.69 Inch Width x 7.38 Inch Depth x 14.19 Inch Height

Enclosure:

NEMA 3R

Approval:

UL

Number of Poles:

3

Catalog:

Eaton_00003_V2T1_2_V2T1_3_V2T1_11_V2T1_25_V2T1_26_V2T1_28_CAT.pdf

Enclosure Material:

Painted Steel

Number of Wires:

3

Finish:

Painted Galvanized

AC Voltage Rating:

240 V

Fuse Provision:

Non-Fusible

Eaton DG323FGB General Duty Safety Switches

SKU:

S21-2852

AC Voltage Rating:

240 V

Enclosure:

NEMA 1

Current Rating:

100 A

Number of Poles:

3

Type:

General Duty

Fuse Provision:

Fusible

Number of Wires:

3

Eaton DG323FRB General Duty Safety Switches

SKU:

S21-2855

Current Rating:

100 A

Type:

General Duty

Number of Poles:

3

Number of Wires:

3

Fuse Provision:

Fusible

Enclosure:

NEMA 3R

AC Voltage Rating:

240 V

Eaton DG324FRK General Duty Safety Switches

SKU:

S21-3624

Type:

General Duty

Current Rating:

200 A

Number of Poles:

3

AC Voltage Rating:

240 V

Number of Wires:

3

Fuse Provision:

Fusible

Enclosure:

NEMA 3R

Eaton DG324FRK-CSA General Duty Safety Switches

SKU:

S21-4127

Enclosure Material:

Painted Steel

Neutral Type:

None

Size:

15.52 Inch Width x 15.91 Inch Depth x 24.77 Inch Height

Short Description:

15.52" x 15.91" x 24.77", 240 VAC, 200 A, NEMA 3R, 3-Pole/Wire, Painted Galvanized Steel, Class H, Fusible without Neutral, General Duty, Safety Switch

Enclosure:

NEMA 3R

Type:

General Duty, Cartridge Fuse

Number of Poles:

3

AC Voltage Rating:

240 V

Finish:

Painted Galvanized

Number of Wires:

3

Current Rating:

200 A

Catalog:

EatonCorp_00277_V2T1_3_V2T1_11_CAT.pdf

Fuse Type:

Class H

Fuse Provision:

Fusible

Approval:

UL, CSA

Country of Origin:

United States

Eaton DG324NGK General Duty Safety Switches

SKU:

S21-2661

TS PIK:

111011921

Short Description:

120/240 VAC, 200 A, 25 to 60 HP, 3-Pole, 4-Wire, NEMA 1, Painted Steel, Solid Neutral, Cartridge/Class H Fusible, General Duty, Single Throw Safety Switch

Current Rating:

200 A

Type:

General Duty

Series:

DG

Approval:

UL 98

Number of Poles:

3

Enclosure:

NEMA 1

AC Voltage Rating:

120/240 V

Fuse Type:

Cartridge, Class H

Size:

16 Inch W x 11.25 Inch D x 24.75 Inch H

Fuse Provision:

Fusible

Number of Wires:

4

Neutral Type:

Solid

Power Rating:

15 HP at 240 VAC 1-Phase, 25 to 60 HP at 240 VAC 3-Phase (Dual Element Fuse)

Finish:

Painted

Catalog:

Eaton_00003_V2T1_2_V2T1_3_V2T1_11_V2T1_25_V2T1_26_V2T1_28_CAT.pdf

Enclosure Material:

Painted Steel

Eaton DG324NRK General Duty Safety Switches

SKU:

S21-2694

TS PIK:

111011922

Short Description:

EATON GENERAL DUTY CARTRIDGE FUSE SAFETY SWITCH, 200 A, NEMA 3R, PAINTED GALVANI

Type:

General Duty

Number of Poles:

3

Fuse Type:

Cartridge, Class H

AC Voltage Rating:

120/240 V

Power Rating:

15 HP at 240 VAC 1-Phase, 25 to 60 HP at 240 VAC 3-Phase (Dual Element Time Delay Fuse)

Number of Wires:

4

Fuse Provision:

Fusible

Enclosure:

NEMA 3R

Approval:

UL 98, NEMA KS-1

Neutral Type:

Solid

Current Rating:

200 A

Series:

DG

Enclosure Material:

Painted Steel

Size:

15.52 Inch Width x 10 Inch Depth x 25.23 Inch Height

Finish:

Painted Galvanized

Catalog:

Eaton_00003_V2T1_2_V2T1_3_V2T1_11_V2T1_25_V2T1_26_V2T1_28_CAT.pdf

Eaton DG324UGKN General Duty Safety Switches

SKU:

S21-2816

Country of Origin:

United States

Short Description:

EATON HEAVY DUTY SINGLE-THROW NON-FUSED SAFETY SWITCH, 200 A, 3P GD NON FUSIBLE

Type:

General Duty

Number of Poles:

3

Current Rating:

200 A

AC Voltage Rating:

240 V

Eaton DG324URK General Duty Safety Switches

SKU:

S21-2662

TS PIK:

111011925

Short Description:

EATON GENERAL DUTY NON-FUSIBLE SAFETY SWITCH, SINGLE-THROW, 200 A, NEMA 3R, RAIN

Type:

General Duty

Enclosure:

NEMA 3R

Number of Wires:

3

Size:

16 Inch W x 11.25 Inch D x 24.75 Inch H

Series:

DG

Neutral Type:

None

Enclosure Material:

Painted Steel

Approval:

UL 98

Finish:

Painted Galvanized

Current Rating:

200 A

AC Voltage Rating:

240 V

Fuse Provision:

Non-Fusible

Catalog:

Eaton_00003_V2T1_2_V2T1_3_V2T1_11_V2T1_25_V2T1_26_V2T1_28_CAT.pdf

Number of Poles:

3

Power Rating:

15 HP at 240 VAC 1-Phase, 60 HP at 240 VAC 3-Phase

Eaton DG325FGK Safety Switches DG 3P 400A 240V 50/60Hz 3Ph Fusible 3Wire NEMA 1

SKU:

S21-1443

Short Description:

240 VAC, 400 A, 50 to 125 HP, 3-Pole, 3-Wire, NEMA 1, Painted Steel, Cartridge/Class H Fusible, General Duty

Type:

General Duty

AC Voltage Rating:

240 V

Current Rating:

400 A

Number of Poles:

3

Number of Wires:

3

Fuse Provision:

Fusible

Fuse Type:

Class H

Enclosure:

NEMA 1

Catalog:

Eaton_00003_V2T1_2_V2T1_3_V2T1_11_V2T1_25_V2T1_26_V2T1_28_CAT.pdf,Eaton_00003_V2T1_2_V2T1_3_V2T1_11_V2T1

Technical Specifications:

Eaton_38407_1_2_SPEC.pdf

Size:

22.66 Inch W x 11.16 Inch D x 44.31 Inch H

Neutral Type:

None

Power Rating:

50 to 125 HP at 240 VAC 3-Phase (Dual Element Fuse)

Series:

DG

Enclosure Material:

Painted Steel

Finish:

Painted

Approval:

UL 98

Eaton DG325FRK Safety Switches DG 3P 400A 600V 50/60Hz 3Ph Fusible 3Wire NEMA 3R

SKU:

S21-1317

Short Description:

240 VAC, 400 A, 50 to 125 HP, 3-Pole, 3-Wire, NEMA 3R, Painted Galvanized Steel, Cartridge/Class H Fusible, General Duty

Type:

General Duty

AC Voltage Rating:

240 V

Current Rating:

400 A

Number of Poles:

3

Number of Wires:

3

Fuse Provision:

Fusible

Fuse Type:

Class H

Enclosure:

NEMA 3R

Catalog:

Eaton_00003_V2T1_2_V2T1_3_V2T1_11_V2T1_25_V2T1_26_V2T1_28_CAT.pdf,Eaton_00003_V2T1_2_V2T1_3_V2T1_11_V2T1

Technical Specifications:

Eaton_38408_1_2_SPEC.pdf

Enclosure Material:

Painted Steel

Power Rating:

50 to 125 HP at 240 VAC 3-Phase (Dual Element Fuse)

Series:

DG

Neutral Type:

None

Size:

22.66 Inch W x 11.16 Inch D x 44.31 Inch H

Approval:

UL 98

Finish:

Painted Galvanized

Eaton DG325URK General Duty Safety Switches

SKU:

S21-1066

Short Description:

240 VAC, 400 A, 125 HP, 3-Pole, 3-Wire, NEMA 3R, Painted Galvanized Steel, Non-Fusible, General Duty

Number of Wires:

3

Fuse Provision:

Non-Fusible

Fuse Type:

null

Enclosure:

NEMA 3R

Type:

General Duty

AC Voltage Rating:

240 V

DC Voltage Rating:

250 V

Current Rating:

400 A

Number of Poles:

3

Enclosure Material:

Painted Steel

Size:

11.16 Inch Length x 22.66 Inch Width x 44.31 Inch Height

Catalog:

Eaton_00003_V2T1_2_V2T1_3_V2T1_11_V2T1_25_V2T1_26_V2T1_28_CAT.pdf

Power Rating:

125 HP at 240 VAC 3-Phase

Series:

DG

TS PIK:

111021289

Finish:

Galvanized/Painted

Approval:

UL 98/50

Country of Origin:

United States

Eaton DG326FGK Safety Switches

SKU:

S21-3280

Short Description:

240 VAC, 600 A, 75 to 200 HP, 3-Pole, 3-Wire, NEMA 1, Painted Steel, Cartridge/Class H Fusible, General Duty, Single Throw Safety Switch

Number of Poles:

3

Approval:

UL 98

Size:

23.66 Inch W x 12.84 Inch D x 51.82 Inch H

Type:

General Duty

Current Rating:

600 A

Finish:

Painted

Power Rating:

75 to 200 HP at 240 VAC 3-Phase (Dual Element Fuse)

Enclosure Material:

Painted Steel

Neutral Type:

None

Fuse Provision:

Fusible

Enclosure:

NEMA 1

Number of Wires:

3

Fuse Type:

Cartridge, Class H

Catalog:

Eaton_00003_V2T1_2_V2T1_3_V2T1_11_V2T1_25_V2T1_26_V2T1_28_CAT.pdf

AC Voltage Rating:

240 V

Series:

DG

Eaton DG326NRK General Duty Safety Switches

SKU:

S21-2741

TS PIK:

111022936

Series:

DG

Fuse Provision:

Fusible

AC Voltage Rating:

120/240 V

Current Rating:

600 A

Power Rating:

75 to 200 HP at 240 VAC 3-Phase (Dual Element Fuse)

Size:

24 Inch W x 14.25 Inch D x 52.25 Inch H

Number of Wires:

4

Short Description:

120/240 VAC, 600 A, 75 to 200 HP, 3-Pole, 4-Wire, NEMA 3R, Painted Galvanized Steel, Solid Neutral, Cartridge/Class H Fusible, General Duty, Single Throw Safety Switch

Approval:

UL 98

Number of Poles:

3

Type:

General Duty

Fuse Type:

Cartridge, Class H

Enclosure:

NEMA 3R

Neutral Type:

Solid

Enclosure Material:

Painted Steel

Finish:

Painted Galvanized

Catalog:

Eaton_00003_V2T1_2_V2T1_3_V2T1_11_V2T1_25_V2T1_26_V2T1_28_CAT.pdf

Eaton DG326NRK General Duty Safety Switches EA

SKU:

S21-1492

Short Description:

120/240 VAC, 600 A, 75 to 200 HP, 3-Pole, 4-Wire, NEMA 3R, Painted Galvanized Steel, Solid Neutral, Cartridge/Class H Fusible, General Duty, Single Throw Safety Switch

Number of Wires:

4

Fuse Provision:

Fusible

Fuse Type:

Class H

Enclosure:

NEMA 3R

Type:

General Duty

AC Voltage Rating:

240 V

Current Rating:

60 A

Number of Poles:

3

Catalog:

Eaton_00003_V2T1_2_V2T1_3_V2T1_11_V2T1_25_V2T1_26_V2T1_28_CAT.pdf

Series:

DG

Power Rating:

75 to 200 HP at 240 VAC 3-Phase (Dual Element Fuse)

Size:

24 Inch W x 14.25 Inch D x 52.25 Inch H

Enclosure Material:

Painted Steel

Neutral Type:

Solid

TS PIK:

111022936

Country of Origin:

United States

Approval:

UL 98

Finish:

Painted Galvanized

Eaton DG326URK General Duty Safety Switches EA

SKU:

S21-2505

Number of Wires:

3

Fuse Provision:

Non-Fusible

Enclosure:

NEMA 3R

Type:

General Duty

AC Voltage Rating:

240 V

Current Rating:

600 A

Number of Poles:

3

Size:

24 Inch W x 14.25 Inch D x 52.25 Inch H

Power Rating:

200 HP at 240 VAC 3-Phase

Short Description:

240 VAC, 600 A, 200 HP, 3-Pole, 3-Wire, NEMA 3R, Painted Galvanized Steel, Non-Fusible, General Duty, Single Throw Safety Switch

Neutral Type:

None

Series:

DG

Catalog:

Eaton_00003_V2T1_2_V2T1_3_V2T1_11_V2T1_25_V2T1_26_V2T1_28_CAT.pdf

Enclosure Material:

Painted Steel

Finish:

Painted Galvanized

Approval:

UL 98

Eaton DH161NRK Safety Switches DH 1P 30A 600V 50/60Hz 1Ph Fusible 2Wire EA NEMA 3R

SKU:

S21-1490

Series:

DH

Type:

Heavy Duty

Approval:

UL 98

Size:

9.89 Inch W x 7.75 Inch D x 16.27 Inch H

Current Rating:

30 A

Poles:

1

Finish:

Painted Galvanized

Enclosure:

NEMA 3R

Number of Wires:

2

Neutral Type:

Solid

AC Voltage Rating:

600 V

Enclosure Material:

Steel

Fuse Type:

Cartridge

Fuse Provision:

Fusible

Short Description:

600 VAC, 30 A, 1-Pole, 2-Wire, NEMA 3R, Painted Galvanized Steel, Neutral, Class R Fusible, Heavy Duty

Catalog:

Eaton_00003_V2T1_11_V2T1_75_V2T1_76_CAT.pdf

TS PIK:

123511699

Number of Poles:

1

Country of Origin:

United States

Eaton DH161URKN Safety Switches DH 1P 30A 600V 50/60Hz 1Ph Non Fusible 1Wire EA NEMA 3R

SKU:

S21-1533

Short Description:

600 VAC, 250 VDC, 30 A, 5 HP, 1-Pole, 1-Wire, NEMA 3R, Painted Galvanized Steel, Non-Fusible, Heavy Duty

Type:

Heavy Duty

AC Voltage Rating:

600 V

DC Voltage Rating:

250 V

Current Rating:

30 A

Number of Poles:

1

Number of Wires:

1

Fuse Provision:

Non-Fusible

Enclosure:

NEMA 3R

Catalog:

Eaton_00003_V2T1_75_V2T1_76_CAT.pdf,Eaton_00003_V2T1_75_V2T1_76_CAT.pdf

Technical Specifications:

Eaton_38422_1_2_SPEC.pdf

Fuse Type:

Class R

Series:

DH

Enclosure Material:

Steel

Neutral Type:

None

Power Rating:

5 HP at 250 VDC

Size:

9.89 Inch W x 7.75 Inch D x 16.27 Inch H

Approval:

UL 98, CE

Country of Origin:

United States

Finish:

Painted Galvanized

Eaton DH162URKN Safety Switches DH 1P 60A 600V 50/60Hz 1Ph Non Fusible 1Wire NEMA 3R

SKU:

S21-1489

Short Description:

600 VAC, 60 A, 1-Pole, 1-Wire, NEMA 3R, Painted Galvanized Steel, Non-Fusible, Heavy Duty

Type:

Heavy Duty

AC Voltage Rating:

600 V

Current Rating:

60 A

Number of Poles:

1

Number of Wires:

1

Fuse Provision:

Non-Fusible

Enclosure:

NEMA 3R

Catalog:

Eaton_00003_V2T1_75_V2T1_76_CAT.pdf,Eaton_00003_V2T1_75_V2T1_76_CAT.pdf

Technical Specifications:

Eaton_38423_1_2_SPEC.pdf

Fuse Type:

Class R

Size:

9.89 Inch W x 7.75 Inch D x 16.27 Inch H

Series:

DH

Neutral Type:

None

Enclosure Material:

Steel

Approval:

UL 98, CE

Country of Origin:

United States

Finish:

Painted Galvanized

Eaton DH163URKN Safety Switches DH 1P 100A 600V 50/60Hz 1Ph Non Fusible 4Wire NEMA 3R

SKU:

S21-1450

Series:

DH

AC Voltage Rating:

600 V

Current Rating:

100 A

Poles:

1

Frequency Rating:

50/60 Hz

Fuse Provision:

Non-Fusible

Wire Type:

4

Enclosure:

NEMA 3R

Short Description:

EATON DC DISCONNECT, SINGLE-THROW, 100 A, NEMA 3R, PAINTED GALVANIZED STEEL, CLASS R FUSES, NON-FUSIBLE, SINGLE-POLE, ONE-WIRE, 20 AT 250 VDC

TS PIK:

123511685

Type:

Heavy Duty

Number of Poles:

1

Country of Origin:

Canada

Eaton DH165NRK Safety Switches DH 1P 400A 600V 50/60Hz 1Ph Fusible 2Wire NEMA 3R

SKU:

S21-1480

Short Description:

600 VAC, 400 A, 1-Pole, 2-Wire, NEMA 3R, Painted Galvanized Steel, Neutral, Class R Fusible, Heavy Duty

Type:

Heavy Duty

AC Voltage Rating:

600 V

Current Rating:

400 A

Number of Poles:

1

Number of Wires:

2

Fuse Provision:

Fusible

Fuse Type:

Class R

Enclosure:

NEMA 3R

Catalog:

Eaton_00003_V2T1_11_V2T1_75_V2T1_76_CAT.pdf,Eaton_00003_V2T1_11_V2T1_75_V2T1_76_CAT.pdf

Technical Specifications:

Eaton_38424_1_SPEC.pdf

Series:

DH

Neutral Type:

Solid

Size:

22.66 Inch W x 11.16 Inch D x 44.31 Inch H

Enclosure Material:

Steel

Approval:

UL 98, CE

Finish:

Painted Galvanized

Eaton DH165UDKNSLCTA Safety Switches DH 1P 400A 600V 50/60Hz 1Ph Fusible w/ Neutral 2Wire NEMA 1

SKU:

S21-1092

Short Description:

DC disconnect, Single-throw, 400 A, NEMA 12, Painted galvanized steel, Class R fuses, Non-Fusible, Single-pole, One-wire

Type:

Heavy Duty

AC Voltage Rating:

600 V

Current Rating:

400 A

Number of Poles:

1

Number of Wires:

2

Fuse Provision:

Non-Fusible

Fuse Type:

Class R

Enclosure:

NEMA 1

Eaton DH221FDK Heavy Duty Safety Switches

SKU:

S21-3630

Number of Poles:

2

Current Rating:

30 A

AC Voltage Rating:

240 V

Short Description:

EATON HEAVY DUTY SINGLE-THROW FUSED SAFETY SWITCH, ENHANCED VISIBLE BLADE, 30 A,

DC Voltage Rating:

250 V

Type:

Heavy Duty

Number of Wires:

2

Enclosure:

NEMA 12/3R

Power Rating:

1-1/2 HP at 240 VAC 1-Phase (Standard Fuse), 5 HP at 250 VDC

Fuse Provision:

Fusible

Catalog:

EatonCorp-CutlerHammer_00111_V2T1_11-V2T1_32_V2T1_53_V2T1_54_CAT.pdf

Enclosure Material:

Steel

Fuse Type:

Class H

Approval:

UL, UL 98

Finish:

Painted Galvanized

Neutral Type:

No

Size:

9.5 Inch Width x 18 Inch Depth x 7.5 Inch Height

Eaton DH221FGK Heavy Duty Safety Switches

SKU:

S21-2664

TS PIK:

115504386

Number of Poles:

2

Catalog:

Eaton_00003_V2T1_2_V2T1_4_V2T1_11_CAT.pdf

Type:

Heavy Duty Safety

Fuse Provision:

Fusible

Short Description:

240 VAC, 250 VDC, 30 A, 1-1/2 HP, 2-Pole, 2-Wire, NEMA 1, Painted Steel, Class H Fusible, Heavy Duty, Single Throw Safety Switch

Fuse Type:

Class H

Enclosure Material:

Steel

Power Rating:

1.5 HP at 240 VAC, 5 HP at 250 VDC

Finish:

Painted

AC Voltage Rating:

240 V

DC Voltage Rating:

250 V

Current Rating:

30 A

Approval:

UL

Number of Wires:

2

Enclosure:

NEMA 1

Eaton DH221FRK Heavy Duty Safety Switches

SKU:

S21-2666

TS PIK:

122218900

Series:

DH

Neutral Type:

No

Type:

Heavy Duty Safety

Enclosure Material:

Steel

Number of Poles:

2

Approval:

UL 50/98

Fuse Provision:

Fusible

Catalog:

Eaton_00003_V2T1_2_V2T1_11_CAT.pdf

AC Voltage Rating:

240 V

Short Description:

240 VAC, 250 VDC, 30 A, 1-1/2 HP, 2-Pole, 2-Wire, NEMA 3R, Painted Galvanized Steel, Class H Fusible, Heavy Duty, Single Throw Safety Switch

Finish:

Painted Galvanized

Enclosure:

NEMA 3R

Number of Wires:

2

DC Voltage Rating:

250 V

Fuse Type:

Cartridge, Class H

Current Rating:

30 A

Size:

9.89 Inch W x 7.75 Inch D x 16.27 Inch H

Power Rating:

1.5 HP at 240 VAC 1-Phase (Standard Fuse), 5 HP at 250 VDC

Eaton DH221FRK Safety Switches

SKU:

S21-1057

Short Description:

240 VAC, 250 VDC, 30 A, 1-1/2 HP, 2-Pole, 2-Wire, NEMA 3R, Painted Galvanized Steel, Class H Fusible, Heavy Duty

Type:

Heavy Duty

AC Voltage Rating:

240 V

DC Voltage Rating:

250 V

Current Rating:

30 A

Number of Poles:

2

Number of Wires:

2

Fuse Provision:

Fusible

Fuse Type:

Cartridge

Enclosure:

NEMA 3R

Catalog:

Eaton_00003_V2T1_2_V2T1_11_CAT.pdf,Eaton_00003_V2T1_2_V2T1_11_CAT.pdf

Technical Specifications:

Eaton_38427_1_2_SPEC.pdf

TS PIK:

122218900

Power Rating:

1.5 HP at 240 VAC 1-Phase (Standard Fuse), 5 HP at 250 VDC

Size:

9.89 Inch W x 7.75 Inch D x 16.27 Inch H

Series:

DH

Neutral Type:

None

Enclosure Material:

Steel

Country of Origin:

United States

Approval:

UL 50/98

Finish:

Painted Galvanized

Eaton DH221FWK Heavy Duty Safety Switches DH 2P 30A 240V 50/60Hz 1Ph EA NEMA 4X Watertight/Oiltight

SKU:

S21-1237

Short Description:

Single Throw Safety

Type:

Heavy Duty

AC Voltage Rating:

240 V

DC Voltage Rating:

250 V

Current Rating:

30 A

Number of Poles:

2

Number of Wires:

2

Fuse Provision:

Fusible

Fuse Type:

Class H

Enclosure:

NEMA 4X

Catalog:

EatonCorp-CutlerHammer_00111_V2T1_11-V2T1_32_V2T1_53_V2T1_54_CAT.pdf,EatonCorp-CutlerHammer_00111_V2T

Technical Specifications:

Eaton_60434_1_2_SPEC.pdf

Size:

9.5 Inch Width x 18 Inch Depth x 7.5 Inch Height

Neutral Type:

None

Enclosure Material:

304 Stainless Steel

Power Rating:

1-1/2 HP at 240 VAC 1-Phase (Standard Fuse), 5 HP at 250 VDC

Series:

DH

Country of Origin:

United States

Approval:

UL, UL 98

Eaton DH221NDK Heavy Duty Safety Switches

SKU:

S21-2503

Short Description:

240 VAC, 250 VDC, 30 A, 7-1/2 HP, 2-Pole, 3-Wire, NEMA 12, Painted Galvanized Steel, Solid Neutral, Class H Fusible, Heavy Duty, Single Throw Safety Switch

Type:

Heavy Duty

AC Voltage Rating:

240 V

DC Voltage Rating:

250 V

Current Rating:

30 A

Number of Poles:

2

Catalog:

Eaton_00003_V2T1_2_V2T1_5_V2T1_11_CAT.pdf,Eaton_00003_V2T1_2_V2T1_5_V2T1_11_CAT.pdf

Technical Specifications:

Eaton_38428_1_2_SPEC.pdf

Enclosure Material:

Steel

Fuse Provision:

Fusible

Fuse Type:

Cartridge

Size:

10.22 Inch W x 7.73 Inch D x 17.75 Inch H

Power Rating:

1-1/2 HP at 240 VAC 1-Phase, 3 HP at 240 VAC 3-Phase (Standard Fuse), 3 HP at 240 VAC 1-Phase, 7-1/2 HP at 240 VAC 3-Phase (Time Delay Fuse), 5 HP at 250 VDC

Neutral Type:

Solid

Enclosure:

NEMA 3R/12

Number of Wires:

3

TS PIK:

116966638

Series:

DH

Country of Origin:

United States

Finish:

Painted

Approval:

UL

Eaton DH221NGK2-00NP Safety Switches DH 2P 30A 240V 50/60Hz 1Ph Non Fusible 3Wire NEMA 1

SKU:

S21-1621

Short Description:

Safety switch, 30 A, 240V AC, 2 poles, 3 wires, non-fusible, NEMA 1.

Type:

Heavy Duty

AC Voltage Rating:

240 V

Current Rating:

30 A

Number of Poles:

2

Number of Wires:

3

Fuse Provision:

Non-Fusible

Enclosure:

NEMA 1

Series:

DH

Country of Origin:

United States

Eaton DH221NGKG Safety Switches EA

SKU:

S21-2518

Type:

Heavy Duty

Eaton DH221NGKV Safety Switches DH 2P 30A 240V 50/60Hz 1Ph Fusible w/ Neutral 3Wire NEMA 1

SKU:

S21-1368

Short Description:

EATON ENHANCED VISIBLE BLADE SINGLE-THROW SAFETY SWITCH, 30 A, NEMA 3R, CLASS H,

Type:

Heavy Duty

AC Voltage Rating:

600 V

Current Rating:

30 A

Number of Poles:

2

Number of Wires:

3

Fuse Provision:

Fusible

Fuse Type:

Class H

Enclosure:

NEMA 1

Eaton DH221NRK Heavy Duty Safety Switches

SKU:

S21-2646

TS PIK:

111011428

Series:

DH

Short Description:

240 VAC, 250 VDC, 30 A, 5 HP, 2-Pole, 3-Wire, NEMA 3R, Painted Galvanized Steel, Solid Neutral, Class H Fusible, Heavy Duty, Single Throw Safety Switch

Enclosure:

NEMA 3R

Number of Wires:

3

Number of Poles:

2

Enclosure Material:

Steel

Type:

Heavy Duty Safety

Size:

9.89 Inch W x 7.75 Inch D x 16.27 Inch H

Approval:

UL 98

Fuse Type:

Cartridge, Class H, Time Delay

Current Rating:

30 A

Catalog:

Eaton_00003_V2T1_2_V2T1_4_V2T1_11_CAT.pdf

AC Voltage Rating:

240 V

DC Voltage Rating:

250 V

Neutral Type:

Solid

Power Rating:

1-1/2 HP at 240 VAC 1-Phase, 3 HP at 240 VAC 3-Phase (Standard Fuse), 3 HP at 240 VAC 1-Phase, 7-1/2 HP at 240 VAC 3-Phase (Time Delay Fuse), 5 HP at 250 VDC

Finish:

Painted Galvanized

Fuse Provision:

Fusible

Eaton DH221NWK Heavy Duty Safety Switches

SKU:

S21-2733

TS PIK:

111011432

Number of Wires:

3

Approval:

UL 98

Size:

10.22 Inch W x 7.73 Inch D x 19.08 Inch H

Catalog:

Eaton_00003_V2T1_2_V2T1_5_V2T1_11_CAT.pdf

Enclosure:

NEMA 4X

Fuse Type:

Cartridge, Class H, Time Delay

Enclosure Material:

Stainless Steel

DC Voltage Rating:

250 V

Power Rating:

1-1/2 HP at 240 VAC 1-Phase, 3 HP at 240 VAC 3-Phase (Standard Fuse), 3 HP at 240 VAC 1-Phase, 7-1/2 HP at 240 VAC 3-Phase (Time Delay Fuse), 5 HP at 250 VDC

Type:

Heavy Duty Safety

Neutral Type:

Solid

AC Voltage Rating:

240 V

Number of Poles:

2

Fuse Provision:

Fusible

Series:

DH

Short Description:

240 VAC, 250 VDC, 30 A, 7-1/2 HP, 2-Pole, 3-Wire, NEMA 4X, 304 Stainless Steel, Solid Neutral, Class H Fusible, Heavy Duty, Single Throw Safety Switch

Current Rating:

30 A

Eaton DH221URB General Duty Safety Switches EA

SKU:

S21-2379

Number of Wires:

2

Fuse Provision:

Non-Fusible

Enclosure:

NEMA 3R

Type:

Heavy Duty

AC Voltage Rating:

240 V

Current Rating:

30 A

Number of Poles:

2

Short Description:

Eaton General duty non-fusible safety switch, single-throw, 30 A, 240 V, NEMA 3R, Rainproof, Painted galvanized steel, Two-pole, Two-wire

Series:

DH

Eaton DH222FDK Heavy Duty Safety Switches

SKU:

S21-3287

Short Description:

EATON HEAVY DUTY SINGLE-THROW FUSED SAFETY SWITCH, ENHANCED VISIBLE BLADE, 60 A,

Enclosure:

NEMA 12

Current Rating:

60 A

Type:

Heavy Duty

Number of Poles:

2

Number of Wires:

2

DC Voltage Rating:

240 V

Fuse Provision:

Fusible

Eaton DH222FGK Heavy Duty Safety Switches DH 2P 60A 240V 50/60Hz 1Ph EA NEMA 1

SKU:

S21-1230

Short Description:

240 VAC, 250 VDC, 60 A, 15 HP, 2-Pole, 2-Wire, NEMA 1, Painted Steel, Class H Fusible, Heavy Duty

Type:

Heavy Duty

AC Voltage Rating:

240 V

DC Voltage Rating:

250 V

Current Rating:

60 A

Number of Poles:

2

Number of Wires:

2

Fuse Provision:

Fusible

Fuse Type:

Class H

Enclosure:

NEMA 1

Catalog:

Eaton_00003_V2T1_2_V2T1_11_CAT.pdf,Eaton_00003_V2T1_2_V2T1_11_CAT.pdf

Technical Specifications:

Eaton_38431_1_2_SPEC.pdf

Series:

DH

Size:

9.89 Inch W x 7.75 Inch D x 16 Inch H

Neutral Type:

None

Enclosure Material:

Steel

Power Rating:

3 HP at 240 VAC 1-Phase, 7.5 HP at 240 VAC 3-Phase (Standard Fuse), 10 HP at 240 VAC 1-Phase, 15 HP at 240 VAC 3-Phase (Time Delay Fuse), 10 HP at 250 VDC

TS PIK:

122218402

Country of Origin:

United States

Approval:

UL 50/98

Finish:

Painted

Eaton DH222FWK Heavy Duty Safety Switches

SKU:

S21-3635

Type:

Heavy Duty

Current Rating:

60 A

Number of Poles:

2

Fuse Provision:

Fusible

Enclosure:

NEMA 4/4X

Number of Wires:

2

AC Voltage Rating:

240 V

Eaton DH222NDK Heavy Duty Safety Switches DH 2P 60A 240V 50/60Hz 1Ph Fusible 3Wire EA NEMA 3R/12

SKU:

S21-1402

Short Description:

240 VAC, 250 VDC, 60 A, 15 HP, 2-Pole, 3-Wire, NEMA 12, Painted Galvanized Steel, Solid Neutral, Class H Fusible, Heavy Duty

Type:

Heavy Duty

AC Voltage Rating:

240 V

DC Voltage Rating:

250 V

Current Rating:

60 A

Number of Poles:

2

Number of Wires:

3

Fuse Provision:

Fusible

Fuse Type:

Class H

Enclosure:

NEMA 12

Catalog:

Eaton_00003_V2T1_2_V2T1_5_V2T1_11_CAT.pdf,Eaton_00003_V2T1_2_V2T1_5_V2T1_11_CAT.pdf

Technical Specifications:

Eaton_38433_1_2_SPEC.pdf

Series:

DH

Neutral Type:

Solid

Enclosure Material:

Steel

Power Rating:

3 HP at 240 VAC 1-Phase, 7-1/2 HP at 240 VAC 3-Phase (Standard Fuse), 10 HP at 240 VAC 1-Phase, 15 HP at 240 VAC 3-Phase (Time Delay Fuse), 10 HP at 250 VDC

Size:

10.22 Inch W x 7.73 Inch D x 17.75 Inch H

TS PIK:

111011470

Country of Origin:

United States

Approval:

UL 98

Finish:

Painted Galvanized

Eaton DH222NGK Heavy Duty Safety Switches EA

SKU:

S21-1049

Short Description:

240 VAC, 250 VDC, 60 A, 15 HP, 2-Pole, 3-Wire, NEMA 1, Painted Steel, Solid Neutral, Class H Fusible, Heavy Duty, Single Throw Safety Switch

Type:

Heavy Duty

AC Voltage Rating:

240 V

DC Voltage Rating:

250 V

Current Rating:

60 A

Number of Poles:

2

Number of Wires:

3

Fuse Provision:

Fusible

Fuse Type:

Class H

Enclosure:

NEMA 1

Catalog:

Eaton_00003_V2T1_2_V2T1_4_V2T1_11_CAT.pdf,Eaton_00003_V2T1_2_V2T1_4_V2T1_11_CAT.pdf

Technical Specifications:

Eaton_38434_1_2_SPEC.pdf

Neutral Type:

Solid

Series:

DH

Power Rating:

3 HP at 240 VAC 1-Phase, 7-1/2 HP at 240 VAC 3-Phase (Standard Fuse), 10 HP at 240 VAC 1-Phase, 15 HP at 240 VAC 3-Phase (Time Delay Fuse), 10 HP at 250 VDC

Enclosure Material:

Steel

Size:

9.89 Inch W x 7.75 Inch D x 16 Inch H

TS PIK:

111011463

Country of Origin:

United States

Approval:

UL 98

Finish:

Painted

Eaton DH222NRK Heavy Duty Safety Switches

SKU:

S21-2736

TS PIK:

111011464

Short Description:

240 VAC, 250 VDC, 60 A, 15 HP, 2-Pole, 3-Wire, NEMA 3R, Painted Galvanized Steel, Solid Neutral, Class H Fusible, Heavy Duty, Single Throw Safety Switch

AC Voltage Rating:

240 V

Series:

DH

Current Rating:

60 A

DC Voltage Rating:

250 V

Power Rating:

3 HP at 240 VAC 1-Phase, 7-1/2 HP at 240 VAC 3-Phase (Standard Fuse), 10 HP at 240 VAC 1-Phase, 15 HP at 240 VAC 3-Phase (Time Delay Fuse), 10 HP at 250 VDC

Finish:

Painted Galvanized

Size:

9.89 Inch W x 7.75 Inch D x 16.27 Inch H

Number of Poles:

2

Approval:

UL 98

Catalog:

Eaton_00003_V2T1_2_V2T1_4_V2T1_11_CAT.pdf

Neutral Type:

Solid

Enclosure Material:

Steel

Number of Wires:

3

Fuse Type:

Cartridge, Class H, Time Delay

Type:

Heavy Duty Safety

Fuse Provision:

Fusible

Enclosure:

NEMA 3R

Eaton DH222NWK Safety Switches DH 2P 60A 240V 50/60Hz 1Ph Fusible w/ Neutral 3Wire EA NEMA 4X

SKU:

S21-1376

Short Description:

240 VAC, 250 VDC, 60 A, 3/7.5/10/15 HP at 240 VAC 1-Phase, 2-Pole, 3-Wire, Fusible, Class H, NEMA 4X, 316 Stainless Steel, Heavy Duty

Type:

Heavy Duty

AC Voltage Rating:

240 V

DC Voltage Rating:

250 V

Current Rating:

60 A

Number of Poles:

2

Number of Wires:

3

Fuse Provision:

Fusible

Fuse Type:

Class H

Enclosure:

NEMA 4X

Catalog:

Eaton_00003_V2T1_5_V2T1_30_V2T1_31_V2T1_33_CAT.pdf,Eaton_00003_V2T1_5_V2T1_30_V2T1_31_V2T1_33_CAT.pdf

Technical Specifications:

Eaton_46425_1_2_SPEC.pdf

Enclosure Material:

Stainless Steel

Size:

20 Inch Length x 9.5 Inch Width x 8.5 Inch Height

Power Rating:

3/7.5/10/15 HP at 240 VAC 1-Phase, 10 HP at 250 VDC

Number of Phases:

1

Approval:

UL

Country of Origin:

United States

Eaton DH222NWKX Safety Switches DH 2P 60A 240V 50/60Hz 1Ph Fusible w/ Neutral 3Wire 1BOX NEMA 4X

SKU:

S21-1125

Short Description:

EATON HEAVY DUTY SINGLE-THROW FUSED SAFETY SWITCH, 100 A, NEMA 4X, NON-METALLIC,

Type:

Heavy Duty

AC Voltage Rating:

240 V

Current Rating:

100 A

Number of Poles:

2

Number of Wires:

3

Fuse Provision:

Fusible

Enclosure:

NEMA 4X

Eaton DH223FDK Heavy Duty Safety Switches

SKU:

S21-3288

Short Description:

EATON HEAVY DUTY SINGLE-THROW FUSED SAFETY SWITCH, ENHANCED VISIBLE BLADE, 100 A

Fuse Provision:

Fusible

Number of Poles:

2

DC Voltage Rating:

240 V

Current Rating:

100 A

Enclosure:

NEMA 12

Number of Wires:

2

Type:

Heavy Duty

Eaton DH223FGKV Safety Switches EA

SKU:

S21-1858

Current Rating:

100 A

Short Description:

EATON ENHANCED VISIBLE BLADE SINGLE-THROW SAFETY SWITCH, 100 A, NEMA 3R, PAINTED

Type:

Heavy Duty

Fuse Provision:

Fusible

AC Voltage Rating:

240 V

Number of Poles:

2

Series:

DH

Country of Origin:

United States

Eaton DH223FWK Heavy Duty Safety Switches

SKU:

S21-3636

Short Description:

EATON HEAVY DUTY SINGLE-THROW FUSED SAFETY SWITCH, CORROSION RESISTANT, ENHANCED

Current Rating:

100 A

AC Voltage Rating:

240 V

Type:

Heavy Duty

DC Voltage Rating:

240 V

Enclosure:

NEMA 4/4X

Fuse Provision:

Fusible

Number of Wires:

2

Number of Poles:

2

Eaton DH223NGK Heavy Duty Safety Switches

SKU:

S21-2712

TS PIK:

111011493

Series:

DH

Short Description:

240 VAC, 250 VDC, 100 A, 30 HP, 2-Pole, 3-Wire, NEMA 1, Painted Steel, Solid Neutral, Class H Fusible, Heavy Duty, Single Throw Safety Switch

Number of Poles:

2

Type:

Heavy Duty Safety

Power Rating:

7-1/2 HP at 240 VAC 1-Phase, 15 HP at 240 VAC 3-Phase (Standard Fuse), 15 HP at 240 VAC 1-Phase, 30 HP at 240 VAC 3-Phase (Time Delay Fuse), 20 HP at 250 VDC

Fuse Provision:

Fusible

Size:

10.78 Inch W x 9.89 Inch D x 21.99 Inch H

Approval:

UL 98

Neutral Type:

Solid

Number of Wires:

3

Fuse Type:

Cartridge, Class H, Time Delay

Catalog:

Eaton_00003_V2T1_2_V2T1_4_V2T1_11_CAT.pdf

AC Voltage Rating:

240 V

Current Rating:

100 A

Enclosure Material:

Steel

Finish:

Painted

DC Voltage Rating:

250 V

Enclosure:

NEMA 1

Eaton DH223NRK Heavy Duty Safety Switches

SKU:

S21-2709

TS PIK:

111011494

Number of Wires:

3

Power Rating:

7-1/2 HP at 240 VAC 1-Phase, 15 HP at 240 VAC 3-Phase (Standard Fuse), 15 HP at 240 VAC 1-Phase, 30 HP at 240 VAC 3-Phase (Time Delay Fuse), 20 HP at 250 VDC

Size:

10.78 Inch W x 9.89 Inch D x 21.99 Inch H

Enclosure:

NEMA 3R

Fuse Provision:

Fusible

Finish:

Painted Galvanized

DC Voltage Rating:

250 V

Series:

DH

AC Voltage Rating:

240 V

Enclosure Material:

Steel

Approval:

UL 98

Fuse Type:

Cartridge, Class H, Time Delay

Catalog:

Eaton_00003_V2T1_2_V2T1_4_V2T1_11_CAT.pdf

Short Description:

240 VAC, 250 VDC, 100 A, 30 HP, 2-Pole, 3-Wire, NEMA 3R, Painted Galvanized Steel, Solid Neutral, Class H Fusible, Heavy Duty, Single Throw Safety Switch

Type:

Heavy Duty Safety

Current Rating:

100 A

Number of Poles:

2

Neutral Type:

Solid

Eaton DH223NRK Safety Switches

SKU:

S21-1586

Short Description:

240 VAC, 250 VDC, 100 A, 30 HP, 2-Pole, 3-Wire, NEMA 3R, Painted Galvanized Steel, Solid Neutral, Class H Fusible, Heavy Duty

Type:

Heavy Duty

AC Voltage Rating:

240 V

DC Voltage Rating:

250 V

Current Rating:

100 A

Number of Poles:

2

Number of Wires:

3

Fuse Provision:

Fusible

Fuse Type:

Class H

Enclosure:

NEMA 3R

Catalog:

Eaton_00003_V2T1_2_V2T1_4_V2T1_11_CAT.pdf,Eaton_00003_V2T1_2_V2T1_4_V2T1_11_CAT.pdf

Technical Specifications:

Eaton_38438_1_2_SPEC.pdf

Power Rating:

7-1/2 HP at 240 VAC 1-Phase, 15 HP at 240 VAC 3-Phase (Standard Fuse), 15 HP at 240 VAC 1-Phase, 30 HP at 240 VAC 3-Phase (Time Delay Fuse), 20 HP at 250 VDC

Neutral Type:

Solid

Size:

10.78 Inch W x 9.89 Inch D x 21.99 Inch H

Series:

DH

Enclosure Material:

Steel

TS PIK:

111011494

Country of Origin:

United States​

Approval:

UL 98

Finish:

Painted Galvanized

Eaton DH223NWK Safety Switches DH 2P 100A 240V 50/60Hz 1Ph Fusible w/ Neutral 3Wire NEMA 4X

SKU:

S21-1561

Short Description:

240 VAC, 250 VDC, 100 A, 30 HP, 2-Pole, 3-Wire, NEMA 4X, 304 Stainless Steel, Solid Neutral, Class H Fusible, Heavy Duty

Type:

Heavy Duty

AC Voltage Rating:

240 V

DC Voltage Rating:

250 V

Current Rating:

100 A

Number of Poles:

2

Number of Wires:

3

Fuse Provision:

Fusible

Fuse Type:

Class H

Enclosure:

NEMA 4X

Catalog:

Eaton_00003_V2T1_2_V2T1_5_V2T1_11_CAT.pdf,Eaton_00003_V2T1_2_V2T1_5_V2T1_11_CAT.pdf

Technical Specifications:

Eaton_38439_1_2_SPEC.pdf

Series:

DH

Power Rating:

7-1/2 HP at 240 VAC 1-Phase, 15 HP at 240 VAC 3-Phase (Standard Fuse), 15 HP at 240 VAC 1-Phase, 30 HP at 240 VAC 3-Phase (Time Delay Fuse), 20 HP at 250 VDC

Enclosure Material:

Stainless Steel

Size:

10.76 Inch W x 10.22 Inch D x 24.95 Inch H

Neutral Type:

Solid

Approval:

UL 98

Eaton DH224FDK Heavy Duty Safety Switches

SKU:

S21-3631

Eaton DH224FRK Safety Switches DH 2P 200A 240V 50/60Hz 1Ph Fusible 3Wire NEMA 3R

SKU:

S21-1235

Short Description:

EATON HEAVY DUTY SINGLE-THROW FUSED SAFETY SWITCH, ENHANCED VISIBLE BLADE, 200 A

Type:

Heavy Duty

AC Voltage Rating:

600 V

Current Rating:

200 A

Number of Poles:

2

Number of Wires:

3

Fuse Provision:

Fusible without neutral

Enclosure:

NEMA 3R

Country of Origin:

United States

Eaton DH224FWK Heavy Duty Safety Switches

SKU:

S21-3637

Short Description:

EATON HEAVY DUTY SINGLE-THROW FUSED SAFETY SWITCH, CORROSION RESISTANT, ENHANCED

Current Rating:

200 A

Type:

Heavy Duty Safety

Number of Poles:

2

Enclosure:

NEMA 4/4X

AC Voltage Rating:

240 V

Fuse Provision:

Fusible

Number of Wires:

2

DC Voltage Rating:

240 V

Eaton DH224NDK Heavy Duty Safety Switches

SKU:

S21-3632

Enclosure Material:

Steel

Series:

DH

Number of Wires:

3

Fuse Type:

Cartridge, Class H, Time Delay

Size:

15.5 Inch W x 11.63 Inch D x 35.38 Inch H

Approval:

UL 98

Current Rating:

200 A

Finish:

Painted Galvanized

Enclosure:

NEMA 12

Number of Poles:

2

Power Rating:

15 HP at 240 VAC 1-Phase, 25 HP at 240 VAC 3-Phase (Standard Fuse), 15 HP at 240 VAC 1-Phase, 60 HP at 240 VAC 3-Phase (Time Delay Fuse), 40 HP at 250 VDC

Type:

Heavy Duty Safety

AC Voltage Rating:

240 V

Neutral Type:

Solid

DC Voltage Rating:

250 V

Short Description:

240 VAC, 250 VDC, 200 A, 60 HP, 2-Pole, 3-Wire, NEMA 12, Painted Galvanized Steel, Solid Neutral, Class H Fusible, Heavy Duty, Single Throw Safety Switch

Catalog:

Eaton_00003_V2T1_2_V2T1_5_V2T1_11_CAT.pdf

Fuse Provision:

Fusible

Eaton DH224NRK Safety Switches DH 2P 200A 240V 50/60Hz 1Ph Fusible 3Wire EA NEMA 3R

SKU:

S21-1500

Short Description:

240 VAC, 250 VDC, 200 A, 60 HP, 2-Pole, 3-Wire, NEMA 3R, Painted Galvanized Steel, Solid Neutral, Class H Fusible, Heavy Duty

Type:

Heavy Duty

AC Voltage Rating:

240 V

DC Voltage Rating:

250 V

Current Rating:

200 A

Number of Poles:

2

Number of Wires:

3

Fuse Provision:

Fusible

Fuse Type:

Class H

Enclosure:

NEMA 3R

Catalog:

Eaton_00003_V2T1_2_V2T1_4_V2T1_11_CAT.pdf,Eaton_00003_V2T1_2_V2T1_4_V2T1_11_CAT.pdf

Technical Specifications:

Eaton_38442_1_2_SPEC.pdf

Neutral Type:

Solid

Power Rating:

15 HP at 240 VAC 1-Phase, 25 HP at 240 VAC 3-Phase (Standard Fuse), 15 HP at 240 VAC 1-Phase, 60 HP at 240 VAC 3-Phase (Time Delay Fuse), 40 HP at 250 VDC

Enclosure Material:

Steel

Size:

15.52 Inch W x 11.26 Inch D x 28.12 Inch H

Series:

DH

Approval:

UL 98

Finish:

Painted Galvanized

Eaton DH224NWK Heavy Duty Safety Switches

SKU:

S21-3640

Catalog:

EatonCorp-CutlerHammer_00111_V2T1_5-V2T1_38_CAT.pdf

Approval:

UL, UL 98

Fuse Type:

Class H

Enclosure Material:

304 Stainless Steel

Number of Wires:

3

Power Rating:

15 HP at 240 VAC 1-Phase, 25 HP at 240 VAC 3-Phase (Standard Fuse), 15 HP at 1-Phase/60 HP at 3-Phase (Time Delay), 40 HP at 250 VDC

AC Voltage Rating:

240 V

Short Description:

EATON HEAVY DUTY SINGLE-THROW FUSED SAFETY SWITCH, CORROSION RESISTANT, 200 A, N

Current Rating:

200 A

Fuse Provision:

Fusible

DC Voltage Rating:

250 V

Size:

16.95 Inch Width x 11.63 Inch Depth x 35.38 Inch Height

Number of Poles:

2

Enclosure:

NEMA 4X

Type:

Heavy Duty

Neutral Type:

Yes

Eaton DH225FDK Heavy Duty Safety Switches

SKU:

S21-3289

Type:

Heavy Duty Safety

Series:

DH

Fuse Provision:

Fusible

Approval:

UL 98

Current Rating:

400 A

Number of Wires:

2

Finish:

Painted Galvanized

Size:

22.66 Inch W x 11.2 Inch D x 57.47 Inch H

Enclosure Material:

Steel

AC Voltage Rating:

240 V

Short Description:

240 VAC, 250 VDC, 400 A, 125 HP, 2-Pole, 2-Wire, NEMA 12, Painted Galvanized Steel, Class H Fusible, Heavy Duty, Single Throw Safety Switch

Neutral Type:

No

Fuse Type:

Cartridge, Class H, Time Delay

DC Voltage Rating:

250 V

Number of Poles:

2

Catalog:

Eaton_00003_V2T1_2_V2T1_5_V2T1_11_CAT.pdf

Enclosure:

NEMA 12

Power Rating:

50 HP at 240 VAC 3-Phase (Standard Fuse), 125 HP at 240 VAC 3-Phase (Time Delay Fuse), 50 HP at 250 VDC

Eaton DH225FGK Heavy Duty Safety Switches

SKU:

S21-2753

TS PIK:

111011557

Neutral Type:

No

Type:

Heavy Duty

Short Description:

EATON HEAVY DUTY SINGLE-THROW FUSED SAFETY SWITCH, ENHANCED VISIBLE BLADE, 400 A

Number of Wires:

2

AC Voltage Rating:

240 V

Enclosure:

NEMA 1

Enclosure Material:

Steel

Finish:

Painted

Fuse Type:

Class H

Size:

24.12 Inch Width x 12.39 Inch Depth x 44.31 Inch Height

Approval:

UL, UL 98

Catalog:

EatonCorp-CutlerHammer_00111_V2T1_4-V2T1_38_CAT.pdf

Number of Poles:

2

DC Voltage Rating:

250 V

Current Rating:

400 A

Fuse Provision:

Fusible

Power Rating:

50 HP at 240 VAC 3-Phase (Standard Fuse), 125 HP at 3-Phase (Time Delay), 50 HP at 250 VDC

Eaton DH225FGK Safety Switches

SKU:

S21-1272

Short Description:

EATON HEAVY DUTY SINGLE-THROW FUSED SAFETY SWITCH, ENHANCED VISIBLE BLADE, 400 A

Type:

Heavy Duty

AC Voltage Rating:

240 V

DC Voltage Rating:

250 V

Current Rating:

400 A

Number of Poles:

2

Number of Wires:

2

Fuse Provision:

Fusible without neutral

Fuse Type:

Class H

Enclosure:

NEMA 1

Catalog:

EatonCorp-CutlerHammer_00111_V2T1_4-V2T1_38_CAT.pdf,EatonCorp-CutlerHammer_00111_V2T1_4-V2T1_38_CAT.pdf

Technical Specifications:

Eaton_60438_1_2_SPEC.pdf

Enclosure Material:

Steel

Size:

24.12 Inch Width x 12.39 Inch Depth x 44.31 Inch Height

Neutral Type:

No

Power Rating:

50 HP at 240 VAC 3-Phase (Standard Fuse), 125 HP at 3-Phase (Time Delay), 50 HP at 250 VDC

Approval:

UL, UL 98

Finish:

Painted

Country of Origin:

United States

Eaton DH225FWK Heavy Duty Safety Switches

SKU:

S21-3638

Number of Poles:

2

Fuse Provision:

Fusible

Enclosure:

NEMA 4/4X

Number of Wires:

2

DC Voltage Rating:

240 V

Current Rating:

400 A

Type:

Heavy Duty

Eaton DH225NDK Safety Switches DH 2P 400A 240V 50/60Hz 1Ph Fusible 3Wire EA Nema 12

SKU:

S21-1812

Short Description:

240 VAC, 250 VDC, 400 A, 125 HP, 2-Pole, 3-Wire, NEMA 12, Painted Galvanized Steel, Solid Neutral, Class H Fusible, Heavy Duty

Type:

Heavy Duty

AC Voltage Rating:

240 V

DC Voltage Rating:

250 V

Current Rating:

400 A

Number of Poles:

2

Number of Wires:

3

Fuse Provision:

Fusible

Fuse Type:

Class H

Enclosure:

NEMA 3R/12

Catalog:

Eaton_00003_V2T1_2_V2T1_5_V2T1_11_CAT.pdf,Eaton_00003_V2T1_2_V2T1_5_V2T1_11_CAT.pdf

Technical Specifications:

Eaton_38445_1_2_SPEC.pdf

Enclosure Material:

Steel

Neutral Type:

Solid

Size:

22.66 Inch W x 11.2 Inch D x 57.47 Inch H

Power Rating:

50 HP at 240 VAC 3-Phase (Standard Fuse), 125 HP at 240 VAC 3-Phase (Time Delay Fuse), 50 HP at 250 VDC

Series:

DH

Country of Origin:

United States

Approval:

UL 98

Finish:

Painted Galvanized

Eaton DH225NGK Safety Switches 400A 240V EA

SKU:

S21-2074

Type:

Heavy Duty

Series:

DH

Fuse Provision:

Fusible

Short Description:

240 VAC, 250 VDC, 400 A, 125 HP, 2-Pole, 3-Wire, NEMA 1, Painted Steel, Solid Neutral, Class H Fusible, Heavy Duty, Single Throw Safety Switch

AC Voltage Rating:

240 V

DC Voltage Rating:

250 V

Current Rating:

400 A

Neutral Type:

Solid

Number of Poles:

2

Size:

22.66 Inch W x 11.16 Inch D x 44.31 Inch H

Enclosure:

NEMA 1

Catalog:

Eaton_00003_V2T1_2_V2T1_4_V2T1_11_CAT.pdf

Fuse Type:

Cartridge, Class H, Time Delay

Number of Wires:

3

Enclosure Material:

Steel

Power Rating:

50 HP at 240 VAC 3-Phase (Standard Fuse), 125 HP at 240 VAC 3-Phase (Time Delay Fuse), 50 HP at 250 VDC

Country of Origin:

United States

Approval:

UL 98

Finish:

Painted

Eaton DH225NRK Safety Switches DH 2P 400A 240V 50/60Hz 1Ph Fusible w/ Neutral 3Wire EA NEMA 3R

SKU:

S21-1271

Short Description:

240 VAC, 250 VDC, 400 A, 125 HP, 2-Pole, 3-Wire, NEMA 3R, Painted Galvanized Steel, Solid Neutral, Class H Fusible, Heavy Duty

Type:

Heavy Duty

AC Voltage Rating:

240 V

DC Voltage Rating:

250 V

Current Rating:

400 A

Number of Poles:

2

Number of Wires:

3

Fuse Provision:

Fusible

Fuse Type:

Class H

Enclosure:

NEMA 3R

Catalog:

Eaton_00003_V2T1_2_V2T1_4_V2T1_11_CAT.pdf,Eaton_00003_V2T1_2_V2T1_4_V2T1_11_CAT.pdf

Technical Specifications:

Eaton_38447_1_2_SPEC.pdf

Series:

DH

Size:

22.66 Inch W x 11.16 Inch D x 44.31 Inch H

Power Rating:

50 HP at 240 VAC 3-Phase (Standard Fuse), 125 HP at 240 VAC 3-Phase (Time Delay Fuse), 50 HP at 250 VDC

Neutral Type:

Solid

Enclosure Material:

Steel

Approval:

UL 98

Finish:

Painted Galvanized

Country of Origin:

United States

Eaton DH225NWK Heavy Duty Safety Switches

SKU:

S21-3641

AC Voltage Rating:

240 VAC

Short Description:

240 VAC, 250 VDC, 400 A, 520 HP, 2-Pole, 3-Wire, NEMA 4X, 304 Stainless Steel Enclosure, Class H Fusible with Neutral, Heavy Duty, Single Throw Safety Switch

Current Rating:

400 A

Fuse Provision:

Fusible

Fuse Type:

Class H

DC Voltage Rating:

250 VDC

Number of Poles:

2

Power Rating:

520 HP/125 HP at 240 VAC 3-Phase, 50 HP at 250 VDC

Number of Wires:

3

Type:

Heavy Duty Safety, 2-Blade

Catalog:

Eaton_00003_V2T1_5_V2T1_11_V2T1_30_V2T1_33_CAT.pdf

Approval:

UL 98

Size:

27.5 Inch Width x 57.5 Inch Depth x 12.38 Inch Height

Enclosure Material:

Stainless Steel

Enclosure:

NEMA 4/4X

Eaton DH226FDK Heavy Duty Safety Switches

SKU:

S21-3290

Type:

Heavy Duty Safety

Enclosure:

NEMA 12

Short Description:

240 VAC, 250 VDC, 600 A, 200 HP, 2-Pole, 2-Wire, NEMA 12, Painted Galvanized Steel, Class H Fusible, Heavy Duty, Single Throw Safety Switch

Series:

DH

AC Voltage Rating:

240 V

Finish:

Painted Galvanized

Number of Poles:

2

Number of Wires:

2

Neutral Type:

No

Fuse Provision:

Fusible

Size:

23.66 Inch W x 12.75 Inch D x 63 Inch H

Fuse Type:

Cartridge, Class H, Time Delay

Catalog:

Eaton_00003_V2T1_2_V2T1_5_V2T1_11_CAT.pdf

Approval:

UL 98

Current Rating:

600 A

Power Rating:

75 HP at 240 VAC 3-Phase (Standard Fuse), 200 HP at 240 VAC 3-Phase (Time Delay Fuse)

DC Voltage Rating:

250 V

Enclosure Material:

Steel

Eaton DH226FGK Heavy Duty Safety Switches

SKU:

S21-3281

Series:

DH

Enclosure Material:

Steel

Current Rating:

600 A

Short Description:

240 VAC, 250 VDC, 600 A, 200 HP, 2-Pole, 2-Wire, NEMA 1, Painted Steel, Class H Fusible, Heavy Duty, Single Throw Safety Switch

Type:

Heavy Duty Safety

AC Voltage Rating:

240 V

Number of Wires:

2

Fuse Provision:

Fusible

Number of Poles:

2

Size:

23.66 Inch W x 12.84 Inch D x 51.82 Inch H

Enclosure:

NEMA 1

Neutral Type:

No

Catalog:

Eaton_00003_V2T1_2_V2T1_4_V2T1_11_CAT.pdf

DC Voltage Rating:

250 V

Power Rating:

75 HP at 240 VAC 3-Phase (Standard Fuse), 200 HP at 240 VAC 3-Phase (Time Delay Fuse)

Fuse Type:

Cartridge, Class H, Time Delay

Approval:

UL 98

Finish:

Painted

Eaton DH226FRK Heavy Duty Safety Switches EA

SKU:

S21-2483

Type:

Heavy Duty

AC Voltage Rating:

240 V

Current Rating:

600 A

Number of Poles:

2

Short Description:

EATON HEAVY DUTY SINGLE-THROW FUSED SAFETY SWITCH, ENHANCED VISIBLE BLADE, 600 A

Fuse Provision:

Fusible

Series:

DH

Country of Origin:

United States

Eaton DH226FWK Heavy Duty Safety Switches
