Eaton

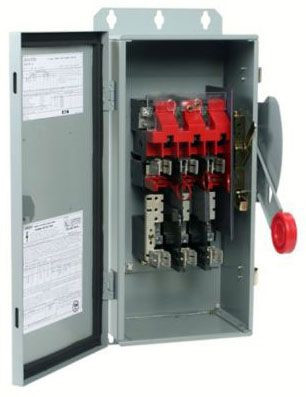

Eaton DH321FDK Safety Switches DH 3P 30A 240V 50/60Hz 3Ph Fusible 3Wire NEMA 12
- MPN:
- DH321FDK
- UPC:
- 78211320541
- SKU:
- S21-1358
Product Conditions
Surplus
Parts from another distributor or wholesaler that were only removed from the original packaging for inspection and pictures. These parts have never been energized, installed, or modified in any way.
Used
Parts that show any sign of being energized, installed, assembled with other parts, or functional wear or corrosion. These parts are sold as-is and returns may not be accepted.
Repackaged
Parts from another distributor or wholesaler that are missing the original packaging. These parts have never been energized, installed, or modified in any way and will ship in an ARCA box.
Description
SKU: S21-1358
Brand: Eaton
MPN: DH321FDK
UPC: 782113205410
Shipping Weight: 17.40 lbs.
Shipping Height: 9.00 In.
Shipping Length: 20.00 In.
Shipping Width: 10.00 In.
Product Notes:
Long Description: Eaton DH321FDK Safety Switches DH 3P 30A 240V 50/60Hz 3Ph Fusible 3Wire NEMA 12
Specifications
Type: |
Heavy Duty |
AC Voltage Rating: |
240 V |
DC Voltage Rating: |
250 V |
Current Rating: |
30 A |
Number of Poles: |
3 |
Number of Wires: |
3 |
Fuse Provision: |
Fusible without neutral |
Fuse Type: |
Class H |
Enclosure: |
NEMA 12/3R |
Catalog: |
|
Technical Specifications: |
|
Size: |
9.5 Inch Width x 20 Inch Depth x 8.5 Inch Height |
Power Rating: |
1-1/2 HP at 240 VAC 1-Phase, 3 HP at 240 VAC 3-Phase (Standard Fuse), 3 HP at 1-Phase/7-1/2 HP at 3-Phase (Time Delay), 5 HP at 250 VDC |
Neutral Type: |
No |
Enclosure Material: |
Steel |
Finish: |
Painted Galvanized |
Approval: |
UL, UL 98 |
