Eaton

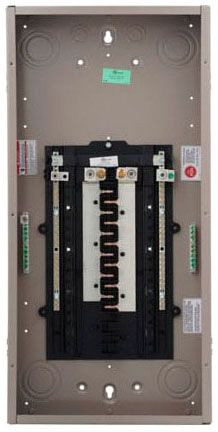

Eaton CHP24L150X5 Loadcenters and Panelboards
- MPN:
- CHP24L150X5
- UPC:
- 78668905427
- SKU:
- L19-6609
Product Conditions
Surplus
Parts from another distributor or wholesaler that were only removed from the original packaging for inspection and pictures. These parts have never been energized, installed, or modified in any way.
Used
Parts that show any sign of being energized, installed, assembled with other parts, or functional wear or corrosion. These parts are sold as-is and returns may not be accepted.
Repackaged
Parts from another distributor or wholesaler that are missing the original packaging. These parts have never been energized, installed, or modified in any way and will ship in an ARCA box.
Description
SKU: L19-6609
Brand: Eaton
MPN: CHP24L150X5
UPC: 78668905427
Shipping Weight: 0.00 lbs.
Shipping Height: 0.00 In.
Shipping Length: 0.00 In.
Shipping Width: 0.00 In.
Product Notes:
Long Description: Eaton CHP24L150X5 Loadcenters and Panelboards
Specifications
Maximum Number of Circuits: |
48 |
Type: |
Main Lug |
Approval: |
UL 50/67 |
Interrupting Rating: |
25 kA |
Current Rating: |
150 A |
Bus Material: |
Silver Flash Plated Copper |
Size: |
14.3 Inch Width x 3.88 Inch Depth x 29.13 Inch Height |
Maximum Number of Spaces: |
(24) 3/4 |
Enclosure Size Designation: |
X5 |
Enclosure Type: |
NEMA 1, Indoor |
Voltage Rating: |
120/240 VAC |
Installation/Operator: |
|
Neutral Type: |
Insulated/Bondable Split |
Breaker Mounting: |
Plug-On |
Main Wire Size: |
4 AWG to 300 KCMIL Copper/Aluminum |
Feed Location: |
Top/Bottom |
Circuit Configuration: |
1-Phase 3-Wire |
Catalog: |
