Eaton

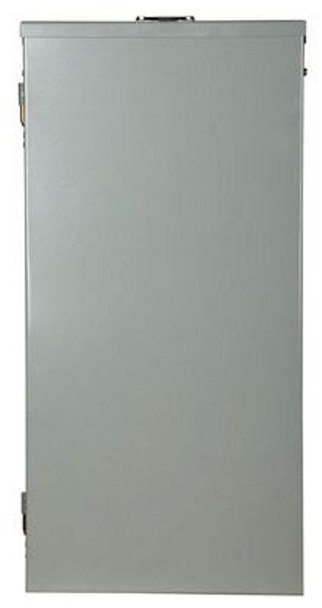

Eaton CH30B3225R Loadcenters and Panelboards
- MPN:
- CH30B3225R
- UPC:
- 78211309801
- SKU:
- L19-6619
Product Conditions
Surplus
Parts from another distributor or wholesaler that were only removed from the original packaging for inspection and pictures. These parts have never been energized, installed, or modified in any way.
Used
Parts that show any sign of being energized, installed, assembled with other parts, or functional wear or corrosion. These parts are sold as-is and returns may not be accepted.
Repackaged
Parts from another distributor or wholesaler that are missing the original packaging. These parts have never been energized, installed, or modified in any way and will ship in an ARCA box.
Description
SKU: L19-6619
Brand: Eaton
MPN: CH30B3225R
UPC: 78211309801
Shipping Weight: 0.00 lbs.
Shipping Height: 0.00 In.
Shipping Length: 0.00 In.
Shipping Width: 0.00 In.
Product Notes:
Long Description: Eaton CH30B3225R Loadcenters and Panelboards
Specifications
Circuit Configuration: |
3-Phase 4-Wire |
Interrupting Rating: |
10 kA |
Approval: |
UL 50/67/489, CSA |
Current Rating: |
225 A |
Main Breaker Type: |
CC |
CAD Drawings: |
|
Size: |
14.31 Inch Width x 5.19 Inch Depth x 39 Inch Height |
Catalog: |
|
Voltage Rating: |
208 Star/120 VAC, 240 VAC |
Enclosure Type: |
NEMA 3R, Outdoor |
Installation/Operator: |
|
Neutral Type: |
Insulated/Bondable Split |
Main Wire Size: |
2/0 AWG to 300 KCMIL Copper/Aluminum |
Maximum Number of Circuits: |
30 |
Bus Material: |
Silver Flash Plated Copper |
Enclosure Size Designation: |
L |
Type: |
Main Breaker, Standard |
Maximum Number of Spaces: |
3/4 |
Feed Location: |
Overhead |
