Eaton

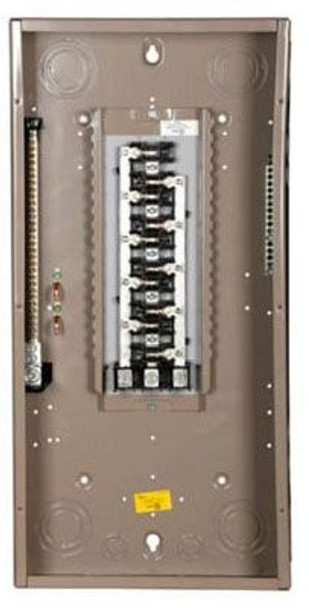

Eaton CH30L3225R Loadcenters and Panelboards
- MPN:
- CH30L3225R
- UPC:
- 78211309793
- SKU:
- L19-6627
Product Conditions
Surplus
Parts from another distributor or wholesaler that were only removed from the original packaging for inspection and pictures. These parts have never been energized, installed, or modified in any way.
Used
Parts that show any sign of being energized, installed, assembled with other parts, or functional wear or corrosion. These parts are sold as-is and returns may not be accepted.
Repackaged
Parts from another distributor or wholesaler that are missing the original packaging. These parts have never been energized, installed, or modified in any way and will ship in an ARCA box.
Description
SKU: L19-6627
Brand: Eaton
MPN: CH30L3225R
UPC: 78211309793
Shipping Weight: 0.00 lbs.
Shipping Height: 0.00 In.
Shipping Length: 0.00 In.
Shipping Width: 0.00 In.
Product Notes:
Long Description: Eaton CH30L3225R Loadcenters and Panelboards
Specifications
Bus Material: |
Silver Flash Plated Copper |
Main Wire Size: |
4 AWG to 300 KCMIL (Aluminum/Copper) |
Type: |
Main Lug |
Maximum Number of Spaces: |
(30) 3/4 |
Maximum Number of Circuits: |
30 |
Size: |
14-5/16 Inch W x 5-3/16 Inch D x 29-1/8 Inch H |
Circuit Configuration: |
3-Phase 4-Wire |
Series: |
CH |
Current Rating: |
225 A |
Feed Location: |
Bottom/Top |
Breaker Mounting: |
Plug-On |
Approval: |
UL |
Interrupting Rating: |
10 kA |
Enclosure Type: |
NEMA 3R, Outdoor |
Voltage Rating: |
208 VAC Star/120 VAC, 240 VAC |
Catalog: |
|
Installation/Operator: |
|
Enclosure Size Designation: |
D |
Neutral Type: |
Insulated/Bondable Split |
