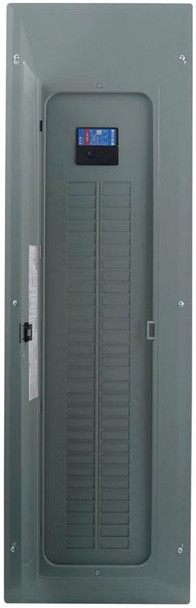

Eaton BRP60B200 Loadcenters and Panelboards
- MPN:
 - BRP60B200
 - UPC:
 - 78668905306
 - SKU:
 - L19-6652

Description
SKU:  L19-6652
Brand: Eaton
MPN: BRP60B200
UPC: 78668905306
Shipping Weight: 0.00 lbs.
Shipping Height: 0.00 In.
Shipping Length: 0.00 In.
Shipping Width: 0.00 In.
Product Notes:
Long Description: Eaton BRP60B200 Loadcenters and Panelboards
Specifications
Bus Material:  |
                                                        Tin Plated Aluminum  |

Current Rating:  |
                                                        200 A  |

Approval:  |
                                                        UL 50/67  |

Voltage Rating:  |
                                                        120/240 VAC  |

Maximum Number of Circuits:  |
                                                        120  |

Enclosure Size Designation:  |
                                                        X10  |

Main Wire Size:  |
                                                        2 AWG to 300 KCMIL Copper/Aluminum  |

Maximum Number of Spaces:  |
                                                        (60) 1-Pole 1  |

Feed Location:  |
                                                        Top/Bottom  |

Main Breaker Type:  |
                                                        CSR  |

Cover Type:  |
                                                        Flush/Surface  |

Size:  |
                                                        14.3 Inch Width x 3.8 Inch Depth x 48.38 Inch Height  |

Breaker Mounting:  |
                                                        Plug-On  |

Type:  |
                                                        Main Breaker  |

Circuit Configuration:  |
                                                        1-Phase 3-Wire  |

Interrupting Rating:  |
                                                        25 kA  |

Neutral Type:  |
                                                        Insulated/Bondable Split  |

Catalog:  |
                                                        |
Enclosure Type:  |
                                                        NEMA 1, Indoor  |
