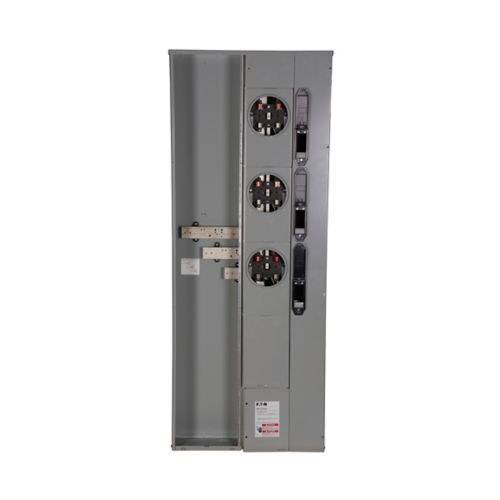

Eaton 1MP3206R Service Equipment Group Metering Pack
- MPN:
- 1MP3206R
- UPC:
- 78684905243
- SKU:
- L19-6880
Product Conditions
Surplus
Parts from another distributor or wholesaler that were only removed from the original packaging for inspection and pictures. These parts have never been energized, installed, or modified in any way.
Used
Parts that show any sign of being energized, installed, assembled with other parts, or functional wear or corrosion. These parts are sold as-is and returns may not be accepted.
Repackaged
Parts from another distributor or wholesaler that are missing the original packaging. These parts have never been energized, installed, or modified in any way and will ship in an ARCA box.
Description
SKU: L19-6880
Brand: Eaton
MPN: 1MP3206R
UPC: 78684905243
Shipping Weight: 143.00 lbs.
Shipping Height: 9.00 In.
Shipping Length: 66.00 In.
Shipping Width: 27.00 In.
Product Notes:
Long Description: Eaton 1MP3206R Meter Sockets
Specifications
TS PIK: |
21530893 |
Series: |
1MP |
Voltage Rating: |
120/240 VAC |
Type: |
Ring |
Size: |
25.48 Inch W x 7.015 Inch D x 64.535 Inch H |
Number of Jaws: |
4 |
Catalog: |
|
Circuit Configuration: |
1-Phase 3-Wire |
CAD Drawings: |
|
Socket Cover Style: |
Ring |
Wire Size: |
1/0 AWG to 300 KCMIL (Aluminum/Copper, Neutral), 14 to 2/0 AWG (Aluminum/Copper, Ground) |
Socket Current Rating: |
200 A |
Approval: |
UL |
Number of Sockets: |
3 |
Country of Origin: |
United States |
Enclosure: |
Nema 3R |
Bypass Switch Type: |
None built-in |
Service Type: |
Single‑phase (single‑phase in / single‑phase out) |
Current Rating: |
200 A |
