Phoenix Contact

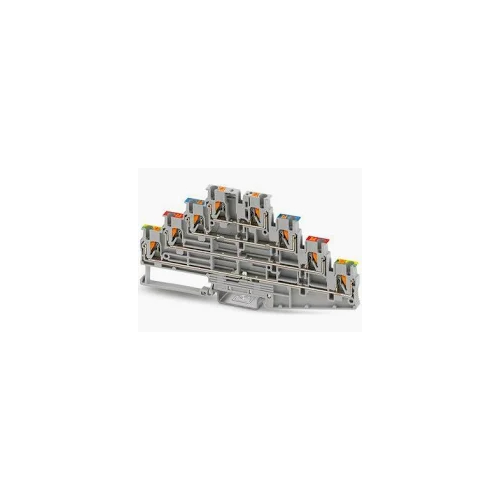

Phoenix Contact 3210499 Multi-Level Terminal Block
- MPN:
- 3210499
- SKU:
- L20-10552
Product Conditions
Surplus
Parts from another distributor or wholesaler that were only removed from the original packaging for inspection and pictures. These parts have never been energized, installed, or modified in any way.
Used
Parts that show any sign of being energized, installed, assembled with other parts, or functional wear or corrosion. These parts are sold as-is and returns may not be accepted.
Repackaged
Parts from another distributor or wholesaler that are missing the original packaging. These parts have never been energized, installed, or modified in any way and will ship in an ARCA box.
Description
SKU: L20-10552
Brand: PHOENIX CONTACT
MPN: 3210499
UPC:
Shipping Weight: 1.95 lbs.
Shipping Height: 6.00 In.
Shipping Length: 10.00 In.
Shipping Width: 5.00 In.
Product Notes:
Long Description: PHOENIX CONTACT 3210499 Terminal Blocks
Specifications
Type: |
Standard |
Wire Strip Length: |
10 MM |
Voltage Rating: |
500 V (IEC), 300 V (UL/CUL/(CSA), 440 V (EX) |
Color: |
Gray |
CAD Drawings: |
|
Construction Standard: |
IEC |
Current Rating: |
20 A (UL/CUL/CSA/IEC), 17 A (Ex) |
Configuration: |
Triple Tier 3-Circuit |
Mounting: |
DIN Rail |
Installation/Operator: |
|
Catalog: |
|
Size: |
102 MM L x 5.2 MM W x 58 MM H (NS 35/7,5), 102 MM L x 5.2 MM W x 65.5 MM H (NS 35/15) |
Housing Material: |
Polyamide |
Terminal Type: |
Push-In |
Temperature Rating: |
130 Deg C (RTI), 125 Deg C (TI) |
Approval: |
UL, CUL, UL (Canada and US), CSA, EAC, VDE, RS, ABS, NK, IECEE CB Scheme, BV,DNV GL, LR |
Wire Size: |
26 to 12 AWG (UL/CUL/CSA) |
