Ferraz Shawmut ATQR3 Fuses
MSRP $26.37Surplus $12.50Ferraz Shawmut ATQR3 Fuses​ ARCA SKU: F16-3562 Brand: Ferraz Shawmut MPN: ATQR3 UPC: 78200190653 Shipping Weight: 0.20 lbs. Shipping...- SKU:
- F16-3562
- Catalog:
- Mersen_00180_PF26_PF27_CAT.pdf
- Series:
- ATQR
- CAD Drawings:
- Mersen_00232_1_CAD.pdf
- Type:
- Class CC Rejection
- Short Description:
- 0.41" x 1.5", 600 VAC, 300 VDC, 50/60 Hz, 3 A, 200 kA Interrupt Rating, GMG Body/Insulating, Tin Plated Copper Connection/Terminal, Ferrule Terminal, Clip Mount, Class CC, Low Vage, Current Limiting, Time Delay Fuse
- Characteristics:
- Time Delay
- Terminal Type:
- Ferrule
- Interrupting Rating:
- 200 kA (AC), 100 kA (DC)
- Current Rating:
- 3 A
- Voltage Rating:
- 600 VAC
- Length:
- 1.5
- Diameter:
- 0.41
- Approval:
- UL 248/248-4, CSA C22.2
- Country of Origin:
- United States
MSRP $26.37Surplus $12.50 -
Ferraz Shawmut A2D45R Fuses EA
MSRP $38.17Surplus $22.64SKU: F16-3697 Brand: Ferraz Shawmut MPN: A2D45R UPC: 78200199092 Shipping Weight: 0.15 lbs. Shipping Height: 1.00 In. Shipping...- SKU:
- F16-3697
- CAD Drawings:
- Mersen_00173_1_CAD.pdf
- Short Description:
- 0.81" x 3", 250 VAC/VDC, 45 A, 200 kA AC/100 kA DC Interrupt, Fiberglass Body, Tin Plated Copper Ferrule Terminal, Clip Mount, Class RK1, Rejection, Current Limiting, Time Delay, Low Vage UL Power Fuse with SmartSpot Visual Indicator (10 per Pack)
- Current Rating:
- 45 A
- Interrupting Rating:
- 200 kA (AC), 100 kA (DC)
- Series:
- A2D-R
- Data Sheet:
- Mersen_00050_PF8_PF9_DATA.pdf
- Characteristics:
- Time Delay
- Terminal Type:
- Ferrule
- Catalog:
- Mersen_00086_189_CAT.pdf
- Type:
- Class RK1
- TS PIK:
- 110477831
- Voltage Rating:
- 250 VAC/DC
- Length:
- 3
- Diameter:
- 0.81
- Approval:
- UL 248/248-12, CSA C22.2
MSRP $38.17Surplus $22.64 -
Ferraz Shawmut TR250R Fuses EA
MSRP $299.82Surplus $42.26SKU: F16-3603 Brand: Ferraz Shawmut MPN: TR250R UPC: 78200174812 Shipping Weight: 1.85 lbs. Shipping Height: 2.25 In. Shipping...- SKU:
- F16-3603
- Short Description:
- 2.06" x 8.63", 250 VAC 50/60 Hz/250 VDC, 250 A, 200 kA AC/20 kA DC Interrupt, PolyTube Body, Tin Plated Copper Blade Terminal, Clip Mount, Class RK5, Rejection, Current Limiting, Time Delay, Low Vage UL Power Fuse (1 per Pack)
- Data Sheet:
- Mersen_00090_PF12_PF13_DATA.pdf
- Interrupting Rating:
- 200 kA (AC), 20 kA (DC)
- Type:
- Class RK5
- Terminal Type:
- Blade
- CAD Drawings:
- Mersen_00257_1_CAD.pdf
- Current Rating:
- 250 A
- Characteristics:
- Current Limiting, Time Delay
- Catalog:
- Mersen_00086_191_CAT.pdf
- TS PIK:
- 528372
- Diameter:
- 2.06
- Voltage Rating:
- 250 VAC 50/60 Hertz, 250 VDC
- Length:
- 8.63
- Approval:
- UL 248/248-12, CSA C22.2
- Country of Origin:
- United States
MSRP $299.82Surplus $42.26 -
Ferraz Shawmut A3T500 Fuses EA
MSRP $417.20Surplus $138.80SKU: F16-3458 Brand: Ferraz Shawmut MPN: A3T500 UPC: 78200189030 Shipping Weight: 0.50 lbs. Shipping Height: 2.00 In. Shipping...- SKU:
- F16-3458
- Type:
- Class T
- Short Description:
- 1.62" x 3.06", 300 VAC/160 VDC, 500 A, 200 kA AC/50 kA DC Interrupt, GMG Body, Copper Blade Terminal, Bolted Mount, Class T, Current Limiting, Fast Acting, Low Vage UL Power Fuse (1 per Pack)
- Characteristics:
- Fast Acting
- Interrupting Rating:
- 200 kA (AC), 50 kA (DC)
- Series:
- A3T
- Terminal Type:
- Blade
- Catalog:
- Mersen_00086_195_CAT.pdf
- Data Sheet:
- Mersen_00052_PF32_PF33_DATA.pdf
- CAD Drawings:
- Mersen_00342_1_CAD.pdf
- Current Rating:
- 500 A
- TS PIK:
- 110477043
- Length:
- 3.06
- Voltage Rating:
- 300 VAC, 160 VDC
- Diameter:
- 1.62
- Approval:
- UL 248/248-15, CSA C22.2
MSRP $417.20Surplus $138.80 -
Ferraz Shawmut ATQ12 Fuses
MSRP $230.00Surplus $0.00Ferraz Shawmut ATQ12 Fuses​ ARCA SKU: F16-2365 Brand: Ferraz Shawmut MPN: ATQ12 UPC: 78200190459 Shipping Weight: 0.20 lbs. Shipping...- SKU:
- F16-2365
- Catalog:
- Mersen_00086_198_CAT.pdf
- Short Description:
- 0.41" x 1.5", 500 VAC, 12 A, 10 kA Interrupt Rating, GMG Body, Tin Plated Copper Ferrule Terminal, Clip Mount, Time Delay, Midget Fuse
- CAD Drawings:
- Mersen_00136_1_CAD.pdf
- Interrupting Rating:
- 10 kA
- Current Rating:
- 12 A
- Terminal Type:
- Ferrule
- Characteristics:
- Time Delay
- Data Sheet:
- Mersen_00180_MF2_DATA.pdf
- Series:
- ATQ
- Voltage Rating:
- 500 VAC 50/60 Hertz
- Interrupt Rating:
- 10 kA
- Diameter:
- 0.41
- Length:
- 1.5
- Approval:
- UL 248-14, CSA C22.2
MSRP $230.00Surplus $0.00 -
Ferraz Shawmut AJT10 Fuses EA
MSRP $51.06Surplus $25.52SKU: F16-3973 Brand: Ferraz Shawmut MPN: AJT10 UPC: 78200196272 Shipping Weight: 1.00 lbs. Shipping Height: 2.00 In. Shipping...- SKU:
- F16-3973
- Terminal Type:
- Ferrule
- Interrupting Rating:
- 200 kA (AC), 100 kA (DC)
- Type:
- Class J
- Characteristics:
- Time Delay, Current Limiting
- Current Rating:
- 10 A
- Short Description:
- 0.81" x 2.25", 600 VAC 50/60 Hz/500 VDC, 10 A, 200 kA AC/100 kA DC Interrupt, GMG Body, Tin Plated Copper Ferrule Terminal, Clip Mount, Class J, Current Limiting, Time Delay, Low Vage UL Power Fuse with SmartSpot Visual Blown Indicator (5 per Pack)
- Series:
- AJT
- Catalog:
- Mersen_00086_192_CAT.pdf
- CAD Drawings:
- Mersen_00175_1_CAD.pdf
- Data Sheet:
- Mersen_00063_1_2_DATA.pdf
- TS PIK:
- 110477773
- Length:
- 2.25
- Voltage Rating:
- 600 VAC 50/60 Hertz, 500 VDC
- Diameter:
- 0.813
- Approval:
- UL 248/248-8, CSA C22.2
MSRP $51.06Surplus $25.52 -
Ferraz Shawmut ATQR3/16 Fuses
MSRP $55.14Surplus $9.41SKU: F16-3849 Brand: Ferraz Shawmut MPN: ATQR3/16 UPC: 78200190629 Shipping Weight: 0.05 lbs. Shipping Height: 1.00 In. Shipping...- SKU:
- F16-3849
- Characteristics:
- Time Delay
- Terminal Type:
- Ferrule
- Current Rating:
- 0.1875 A
- Series:
- ATQR
- Catalog:
- Mersen_00086_194_CAT.pdf
- Data Sheet:
- Mersen_00068_PF26_PF27_DATA.pdf
- Short Description:
- 0.41" x 1.5", 600 VAC, 300 VDC, 3/16 A, 200 kA/100 kA Interrupt, GMG Body, Tin Plated Copper Ferrule Terminal, Clip Mount, Class CC, Time Delay, Control Transformer Fuse
- Type:
- Class CC Rejection
- Interrupting Rating:
- 200 kA (AC)/100 kA (DC)
- CAD Drawings:
- Mersen_00232_1_CAD.pdf
- TS PIK:
- 115439329
- Diameter:
- 0.41
- Voltage Rating:
- 600 VAC, 300 VDC
- Length:
- 1.5
- Approval:
- UL 248-4, CSA C22.2
- Country of Origin:
- United States
MSRP $55.14Surplus $9.41 -
Ferraz Shawmut ATQR5 Fuses
MSRP $43.67Surplus $21.73SKU: F16-3566 Brand: Ferraz Shawmut MPN: ATQR5 UPC: 78200190658 Shipping Weight: 0.15 lbs. Shipping Height: 1.00 In. Shipping...- SKU:
- F16-3566
- Characteristics:
- Time Delay
- Data Sheet:
- Mersen_00068_PF26_PF27_DATA.pdf
- Interrupting Rating:
- 200 kA (AC), 100 kA (DC)
- Type:
- Class CC Rejection
- Catalog:
- Mersen_00086_194_CAT.pdf
- Current Rating:
- 5 A
- CAD Drawings:
- Mersen_00232_1_CAD.pdf
- Series:
- ATQR
- Short Description:
- 0.41" x 1.5", 600 VAC, 300 VDC, 5 A, 200 kA/100 kA Interrupt, GMG Body, Tin Plated Copper Ferrule Terminal, Clip Mount, Class CC, Time Delay, Control Transformer Fuse
- Terminal Type:
- Ferrule
- TS PIK:
- 110477296
- Voltage Rating:
- 600 VAC 50/60 Hertz, 300 VDC
- Diameter:
- 0.41
- Length:
- 1.5
- Approval:
- UL 248/248-4, CSA C22.2, CE
MSRP $43.67Surplus $21.73 -
Contact Us For Quote

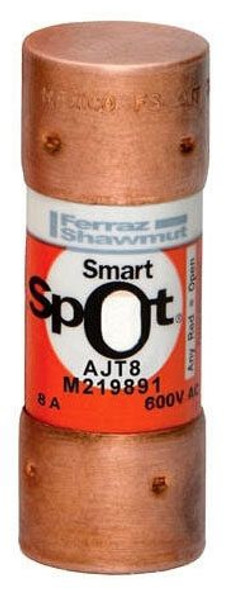

Ferraz Shawmut AJT8 Fuses EA
MSRP $57.73Surplus $29.62SKU: F16-3981 Brand: Ferraz Shawmut MPN: AJT8 UPC: 78200196309 Shipping Weight: 0.80 lbs. Shipping Height: 2.00 In. Shipping...- SKU:
- F16-3981
- Interrupting Rating:
- 200 kA (AC), 100 kA (DC)
- CAD Drawings:
- Mersen_00175_1_CAD.pdf
- Short Description:
- 0.81" x 2.25", 600 VAC 50/60 Hz/500 VDC, 8 A, 200 kA AC/100 kA DC Interrupt, GMG Body, Tin Plated Copper Ferrule Terminal, Clip Mount, Class J, Current Limiting, Time Delay, Low Vage UL Power Fuse with SmartSpot Visual Blown Indicator (10 per Pack)
- Series:
- AJT
- Terminal Type:
- Ferrule
- Characteristics:
- Time Delay, Current Limiting
- Catalog:
- Mersen_00086_192_CAT.pdf
- Current Rating:
- 8 A
- Data Sheet:
- Mersen_00063_1_2_DATA.pdf
- Type:
- Class J
- TS PIK:
- 110477788
- Diameter:
- 0.813
- Voltage Rating:
- 600 VAC 50/60 Hertz, 500 VDC
- Length:
- 2.25
- Approval:
- UL 248/248-8, CSA C22.2
MSRP $57.73Surplus $29.62 -
Contact Us For Quote
Ferraz Shawmut 266 Fuse Accessories Red EA
MSRP $309.19Surplus $159.70Ferraz Shawmut 266 Fuse Accessories Red EA​ ARCA SKU: O28-4416 Brand: Ferraz Shawmut MPN: 266 UPC: 78200175235 Shipping Weight: 0.50 lbs...- SKU:
- O28-4416
- Type:
- Hinged
- Short Description:
- Hinged Ceiling Plate, Steel
- Catalog:
- GENRIHE00001_25.pdf
- Size:
- 1-1/2 Inch CWT
- Material:
- Steel
MSRP $309.19Surplus $159.70 -
Ferraz Shawmut ATQR10 Fuses
MSRP $46.04Surplus $13.31SKU: F16-3557 Brand: Ferraz Shawmut MPN: ATQR10 UPC: 78200190666 Shipping Weight: 0.20 lbs. Shipping Height: 1.00 In. Shipping...- SKU:
- F16-3557
- Current Rating:
- 10 A
- Type:
- Class CC Rejection
- Terminal Type:
- Ferrule
- Series:
- ATQR
- Interrupting Rating:
- 200 kA (AC), 100 kA (DC)
- Catalog:
- Mersen_00180_PF26_PF27_CAT.pdf
- Characteristics:
- Time Delay
- Short Description:
- 0.41" x 1.5", 600 VAC, 300 VDC, 50/60 Hz, 10 A, 200 kA Interrupt Rating, GMG Body/Insulating, Tin Plated Copper Connection/Terminal, Ferrule Terminal, Clip Mount, Class CC, Low Vage, Current Limiting, Time Delay Fuse
- CAD Drawings:
- Mersen_00232_1_CAD.pdf
- TS PIK:
- 110477304
- Diameter:
- 0.41
- Length:
- 1.5
- Voltage Rating:
- 600 VAC, 300 VDC
- Approval:
- UL 248/248-4, CSA C22.2
- Country of Origin:
- United States
MSRP $46.04Surplus $13.31 -
Ferraz Shawmut ATQR1 Fuses
MSRP $33.19Surplus $14.37SKU: E30-7853 Brand: Ferraz Shawmut MPN: ATQR1 UPC: 78200190637 Shipping Weight: 0.15 lbs. Shipping Height: 1.00 In. Shipping...- SKU:
- E30-7853
- Series:
- ATQR
- Catalog:
- Mersen_00086_194_CAT.pdf
- Interrupting Rating:
- 200 kA (AC), 100 kA (DC)
- Characteristics:
- Time Delay
- Current Rating:
- 1 A
- CAD Drawings:
- Mersen_00232_1_CAD.pdf
- Data Sheet:
- Mersen_00068_PF26_PF27_DATA.pdf
- Short Description:
- 0.41" x 1.5", 600 VAC, 300 VDC, 1 A, 200 kA/100 kA Interrupt, GMG Body, Tin Plated Copper Ferrule Terminal, Clip Mount, Class CC, Time Delay, Control Transformer Fuse
- Type:
- Class CC Rejection
- Terminal Type:
- Ferrule
- TS PIK:
- 110477275
- Diameter:
- 0.41
- Length:
- 1.5
- Voltage Rating:
- 600 VAC 50/60 Hertz, 300 VDC
- Approval:
- UL 248/248-4, CSA C22.2, CE
- Country of Origin:
- United States
MSRP $33.19Surplus $14.37
