Square D

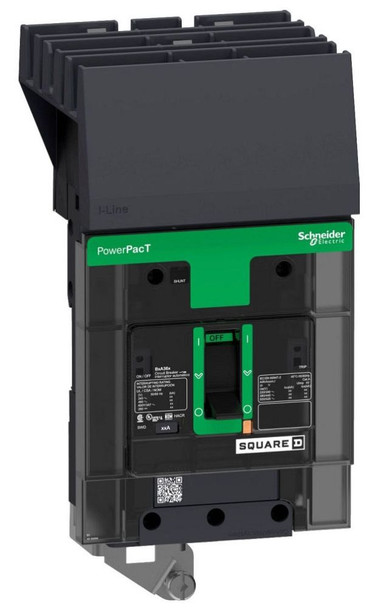

Square D BDA34050Y Molded Case Breakers (MCCBs) EA

480 Star/277 VAC 50/60 Hz, 250 VDC, 50 A, 18 kA, 3-Pole, B-Frame, ABC Phase, I-Line Connection Line Lug Load Terminal, Thermal Magnetic, Molded Case Circuit Breaker
MPN:
BDA34050Y
UPC:
3606481152688
SKU:
C15-10988
Stock images are representative
Surplus $675.00

Condition: Learn about our conditions

Product Conditions

Surplus

Parts from another distributor or wholesaler that were only removed from the original packaging for inspection and pictures. These parts have never been energized, installed, or modified in any way.

Parts from another distributor or wholesaler that were only removed from the original packaging for inspection and pictures. These parts have never been energized, installed, or modified in any way.

Used

Parts that show any sign of being energized, installed, assembled with other parts, or functional wear or corrosion. These parts are sold as-is and returns may not be accepted.

Parts that show any sign of being energized, installed, assembled with other parts, or functional wear or corrosion. These parts are sold as-is and returns may not be accepted.

Repackaged

Parts from another distributor or wholesaler that are missing the original packaging. These parts have never been energized, installed, or modified in any way and will ship in an ARCA box.

Parts from another distributor or wholesaler that are missing the original packaging. These parts have never been energized, installed, or modified in any way and will ship in an ARCA box.

Description

Square D BDA34050Y Molded Case Breakers (MCCBs) EA​

ARCA SKU:  C15-10988

Brand:  Square D

MPN:  BDA34050Y

UPC:  3606481152688

Shipping Weight:  3.85 lbs.

Shipping Height:  6.00 In.

Shipping Length:  12.00 In.

Shipping Width:  8.00 In.

Product Notes:

Long Description:  Square D BDA34050Y Molded Case Breakers (MCCBs) EA

Disclaimer: ARCA Supply is not an authorized distributor, reseller or representative of any manufacturer, brand or product listed.  All product names, trademarks, brands and logos are the property of their respective owners.  The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.  All items sold by ARCA Supply are covered under ARCA Supply's warranty and not the manufacturer warranty.

View AllClose

Specifications

TS PIK:
127013796
Voltage Rating:
480 Star/277 V AC 50/60 Hertz, 250 V DC
Maximum DC Voltage Rating:
250 V
Installation/Operator:
SchneiderElectric-SquareD_00008_INST.pdf
Maximum AC Voltage Rating:
277 V
Data Sheet:
SchneiderElectric-SquareD_34831_1-4_DATA.pdf
Interrupting Rating:
18 kA at 480 Star/277 V AC, 10 kA at 250 V DC
Terminal Type:
I-Line Connection Line Lug Load
Frame Type:
B
Current Rating:
50 A
CAD Drawings:
SchneiderElectric-SquareD_73459_1_CAD.pdf
Catalog:
SchneiderElectric-SquareD_32357_7_31_7_32_CAT.pdf
Size:
3.19 Inch Width x 3.5 Inch Depth x 5.39 Inch Height
Number of Poles:
3
Type:
Thermal Magnetic
Series:
BD
